Power Source: Notes

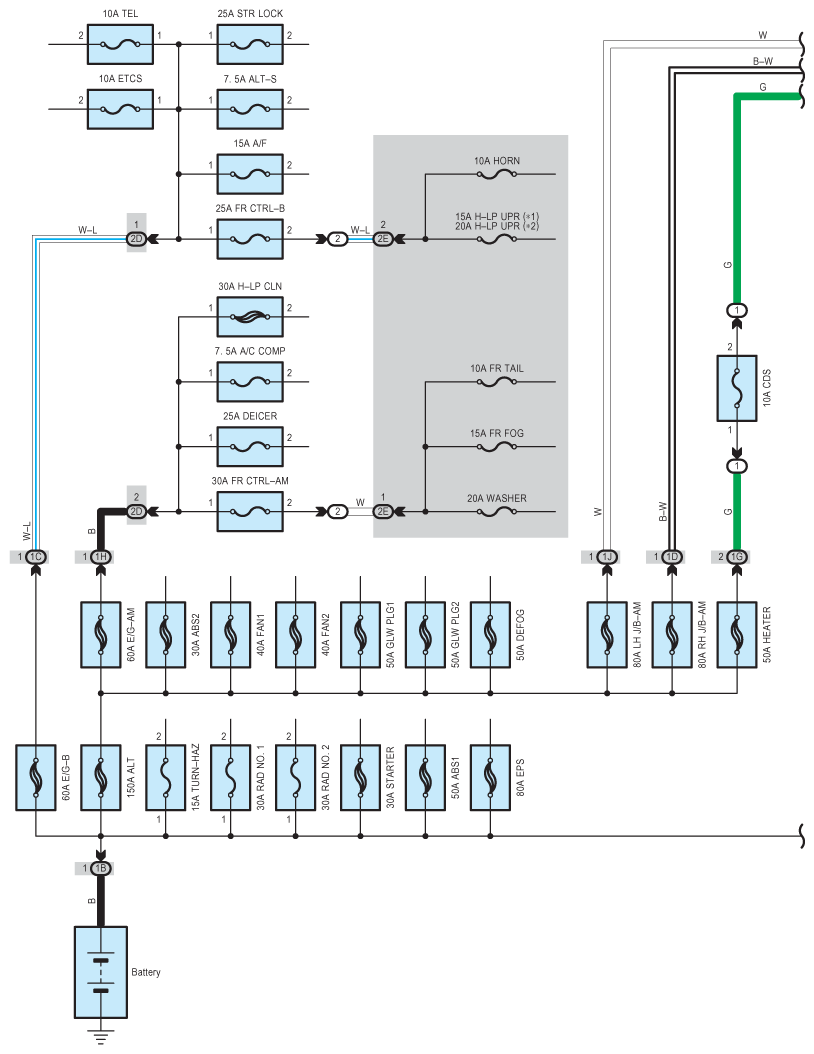

Fig 1: Power Source System Wiring Diagram (1 Of 5)
G09118939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

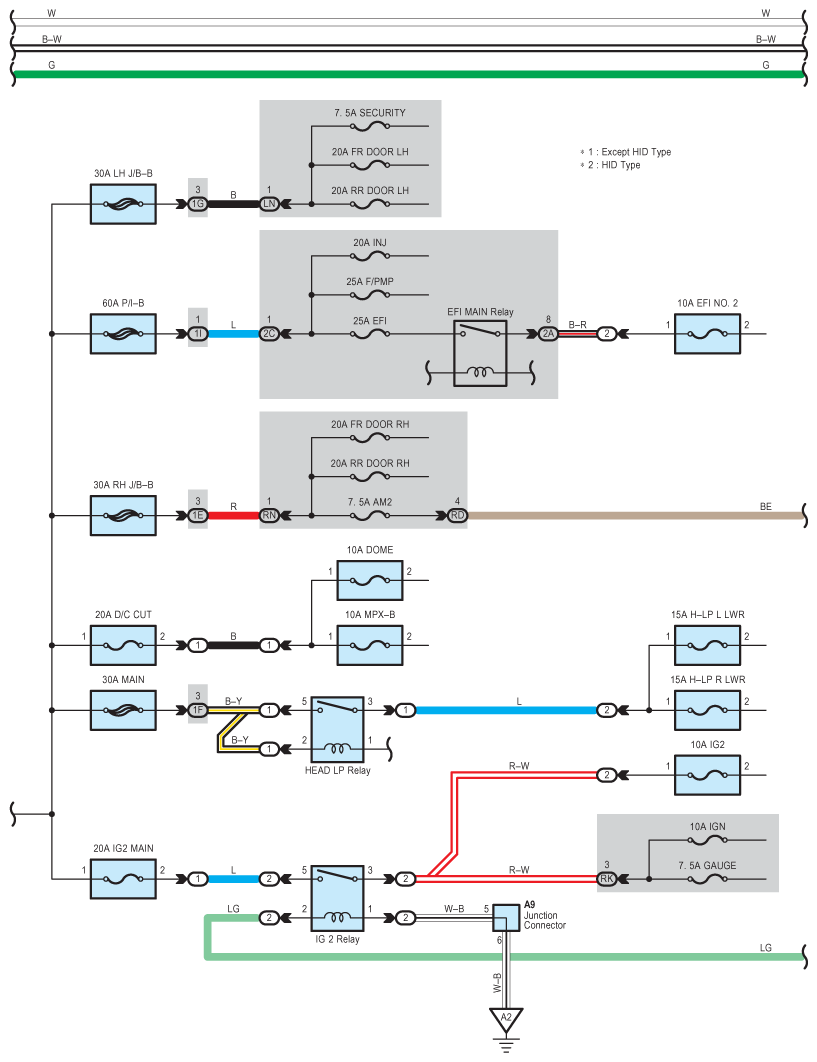

Fig 2: Power Source System Wiring Diagram (2 Of 5)
G09118940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

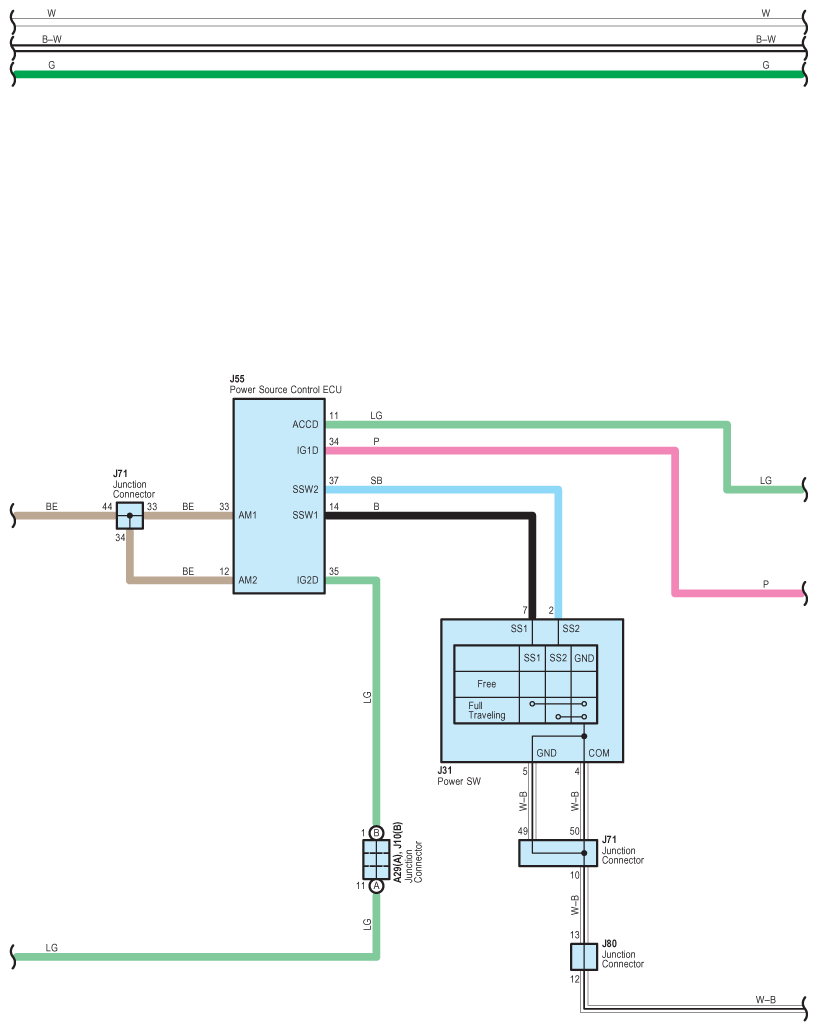

Fig 3: Power Source System Wiring Diagram (3 Of 5)
G09118941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

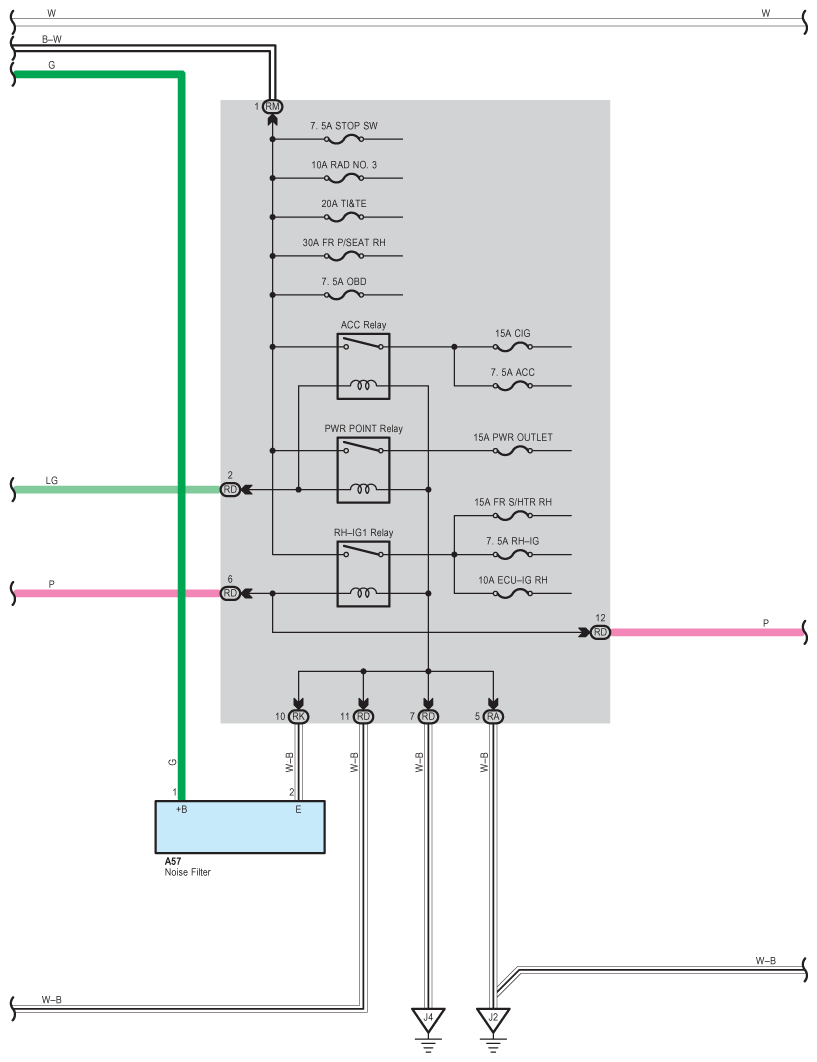

Fig 4: Power Source System Wiring Diagram (4 Of 5)
G09118942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

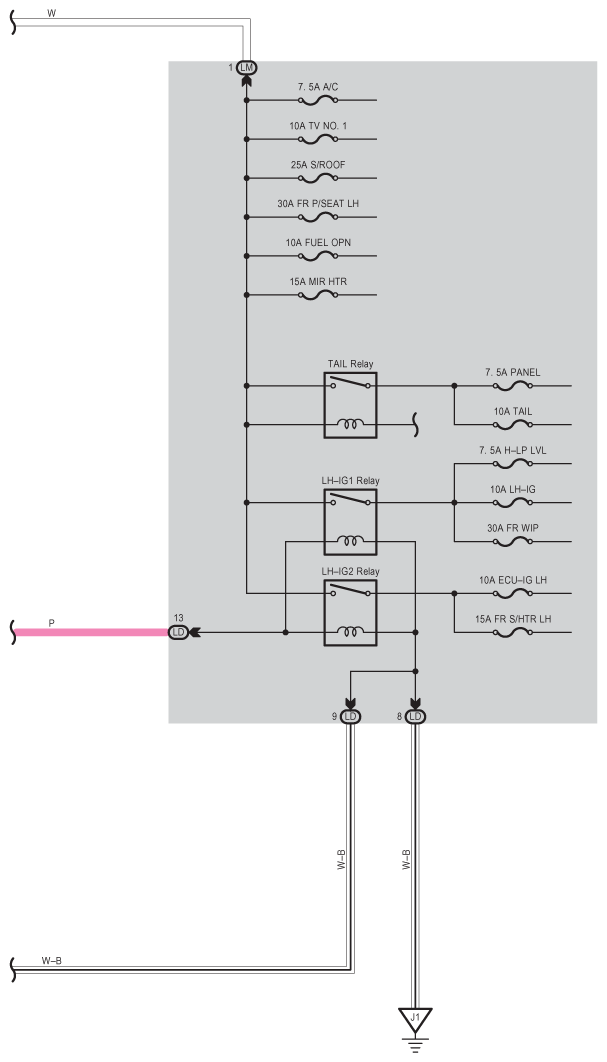

Fig 5: Power Source System Wiring Diagram (5 Of 5)
G09118943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
