Engine Control (4GR-FSE): Notes

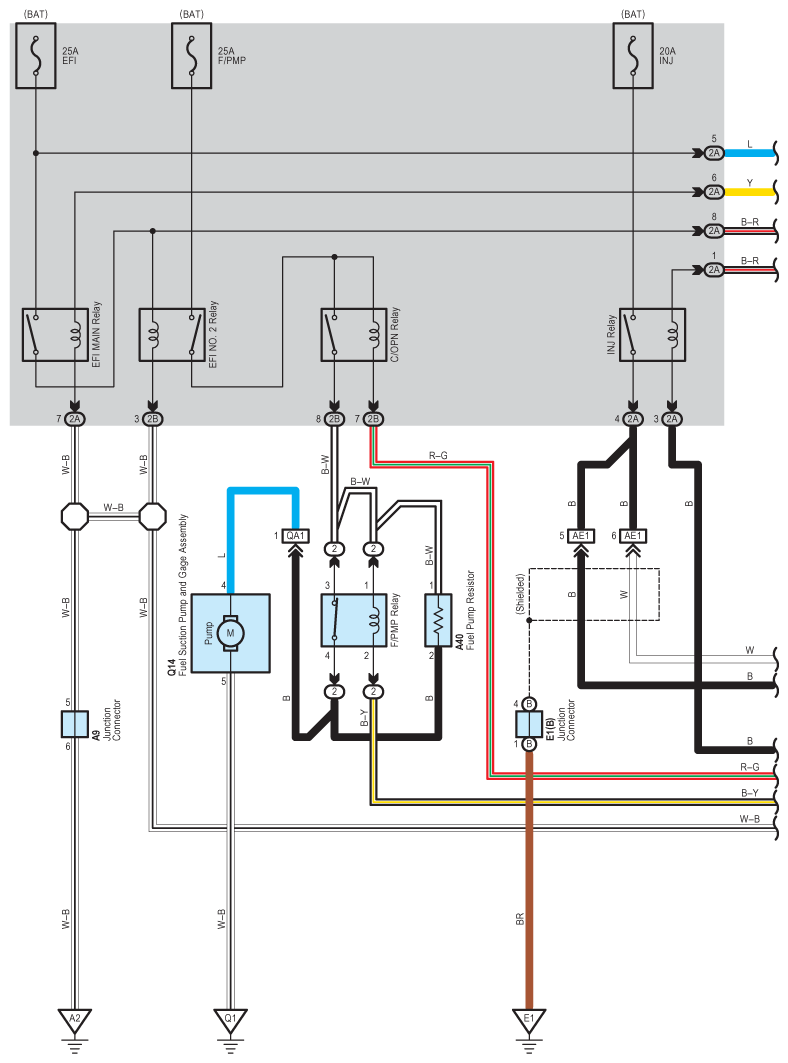

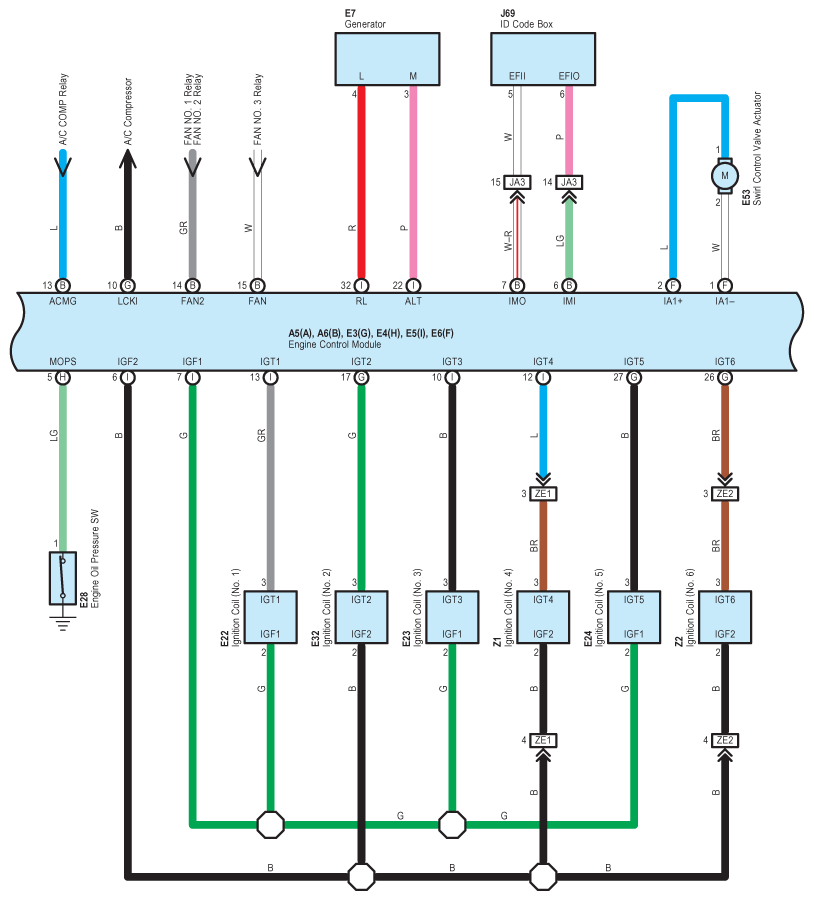

Fig 1: Engine Control (4GR-FSE) System Wiring Diagram (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

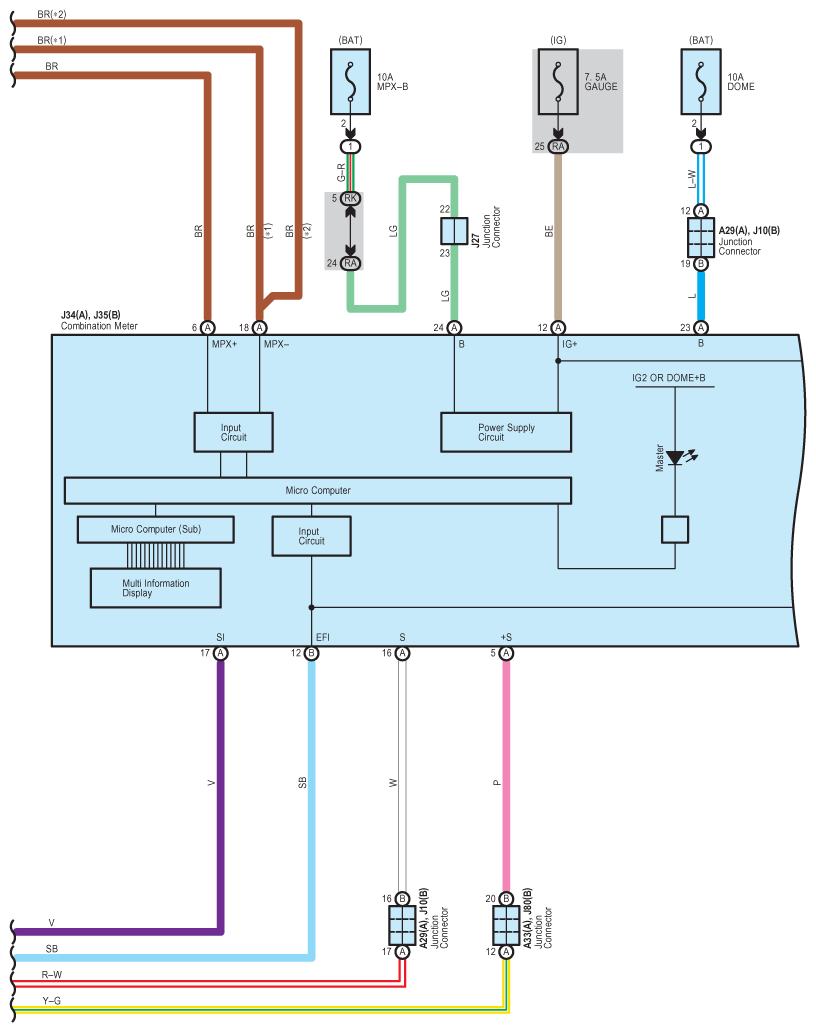

Fig 2: Engine Control (4GR-FSE) System Wiring Diagram (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

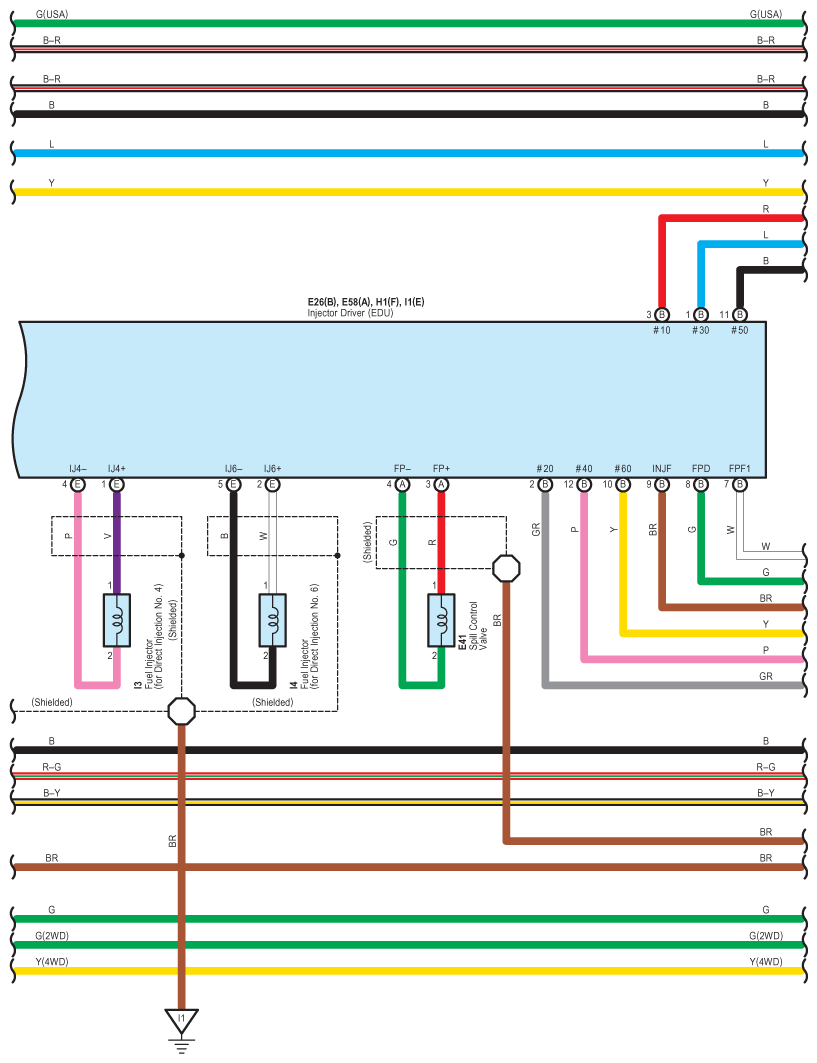

Fig 3: Engine Control (4GR-FSE) System Wiring Diagram (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

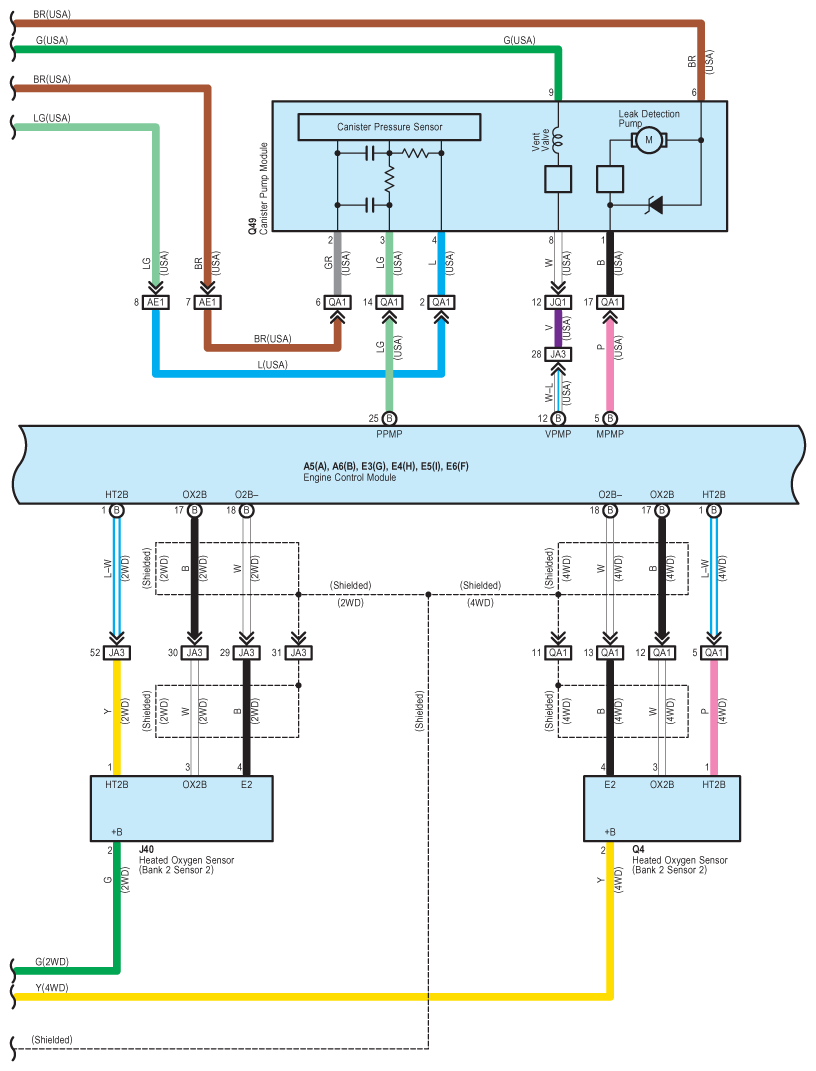

Fig 4: Engine Control (4GR-FSE) System Wiring Diagram (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

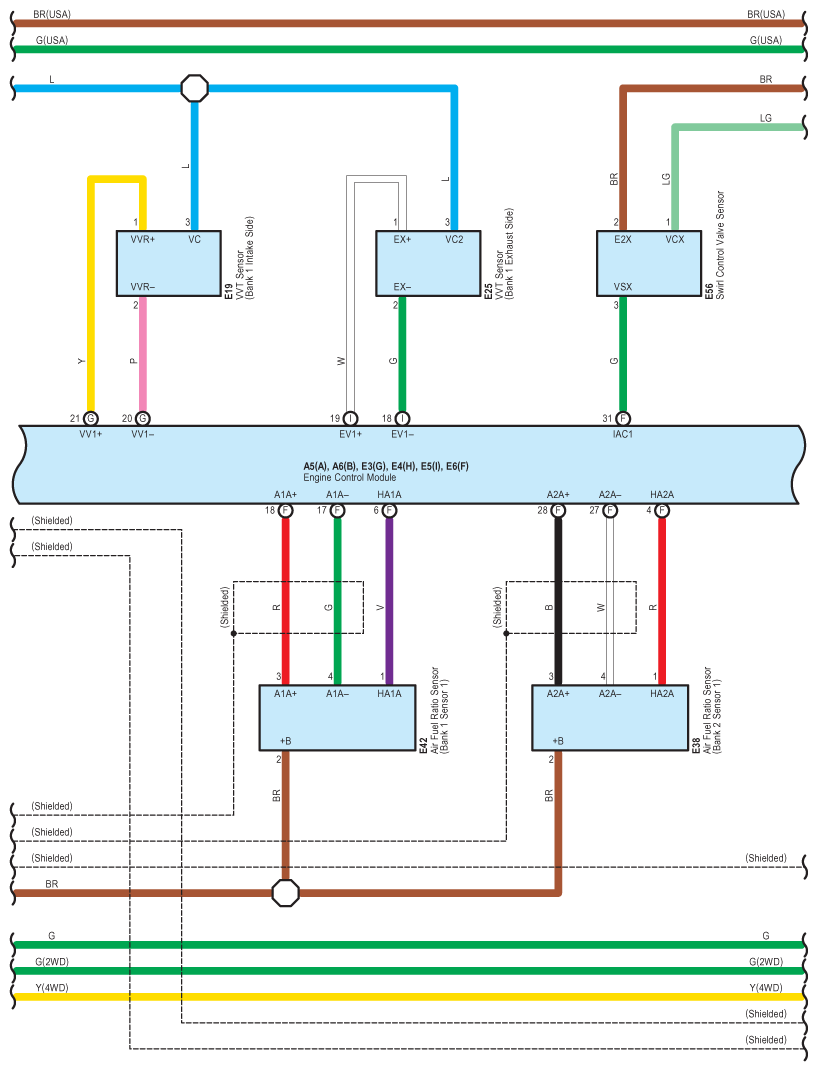

Fig 5: Engine Control (4GR-FSE) System Wiring Diagram (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

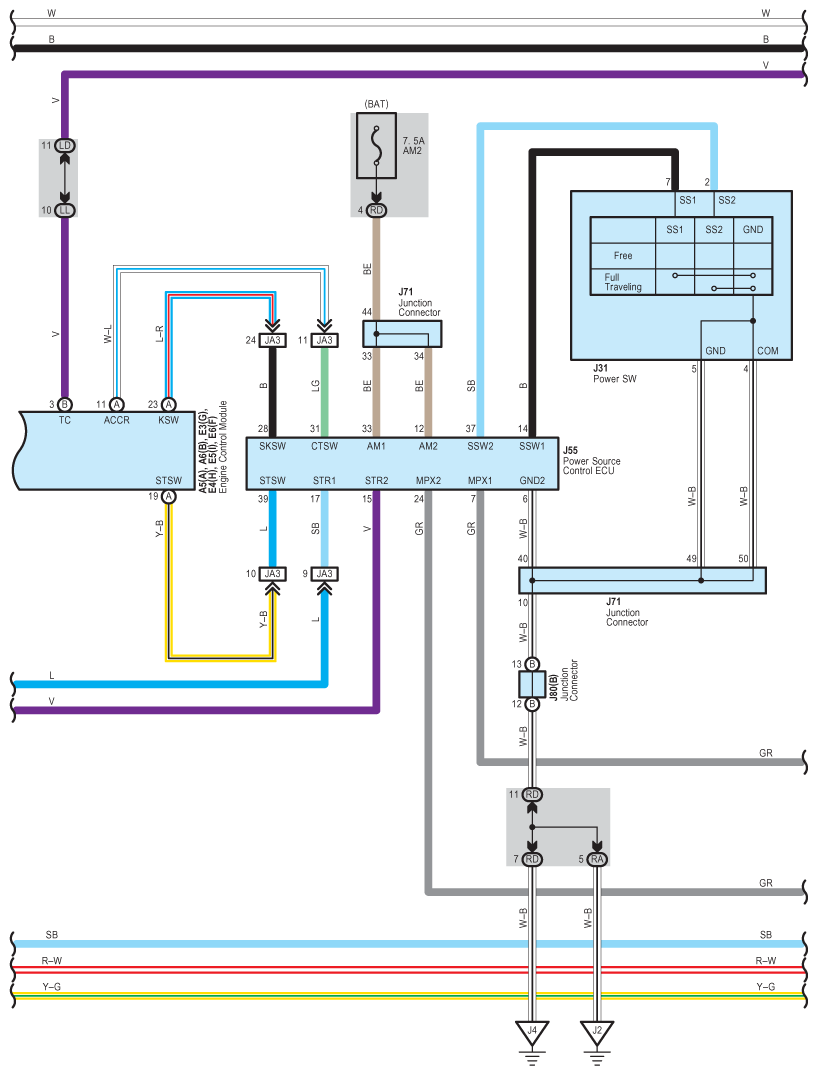

Fig 6: Engine Control (4GR-FSE) System Wiring Diagram (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

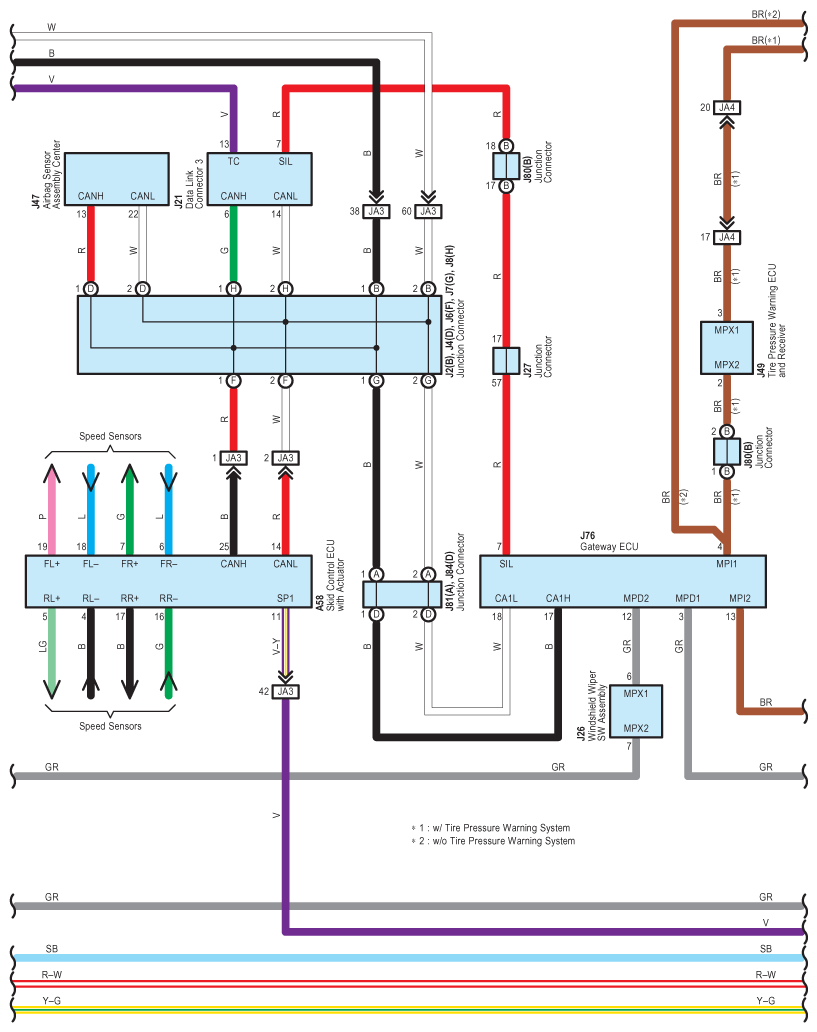

Fig 7: Engine Control (4GR-FSE) System Wiring Diagram (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

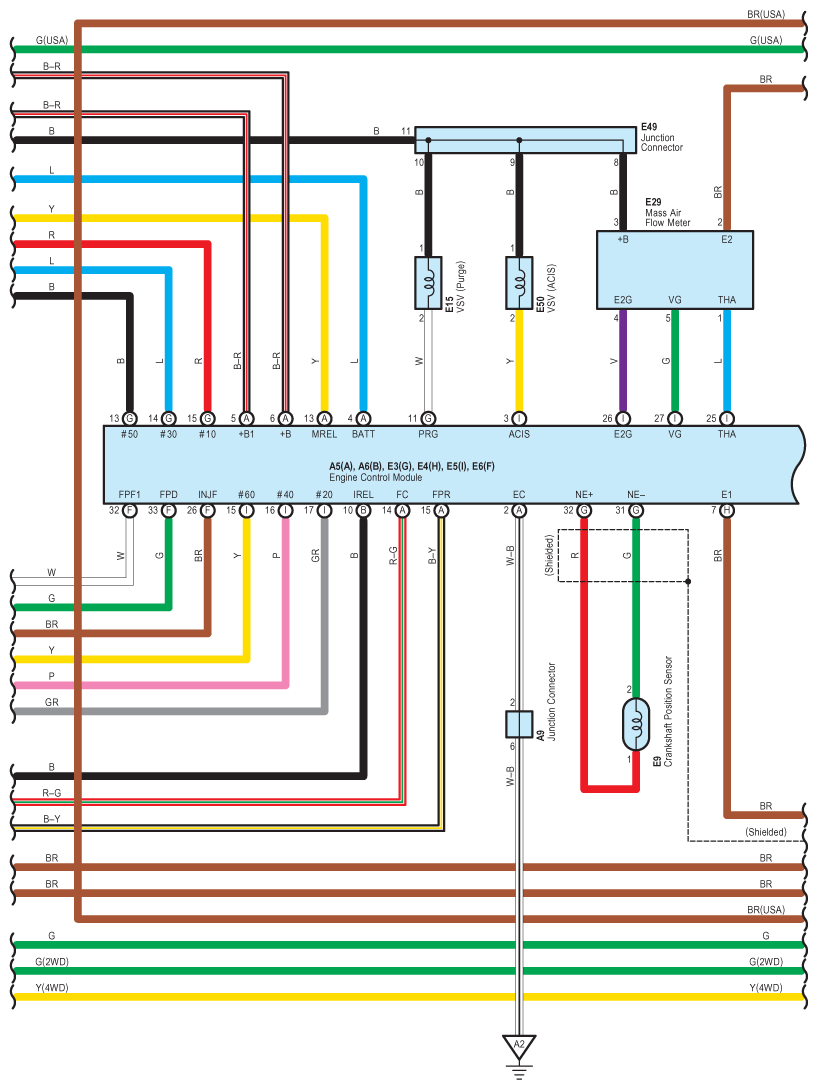

Fig 8: Engine Control (4GR-FSE) System Wiring Diagram (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

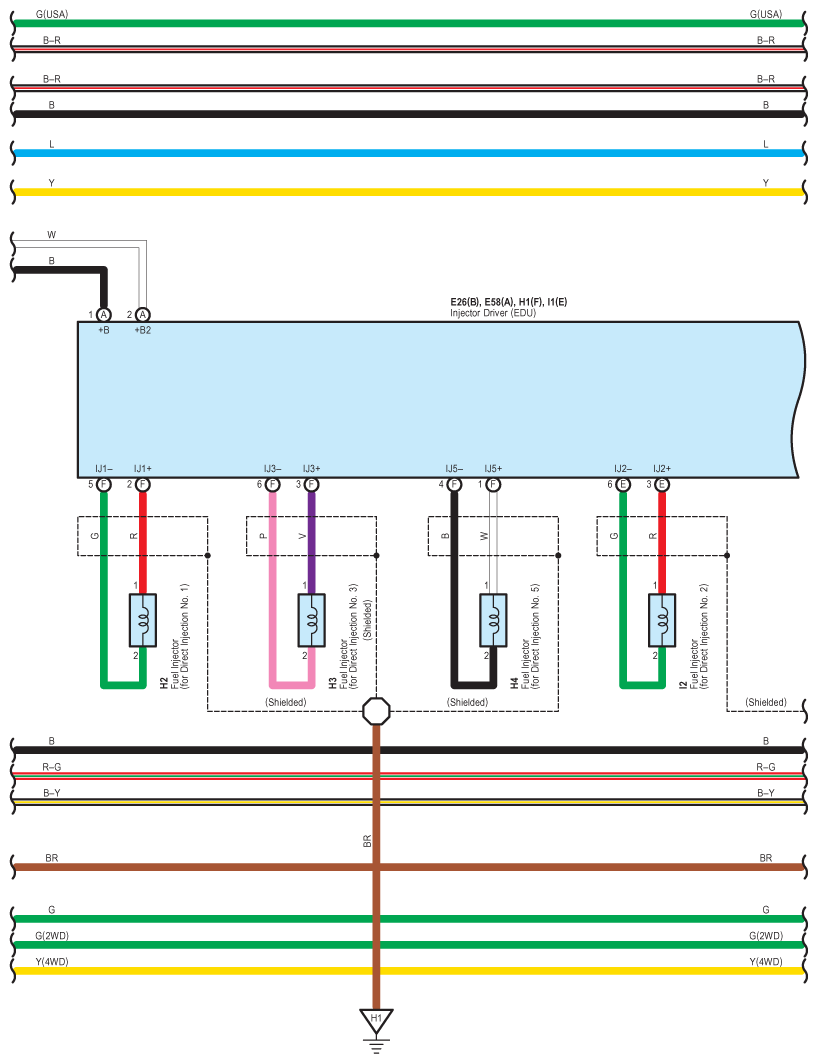

Fig 9: Engine Control (4GR-FSE) System Wiring Diagram (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

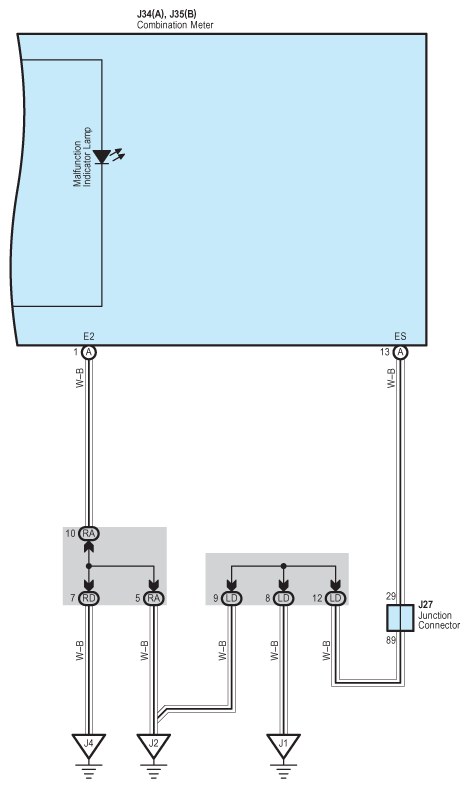

Fig 10: Engine Control (4GR-FSE) System Wiring Diagram (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

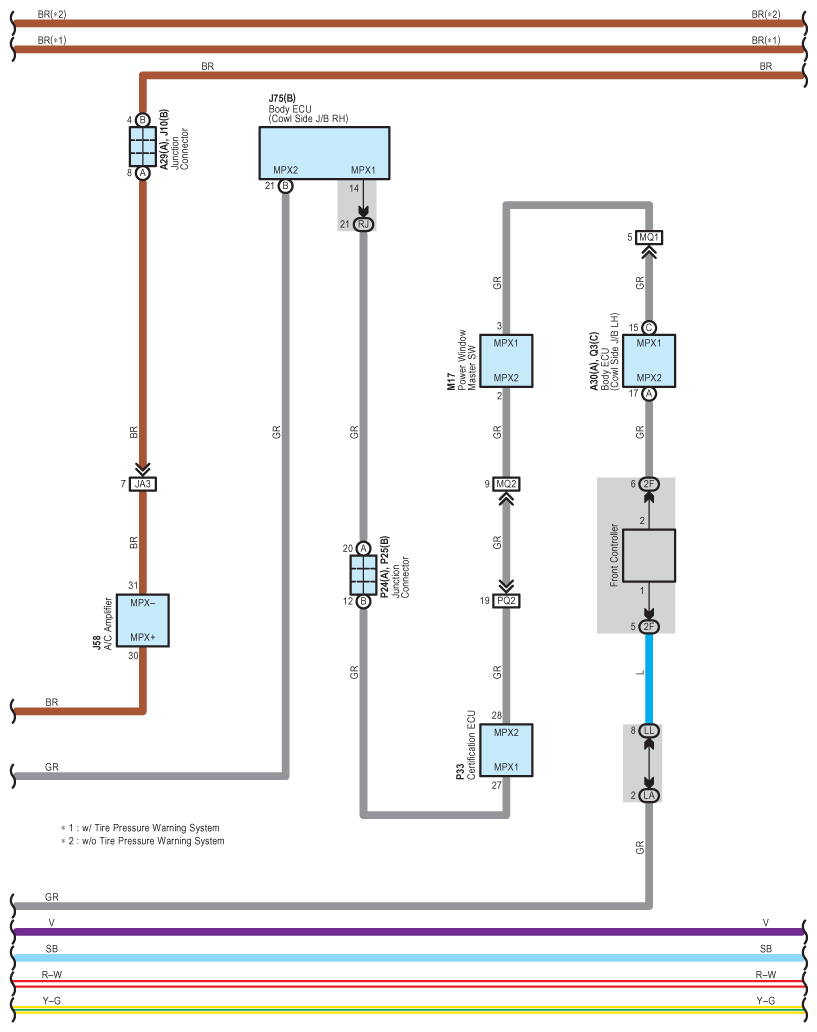

Fig 11: Engine Control (4GR-FSE) System Wiring Diagram (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

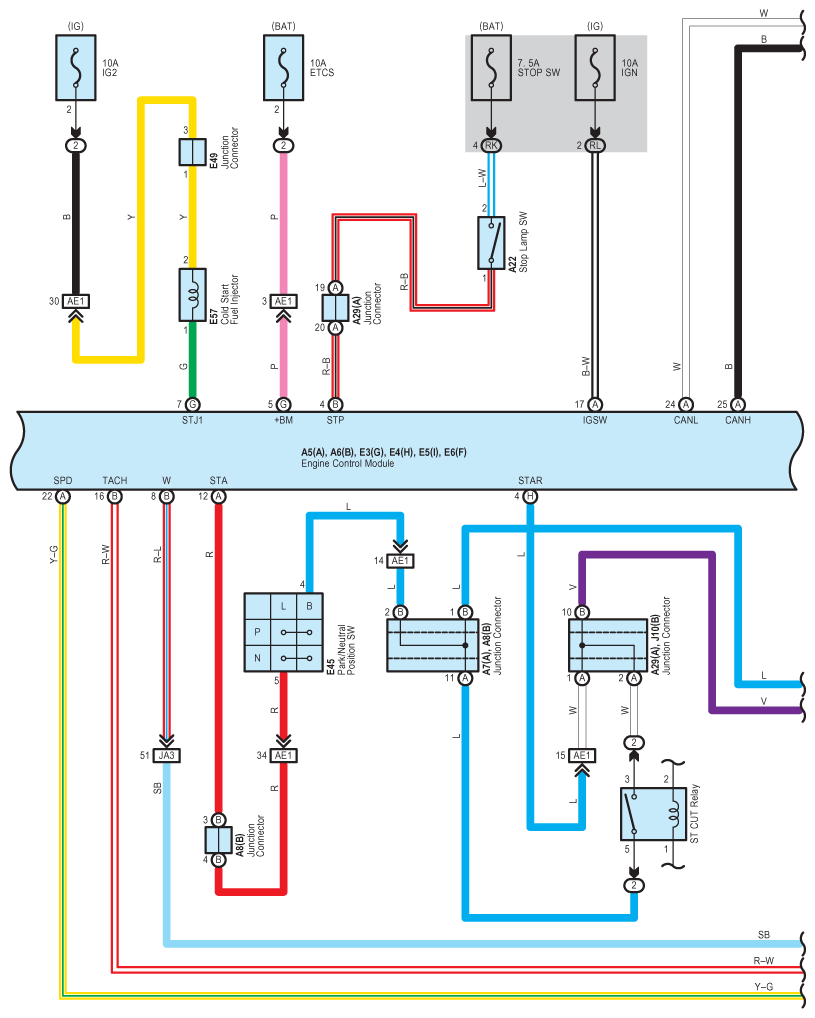

Fig 12: Engine Control (4GR-FSE) System Wiring Diagram (12 Of 17)

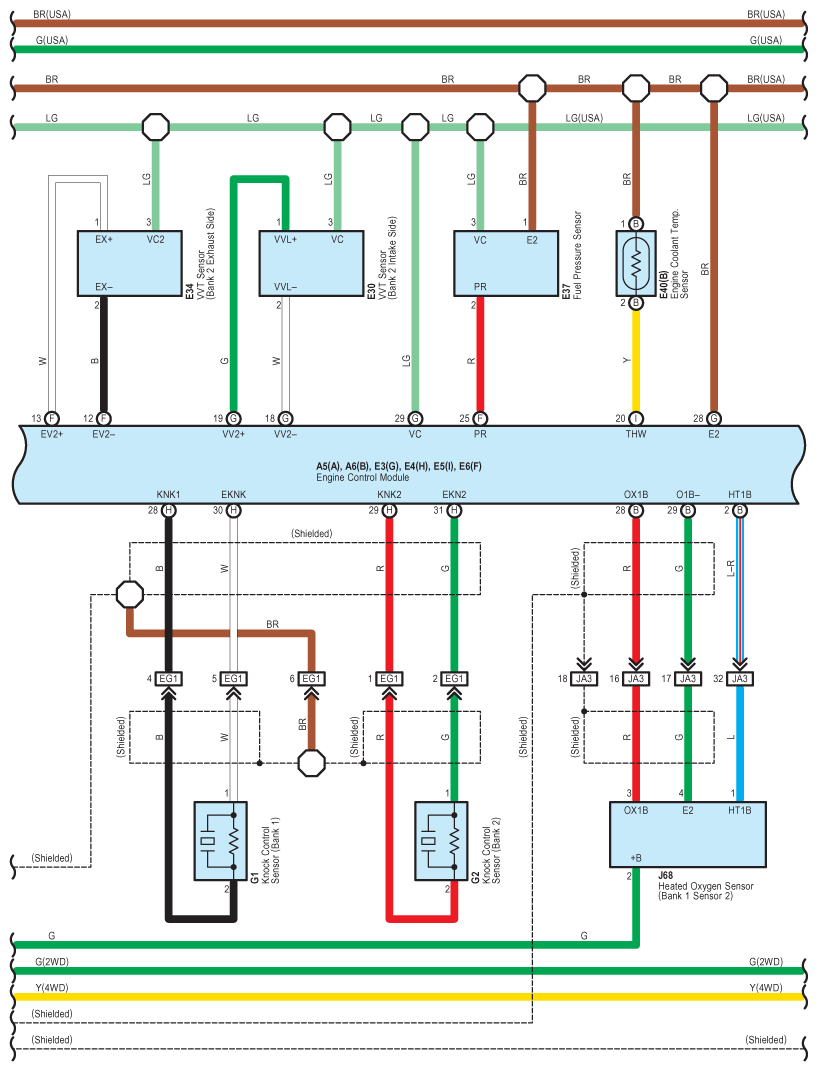

Fig 13: Engine Control (4GR-FSE) System Wiring Diagram (13 Of 17)

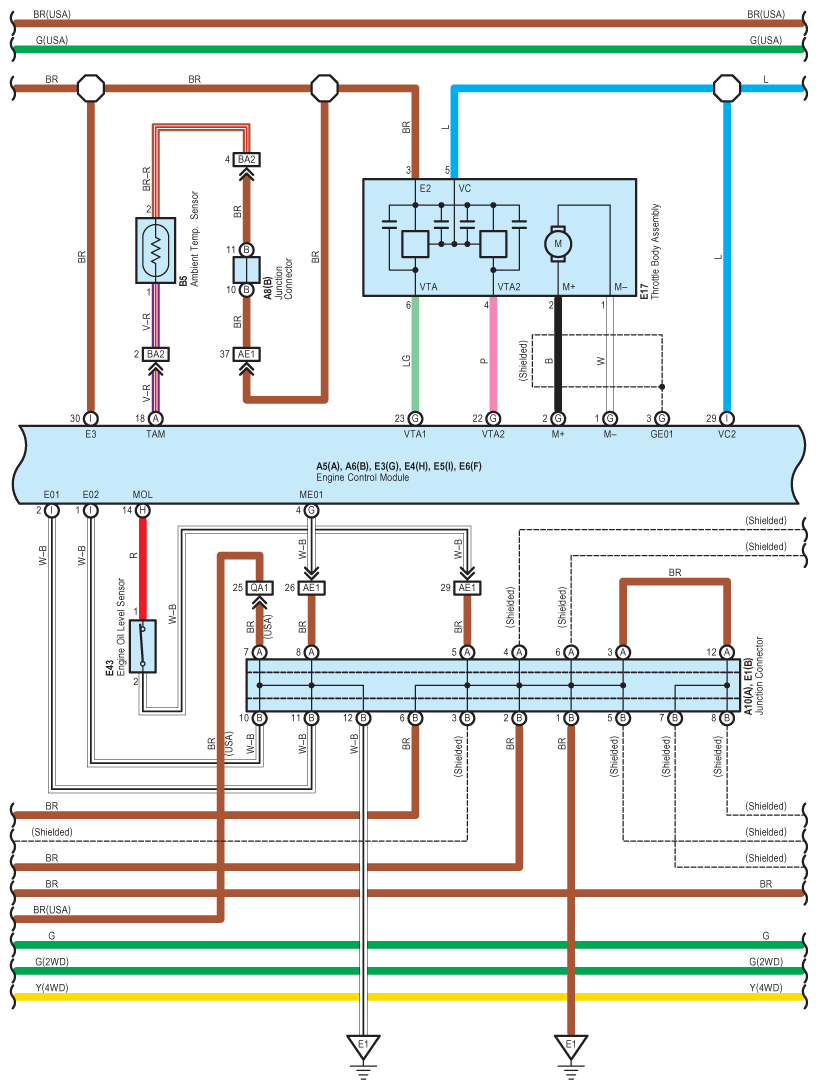

Fig 14: Engine Control (4GR-FSE) System Wiring Diagram (14 Of 17)

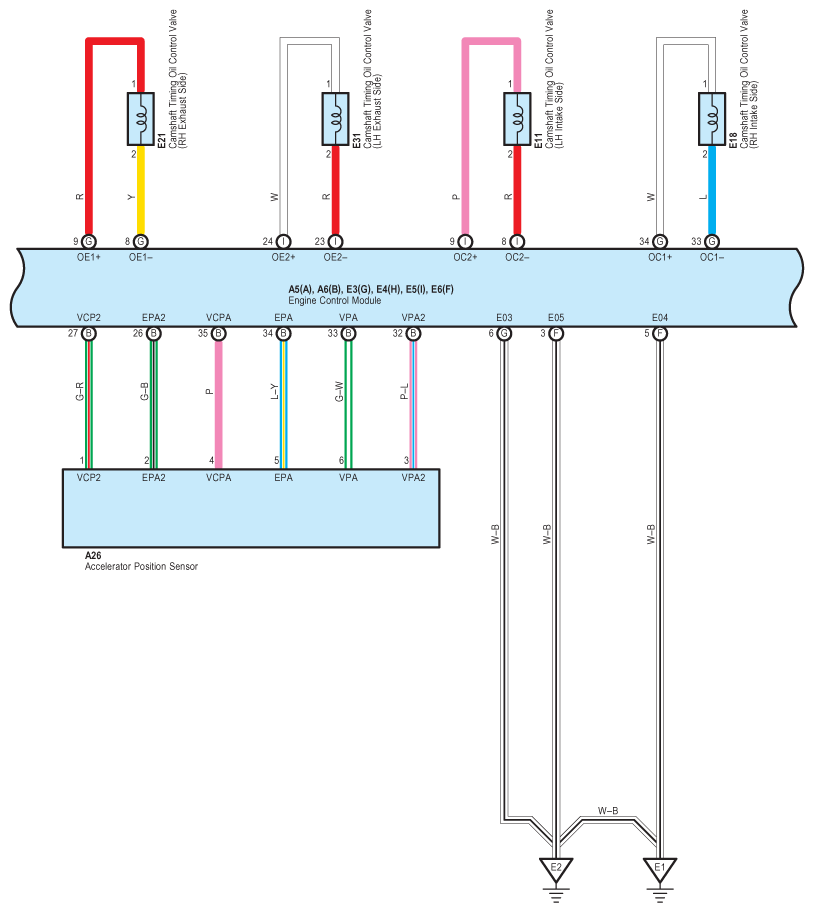

Fig 15: Engine Control (4GR-FSE) System Wiring Diagram (15 Of 17)

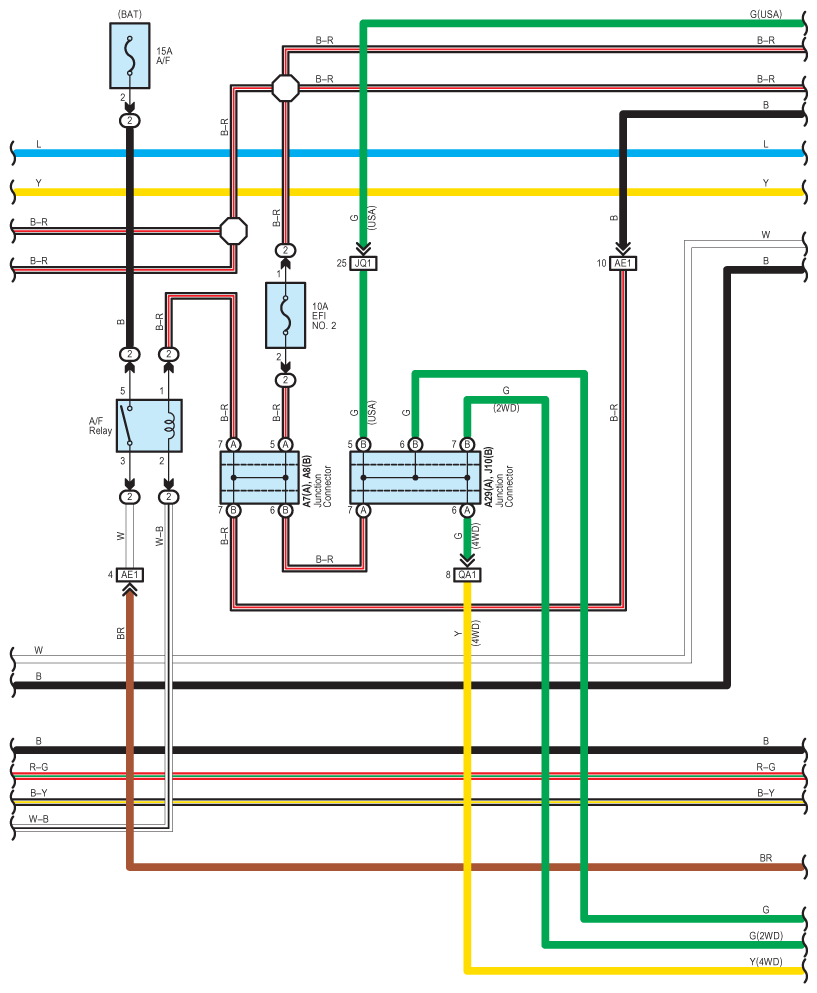

Fig 16: Engine Control (4GR-FSE) System Wiring Diagram (16 Of 17)

Fig 17: Engine Control (4GR-FSE) System Wiring Diagram (17 Of 17)
