Front Fog Light: Notes

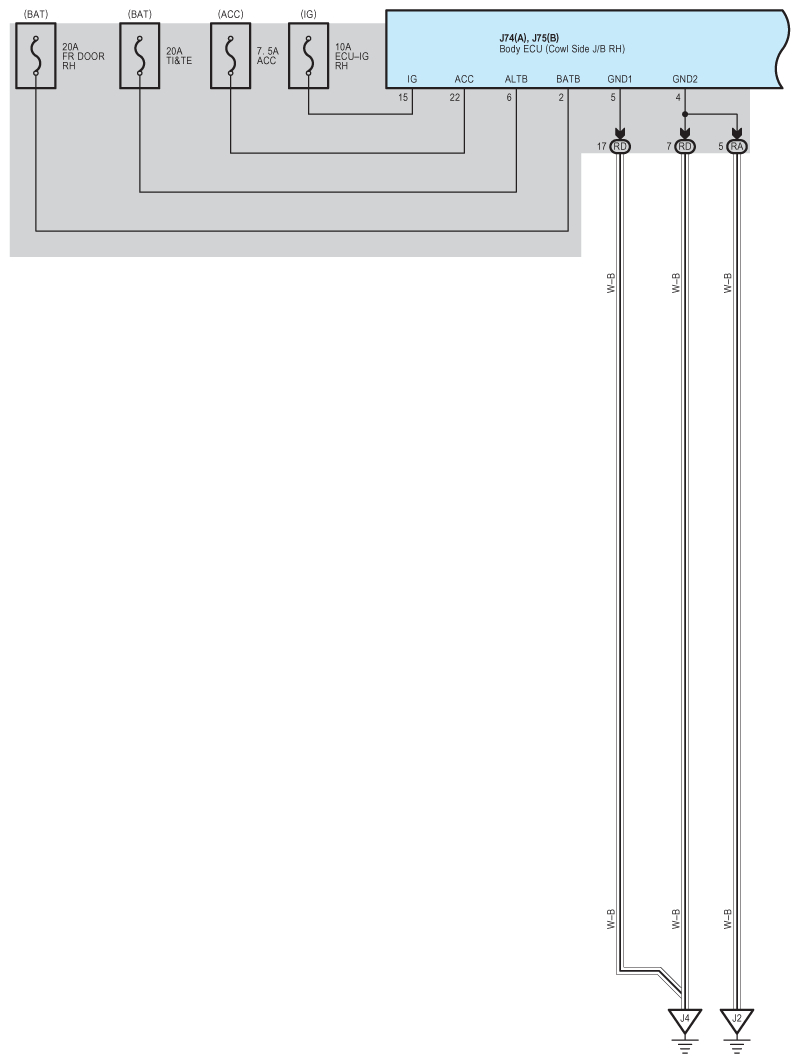

Fig 1: Front Fog Light System Wiring Diagram (1 Of 5)
G09119055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

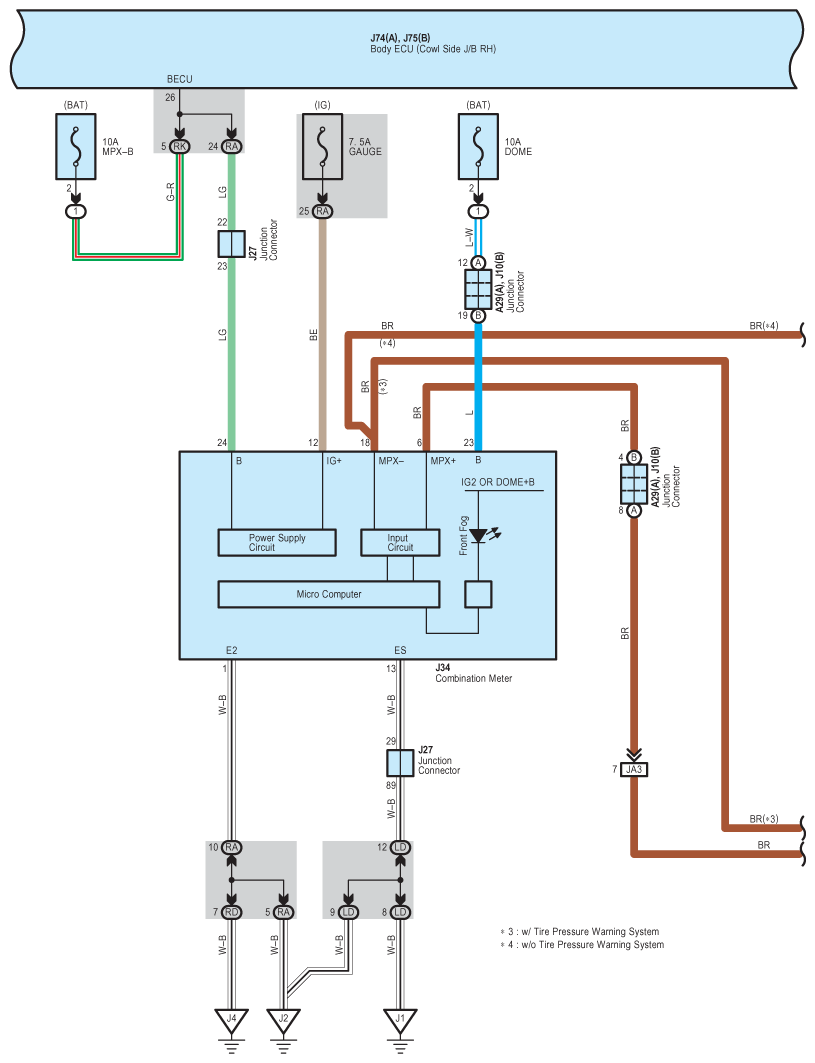

Fig 2: Front Fog Light System Wiring Diagram (2 Of 5)
G09119056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

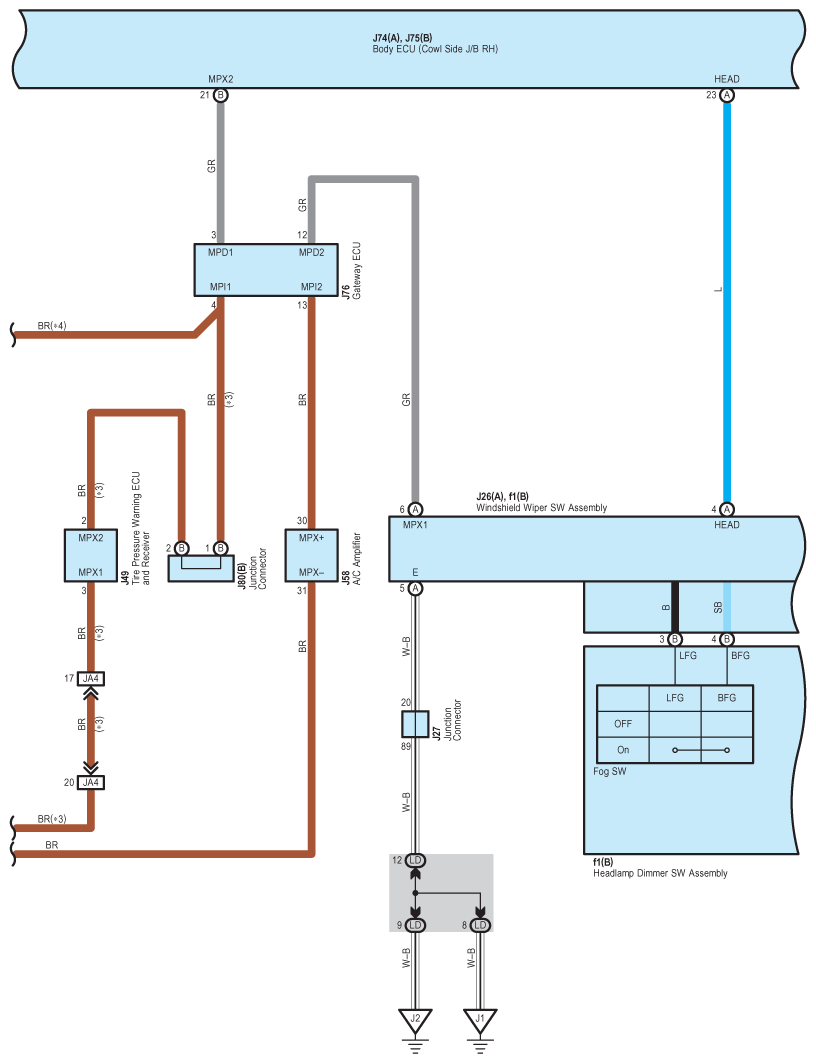

Fig 3: Front Fog Light System Wiring Diagram (3 Of 5)
G09119057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

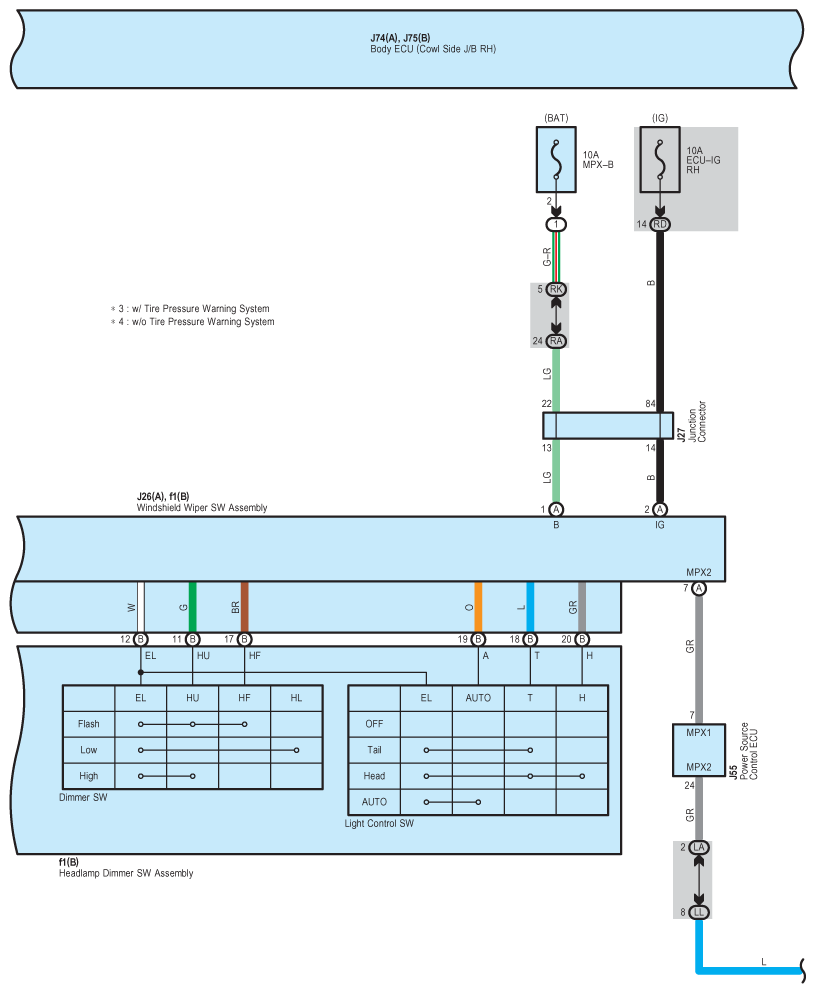

Fig 4: Front Fog Light System Wiring Diagram (4 Of 5)
G09119058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

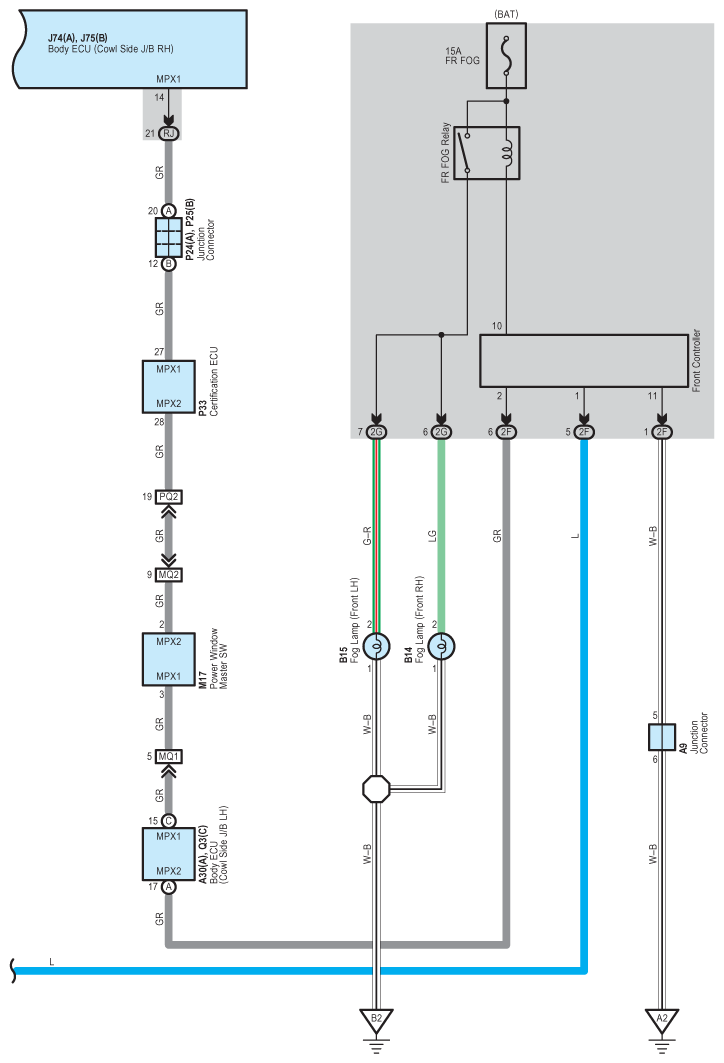

Fig 5: Front Fog Light System Wiring Diagram (5 Of 5)
G09119059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
