Light Auto Turn Off System: Notes

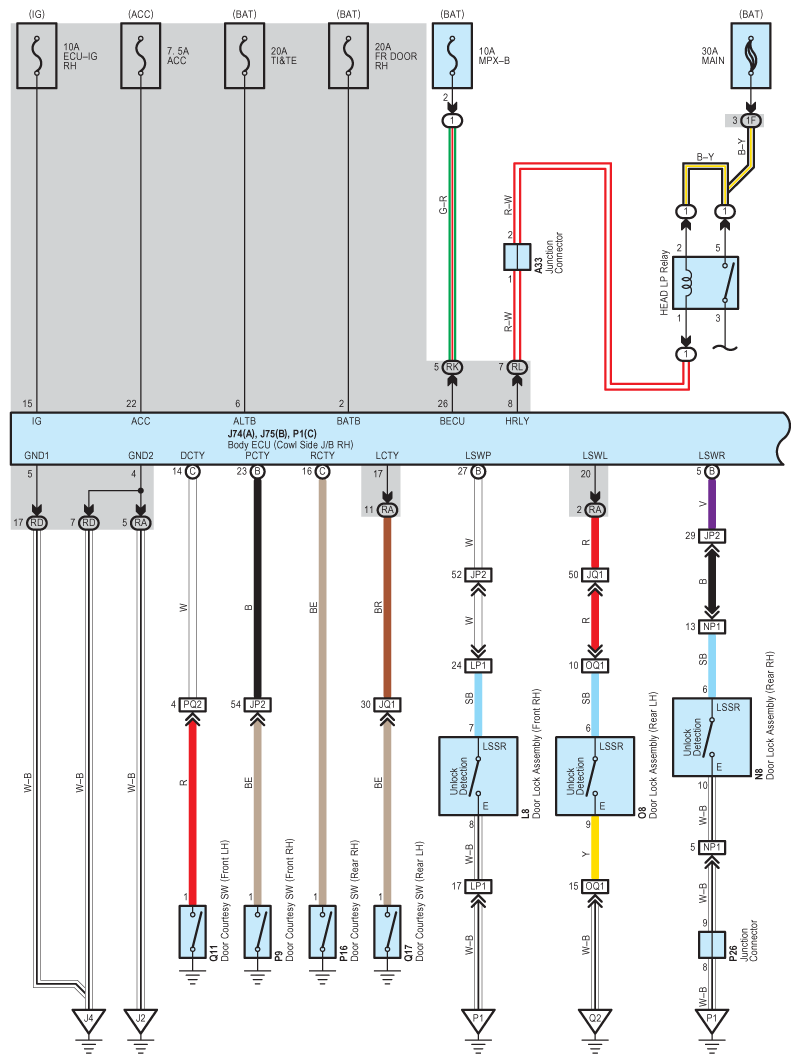

Fig 1: Light Auto Turn Off System Wiring Diagram (1 Of 5)
G09119064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

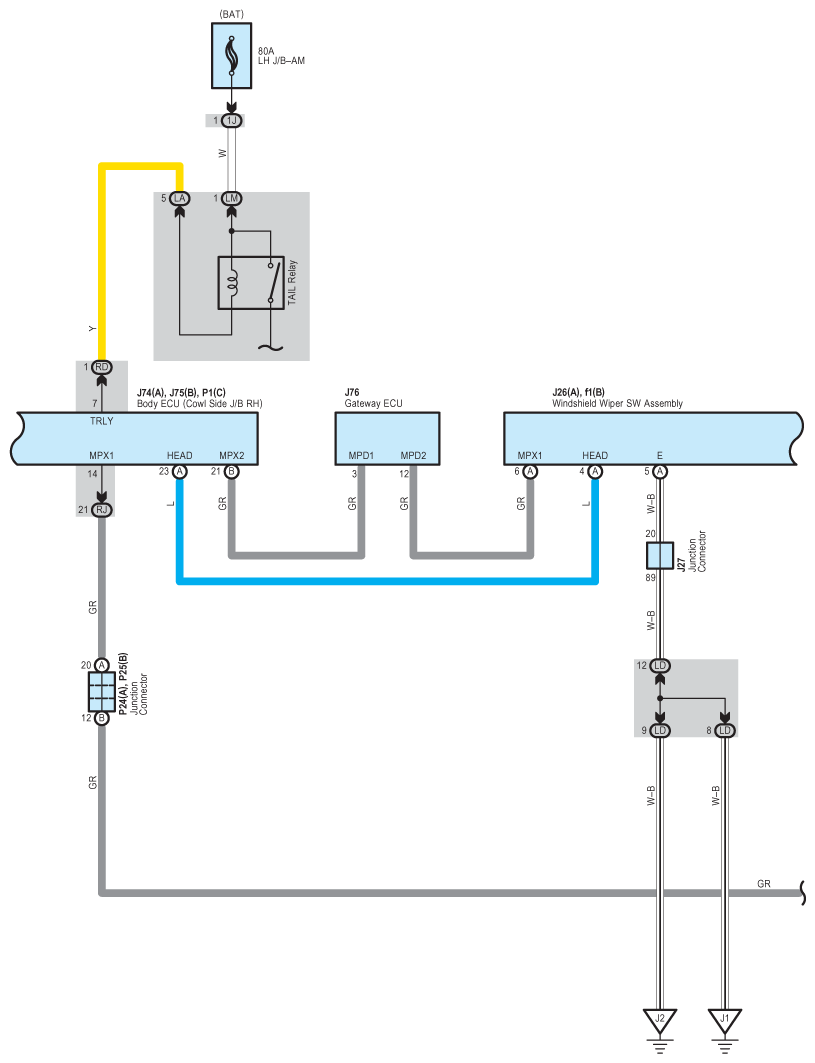

Fig 2: Light Auto Turn Off System Wiring Diagram (2 Of 5)
G09119065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

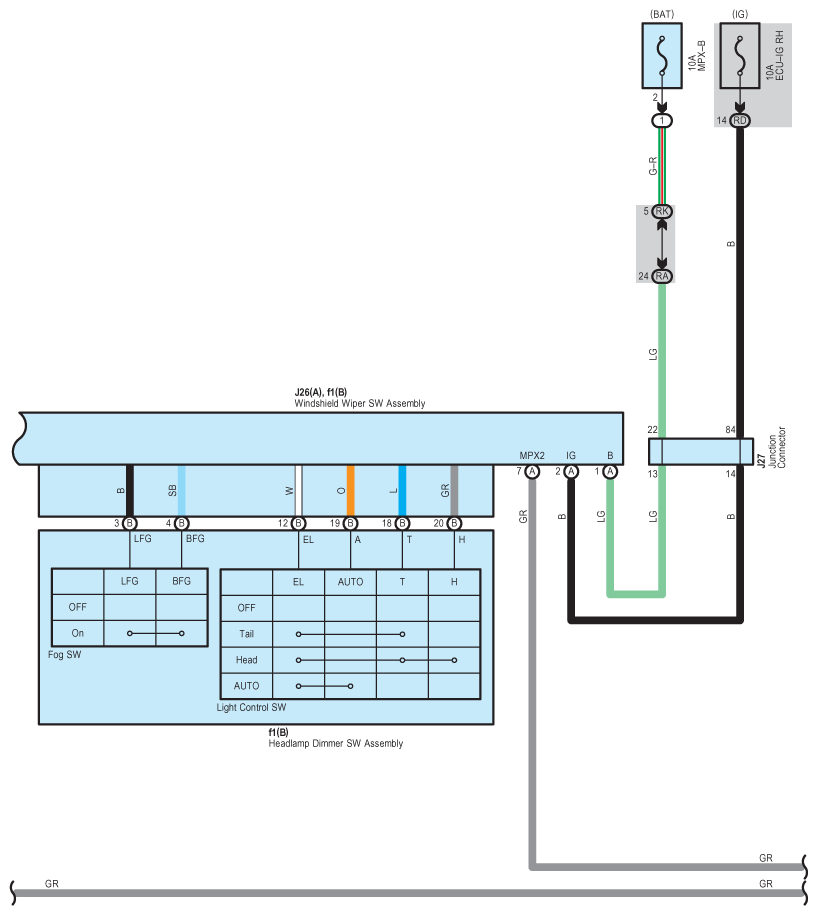

Fig 3: Light Auto Turn Off System Wiring Diagram (3 Of 5)
G09119066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

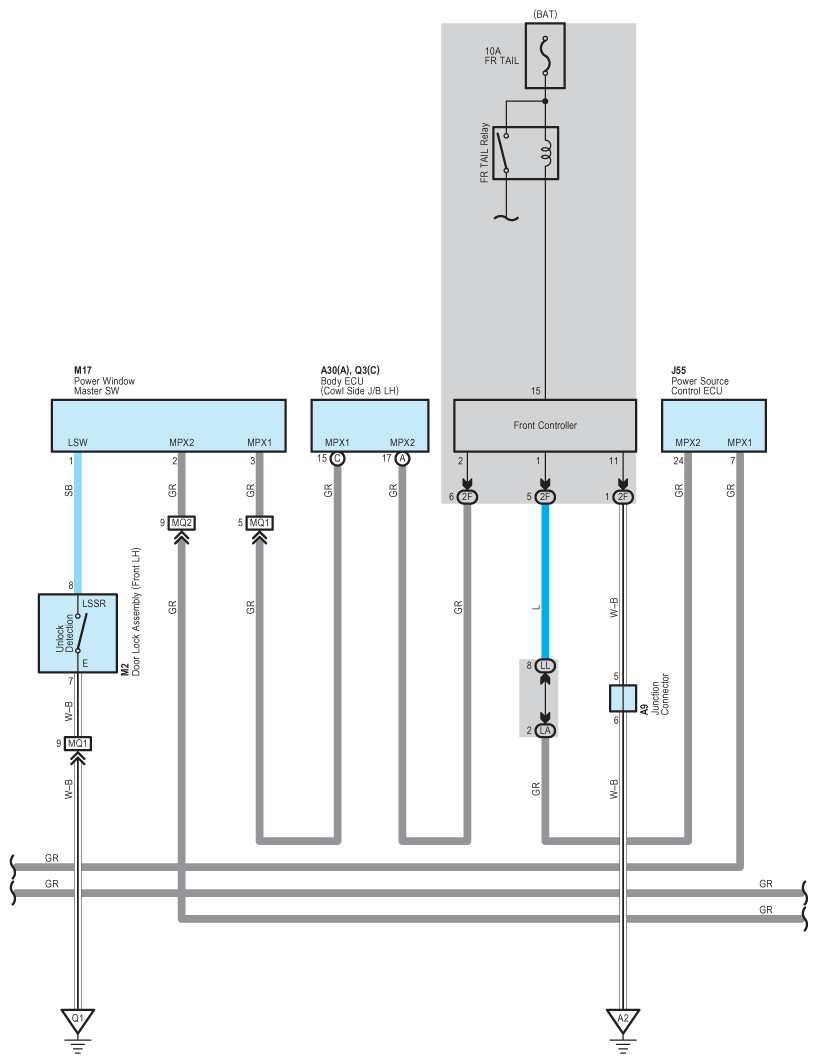

Fig 4: Light Auto Turn Off System Wiring Diagram (4 Of 5)
G09119067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

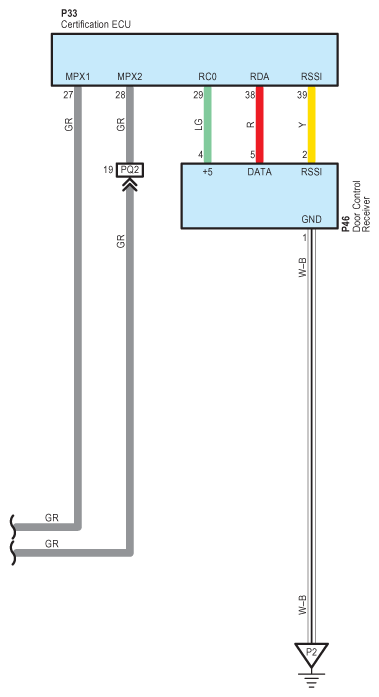

Fig 5: Light Auto Turn Off System Wiring Diagram (5 Of 5)
G09119068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
