Sliding Roof: Notes

Fig 1: Sliding Roof System Wiring Diagram (1 Of 5)
G09119176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Sliding Roof System Wiring Diagram (2 Of 5)
G09119177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

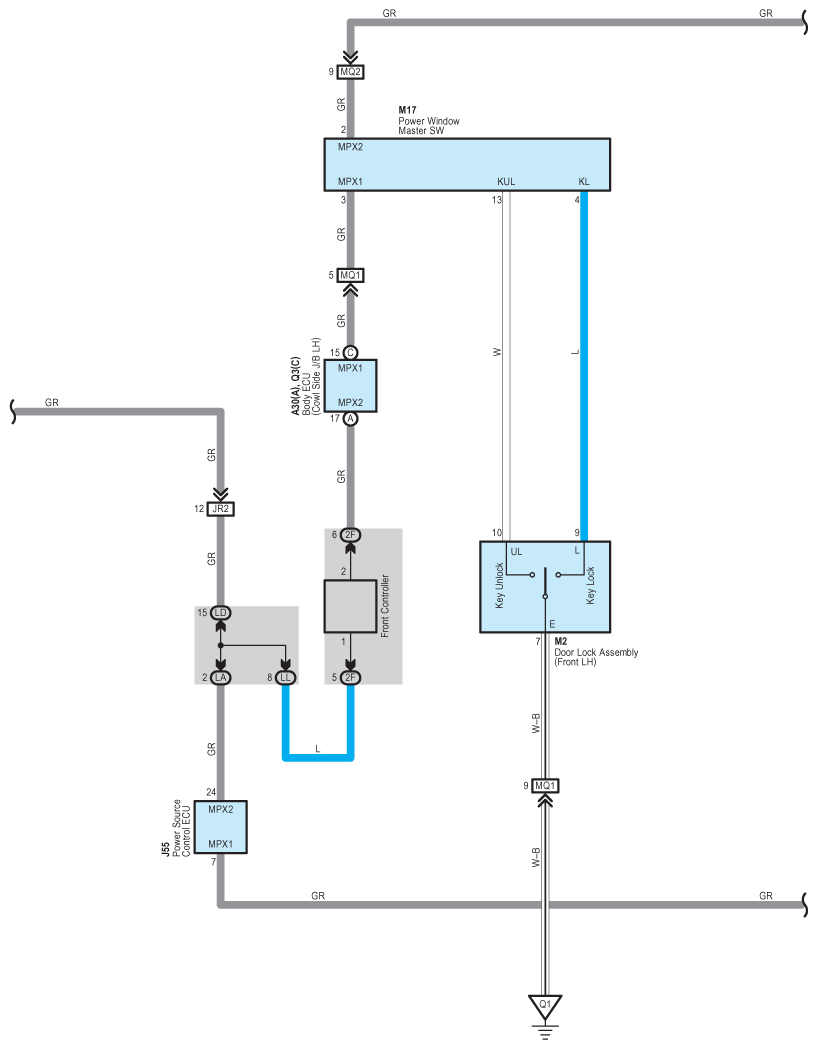

Fig 3: Sliding Roof System Wiring Diagram (3 Of 5)
G09119178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

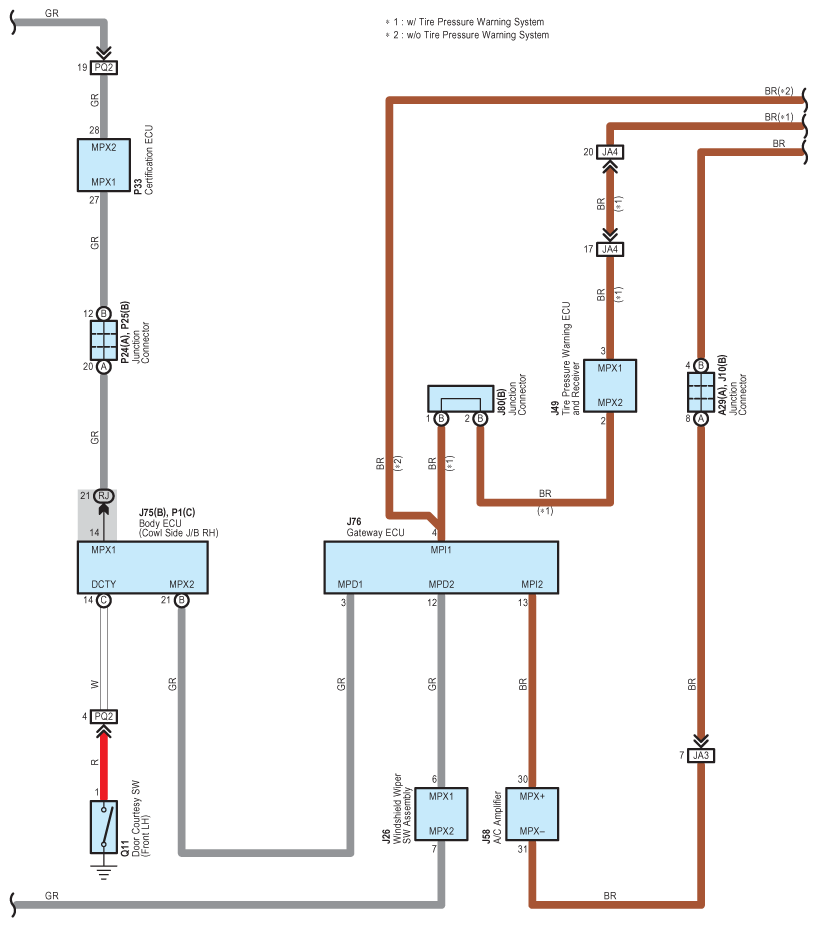

Fig 4: Sliding Roof System Wiring Diagram (4 Of 5)
G09119179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

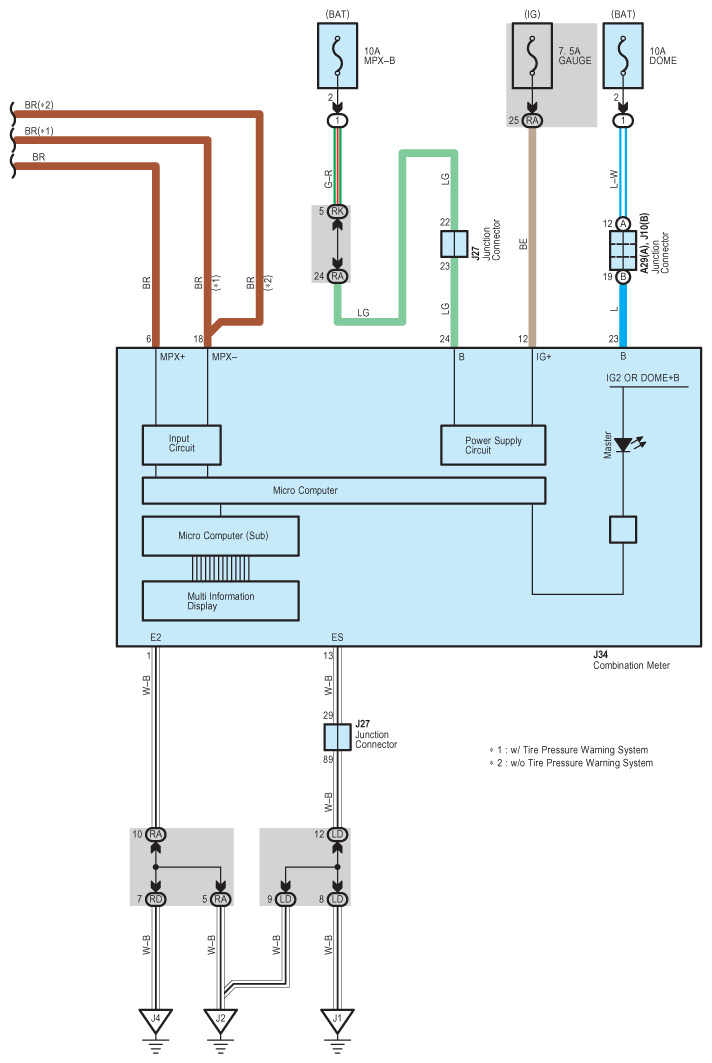

Fig 5: Sliding Roof System Wiring Diagram (5 Of 5)
G09119180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
