Dynamic Radar Cruise Control (4GR-FSE): Notes

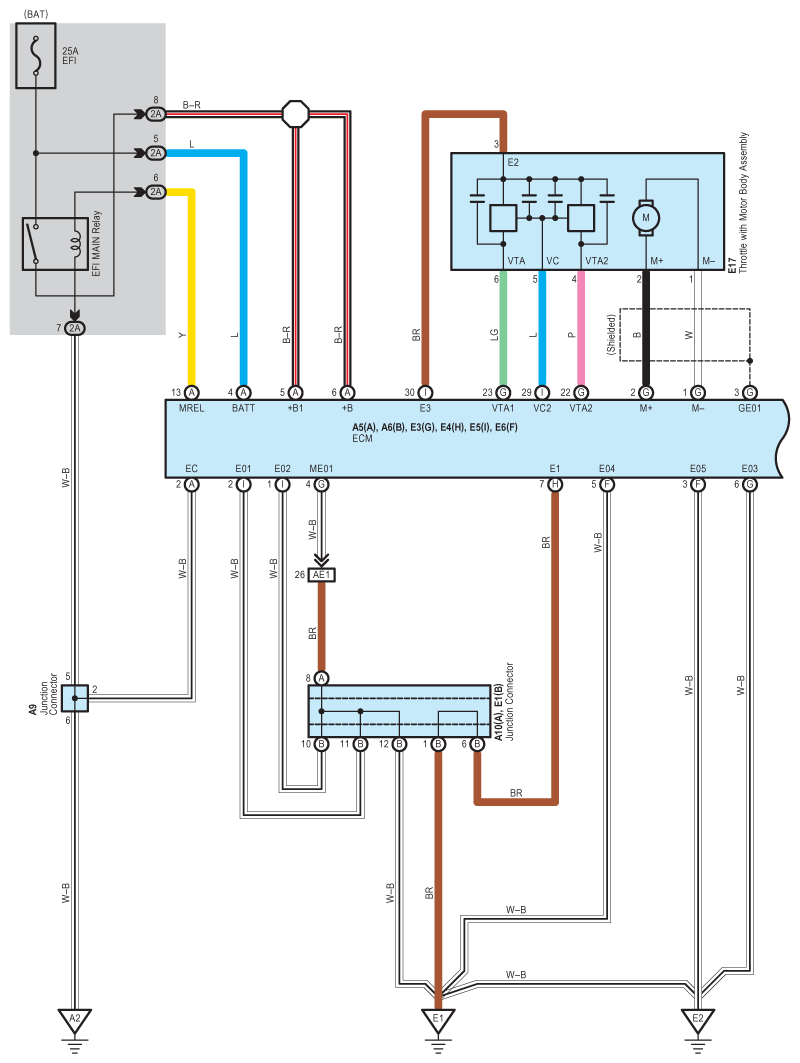

Fig 1: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

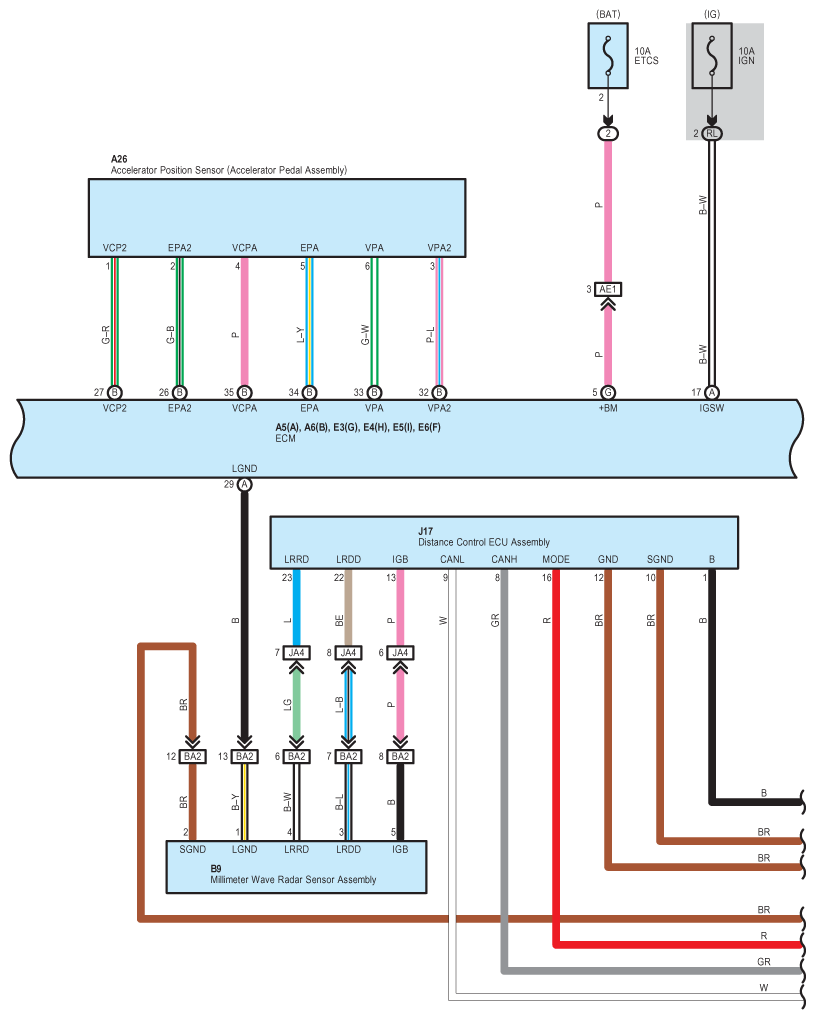

Fig 2: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

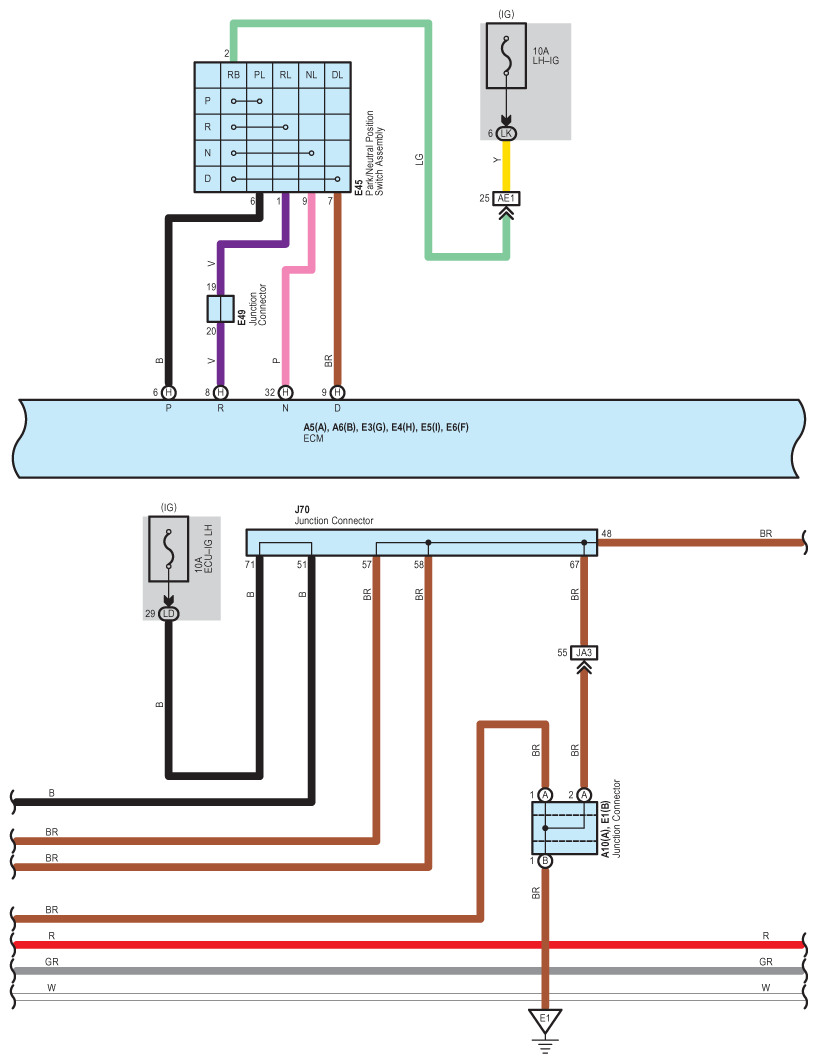

Fig 3: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

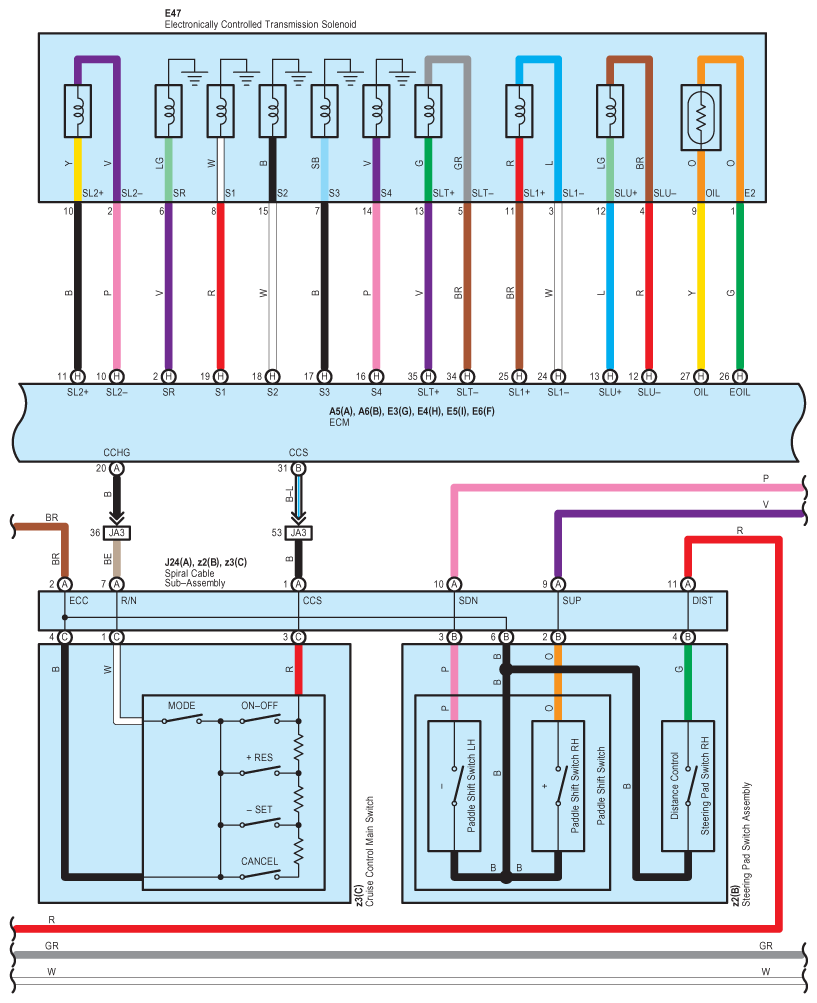

Fig 4: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

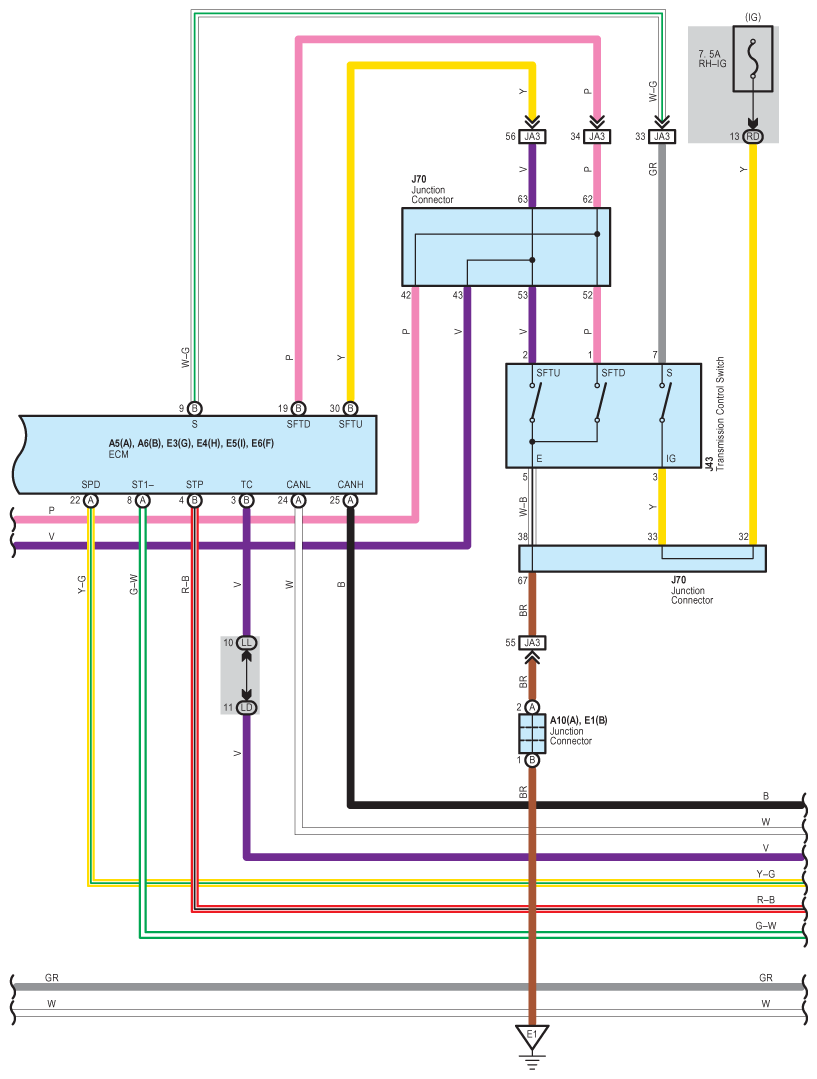

Fig 5: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

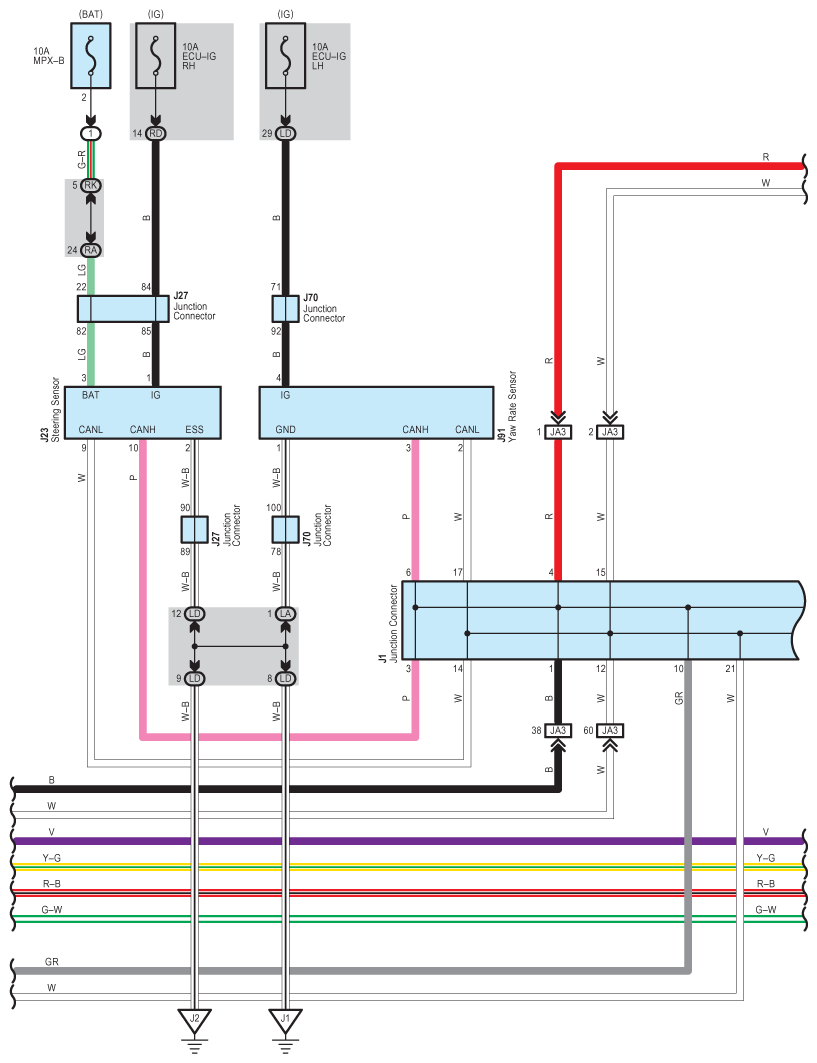

Fig 6: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

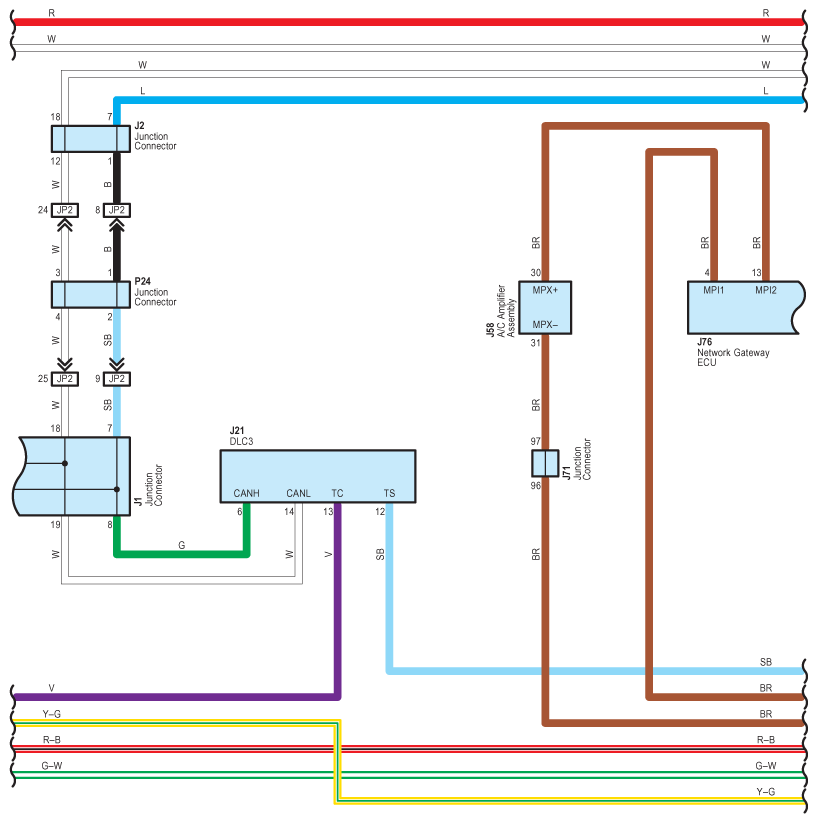

Fig 7: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

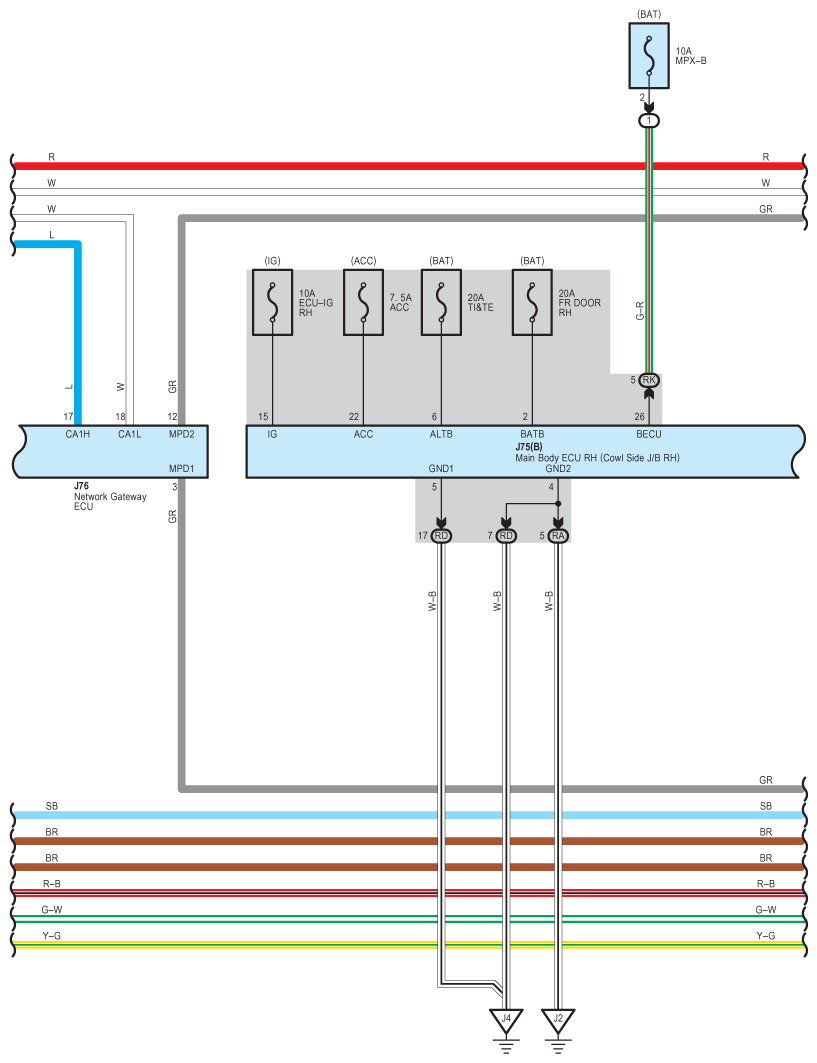

Fig 8: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

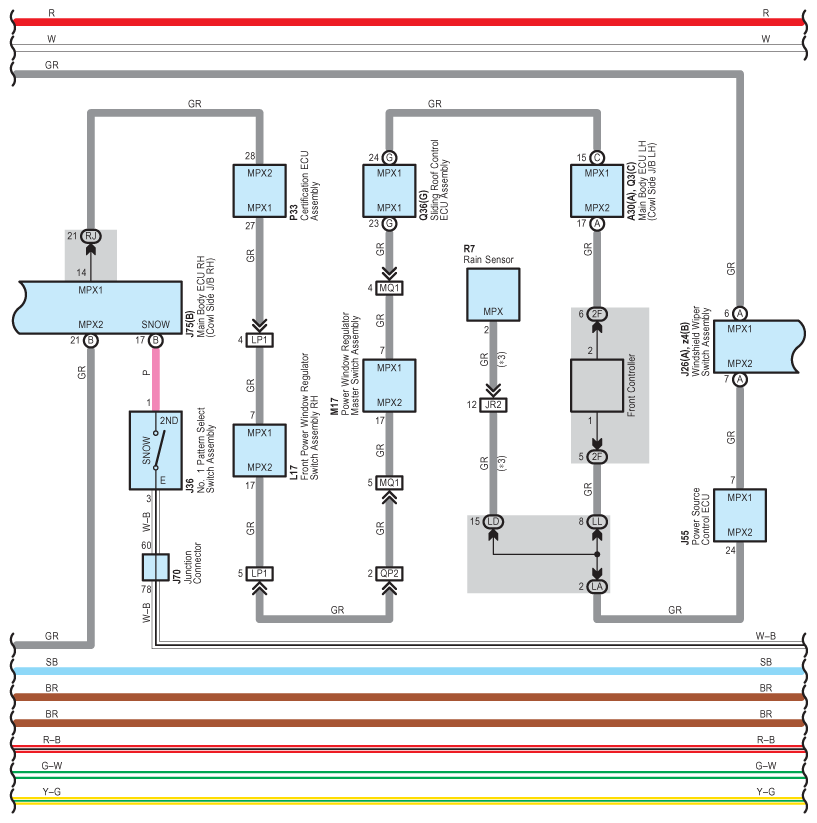

Fig 9: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

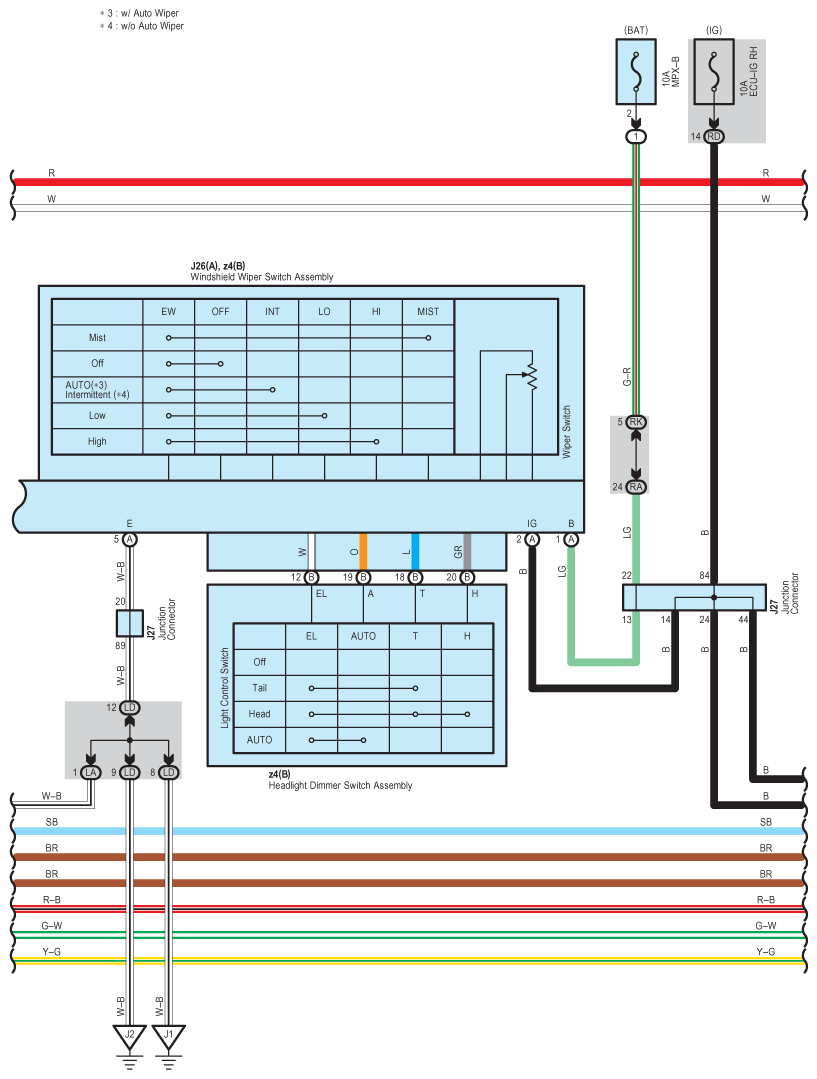

Fig 10: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (10 Of 14)

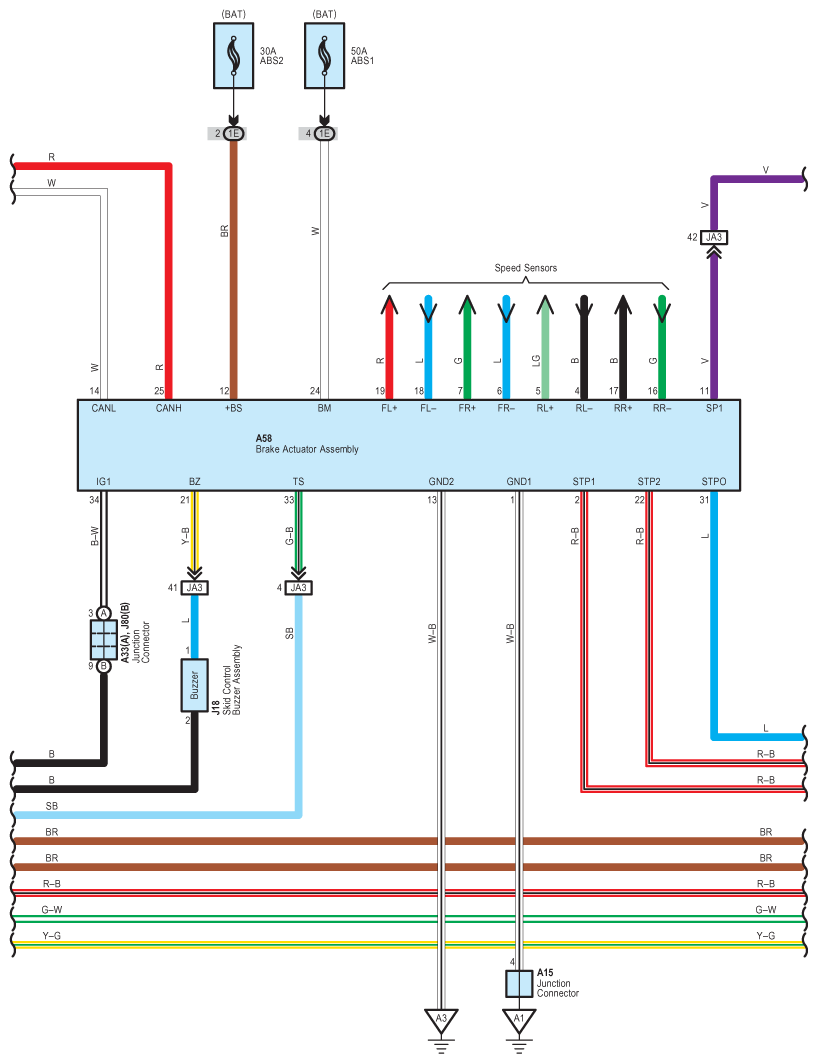

Fig 11: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (11 Of 14)

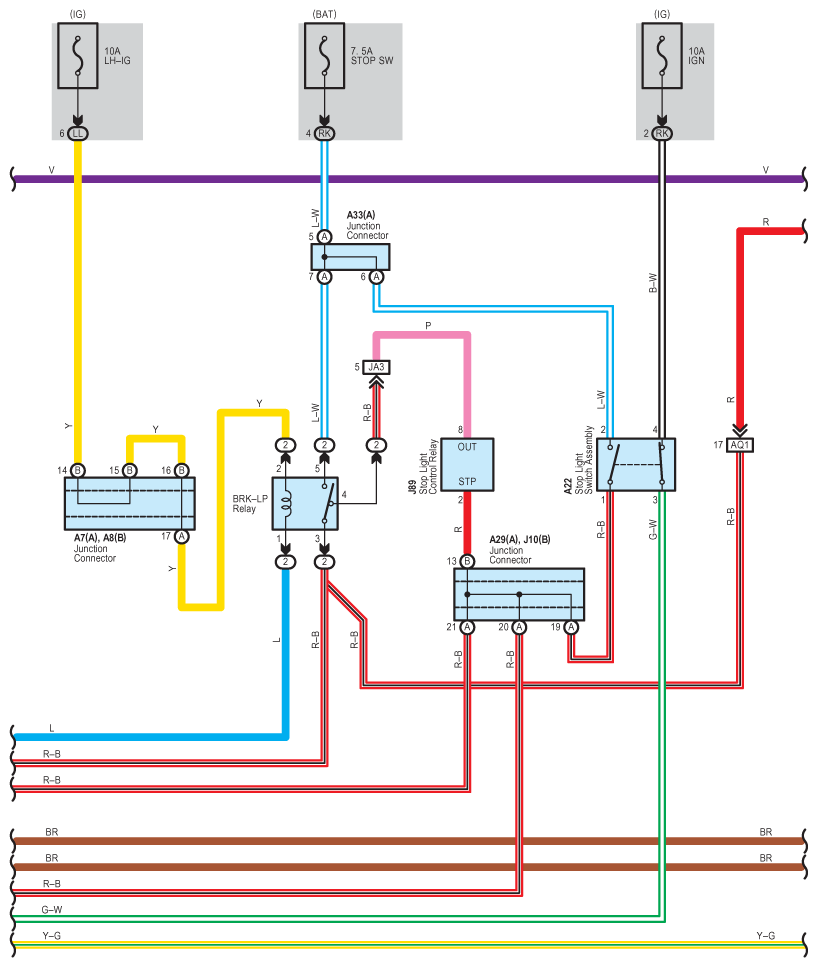

Fig 12: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (12 Of 14)

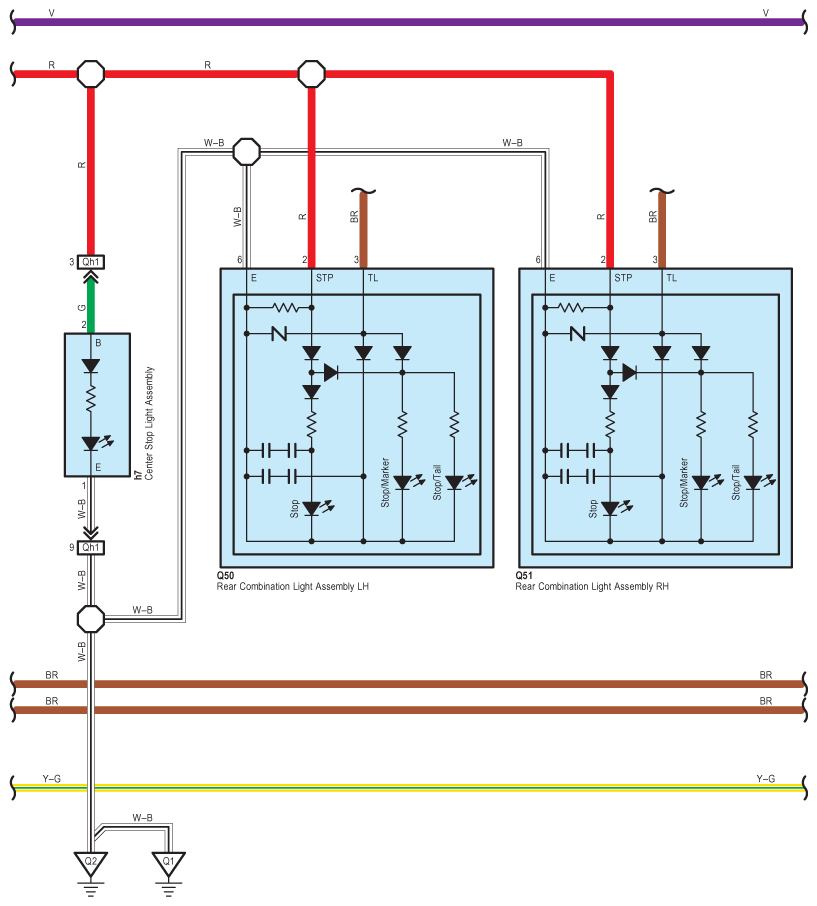

Fig 13: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (13 Of 14)

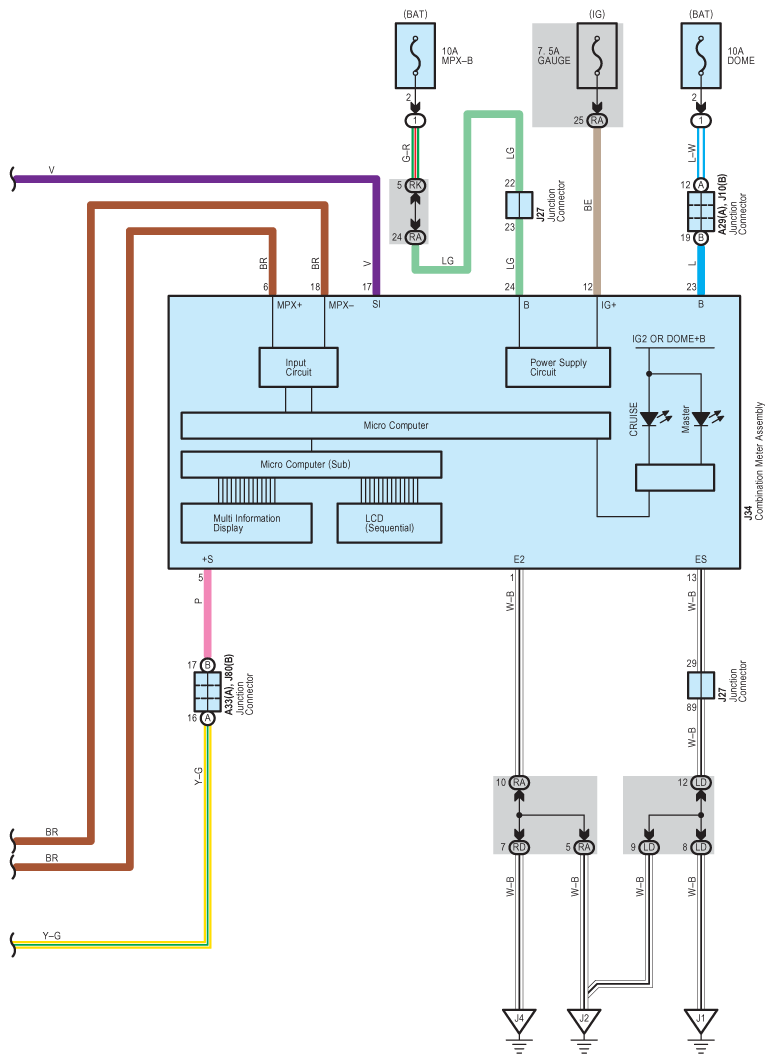

Fig 14: Dynamic Radar Cruise Control (4GR-FSE) Wiring Diagram (14 Of 14)
