Turn Signal and Hazard Warning Light: Notes

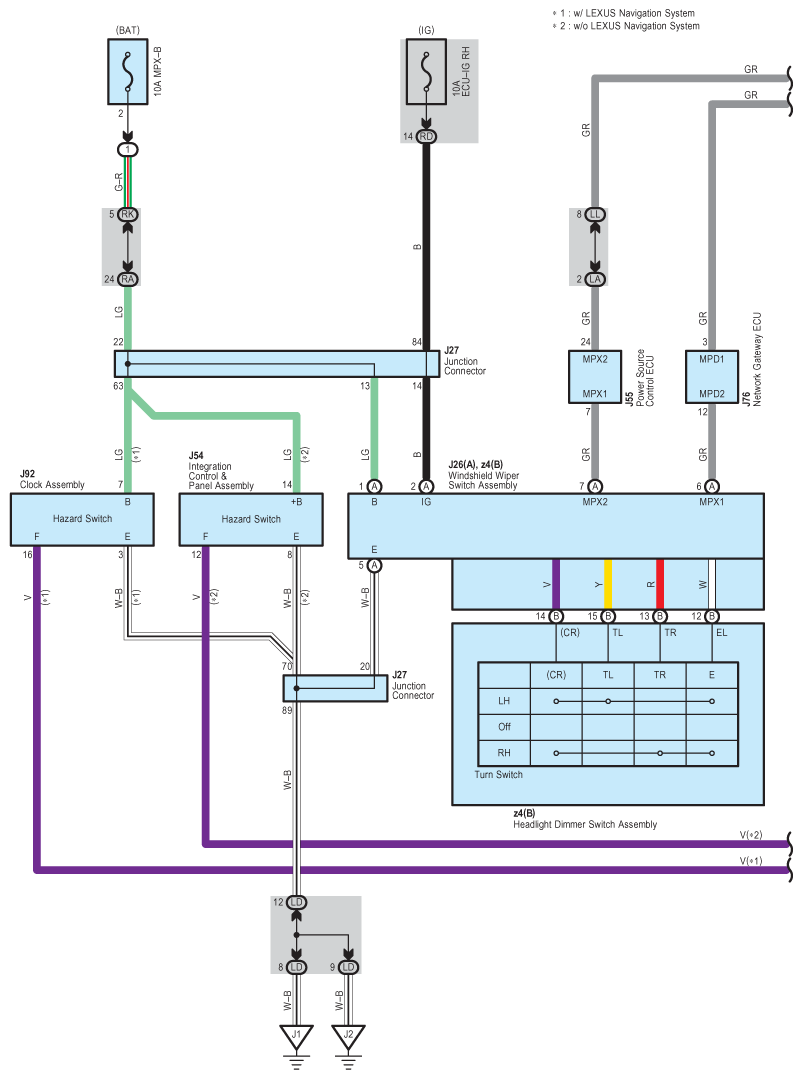

Fig 1: Turn Signal And Hazard Warning Light Wiring Diagram (1 Of 5)
G09121182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

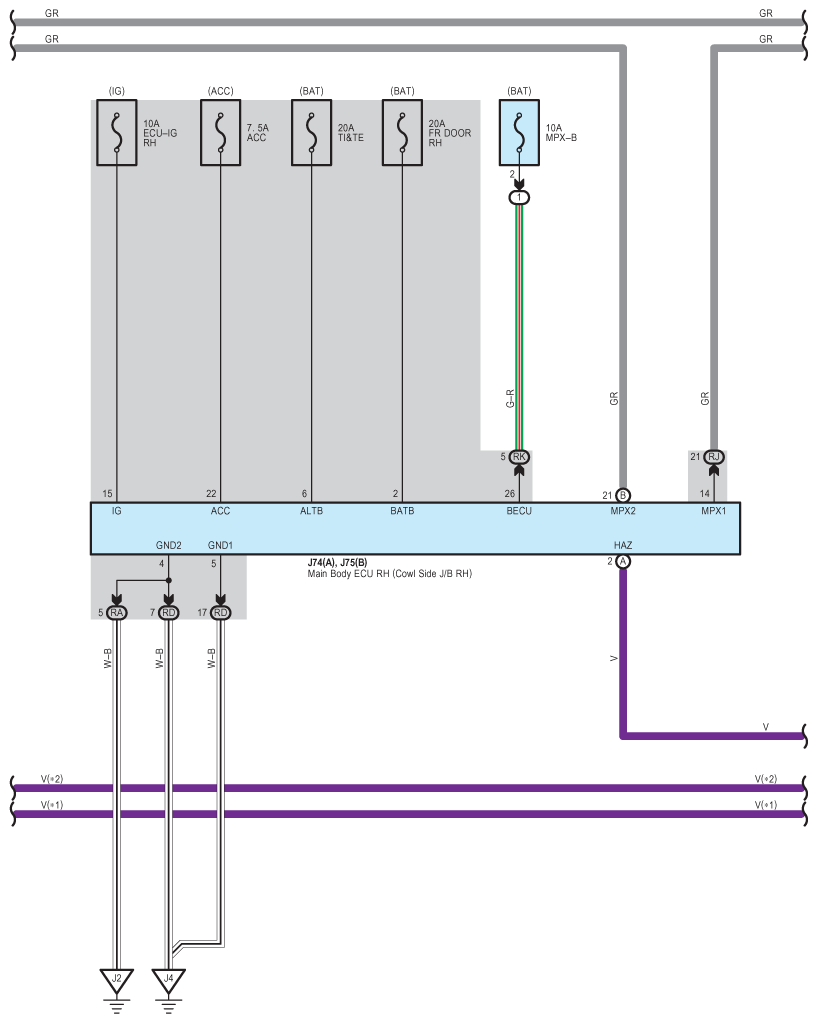

Fig 2: Turn Signal And Hazard Warning Light Wiring Diagram (2 Of 5)
G09121183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

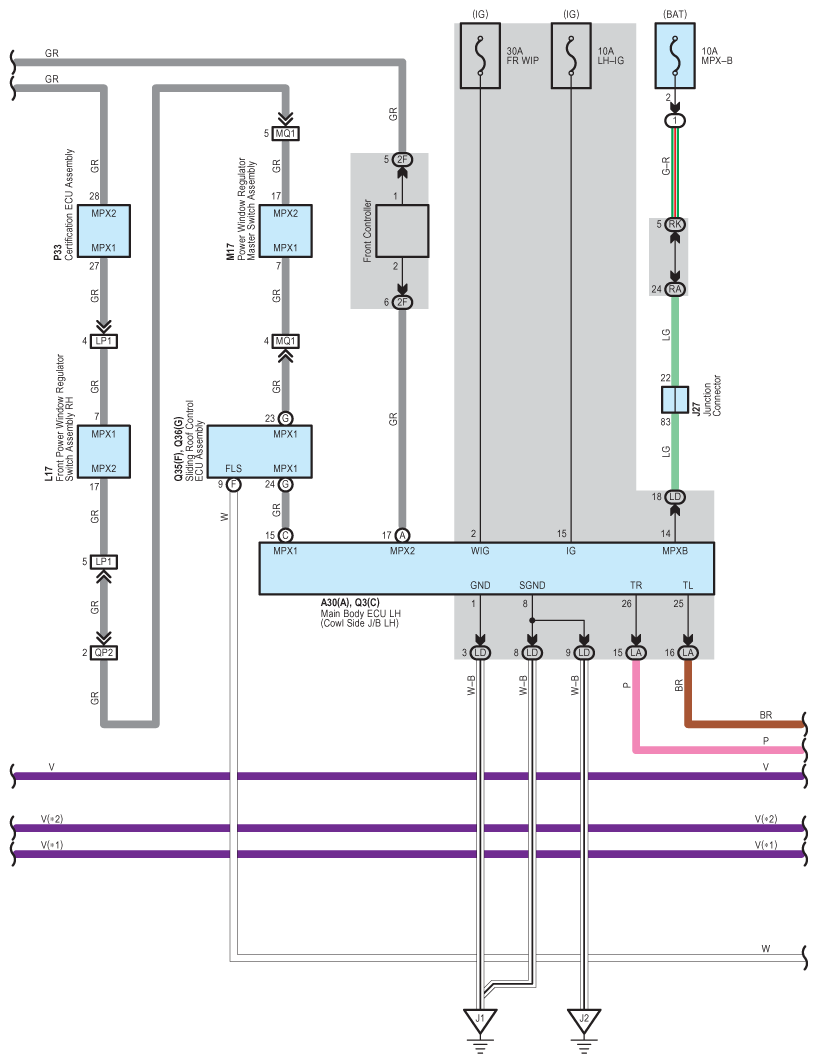

Fig 3: Turn Signal And Hazard Warning Light Wiring Diagram (3 Of 5)
G09121184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

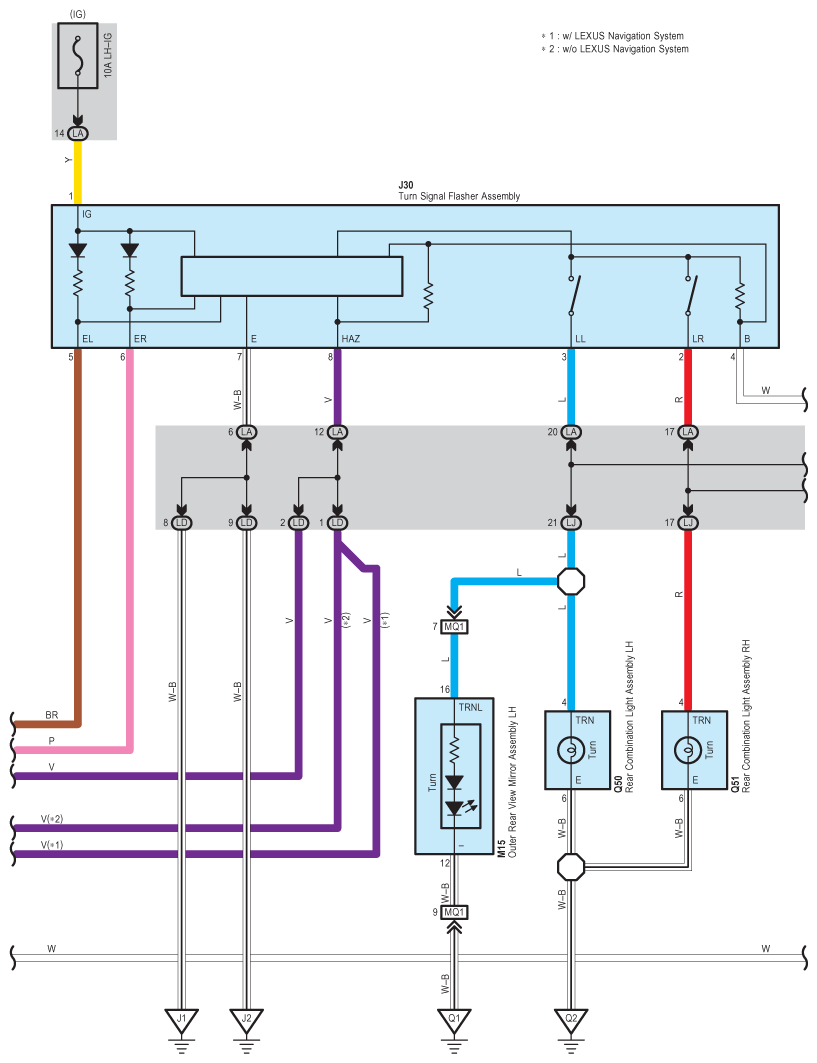

Fig 4: Turn Signal And Hazard Warning Light Wiring Diagram (4 Of 5)
G09121185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Turn Signal And Hazard Warning Light Wiring Diagram (5 Of 5)
G09121186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
