Monitor Description
This monitor will run when the engine is started at an engine coolant temperature of -10 to 50°C (14 to 122°F). The DTC is stored after the engine idles for 13 seconds or more (2 trip detection logic).

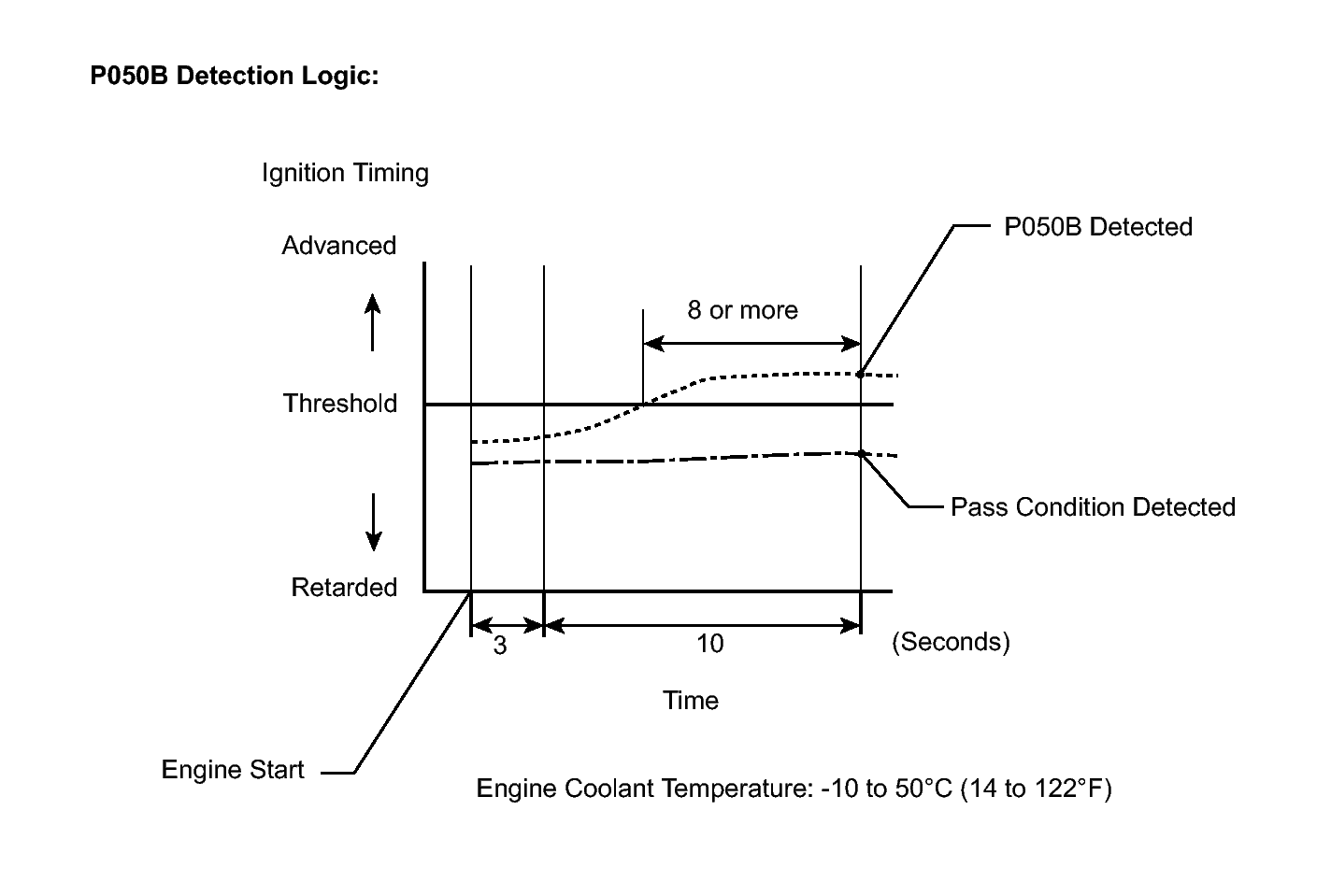

The DTC is designed to monitor the ignition timing at cold start. When the engine is started at an engine coolant temperature of below 50°C (122°F), the ECM checks the ignition timing during engine idling. If the ignition timing advances beyond the specified level within 10 seconds, the ECM interprets this as a malfunction. The MIL is illuminated and a DTC is set when the malfunction is detected in consecutive driving cycles (2 trip detection logic).
The electronic throttle control system controls the idle speed. The electrical throttle control system operates the throttle actuator to open and close the throttle valve, and adjusts the intake air amount to achieve the target idle speed.
When the negative (-) battery terminal is disconnected during inspection or repairs, the idle speed control learned values are cleared. Idle speed control learning is performed when the engine has been warmed up and idled for 5 minutes because this DTC cannot be set after the idle speed control learned values are cleared.
HINT:
Idle speed control learning is performed when the engine is warmed up and has been idling 5 minutes.
| DTC No. | DTC Detection Condition | Trouble Area |
|---|---|---|
| P050B | Insufficient ignition timing retard and cold start (2 trip detection logic) |
|
