Parts Location [08/2012 - ]: Illustration

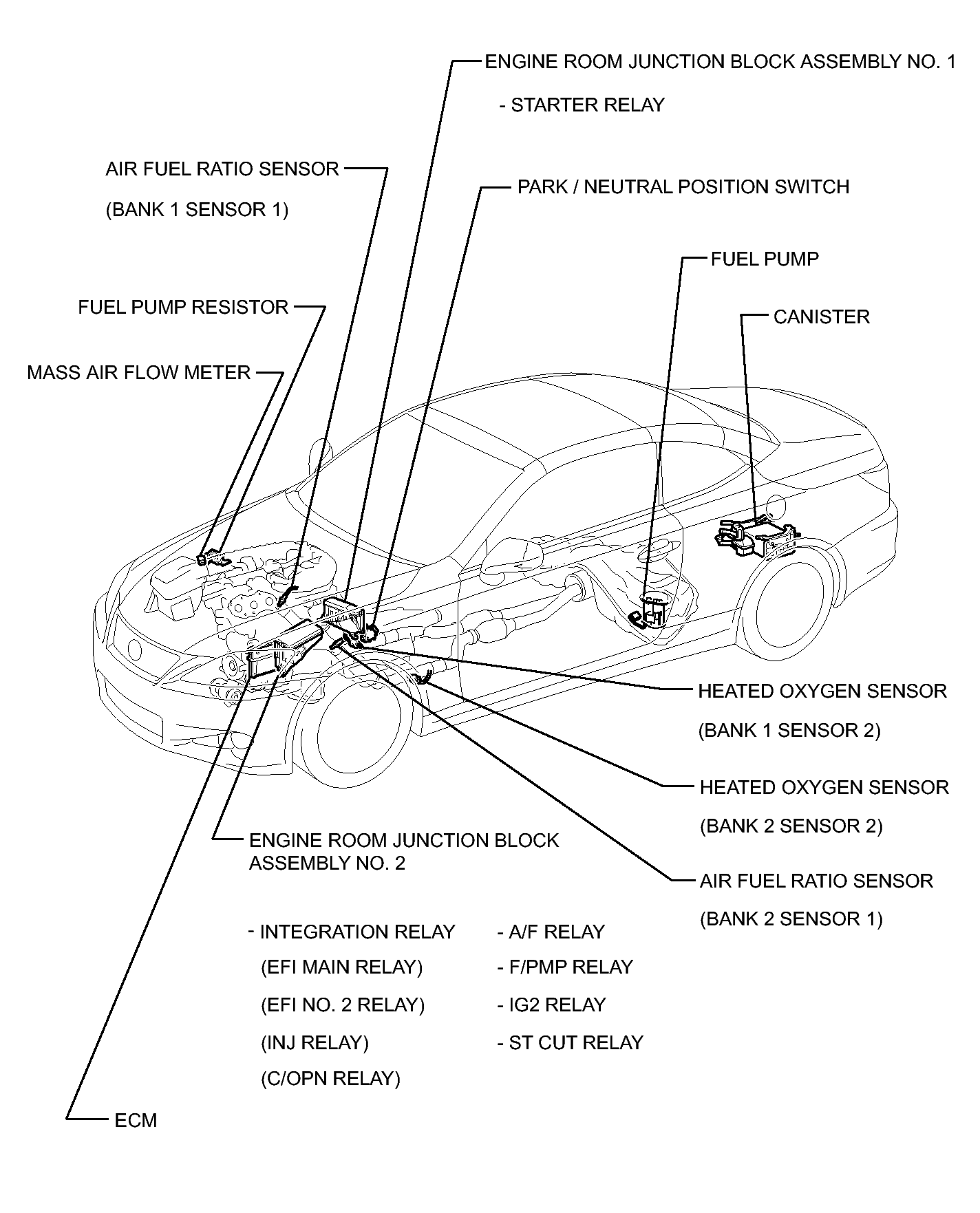

Fig 1: Identifying SFI System Components Location (1 Of 3)
GTY394186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components Location (2 Of 3)
GTY354426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Components Location (3 Of 3)
GTY270741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
