Alignment

Wheel Alignment Specifications

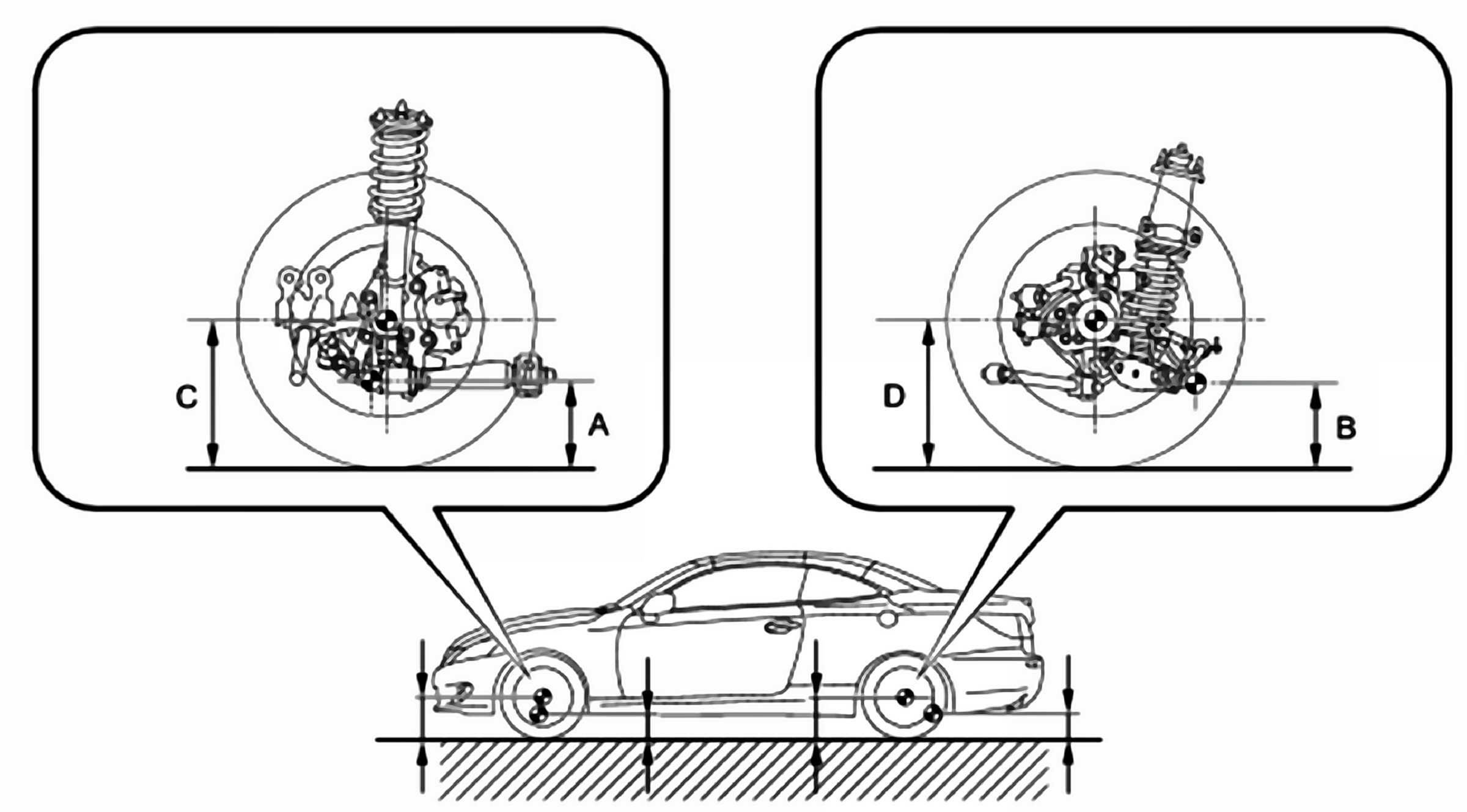

Measurement Points:

A: Ground clearance of front lower suspension arm bushing set bolt center
B: Ground clearance of rear No. 2 suspension arm adjust bolt center
C: Ground clearance of front wheel center
D: Ground clearance of rear wheel center

Vehicle Height:

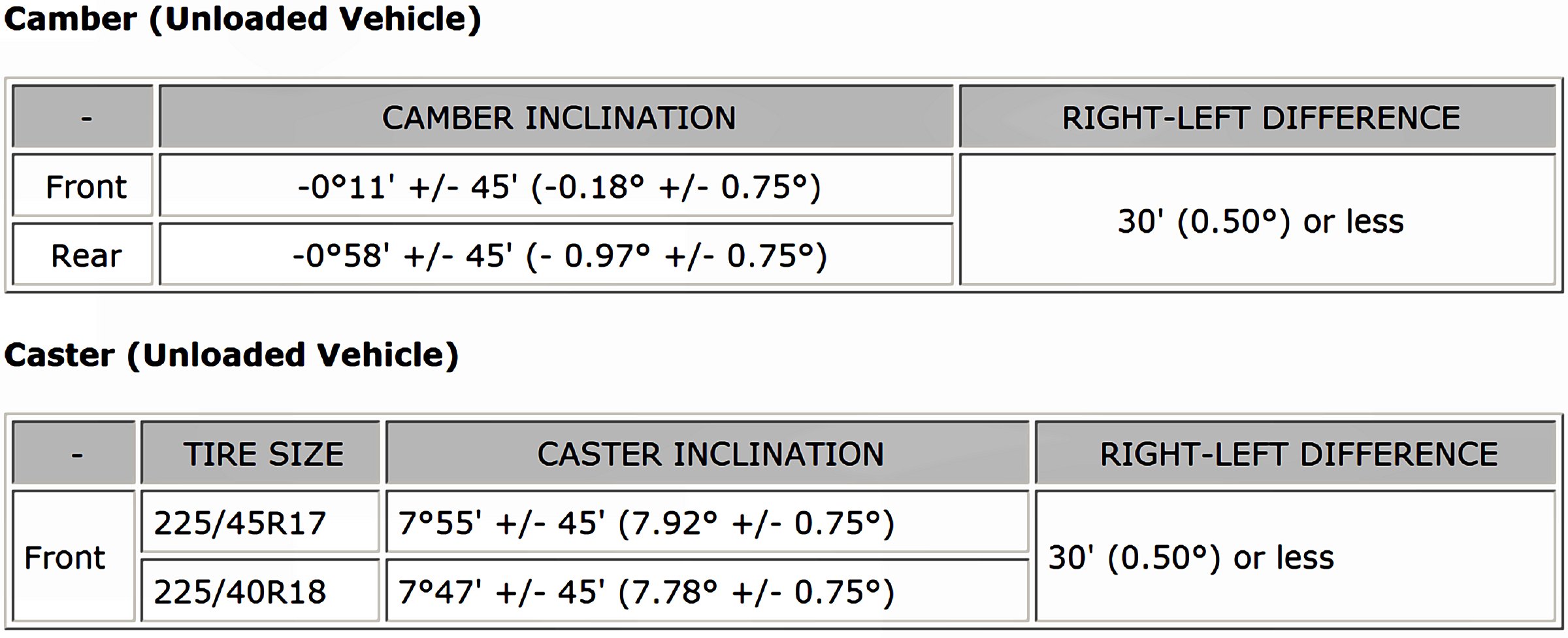

Camber and Caster:

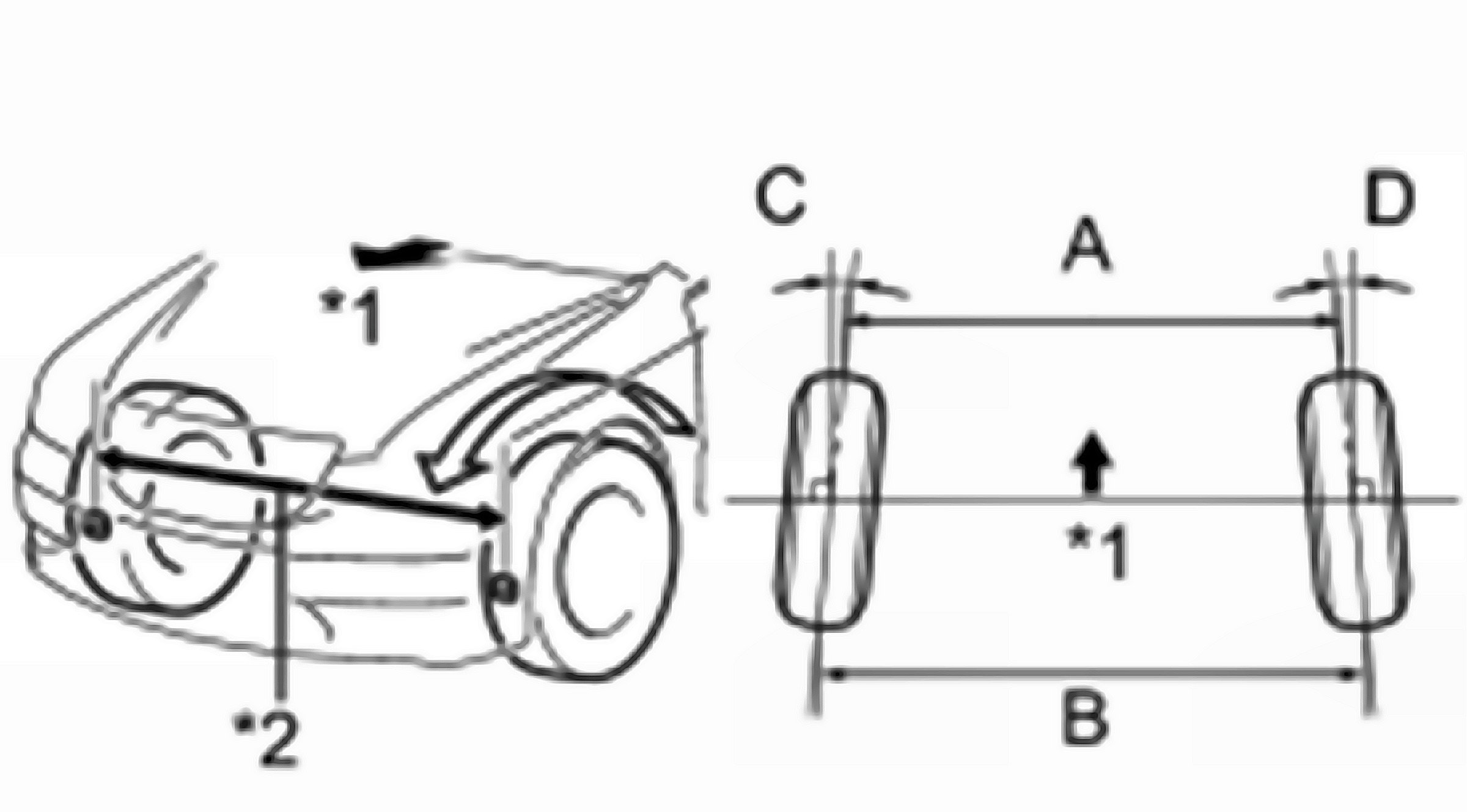

Measurement Points:

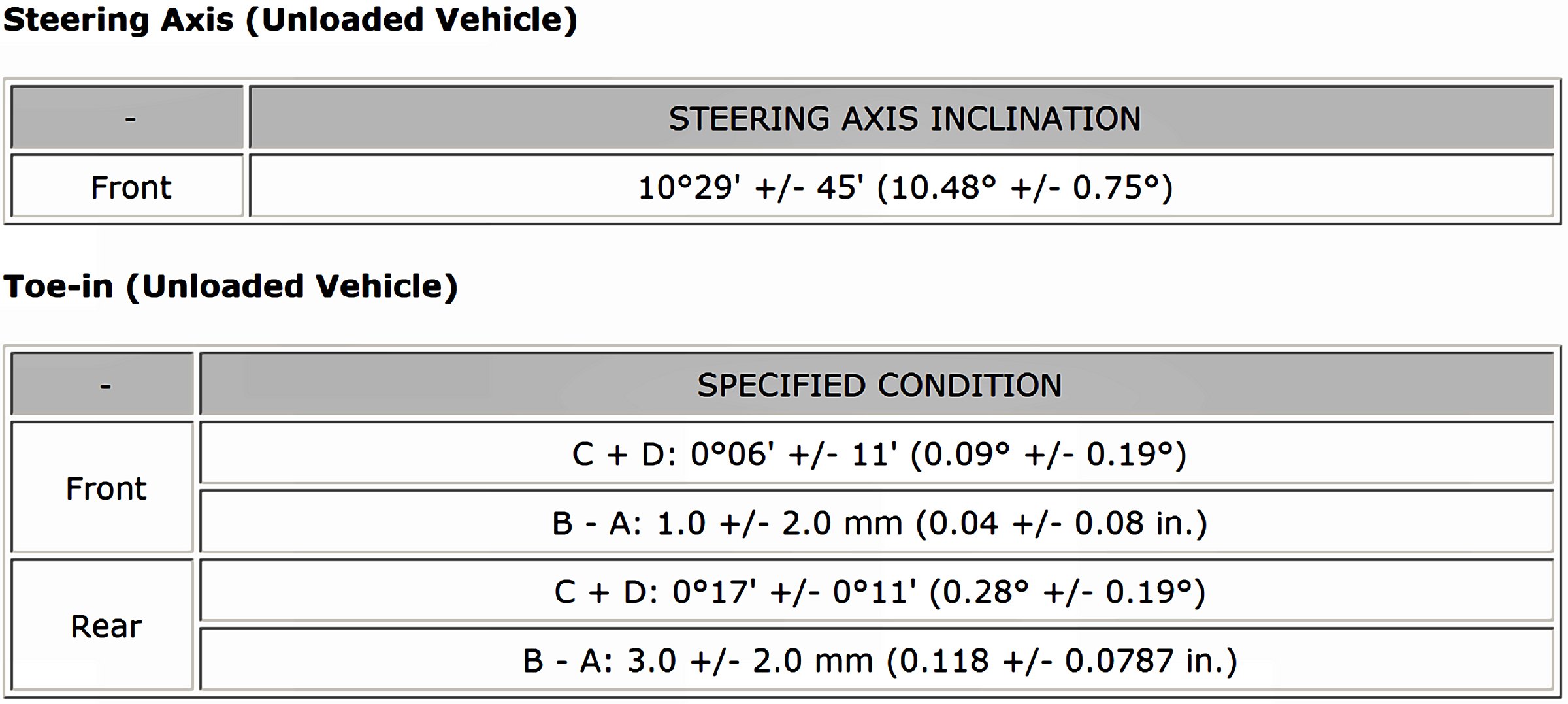

Steering Axis and Toe-in:

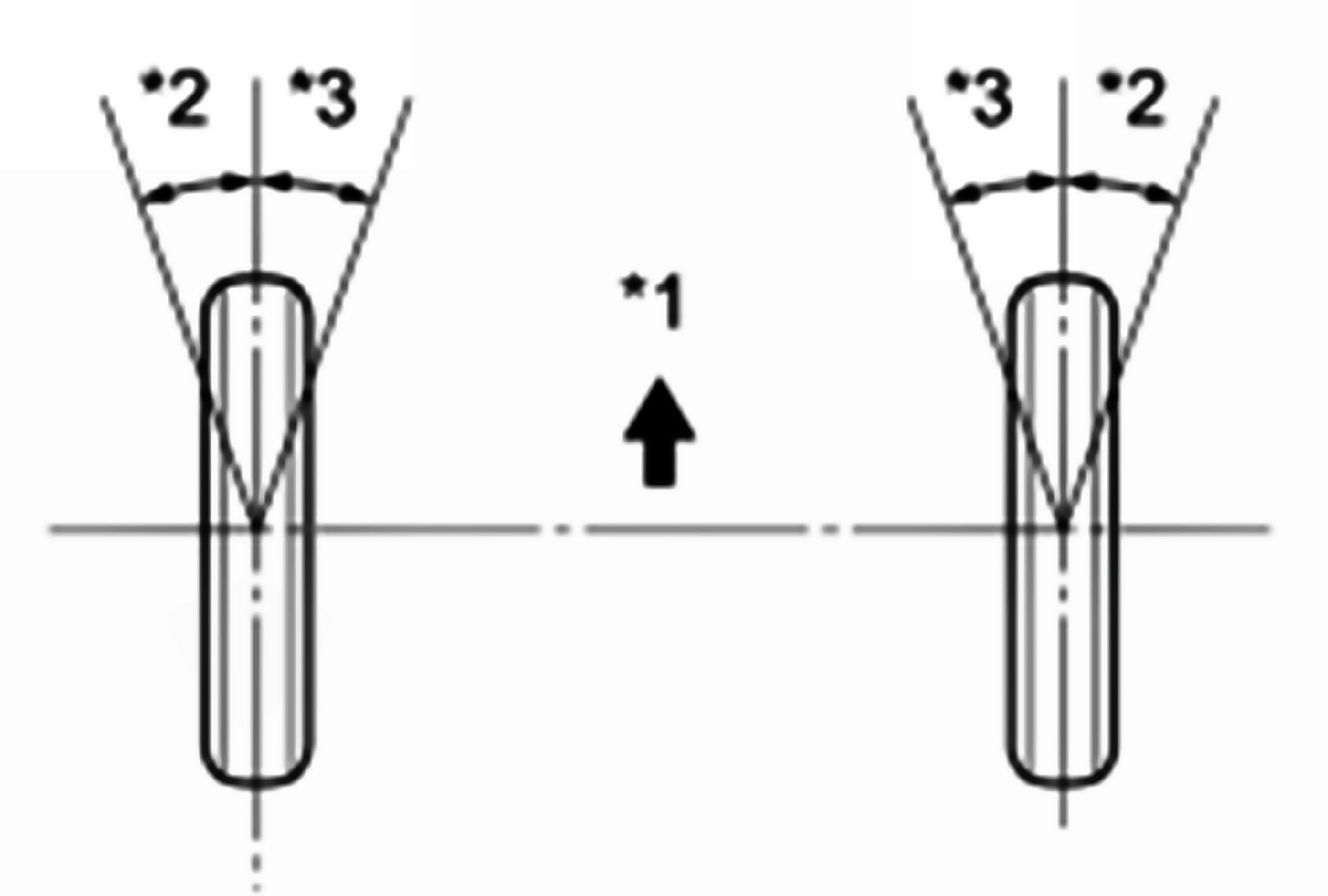

Measurement Points:

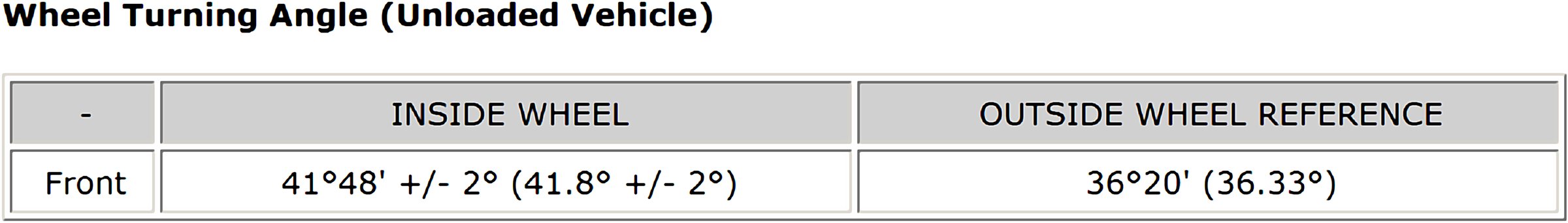

Wheel Turning Angle:
