Mirror Heater and Rear Window Defogger: Notes

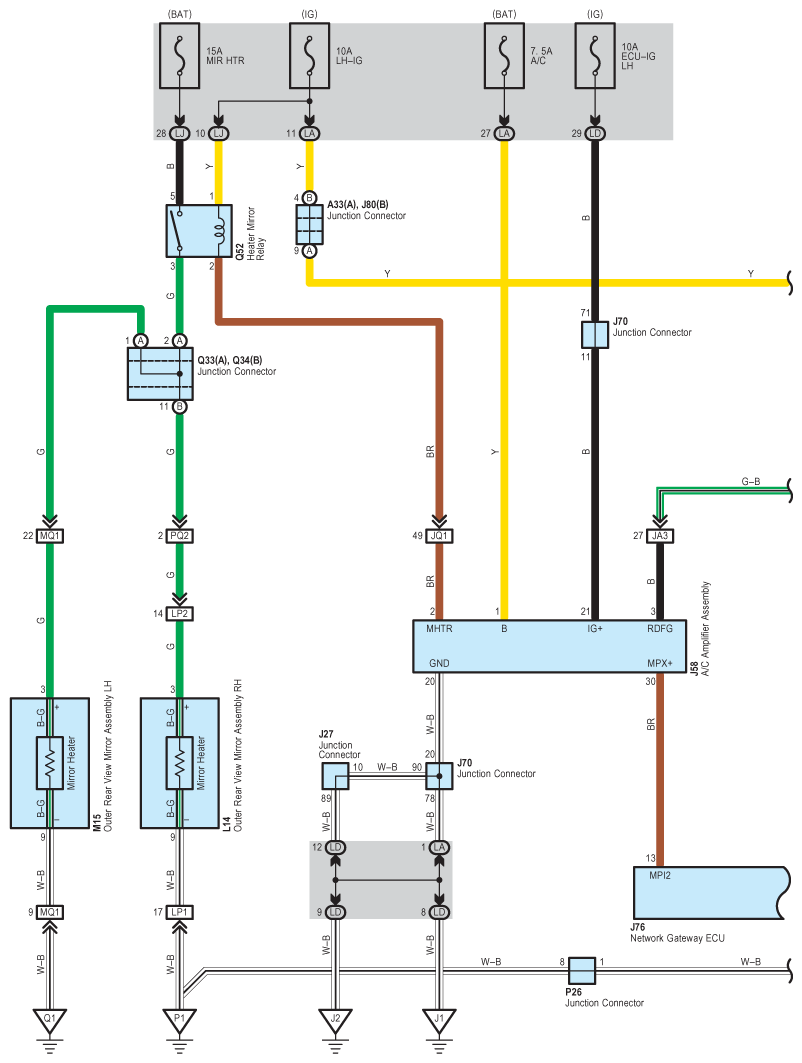

Fig 1: Mirror Heater And Rear Window Defogger System Wiring Diagram (1 Of 2)
G09122360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

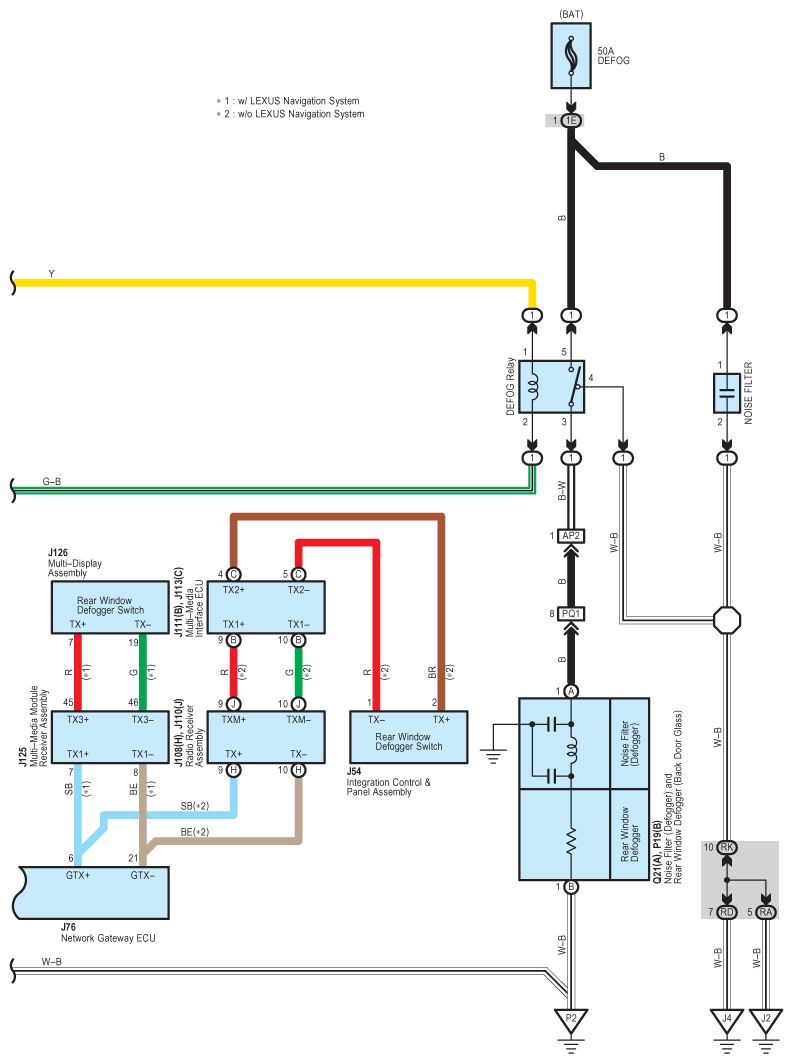

Fig 2: Mirror Heater And Rear Window Defogger System Wiring Diagram (2 Of 2)
G09122361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
