Power Seat (Driver's Seat): Notes

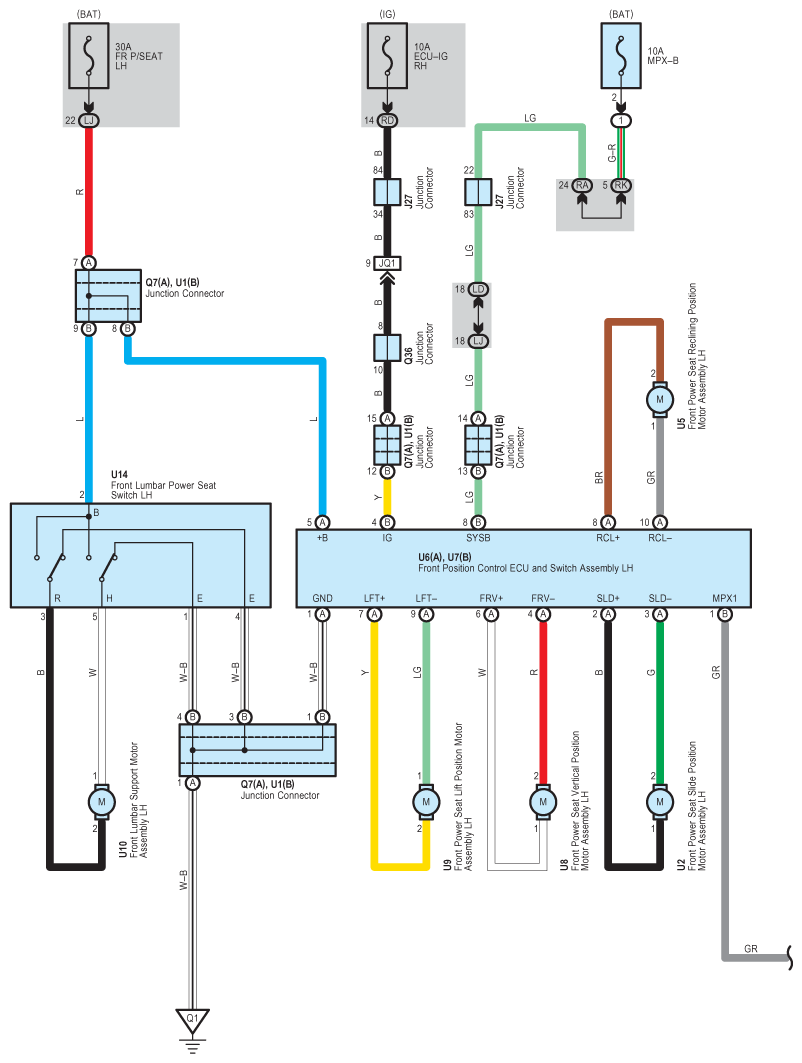

Fig 1: Power Seat (Driver's Seat) System Wiring Diagram (1 Of 5)
G09122337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

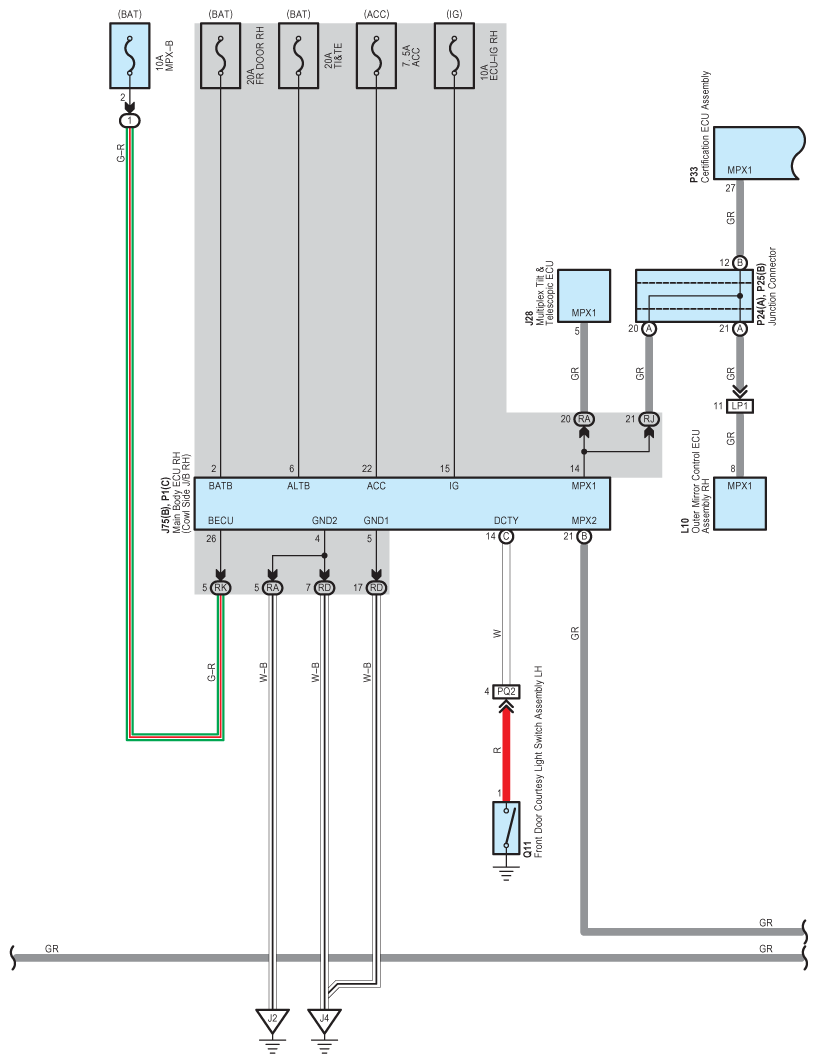

Fig 2: Power Seat (Driver's Seat) System Wiring Diagram (2 Of 5)
G09122338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

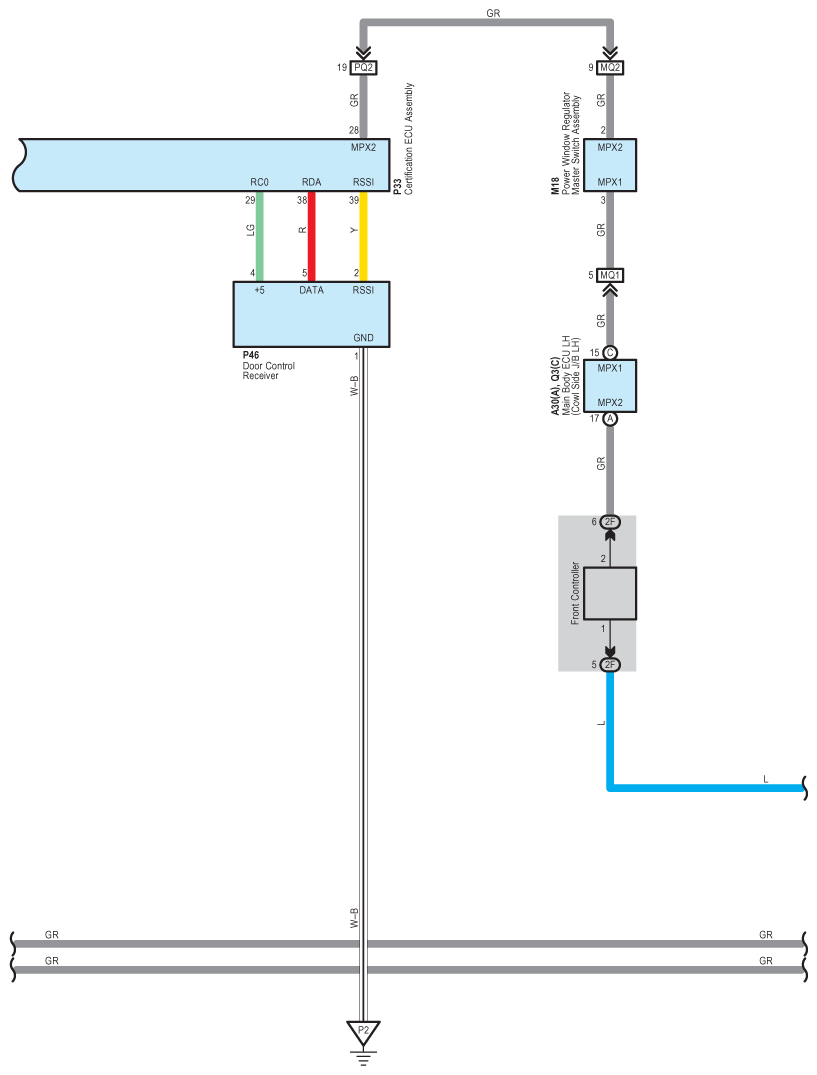

Fig 3: Power Seat (Driver's Seat) System Wiring Diagram (3 Of 5)
G09122339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

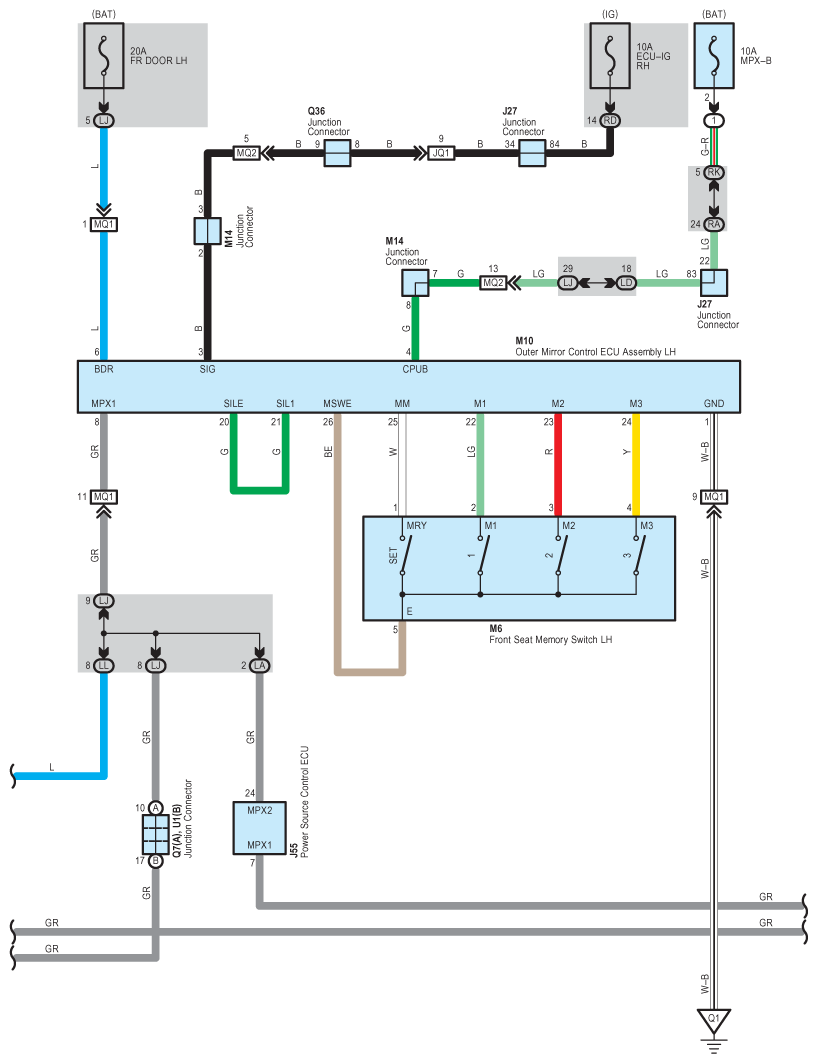

Fig 4: Power Seat (Driver's Seat) System Wiring Diagram (4 Of 5)
G09122340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

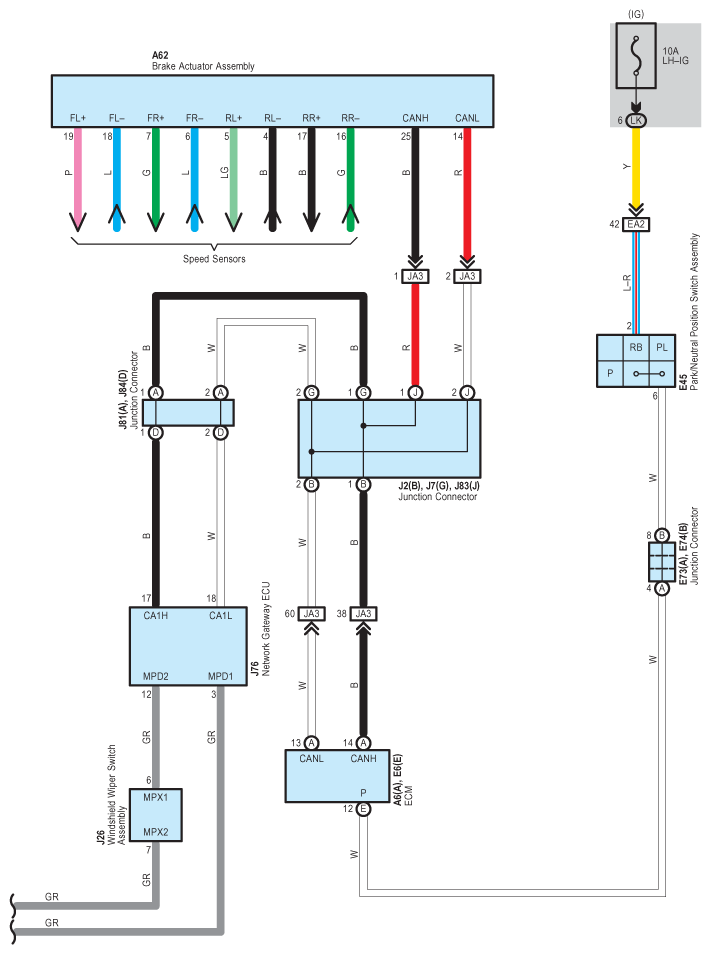

Fig 5: Power Seat (Driver's Seat) System Wiring Diagram (5 Of 5)
G09122341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
