Power Seat (Front Passenger's Seat): Notes

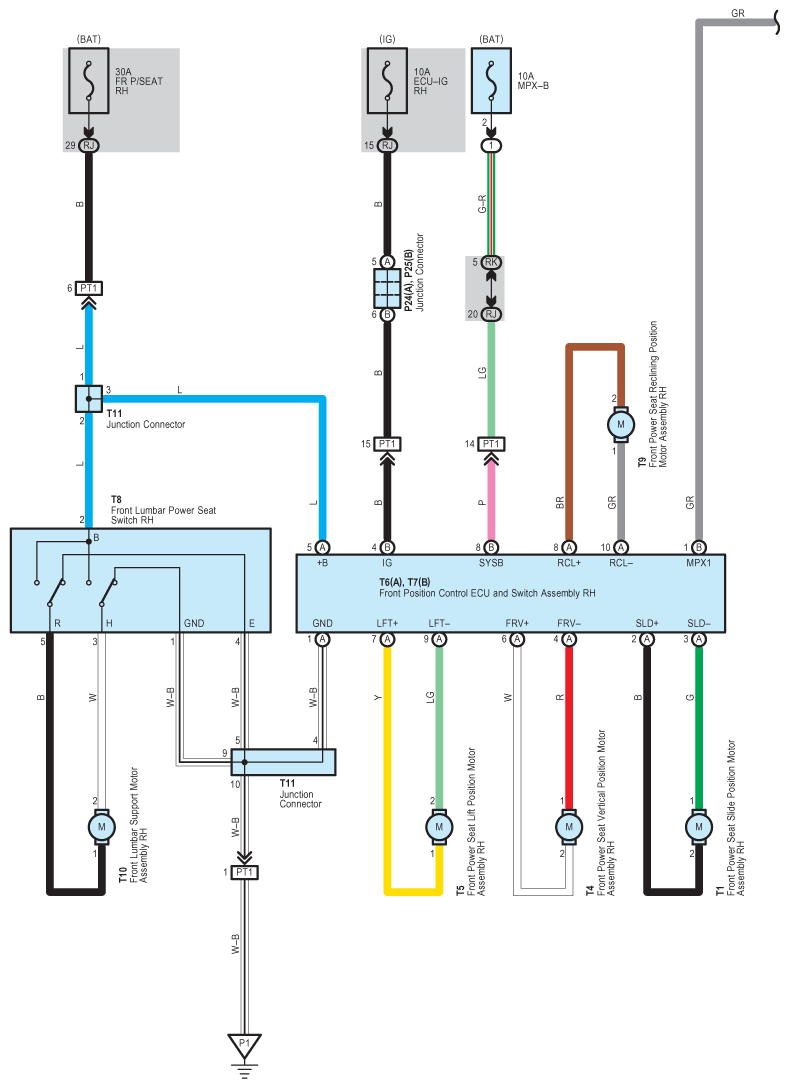

Fig 1: Power Seat (Front Passenger's Seat) System Wiring Diagram (1 Of 4)
G09122342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

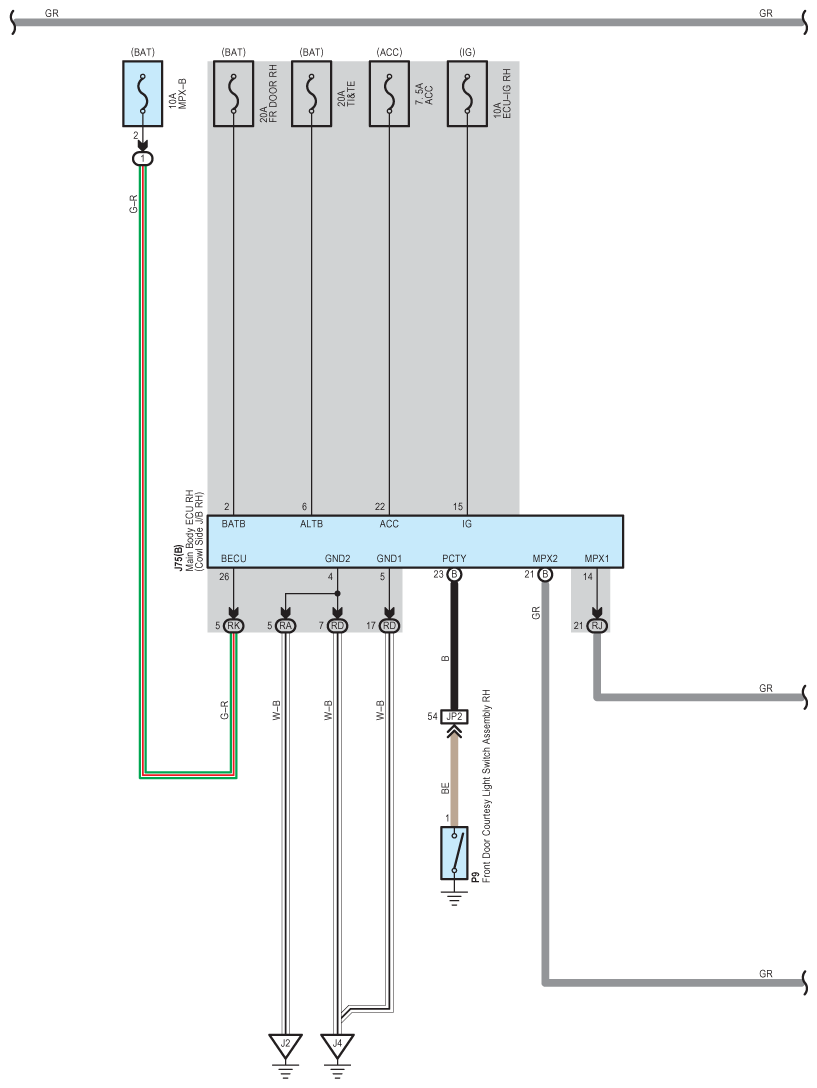

Fig 2: Power Seat (Front Passenger's Seat) System Wiring Diagram (2 Of 4)
G09122343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

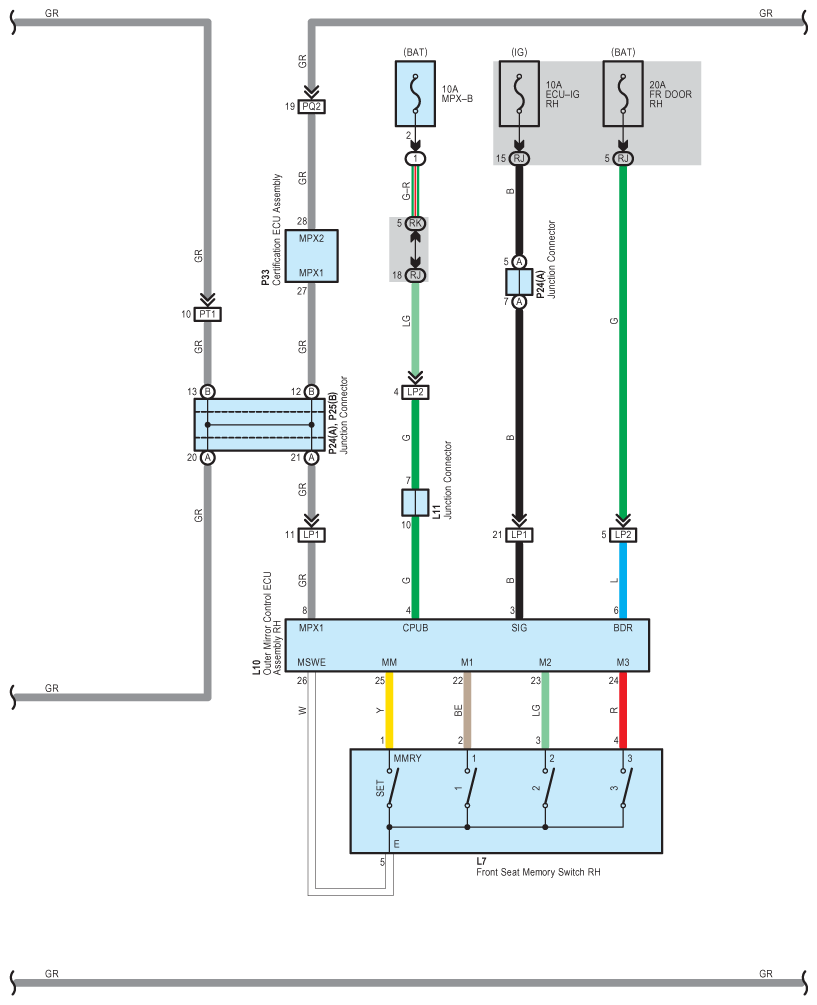

Fig 3: Power Seat (Front Passenger's Seat) System Wiring Diagram (3 Of 4)
G09122344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

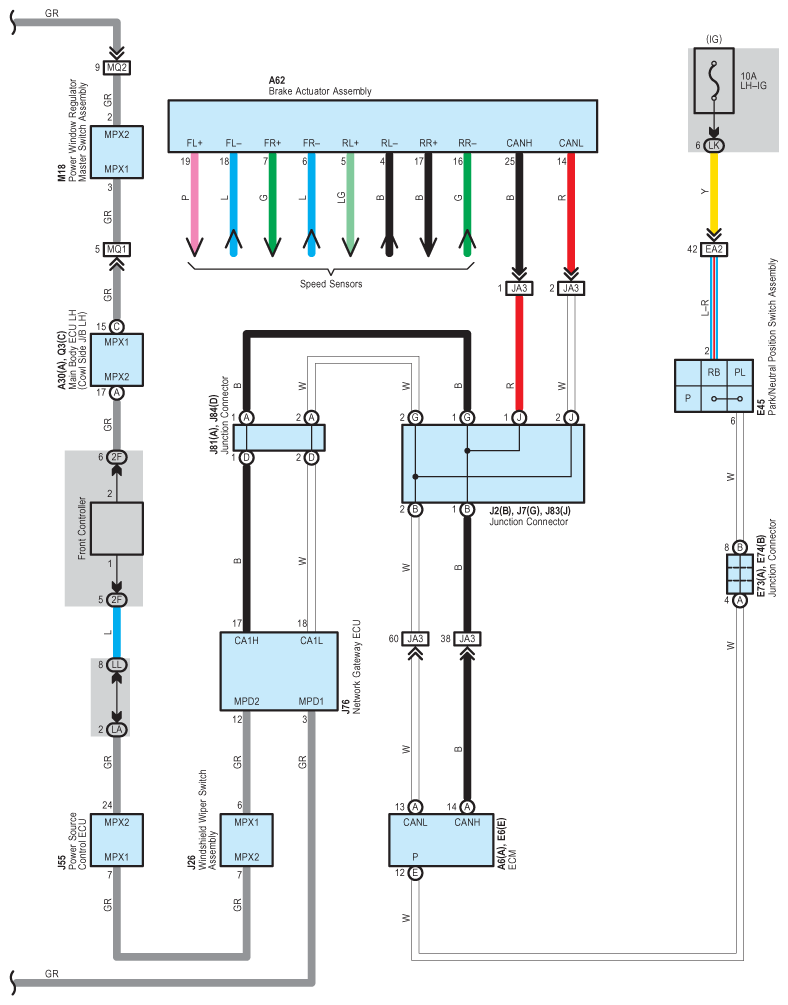

Fig 4: Power Seat (Front Passenger's Seat) System Wiring Diagram (4 Of 4)
G09122345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
