LEXUS ENFORM - Apps Update Process (L-SB-0032-15)
Publication date: 2015-07-30Reference number: L-SB-0032-15
LEXUS ENFORM - APPS UPDATE PROCESS
TECHNICAL SERVICE BULLETIN
Reference Number(s): L-SB-0032-15, Date of Issue:
July 30, 2015
| LEXUS: | 2013 CT200H, ES300H, ES350, GS350, GS450H, IS F, IS250, IS250C, IS350, IS350C, LS460, LS600H, LX570, RX350, RX; 2014 ES300H, ES350, GS350, GS450H, IS250C, IS350C, LS460, LS600H, LX570, RX350, RX450H; 2015 IS250C, IS350C, LX570, RX350, RX450H |
| SERVICE CATEGORY: | Audio/Visual/Telematics |
| SECTION: | Navigation/Multi Info Display |
| COPYRIGHT: | © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002 |
APPLICABILITY
APPLICABILITY
| YEAR(S) | MODEL(S) | ADDITIONAL INFORMATION |
|---|---|---|
| 2013 | CT200H, ES300H, ES350, GS350, GS450H, IS F, IS250, IS250C, IS350, IS350C, LS460, LS600H, LX570, RX350, RX450H | |
| 2014 | ES300H, ES350, GS350, GS450H, IS250C, IS350C, LS460, LS600H, LX570, RX350, RX450H | |
| 2015 | IS250C, IS350C, LX570, RX350, RX450H |
NOTE:
SUPERSESSION NOTICE The information contained in this bulletin supersedes SB No. L-SB-0010-12.
Service Bulletin No. L-SB-0010-12 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this bulletin before proceeding.
- Applicability has been updated to include 2015 model year Lexus vehicles.
Service Bulletin No. L-SB-0010-12 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this bulletin before proceeding.
INTRODUCTION
Lexus Enform™ Apps will be periodically updated via an over-the-air update system. Updates can come in "Optional" or "Mandatory" form. The update process will take approximately 1 minute for each application requiring an update. Follow the procedure below to perform an update when necessary.
WARRANTY INFORMATION
WARRANTY INFORMATION
| OP CODE | DESCRIPTION | TIME | OFP | T1 | T2 |
|---|---|---|---|---|---|
| N/A | Not Applicable to Warranty | - | - | - | - |
REPAIR PROCEDURE
NOTE:
An Enform™ compatible phone and an active Enform™ account are necessary to perform updates.
- Refer to the "Lexus Bluetooth® Compatibility Information" link on the Technical Information System (TIS), under Diagnostics: Telematics , to verify phone compatibility.
- Connect the phone to the vehicle via Bluetooth® Follow the steps outlined in the "Quick Pairing" instructions on TIS.
- Open the Enform™ App on the phone and sign in with your dealer Enform™ service troubleshooting license e-mail address and password.

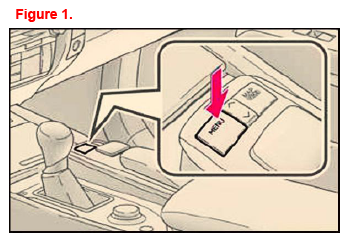

- Press the MENU
button.NOTE: Depending on the vehicle, the MENU button can be located next to the Remote Touch or the navigation screen.

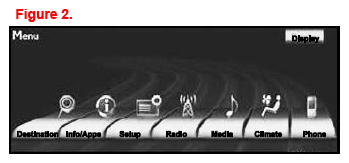

- Select Info/Apps
.

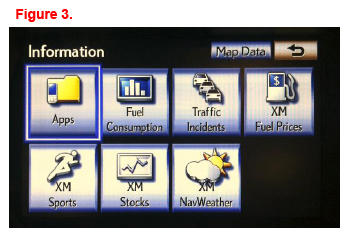

- Select Apps
.

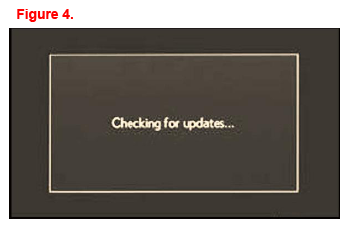

- A screen indicating "Checking for updates..."
will be displayed.

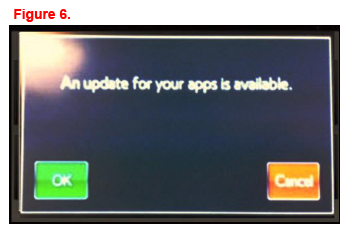

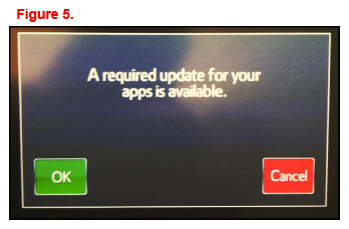

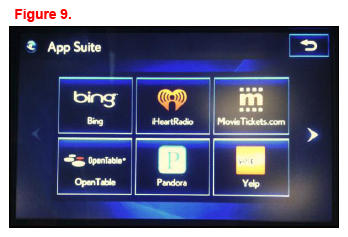

- The screen will indicate if the App update is required or optional. Press OK
to proceed with the update. If NO update is required, the App Suite
screen will appear (Figure 9).

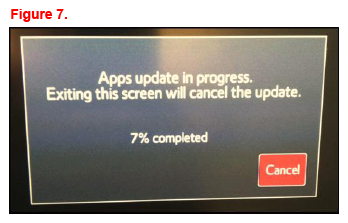

- A screen will appear indicating the update is in process.

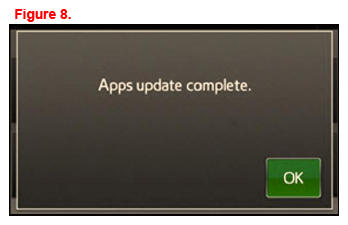

- Select OK
once the Apps update is complete.
- The update is now complete.
