Components [09/2012 - ]: Illustration

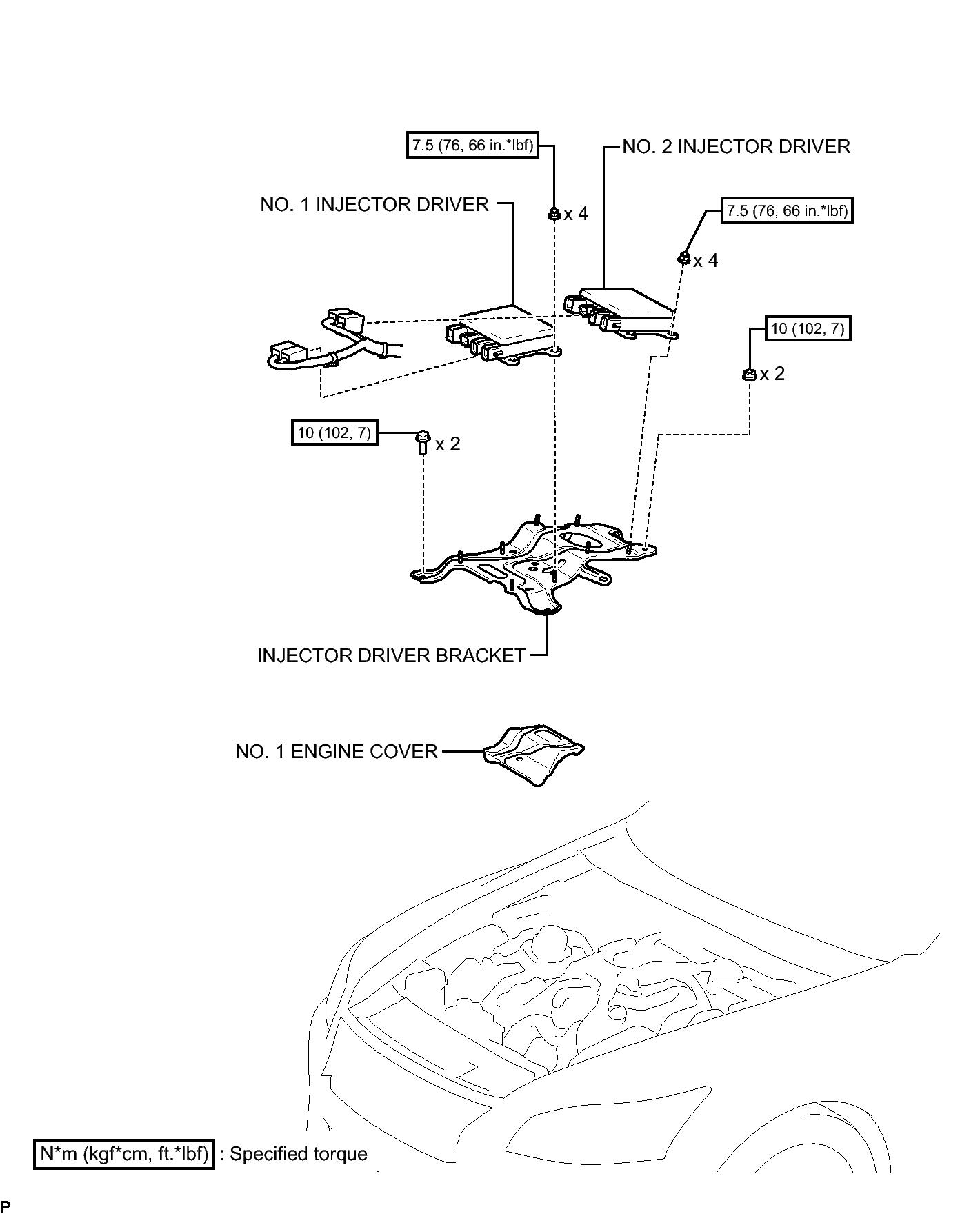

Fig 1: Identifying Injector Driver Replacement Components With Torque Specifications
GTY412228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
