Removal [09/2012 - ]

REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
NOTE:
This accelerator pedal does not require lubrication.

Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

If applied, the accelerator pedal sensor assembly must be replaced.

Fig 1: Identifying Accelerator Pedal Connector & Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the accelerator pedal sensor connector.
2. Remove the 3 nuts and accelerator pedal sensor assembly.
  NOTE:
  - Avoid physical shocks to the accelerator pedal sensor assembly.
  - Do not disassemble the accelerator pedal sensor assembly.

REMOVE ACCELERATOR PEDAL

Disengage the 3 claws and remove the accelerator pedal.

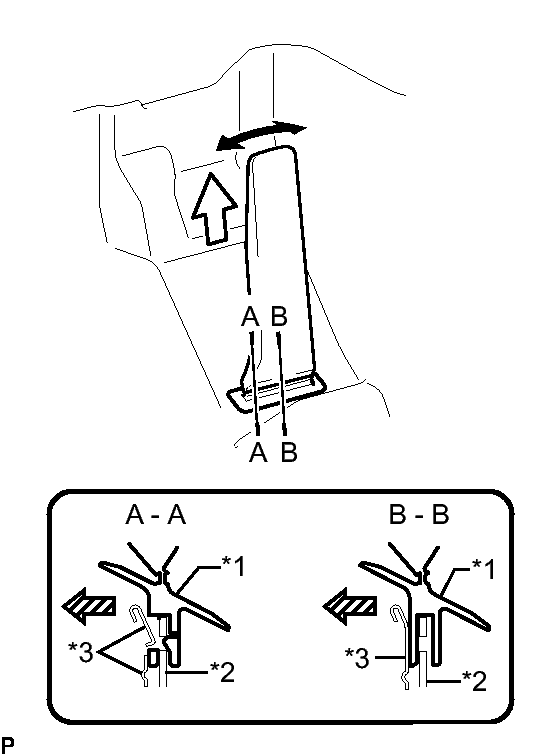

Fig 2: Removing Accelerator Pedal

GTY398711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*1	Accelerator Pedal
*2	Accelerator Pedal Support Bracket
*3	Spring
	Wiggle
	Pull
	Front of Vehicle

HINT:

While wiggling the tip of the accelerator pedal to the left and right, lift the accelerator pedal upwards and remove it from the bracket.
