Components [09/2012 - ]: Illustration

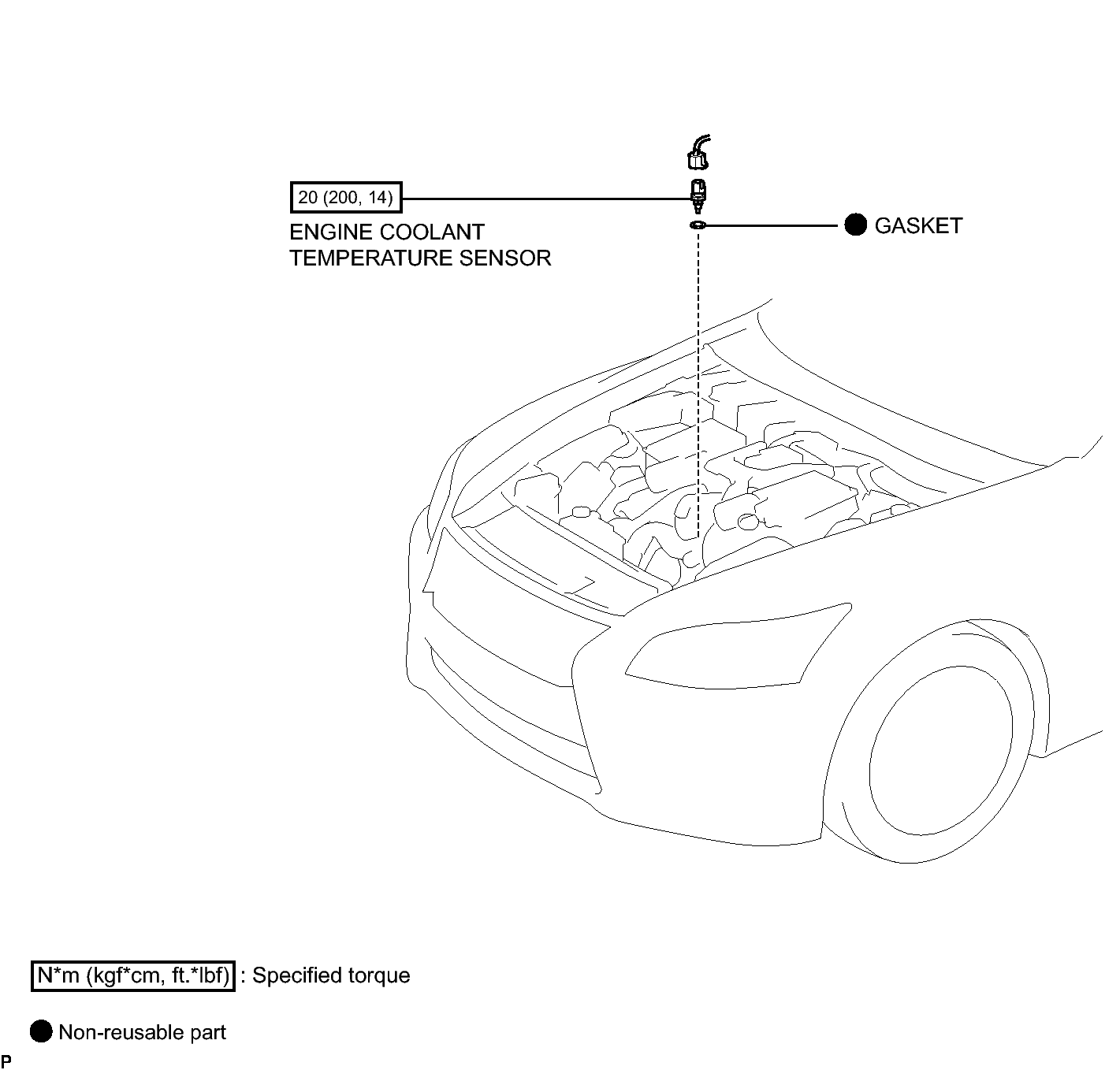

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY407657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
