All Door Entry Lock/Unlock Functions Do Not Operate, But Wireless Functions Operate: Procedure

  1. READ VALUE USING TECHSTREAM
    1. Using the Techstream, read the Data List.
      SMART ACCESS

      Tester Display Measurement Item/Display Normal Condition Diagnostic Note
      Auto Entry Cancel SW Entry function cancel / ON or OFF Mode status is displayed -
      RESULT

      Result Proceed to
      Entry function cancel is OFF A
      Entry function cancel is ON B

    B → See step   6

    A: Go to next step

  2. CHECK WAVE ENVIRONMENT
    1. Move the electrical key transmitter as described below and perform the operation inspection. Refer to OPERATION CHECK [09/2012 - ] .

      HINT:

      • When the electrical key transmitter is brought near the door outside handle or electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • The transmitting wave of the wireless function and entry function are the same, but the wave logic is different. As a result, it is possible that only the wireless function or only the entry function is affected by wave interference.
    2. Bring the electrical key transmitter near the front door outside handle LH, and perform a driver door entry lock and unlock operation check.

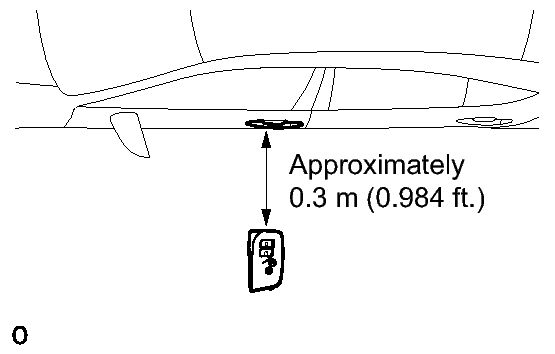

      GTY403122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not possible.

    3. Bring the electrical key transmitter near the front door outside handle RH, and perform a front passenger door entry lock and unlock operation check.

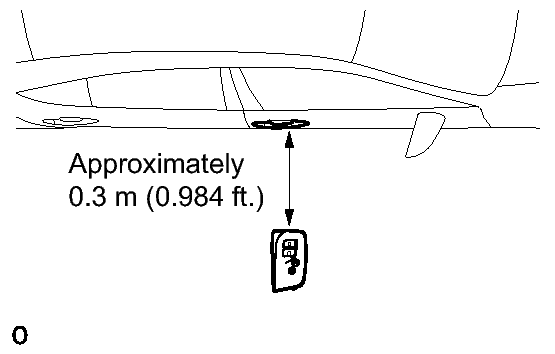

      GTY406423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not possible.

    4. Bring the electrical key transmitter near the rear door outside handle LH, and perform a rear left door entry lock and unlock operation check.

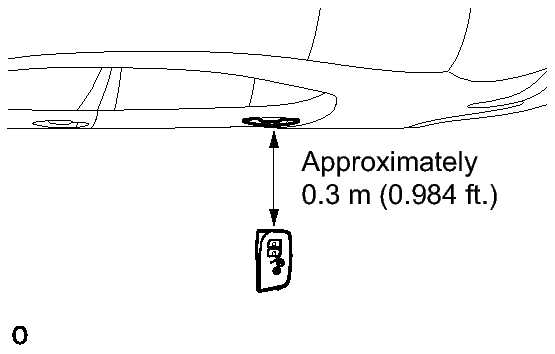

      GTY404730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not possible.

    5. Bring the electrical key transmitter near the rear door outside handle RH, and perform a rear right door entry lock and unlock operation check.

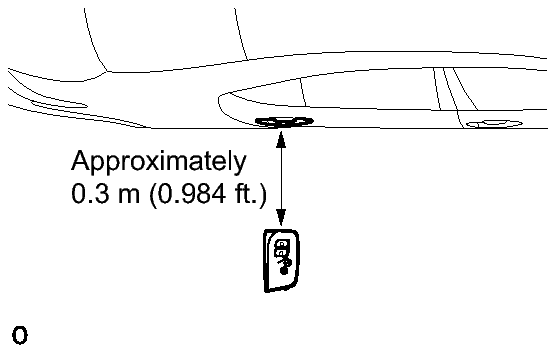

      GTY405169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not possible.

    6. Bring the electrical key transmitter near the indoor electrical key oscillator (in center console), and perform a hybrid control system start check.
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the center console, communication may not possible.

    7. Bring the electrical key transmitter near the indoor electrical key oscillator (in rear seat cushion), and perform a hybrid control system start check.
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the rear seat cushion, communication may not possible.

    8. Bring the electrical key transmitter near the electrical key antenna (in rear bumper), and perform an entry luggage compartment open function check.
      GTY397777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication may not possible.

      HINT:

      If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

      RESULT

      Result Proceed to
      All operation checks fail A
      Some operation checks are normal B

    B → AFFECTED BY WAVE INTERFERENCE

    A: Go to next step

  3. KEY DIAGNOSTIC MODE

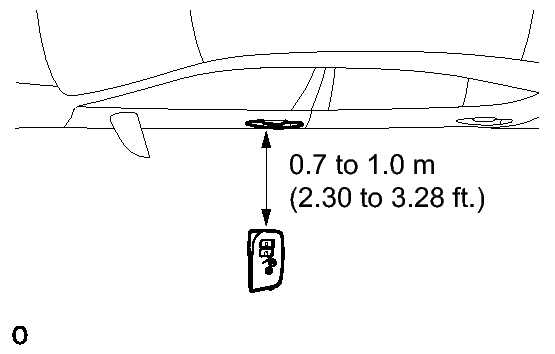

    1. Diagnostic mode inspection door electrical key oscillator
      GTY407911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Driver Side.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

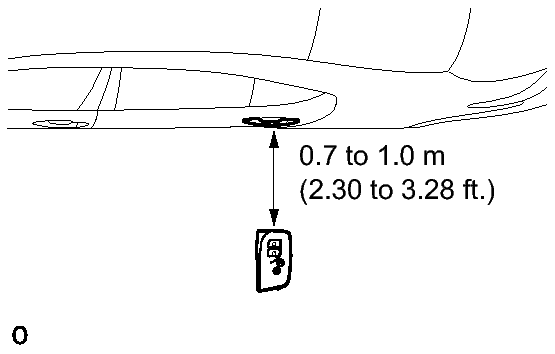

    2. Diagnostic mode inspection door electrical key oscillator

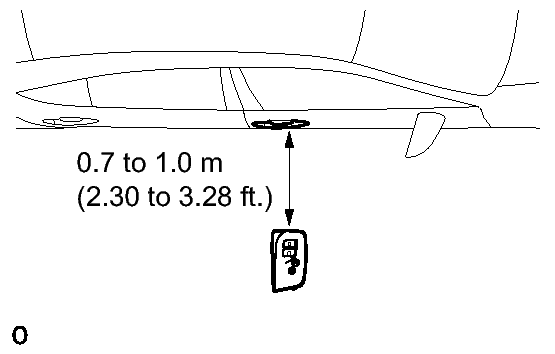

      GTY399031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Passenger Side.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    3. Diagnostic mode inspection door electrical key oscillator
      GTY405313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Driver Side Rear.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    4. Diagnostic mode inspection door electrical key oscillator

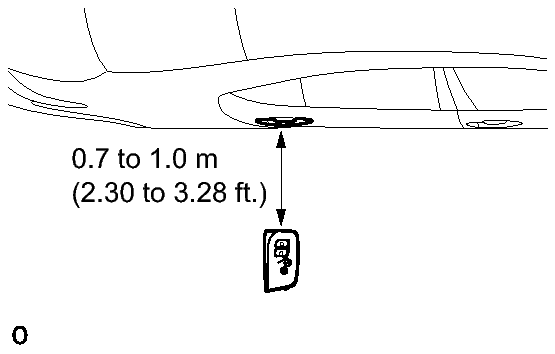

      GTY405228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Passenger Side Rear.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

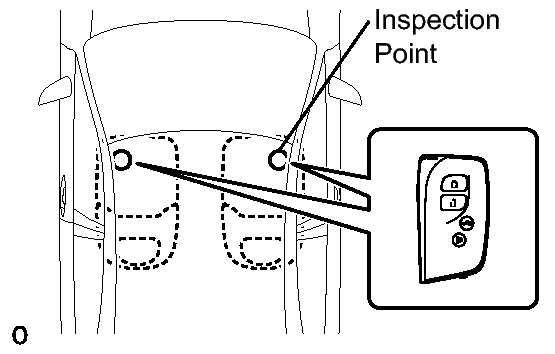

    5. Diagnostic mode inspection indoor electrical key oscillator (for Front Floor)
      GTY407989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Front Room.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    6. Diagnostic mode inspection indoor electrical key oscillator (for Rear Floor)

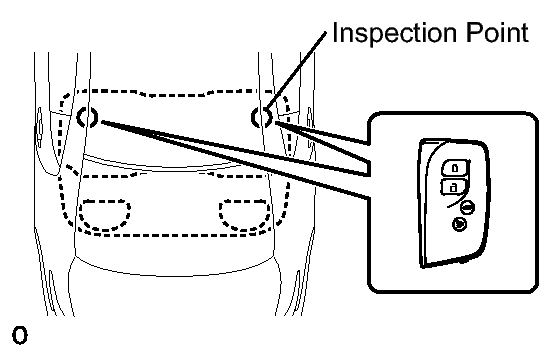

      GTY414306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Rear Room.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

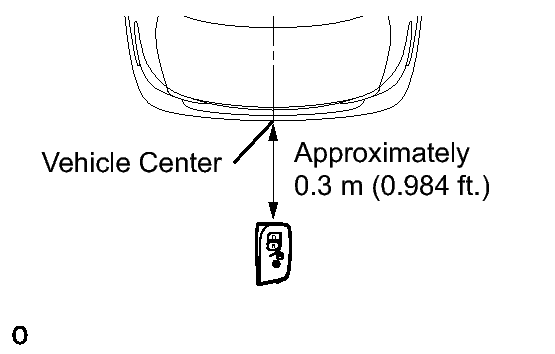

    7. Diagnostic mode inspection electrical key antenna

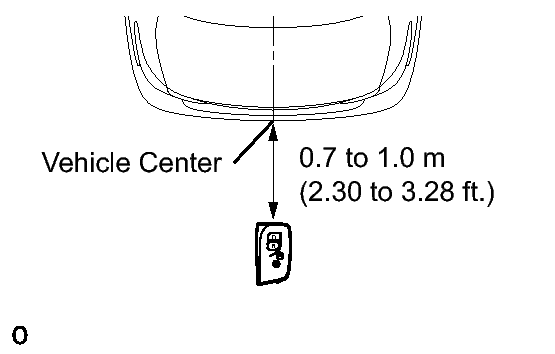

      GTY397295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the power switch ON (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check /Overhead + Luggage.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
        RESULT

        Result Proceed to
        All diagnostic mode inspections fail A
        Some diagnostic mode inspections fail (door) B
        Some diagnostic mode inspections fail (interior) C
        Some diagnostic mode inspections fail (luggage compartment) D
        All diagnostic mode inspections are normal E

    B → See step   7

    C → See step   8

    D → See step   9

    E → See step   10

    A: Go to next step

  4. REPLACE ELECTRICAL KEY TRANSMITTER
    1. Replace the electrical key transmitter with a new one.
    2. Perform the registration procedure. Refer to REGISTRATION [09/2012 - ] .

    NEXT: Go to next step

  5. CHECK OPERATION
    1. Check the operation of the entry lock function. Refer to OPERATION CHECK [09/2012 - ] .

      OK

      Operates normally

    NG → See step   11

    OK → END (ELECTRICAL KEY TRANSMITTER IS DEFECTIVE)

  6. PERFORM CANCELLATION OF ENTRY KEY CANCEL FUNCTION. Refer to  CUSTOMIZE PARAMETERS [09/2012 - ]
  7. GO TO DTC OF OTHER COMPONENTS (PROCEED TO PROBLEM SYMPTOM FLOWCHART FOR EACH DOOR). Refer to  PROBLEM SYMPTOMS TABLE [09/2012 - ]
  8. GO TO OTHER FLOWCHART. Refer to  Room Oscillator does not Recognize Key
  9. GO TO OTHER FLOWCHART. Refer to  Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment
  10. REPLACE CERTIFICATION ECU. Refer to  REMOVAL [09/2012 - ]
  11. REPLACE CERTIFICATION ECU. Refer to  REMOVAL [09/2012 - ]
