Door Closer: Notes

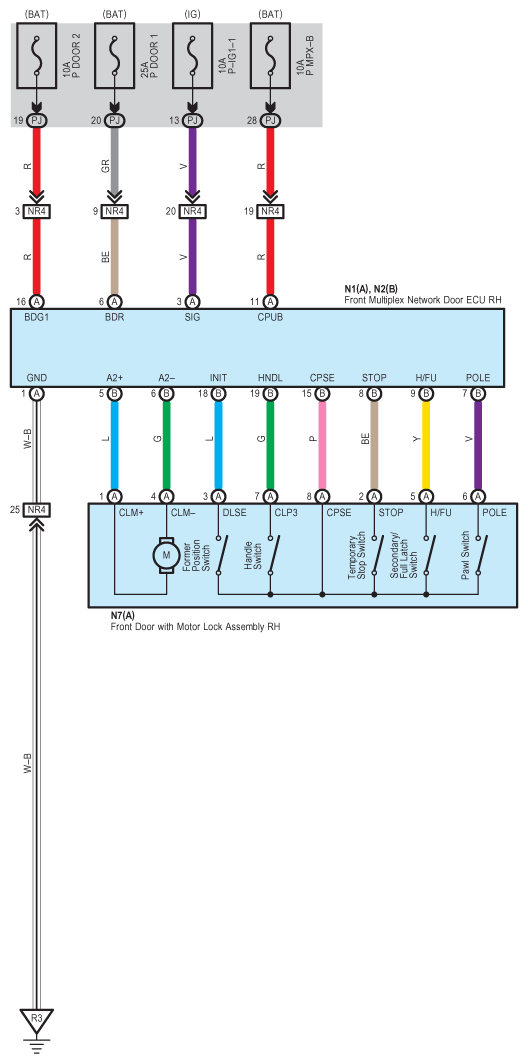

Fig 1: Door Closer System Wiring Diagram (1 Of 4)
G09123263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

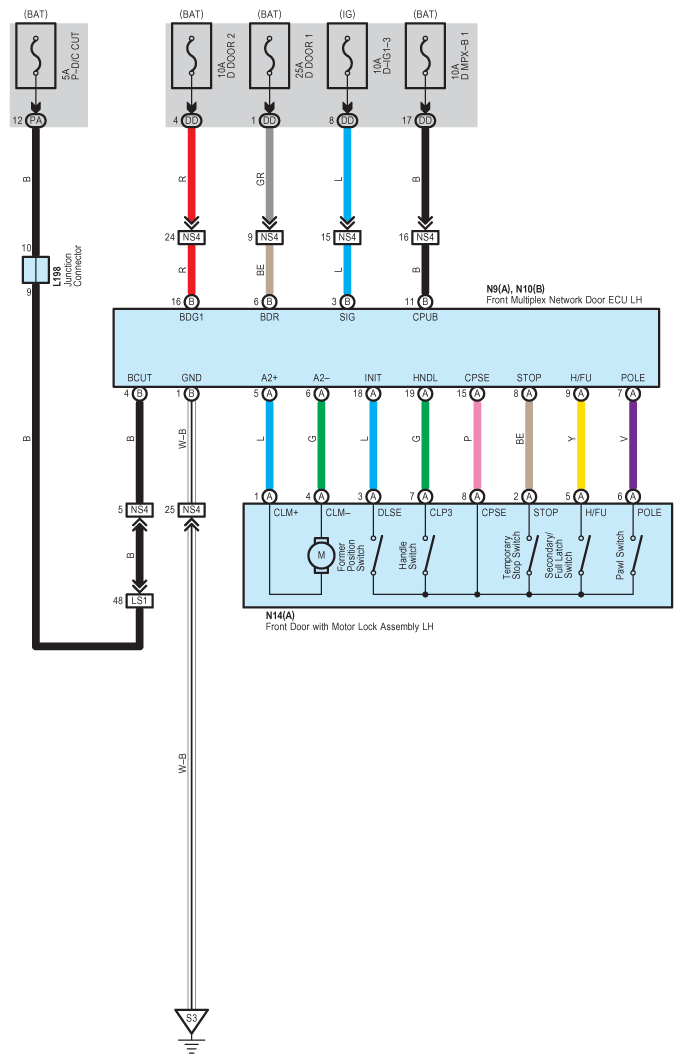

Fig 2: Door Closer System Wiring Diagram (2 Of 4)
G09123264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

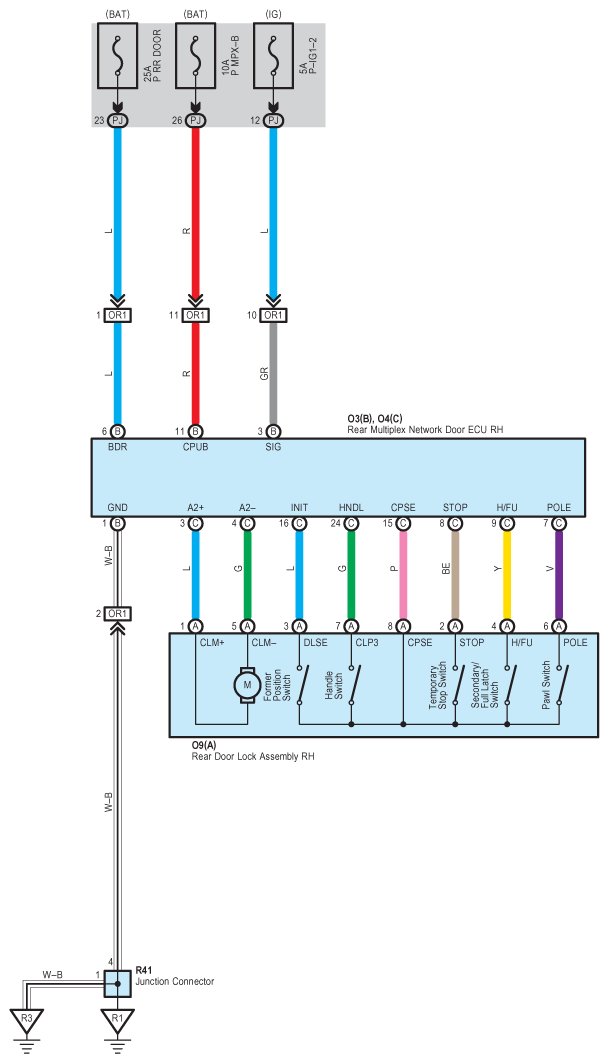

Fig 3: Door Closer System Wiring Diagram (3 Of 4)
G09123265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

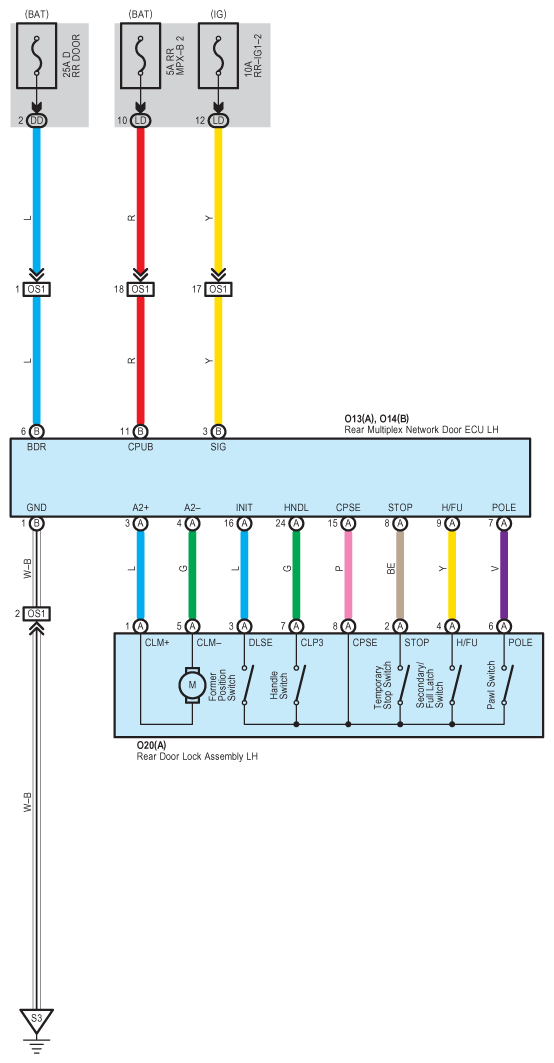

Fig 4: Door Closer System Wiring Diagram (4 Of 4)
G09123266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
