Hybrid Vehicle Immobilizer System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control: Notes

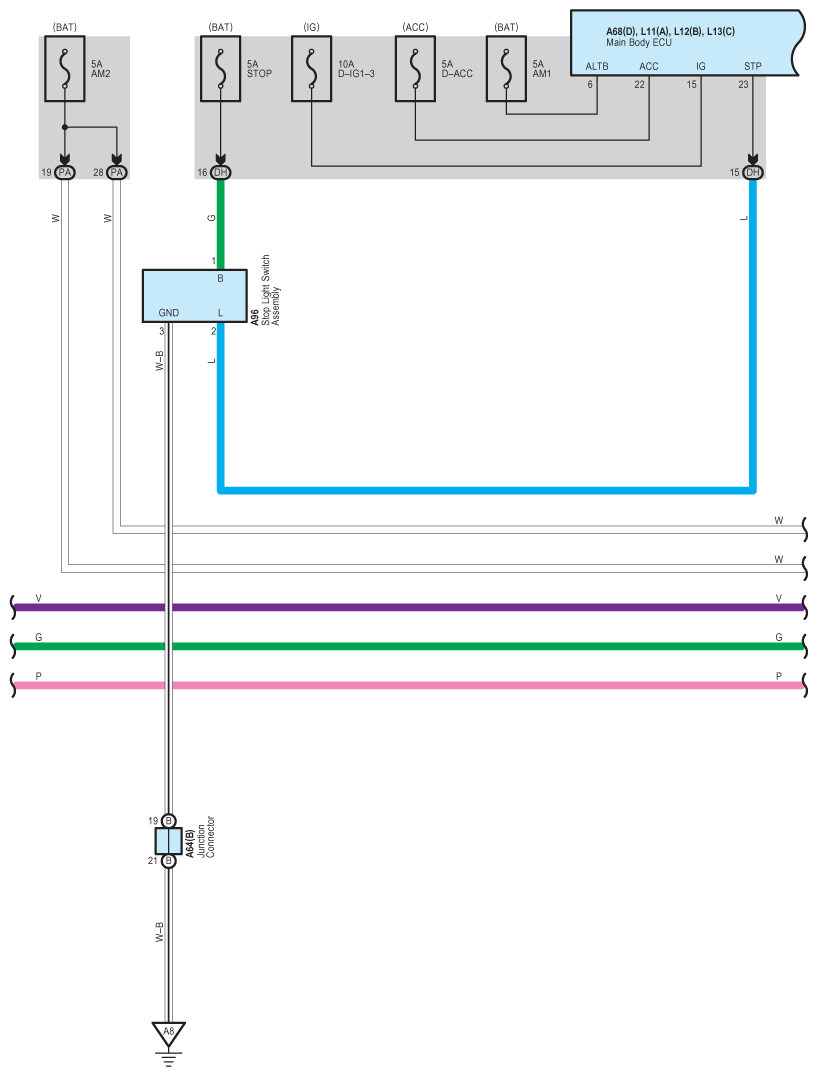

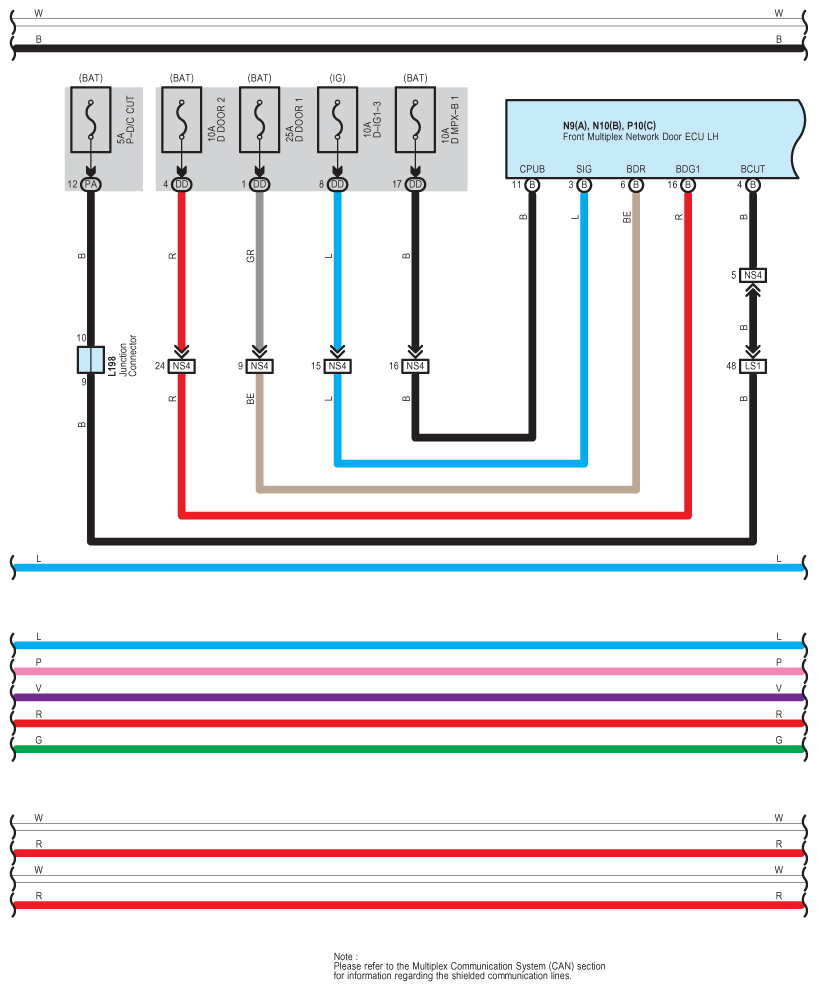

Fig 1: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (1 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

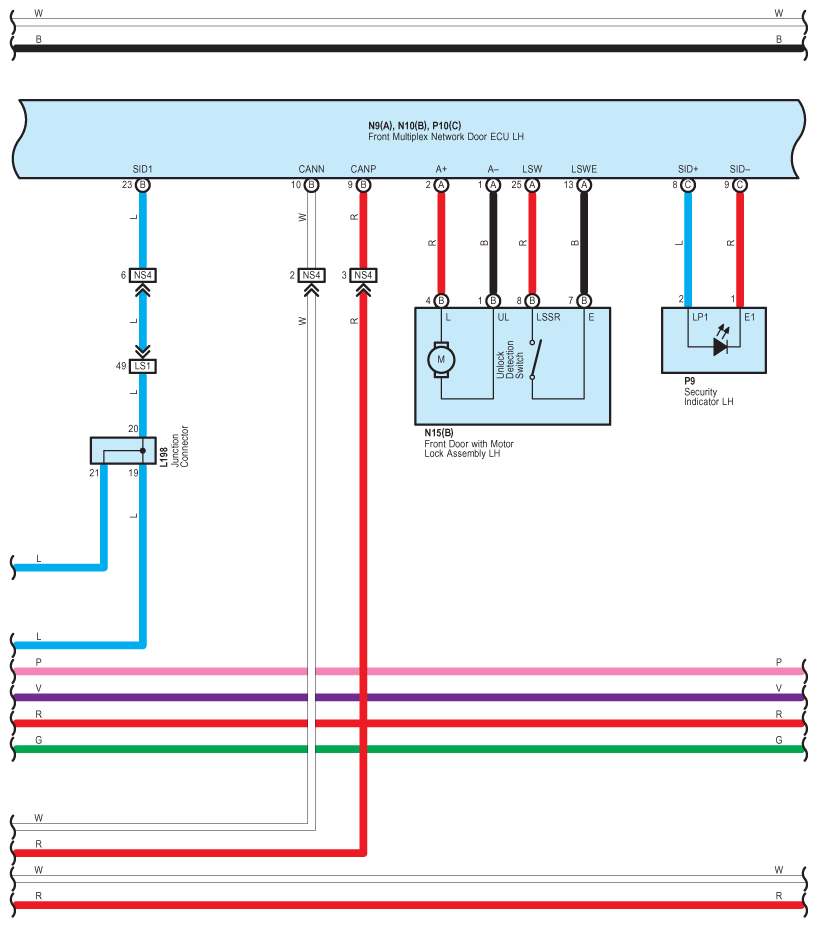

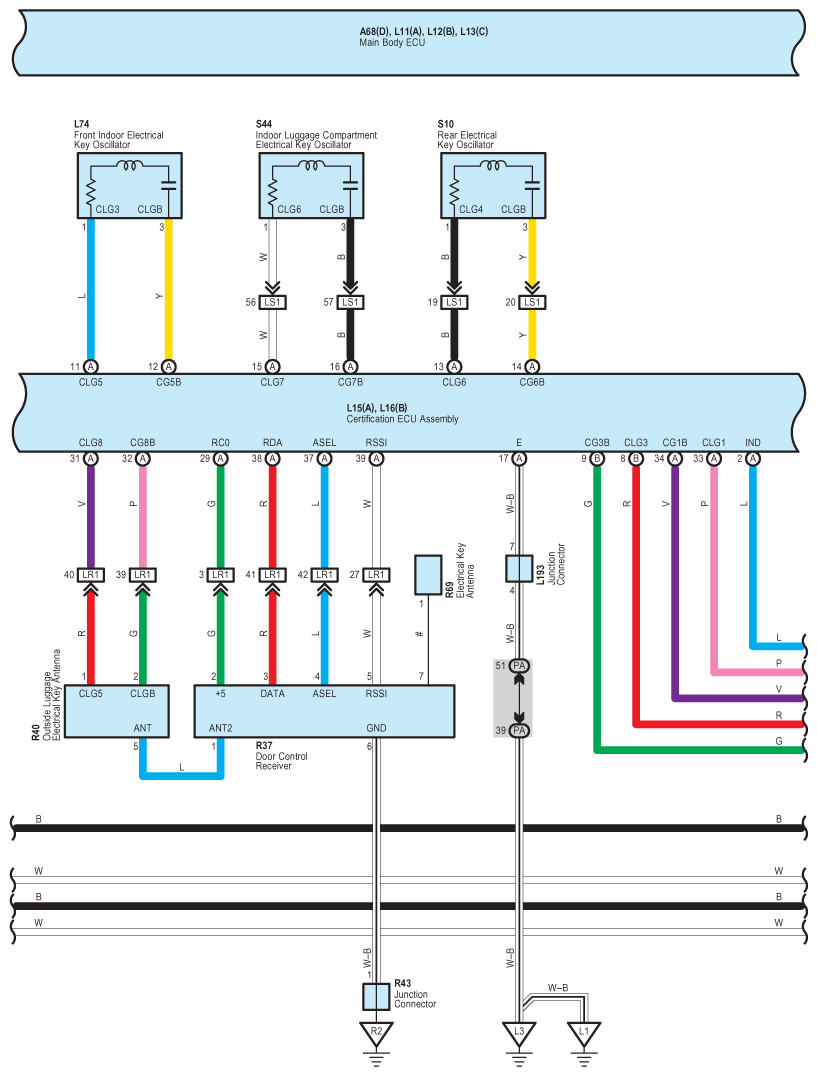

Fig 2: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (2 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

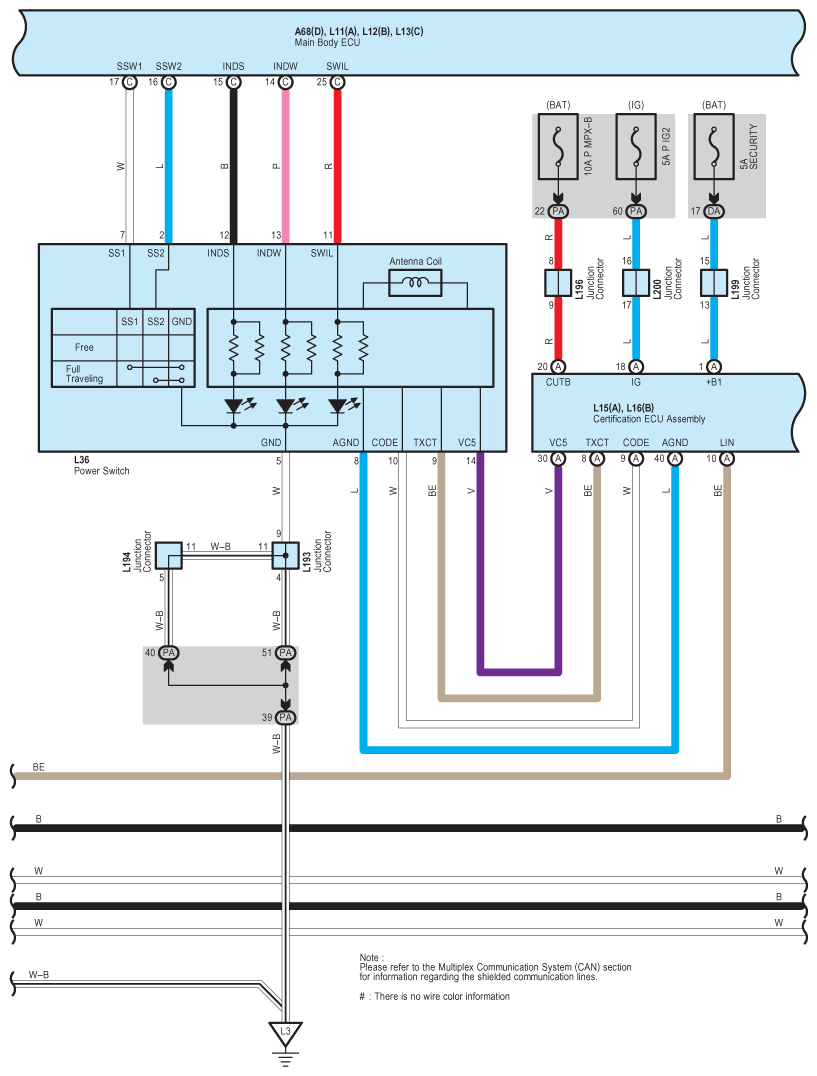

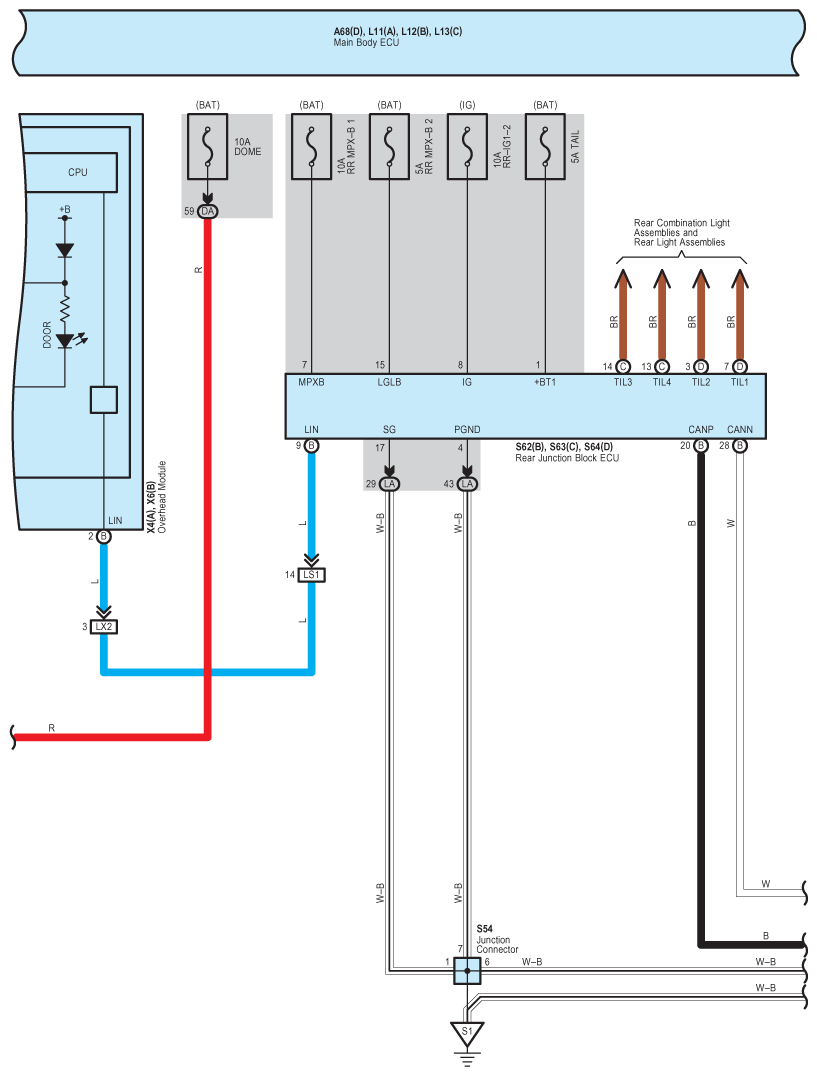

Fig 3: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (3 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

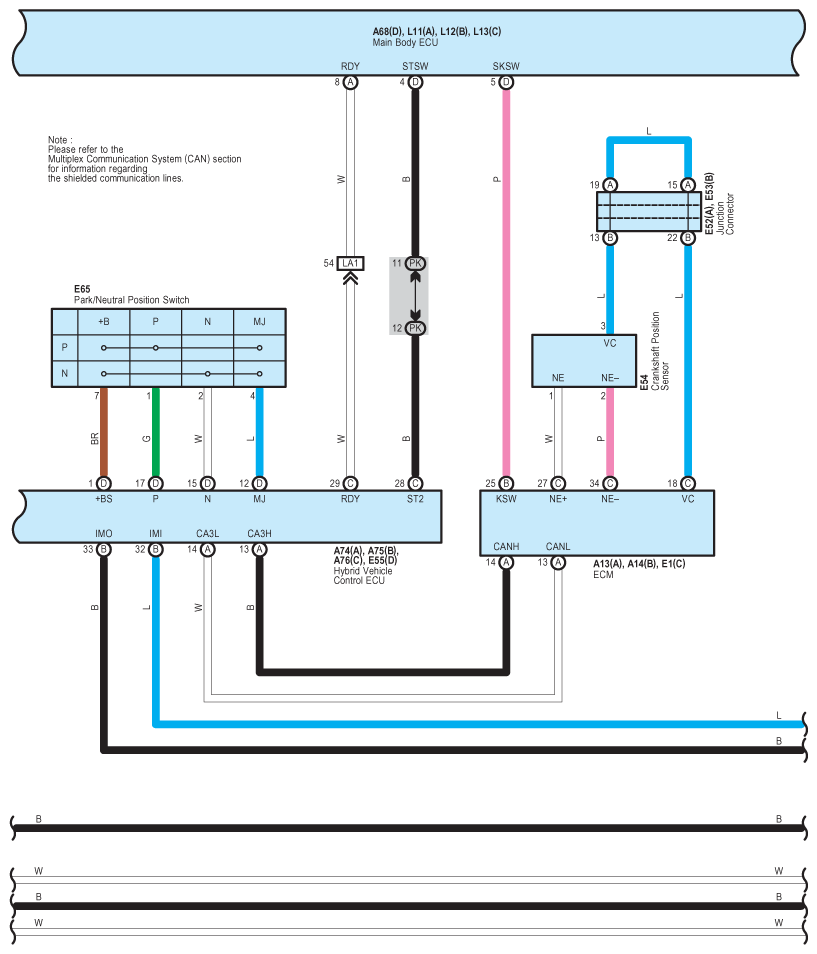

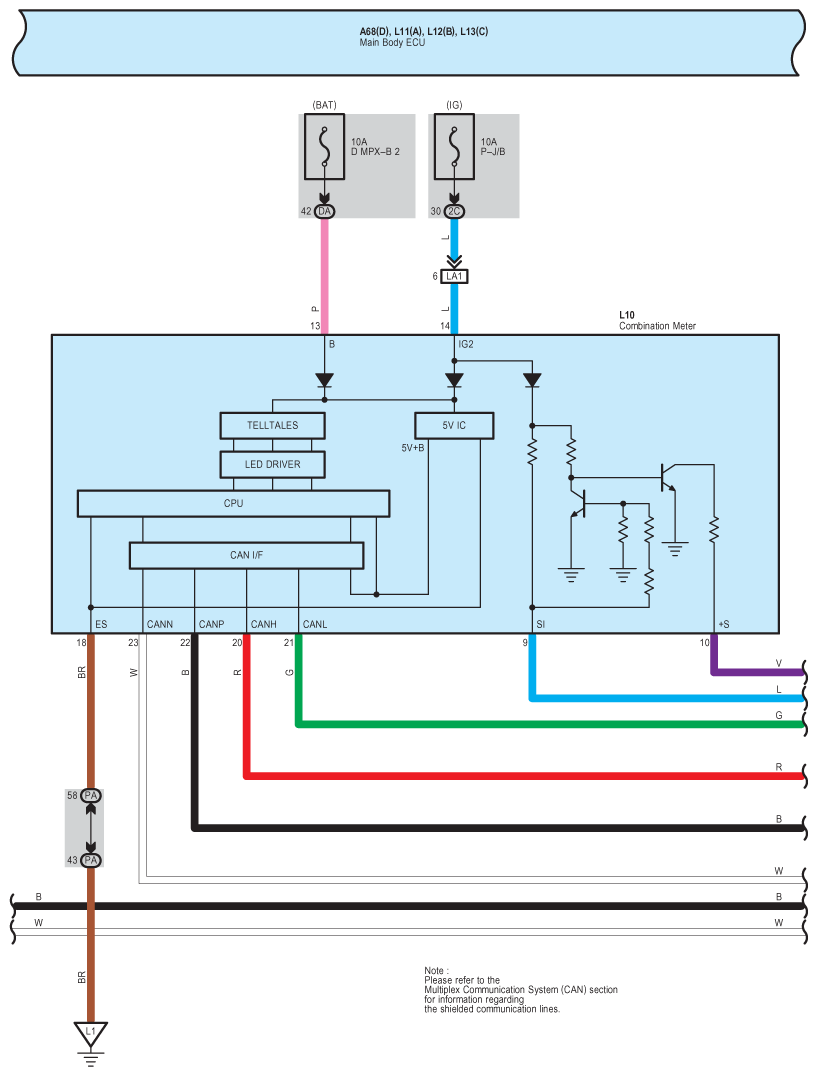

Fig 4: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (4 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

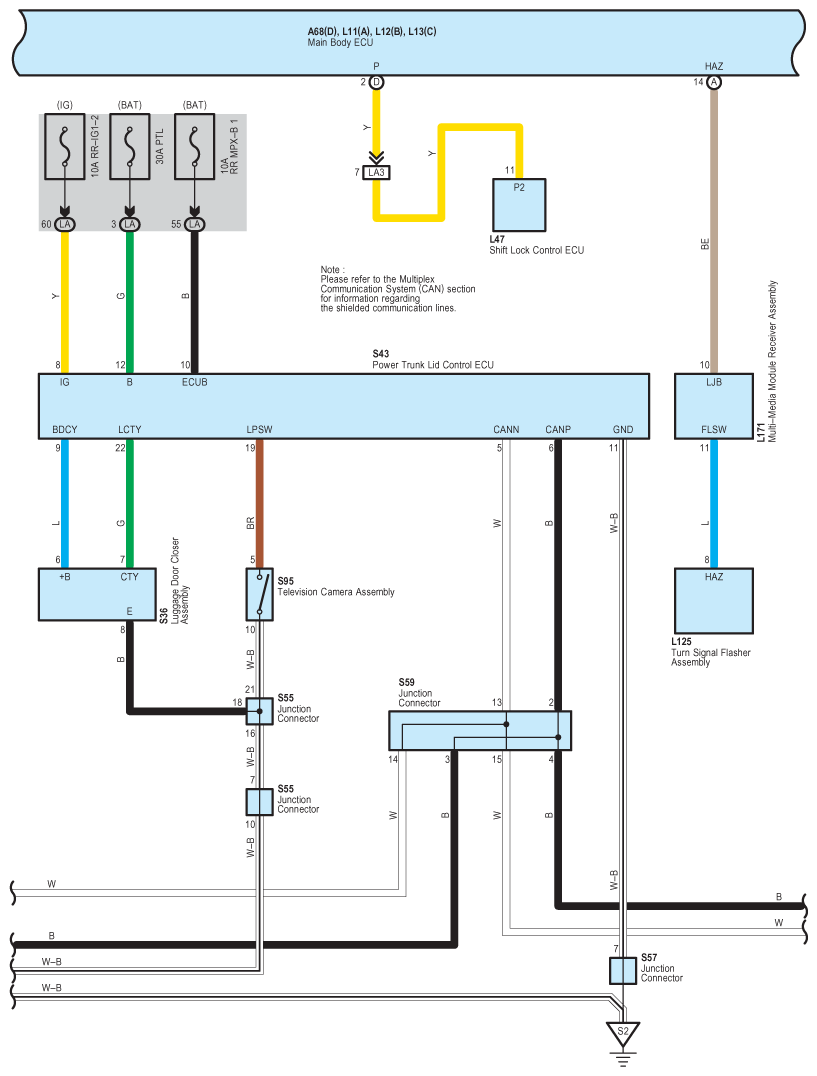

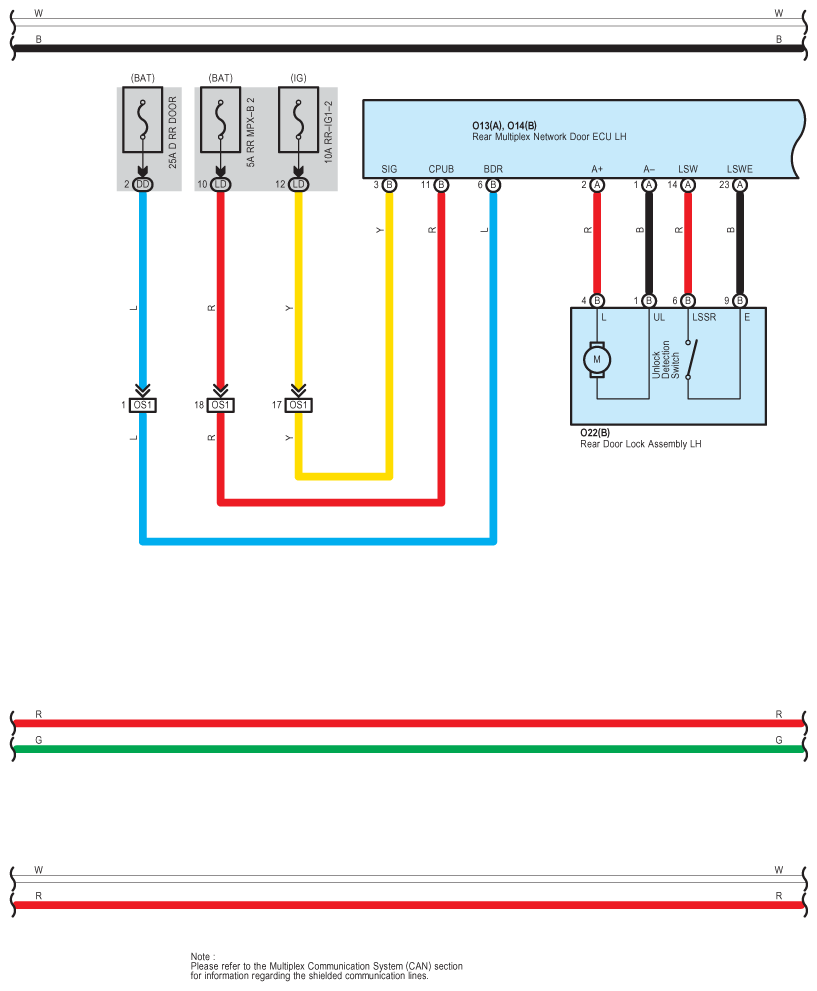

Fig 5: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (5 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

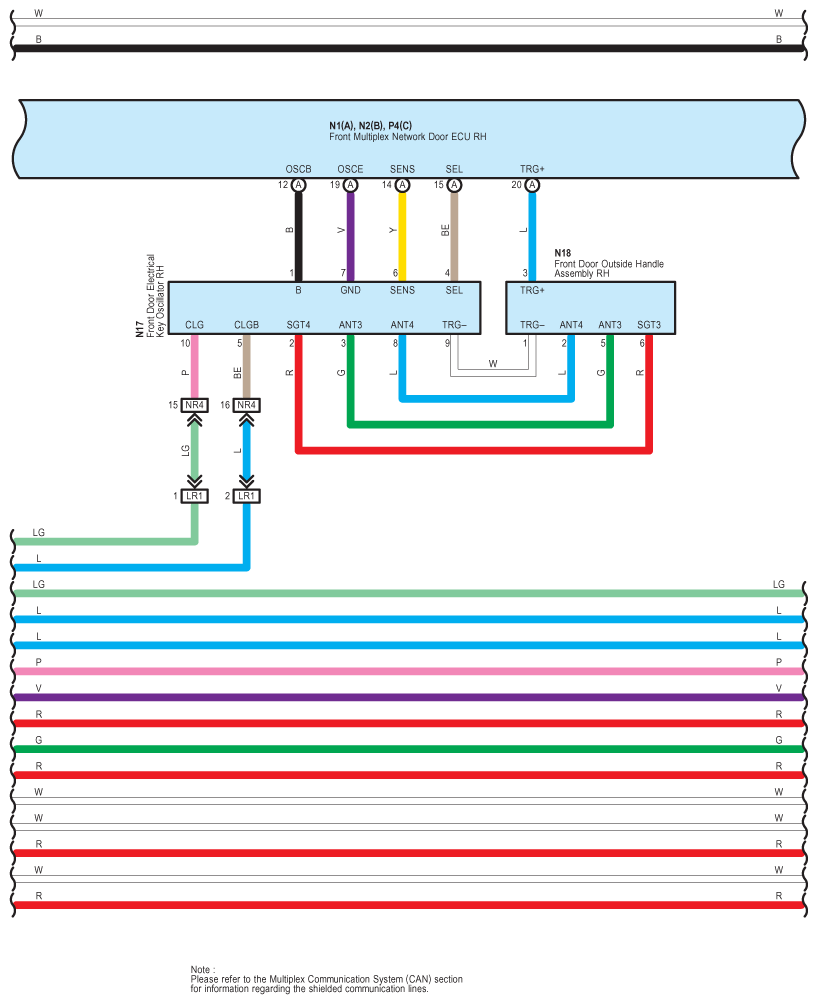

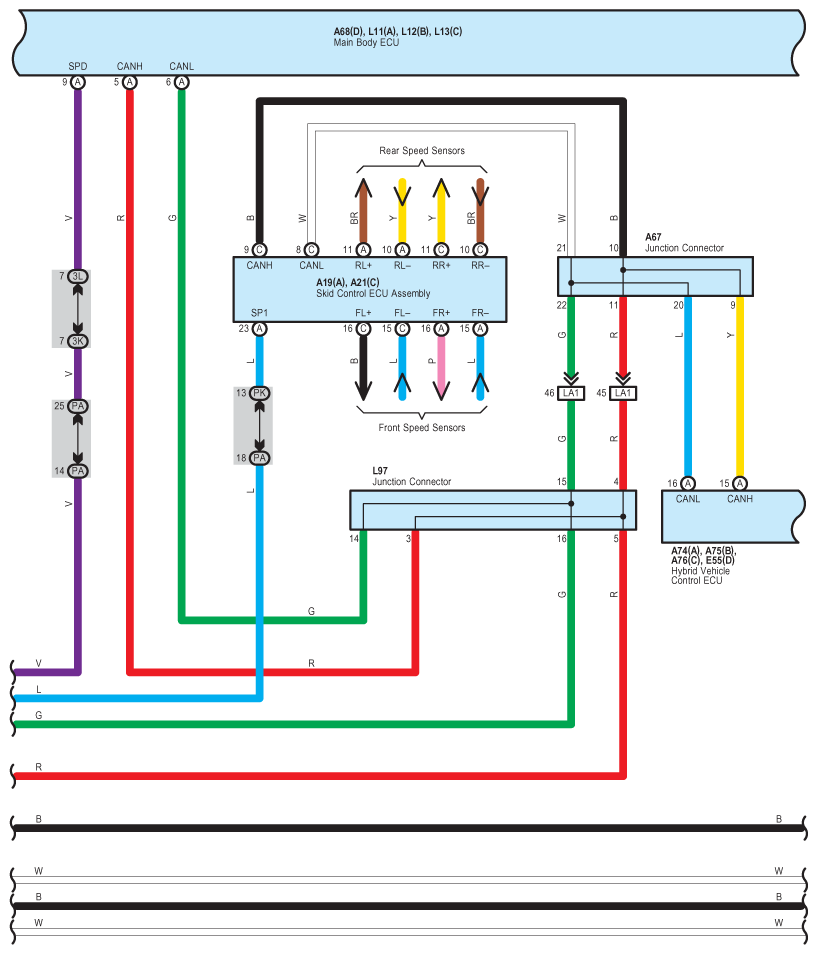

Fig 6: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (6 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

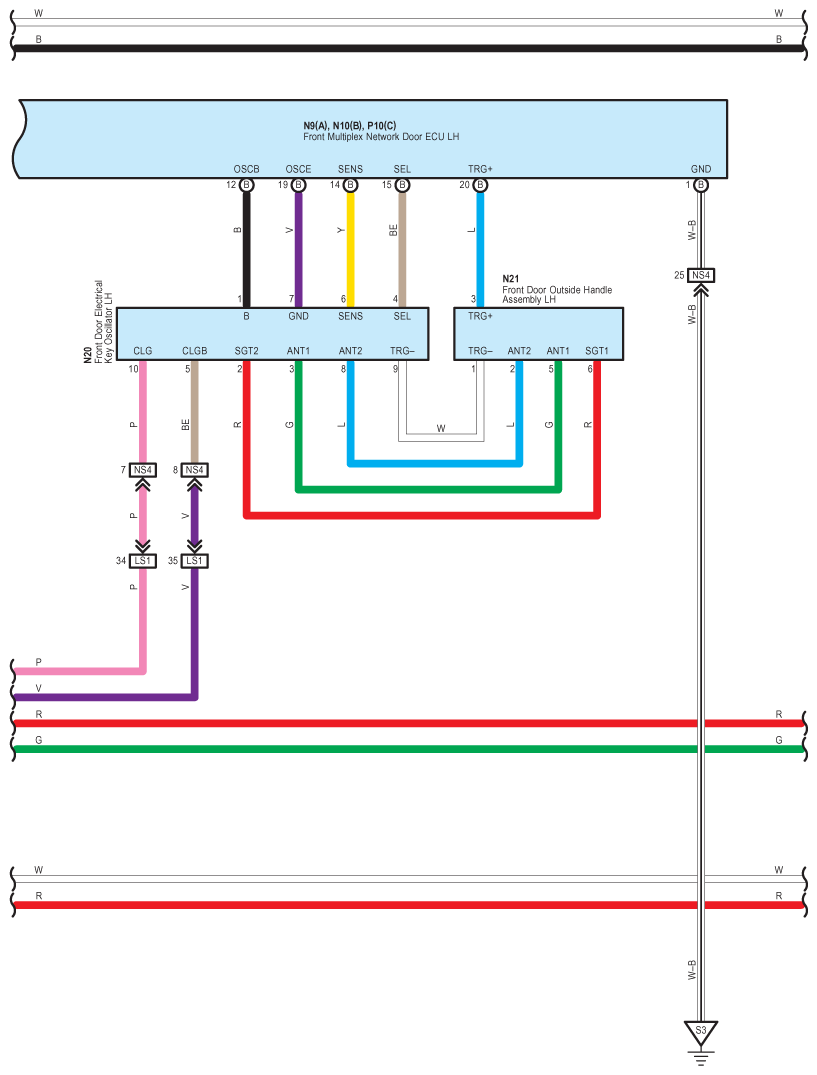

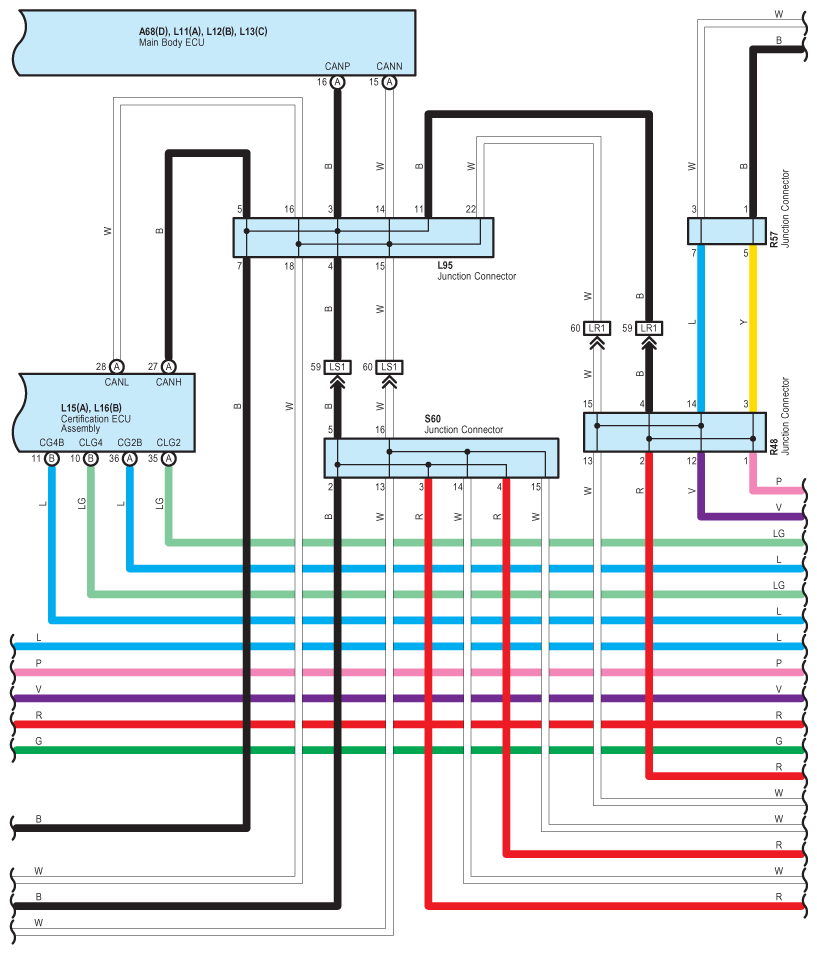

Fig 7: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (7 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

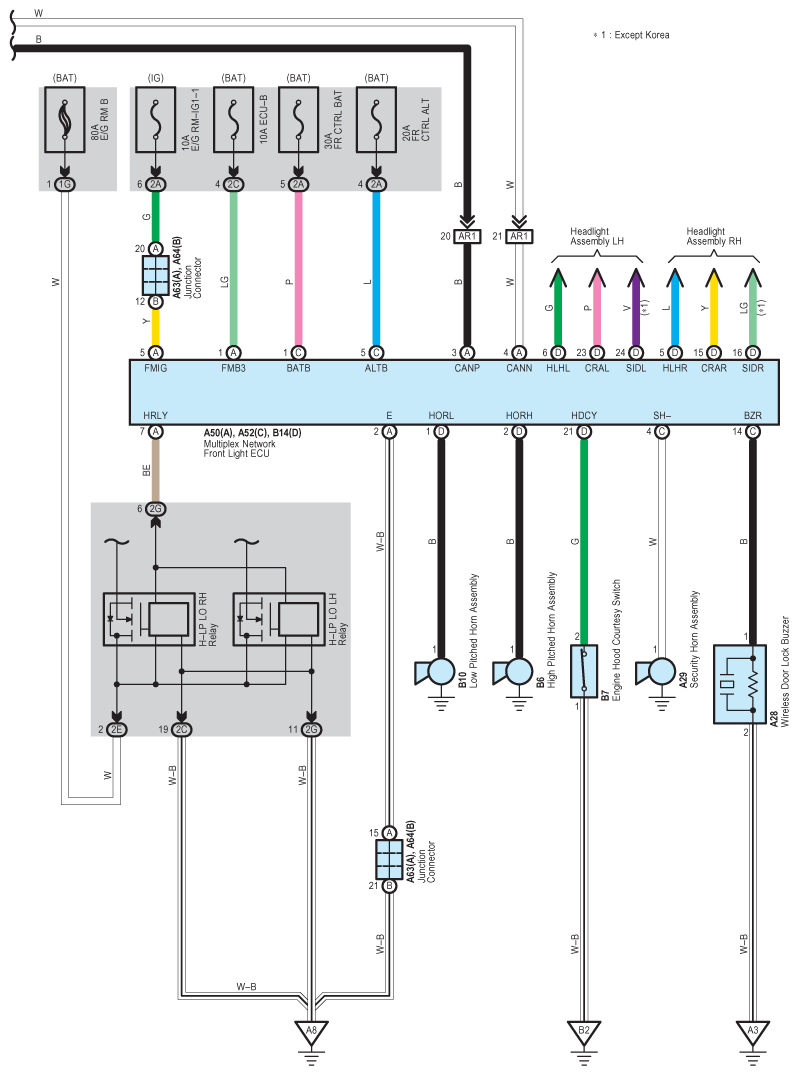

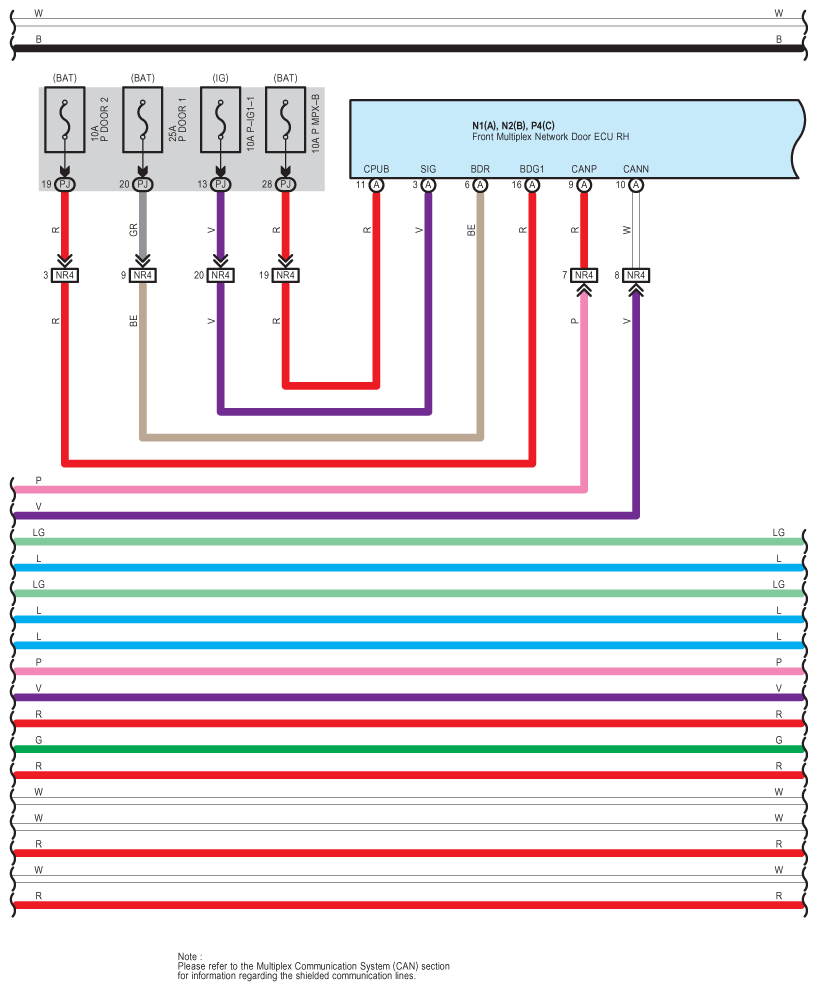

Fig 8: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (8 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

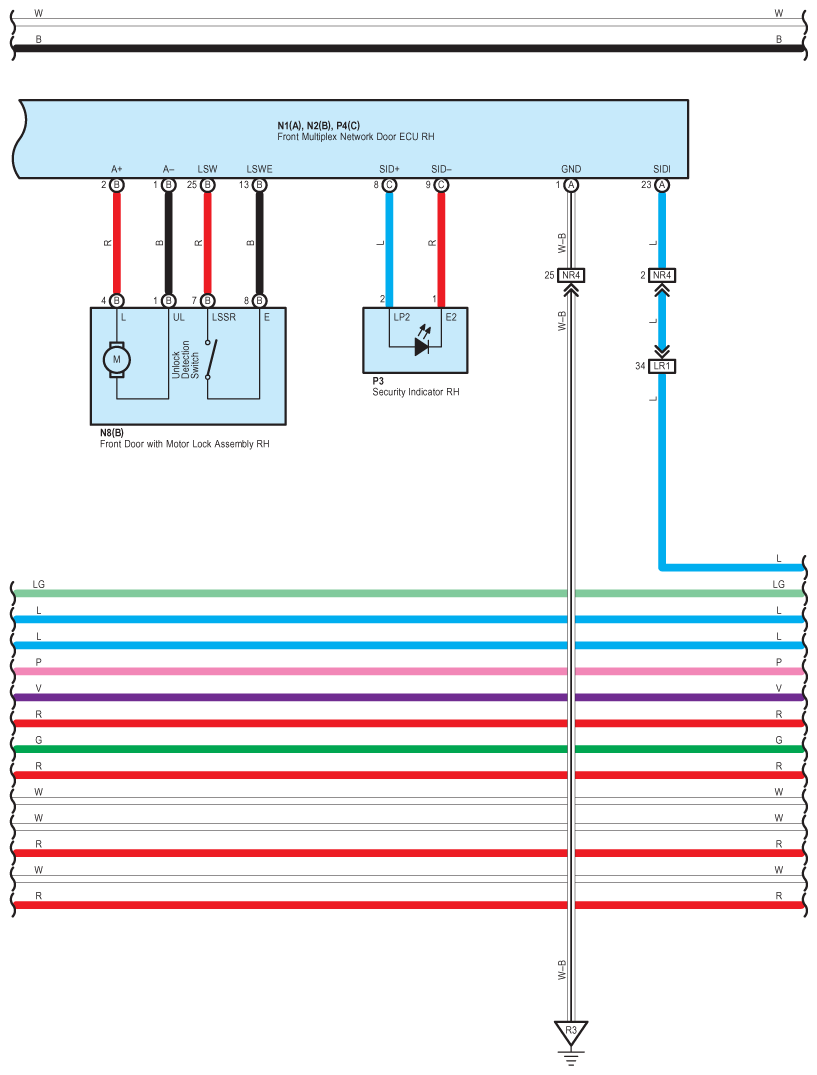

Fig 9: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (9 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

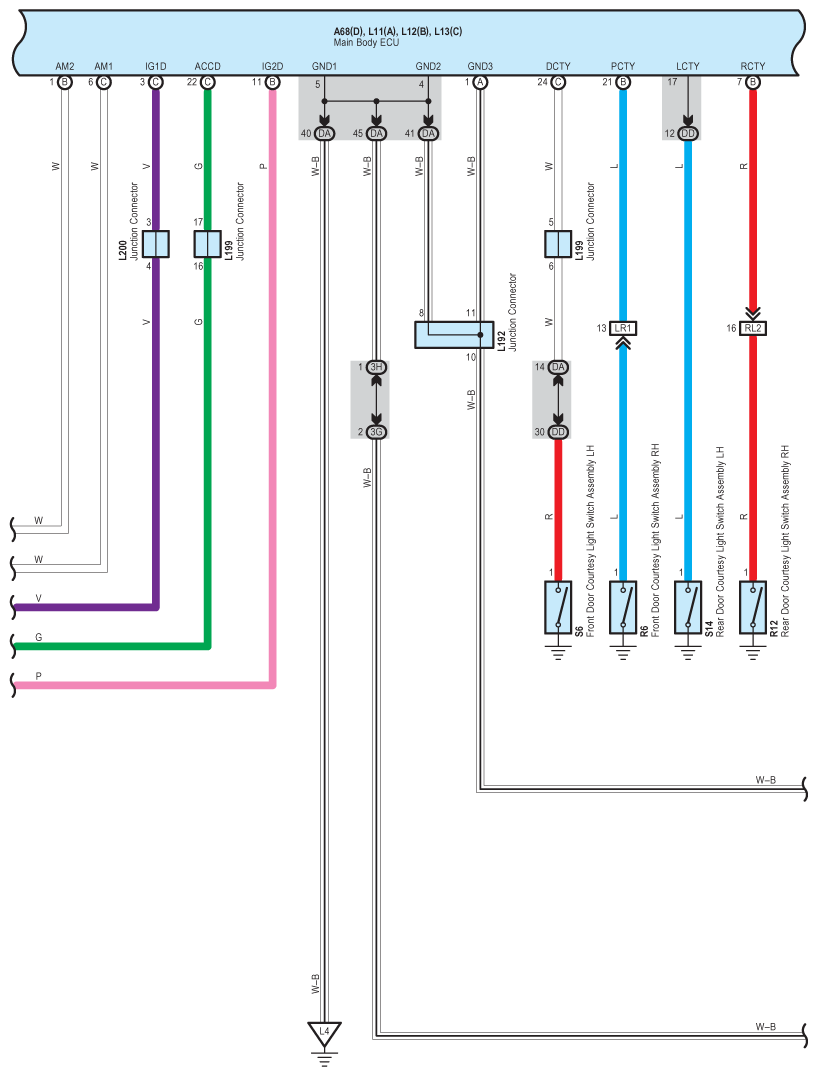

Fig 10: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (10 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

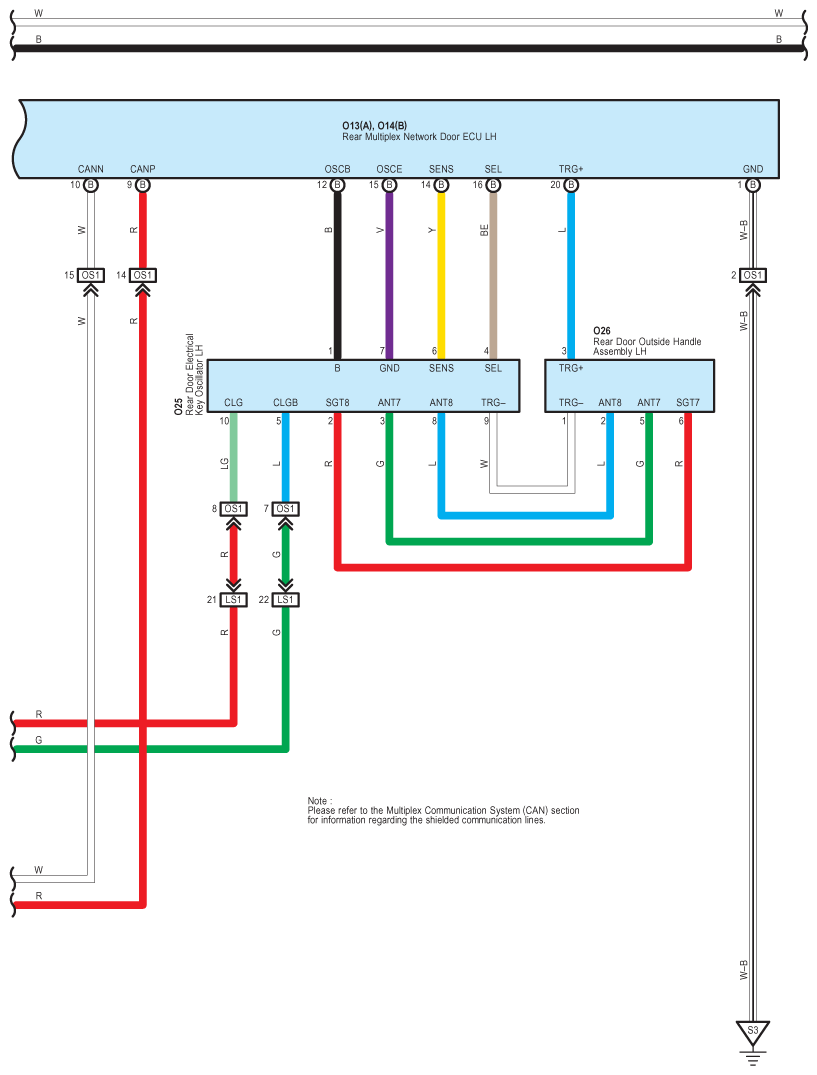

Fig 11: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (11 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

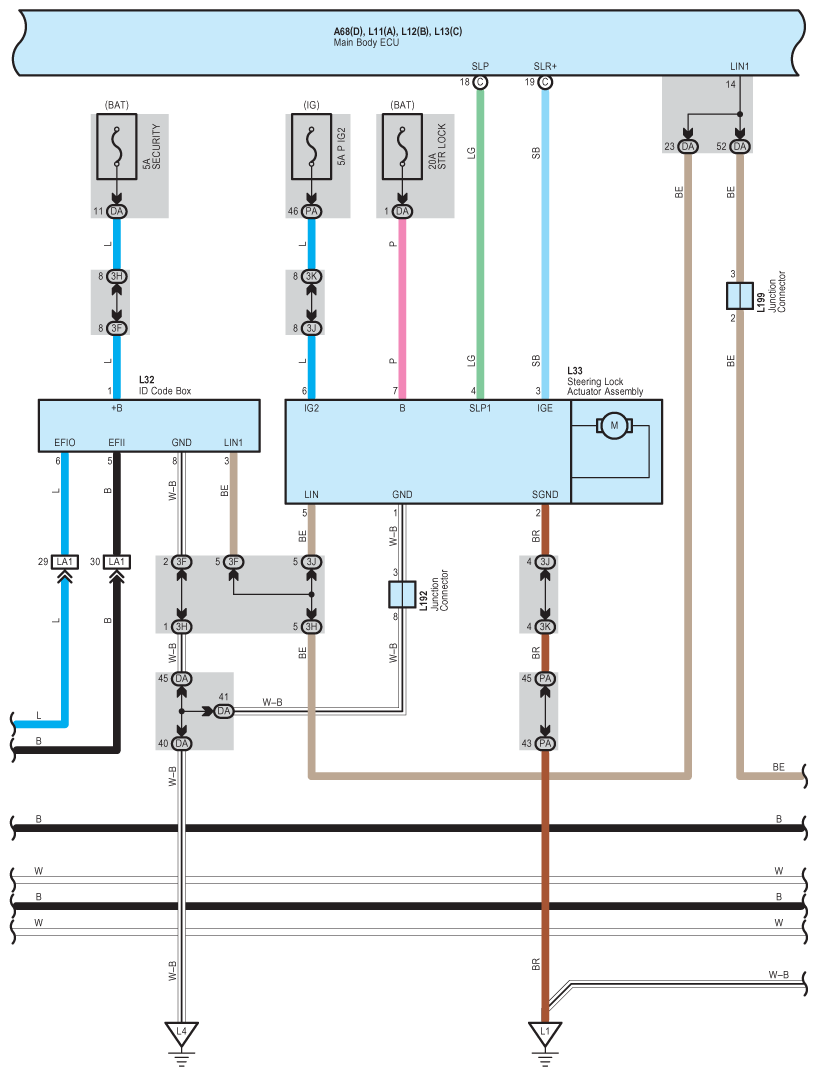

Fig 12: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (12 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

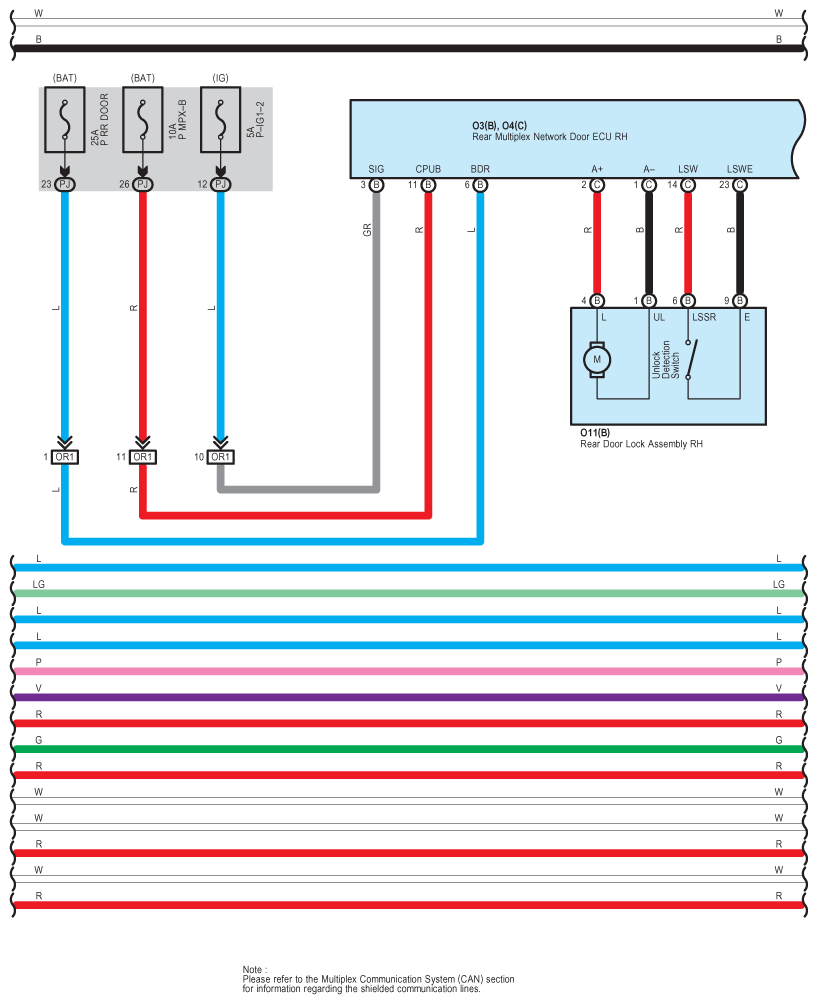

Fig 13: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (13 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

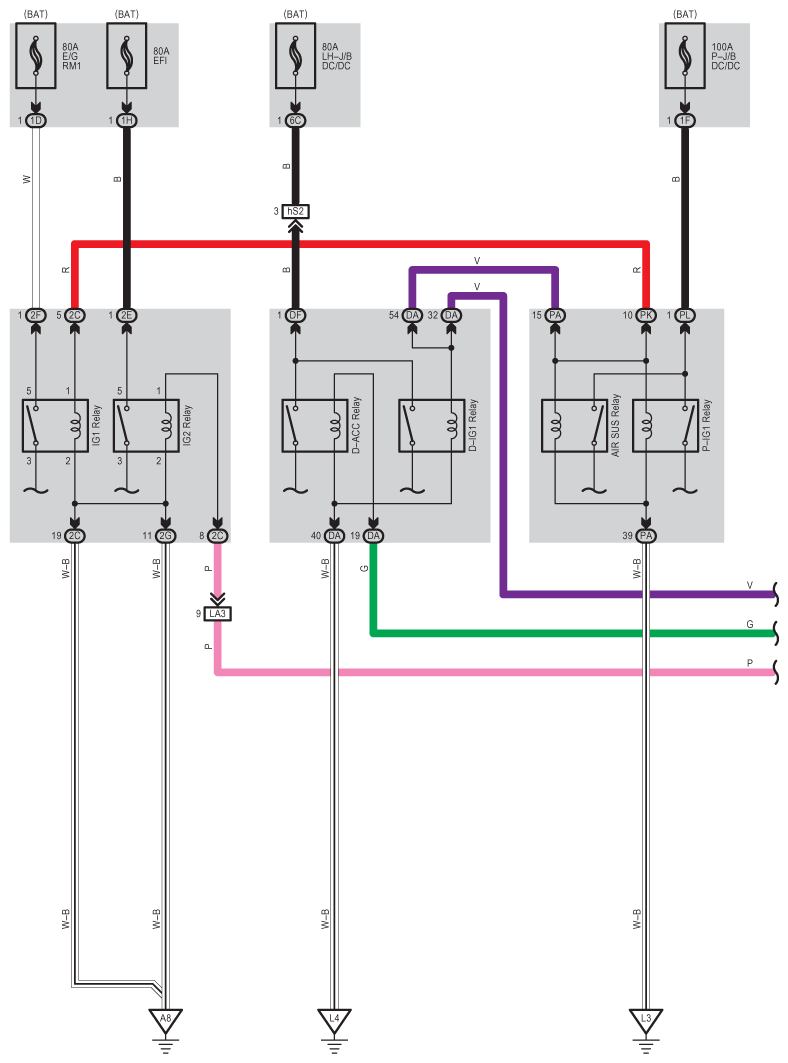

Fig 14: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (14 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

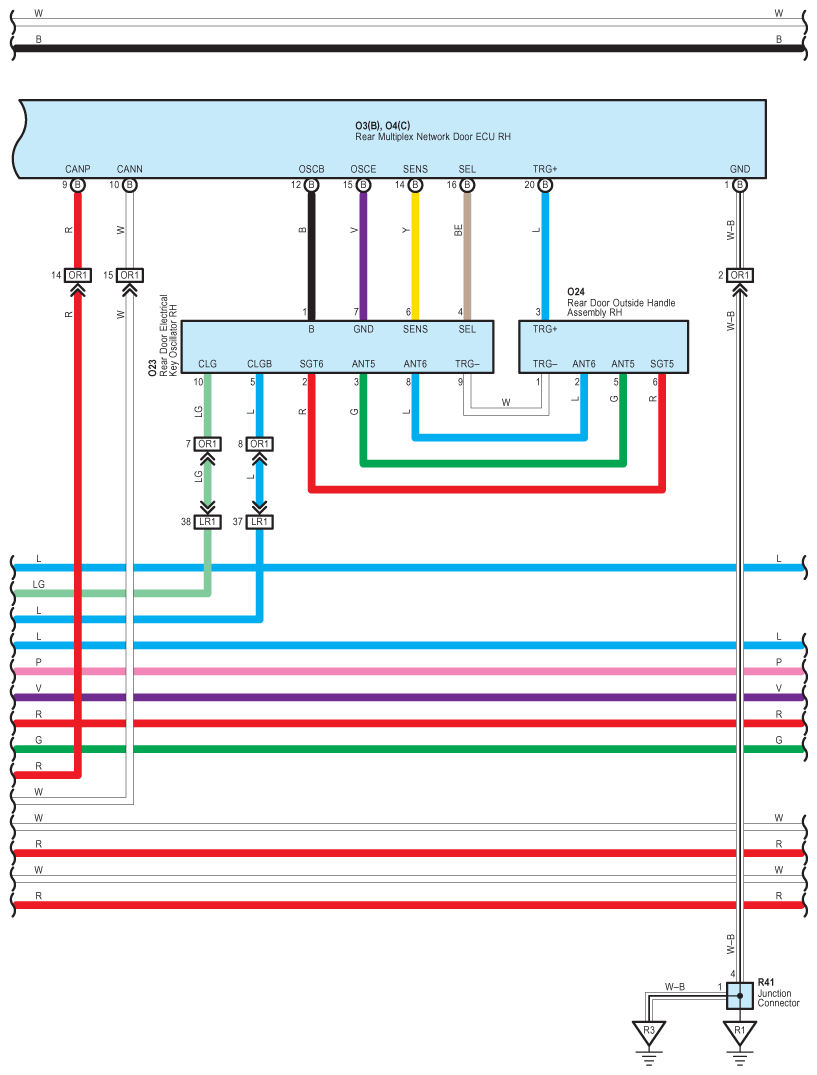

Fig 15: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (15 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

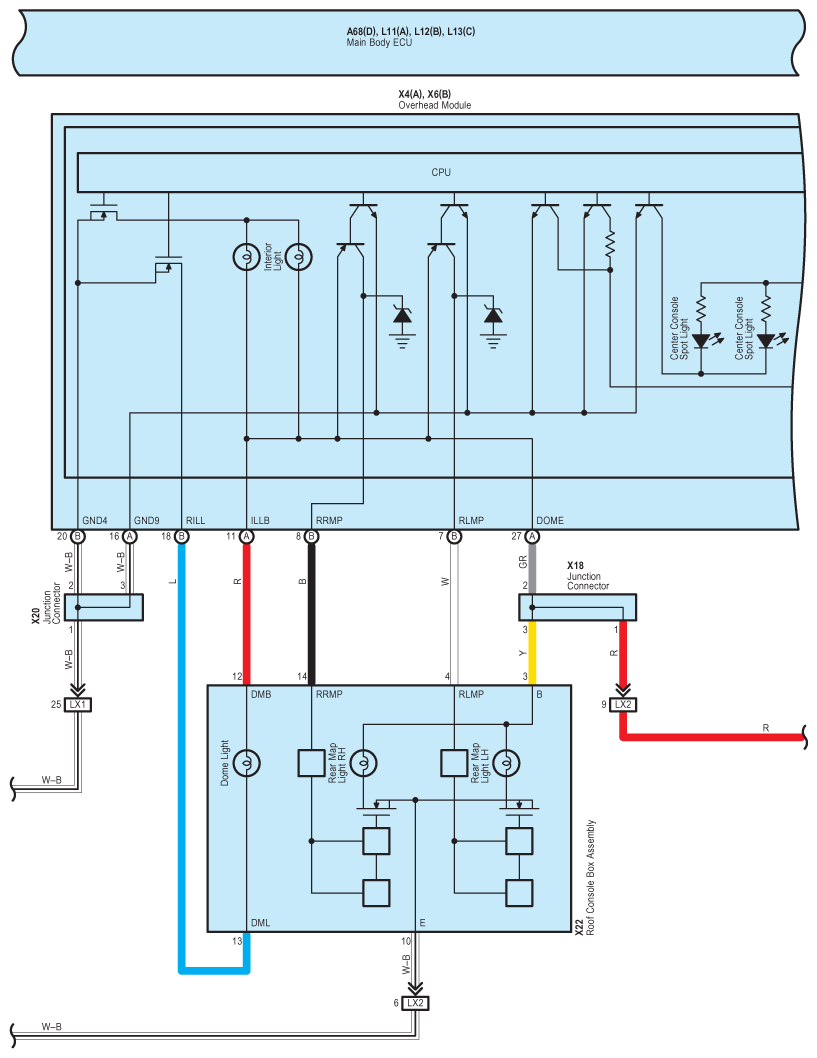

Fig 16: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (16 Of 24)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (17 Of 24)

Fig 18: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (18 Of 24)

Fig 19: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (19 Of 24)

Fig 20: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (20 Of 24)

Fig 21: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (21 Of 24)

Fig 22: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (22 Of 24)

Fig 23: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (23 Of 24)

Fig 24: Hybrid Vehicle Immobilizer, Smart Access With Push-Button Start, Starting, Steering Lock And Wireless Door Lock Control System Wiring Diagram (24 Of 24)
