Power Shoulder Belt Anchorage: Notes

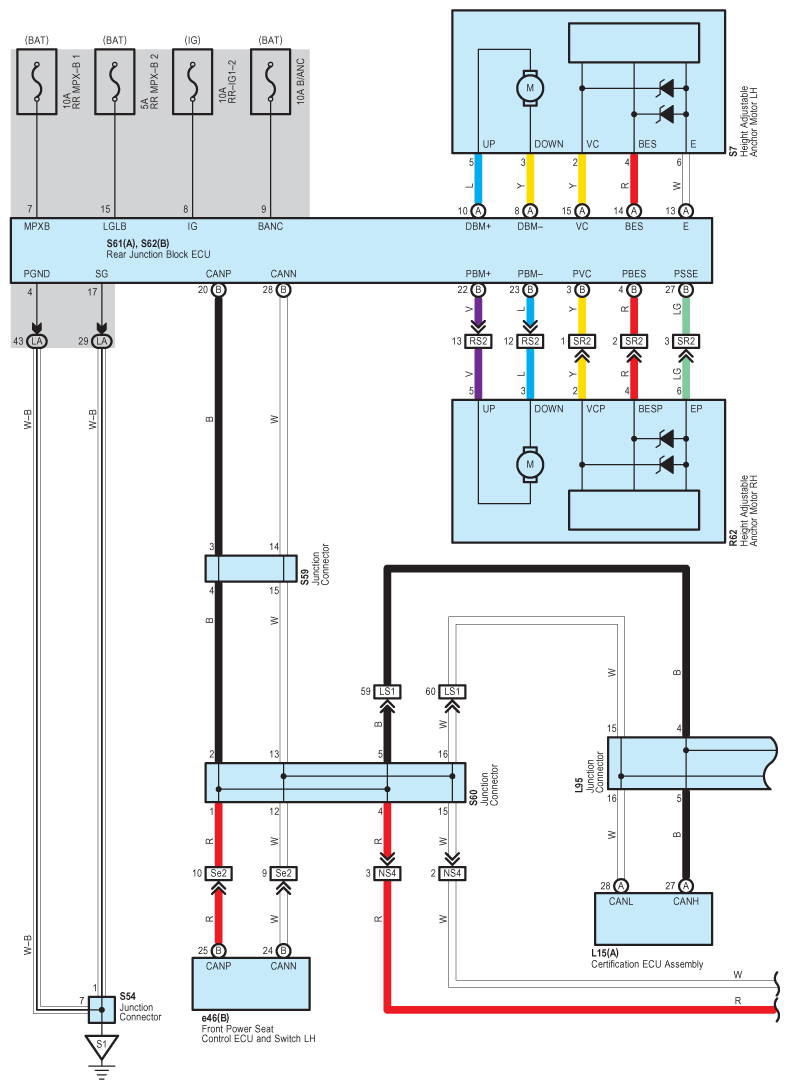

Fig 1: Power Shoulder Belt Anchorage System Wiring Diagram (1 Of 4)
G09123469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

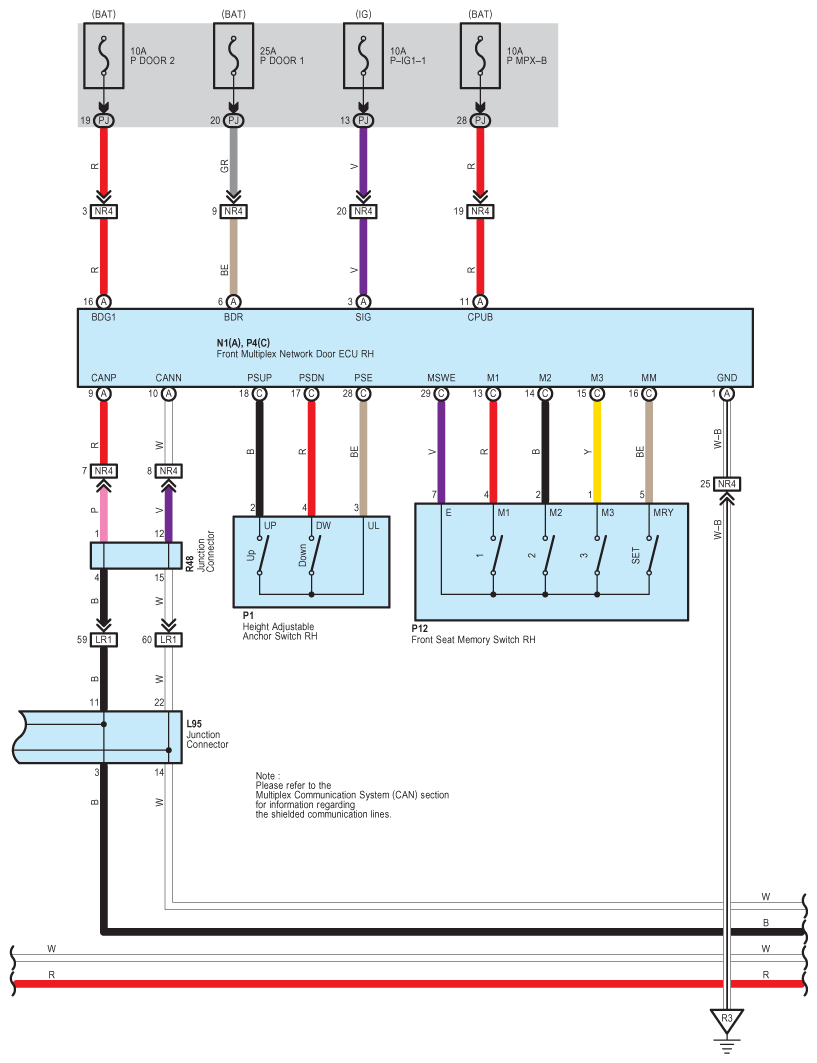

Fig 2: Power Shoulder Belt Anchorage System Wiring Diagram (2 Of 4)
G09123470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

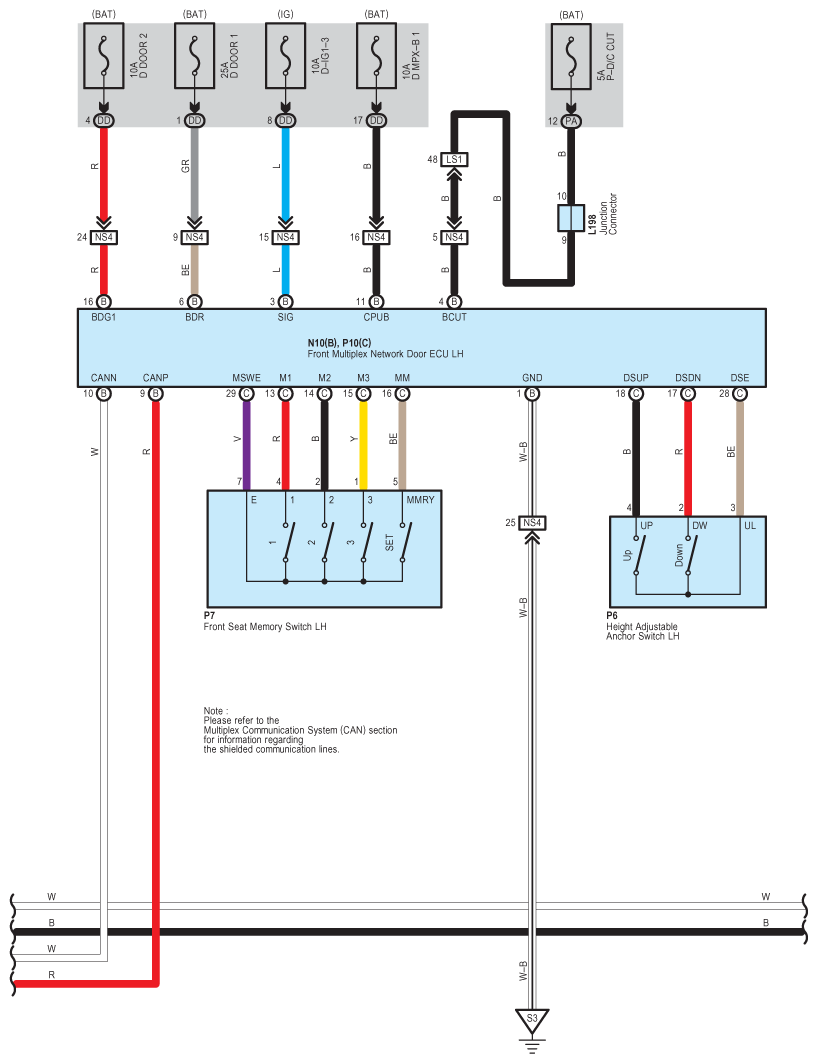

Fig 3: Power Shoulder Belt Anchorage System Wiring Diagram (3 Of 4)
G09123471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Shoulder Belt Anchorage System Wiring Diagram (4 Of 4)
G09123472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
