Wiper and Washer: Notes

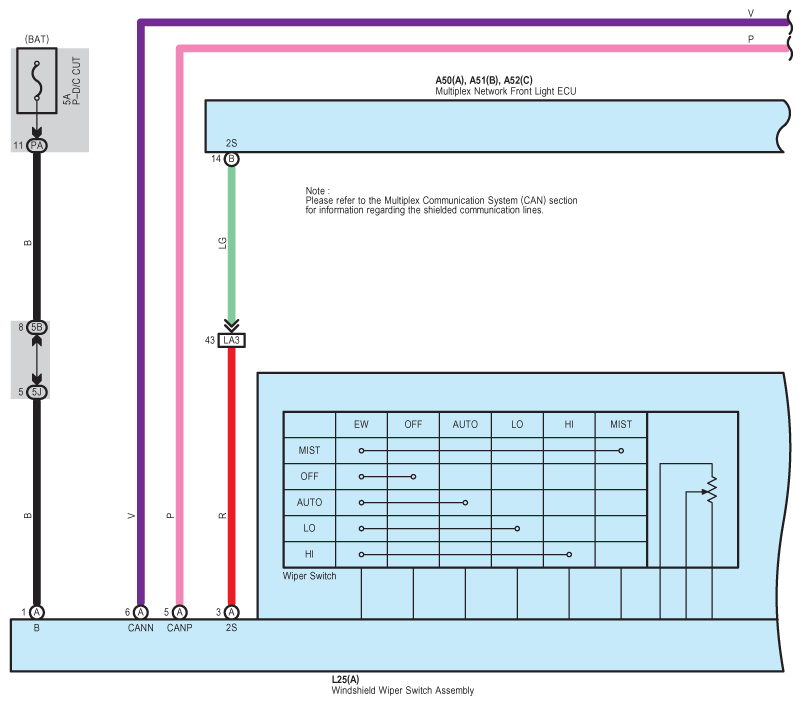

Fig 1: Wiper And Washer System Wiring Diagram (1 Of 4)
G09123243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

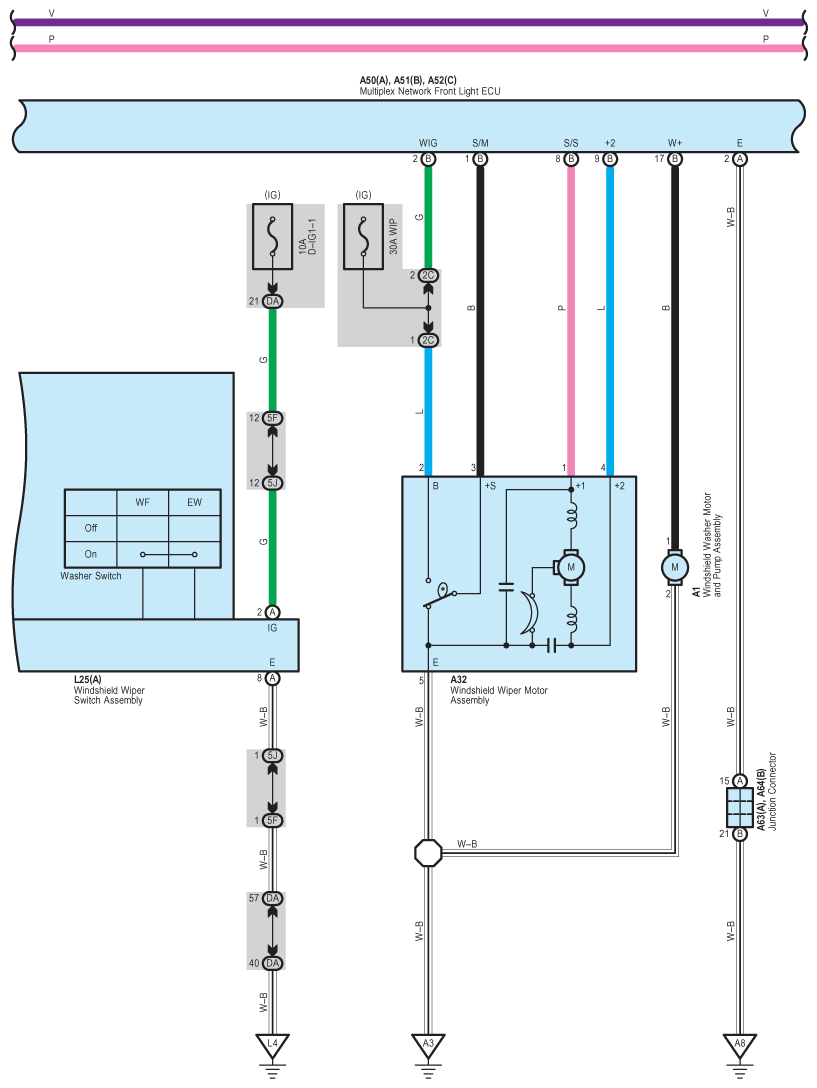

Fig 2: Wiper And Washer System Wiring Diagram (2 Of 4)
G09123244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiper And Washer System Wiring Diagram (3 Of 4)
G09123245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Wiper And Washer System Wiring Diagram (4 Of 4)
G09123246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
