Alignment

Wheel Alignment Specifications (Unloaded Vehicle)

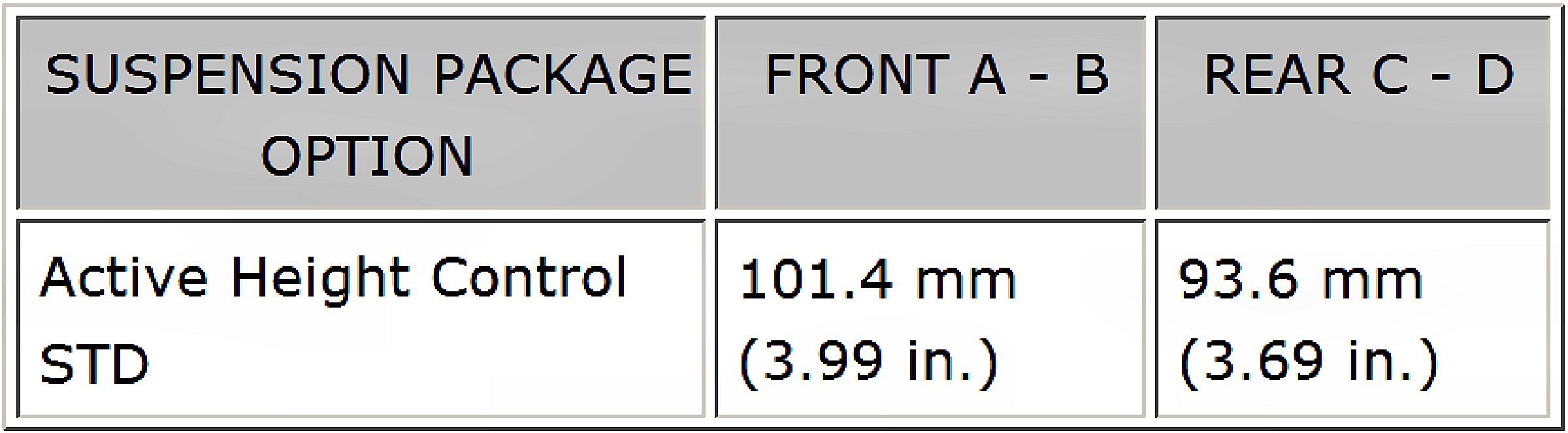

Standard Vehicle Height:

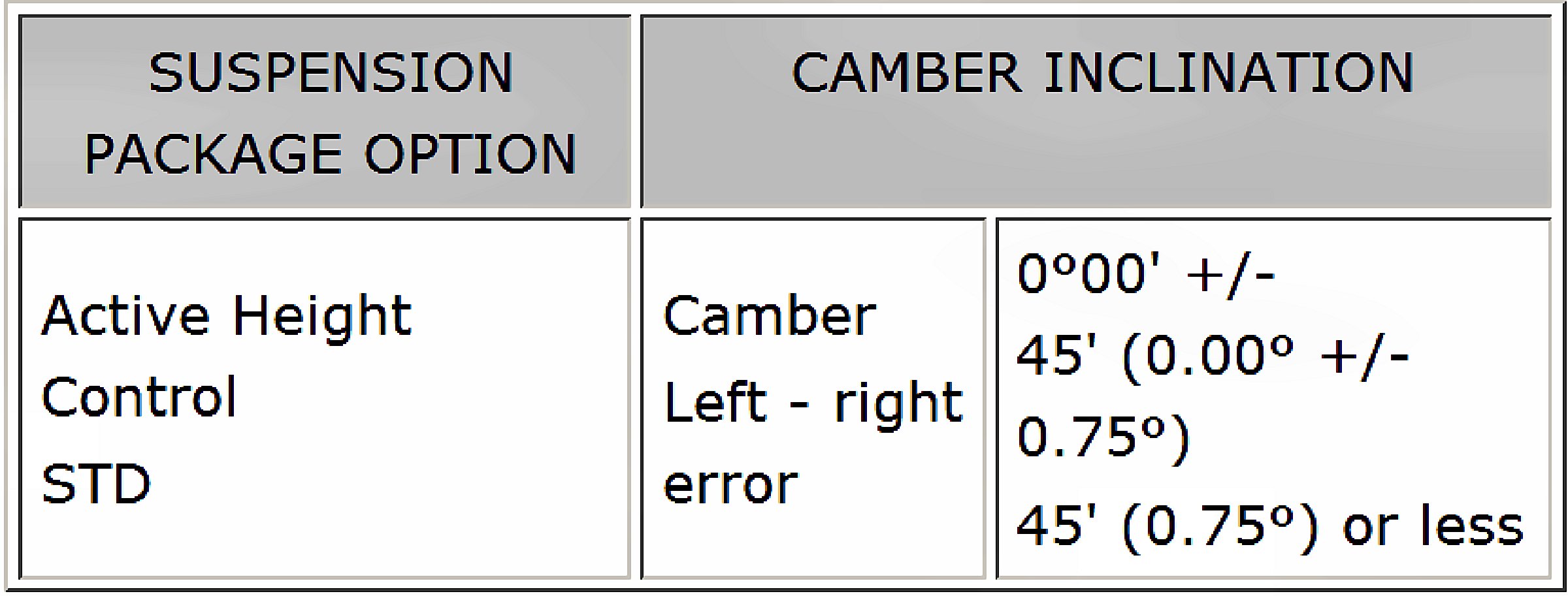

Standard Camber Inclination:

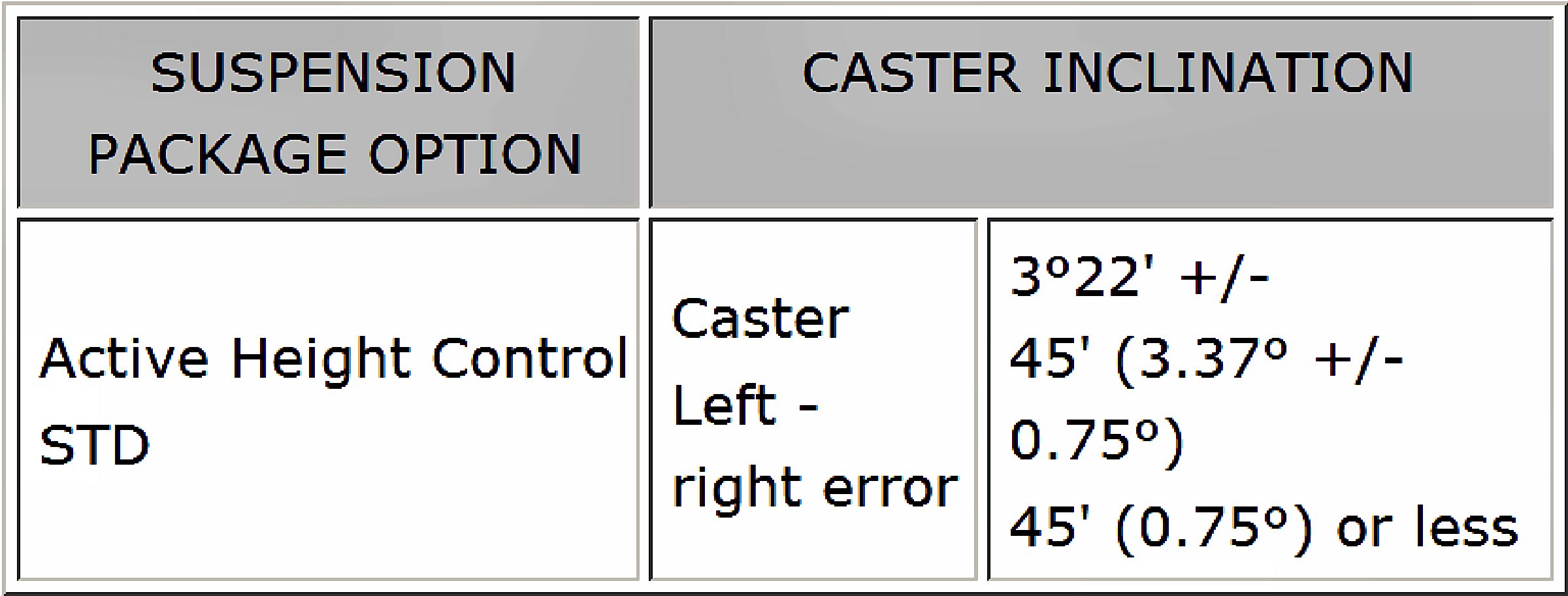

Standard Caster Inclination:

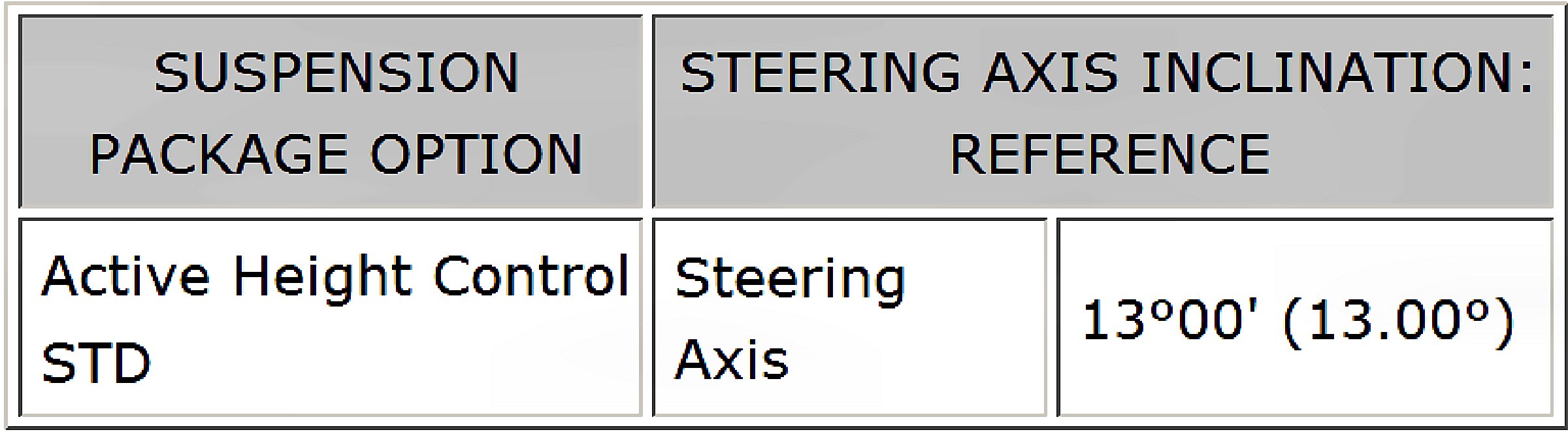

Standard Steering Axis Inclination:

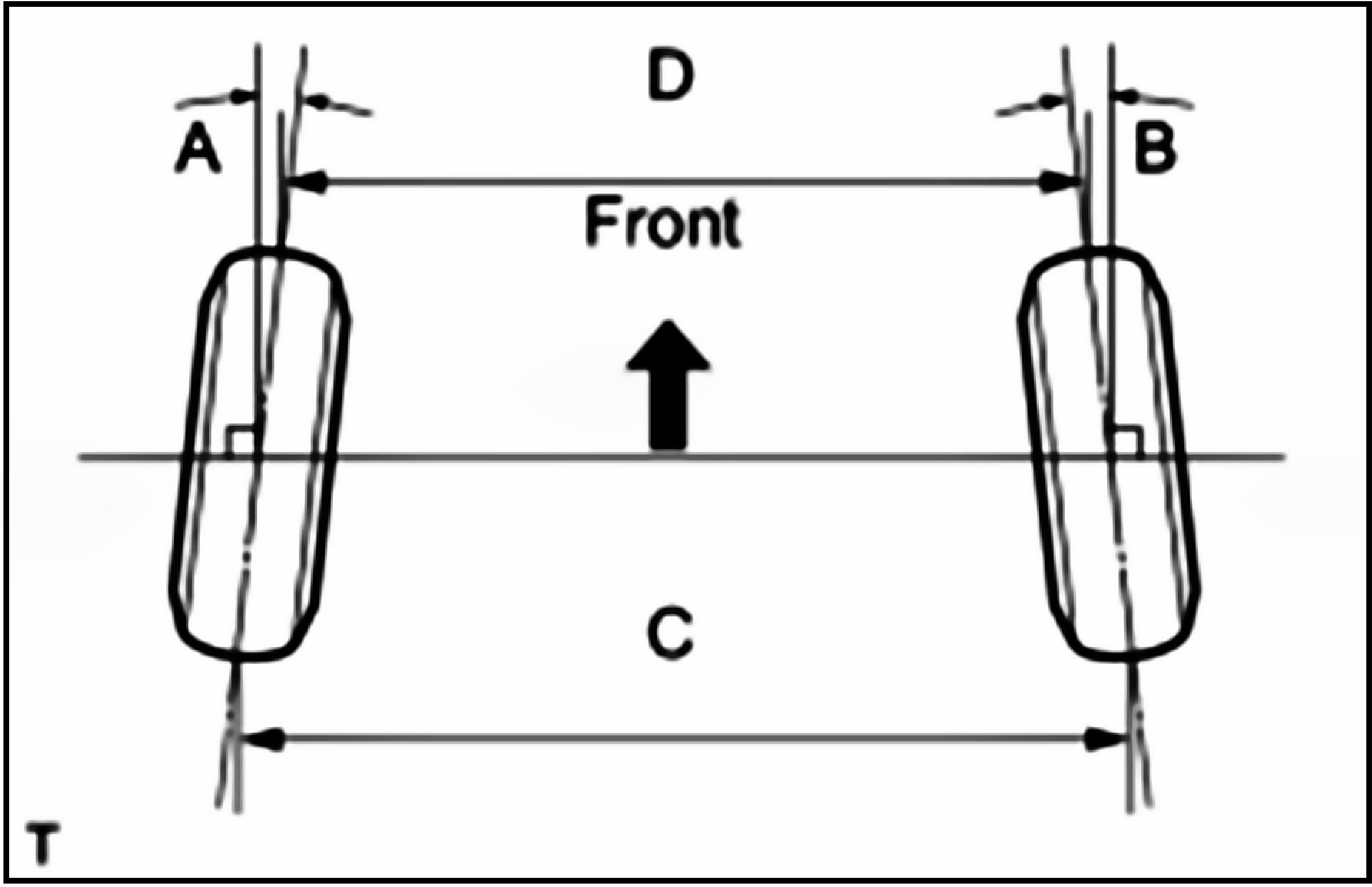

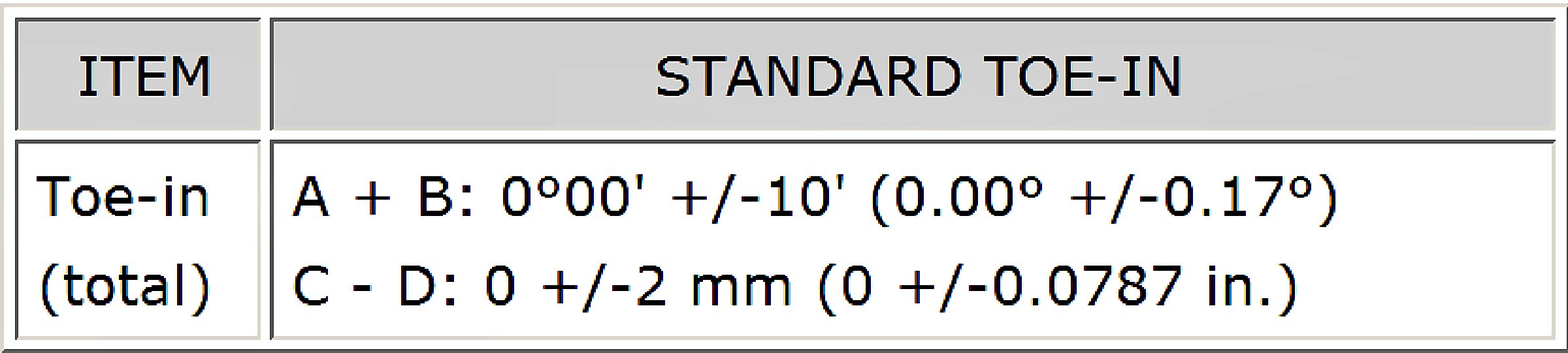

Standard Toe-in:

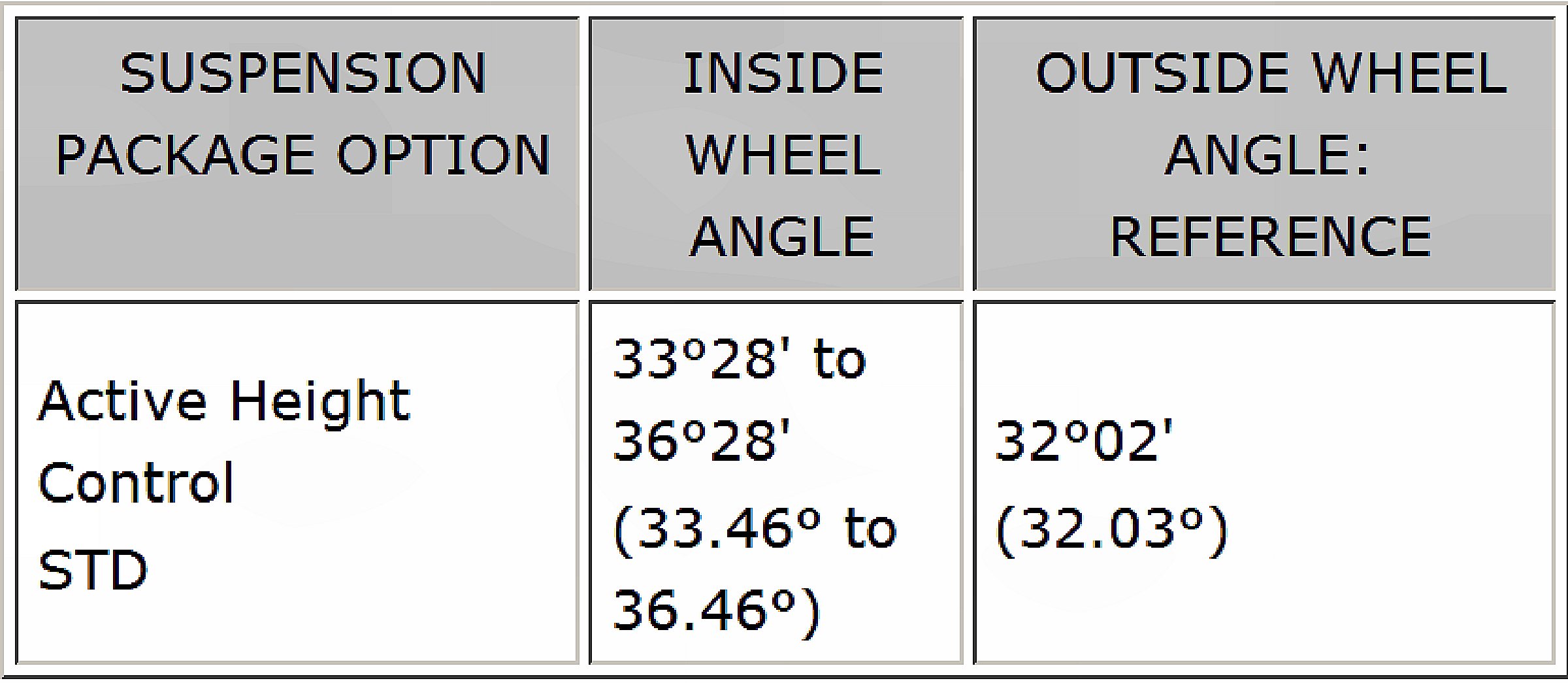

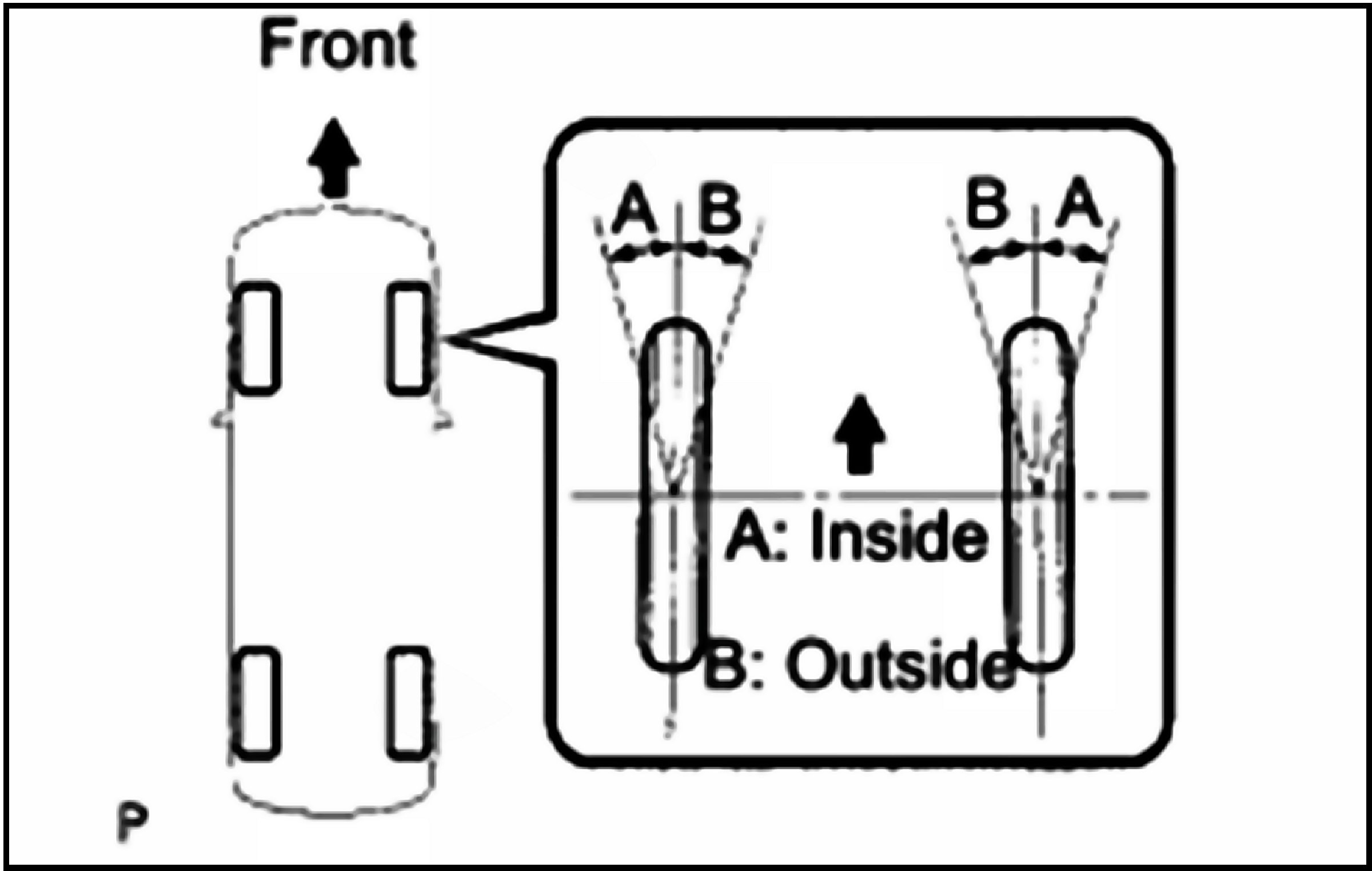

Standard Wheel Turning Angle:

Measuring Points:

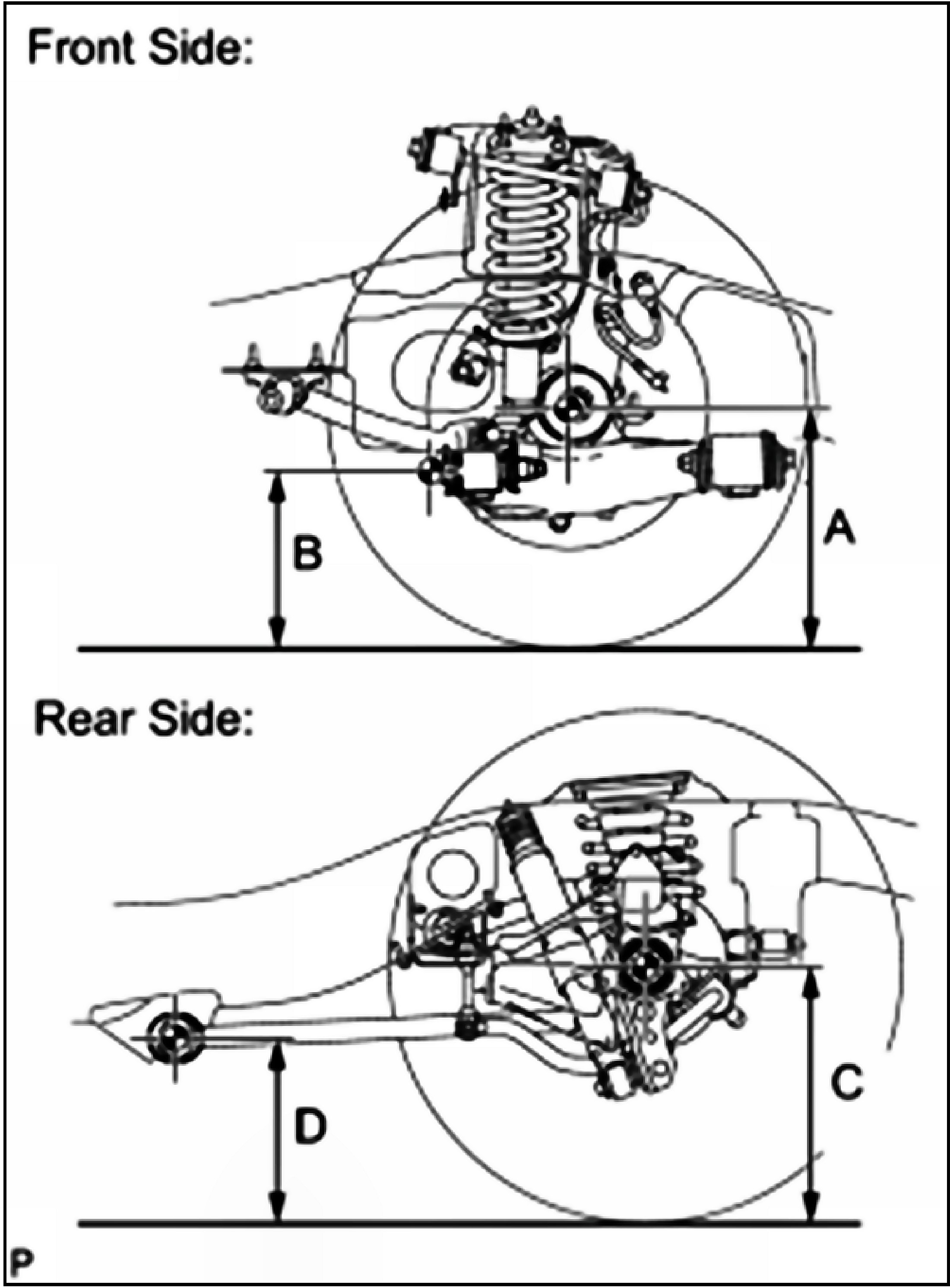

Vehicle Height:

A - Ground clearance of the front drive shaft center
B - Ground clearance of the front adjusting cam bolt center
C - Ground clearance of the rear axle shaft center
D - Ground clearance of the rear lower control arm front side center

If the vehicle height is not as specified, adjust the height by pressing down on the vehicle several times to stabilize the suspension.

NOTICE:
The standard value shown here is a value that is used for adjusting the wheel alignment and does not indicate the height of an actual vehicle.
