Power Tilt and Power Telescopic: Notes

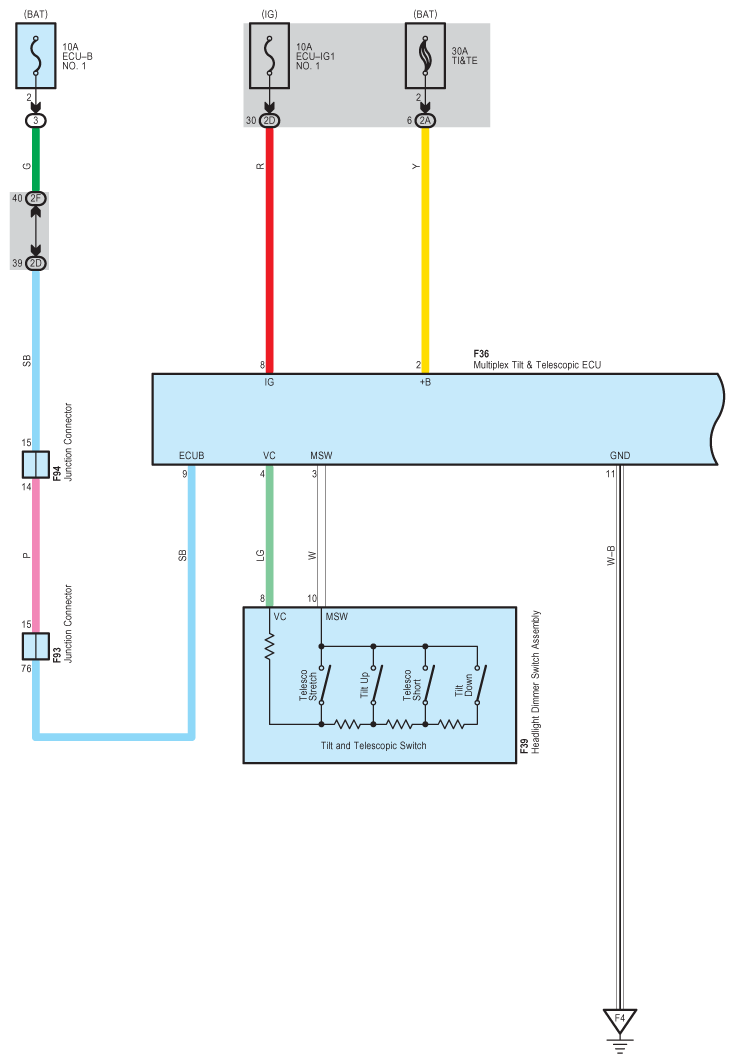

Fig 1: Power Tilt And Power Telescopic System Wiring Diagram (1 Of 5)
G09126844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

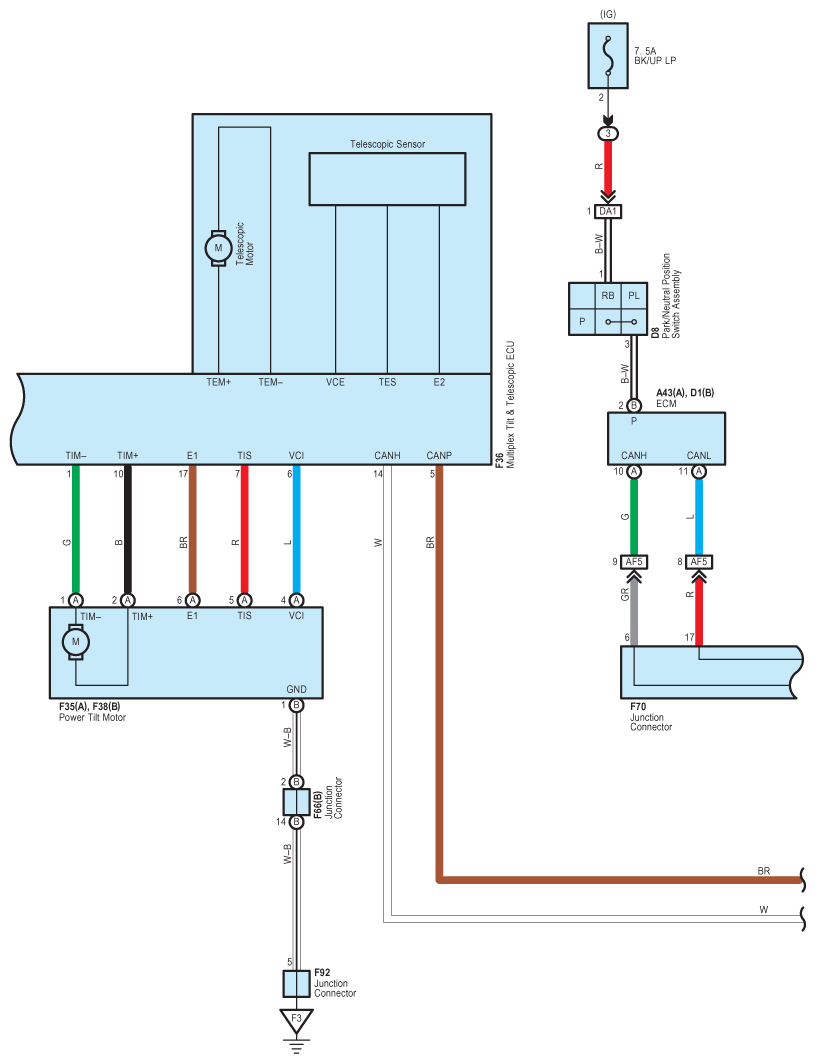

Fig 2: Power Tilt And Power Telescopic System Wiring Diagram (2 Of 5)
G09126845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

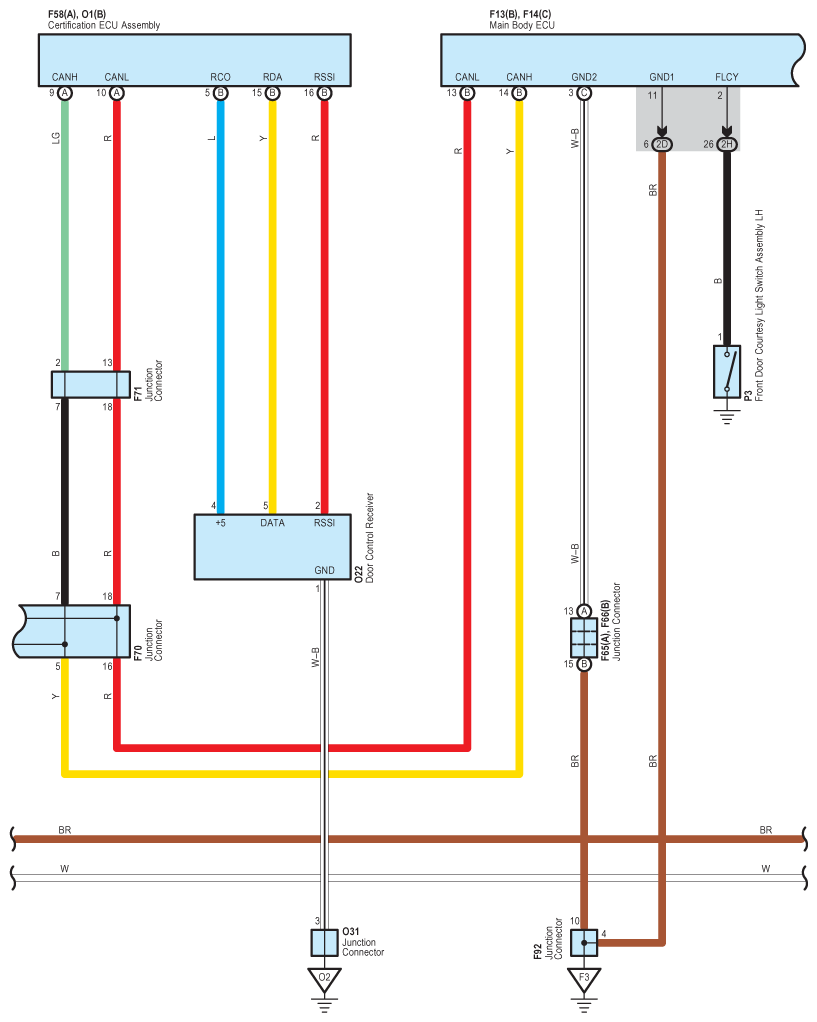

Fig 3: Power Tilt And Power Telescopic System Wiring Diagram (3 Of 5)
G09126846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

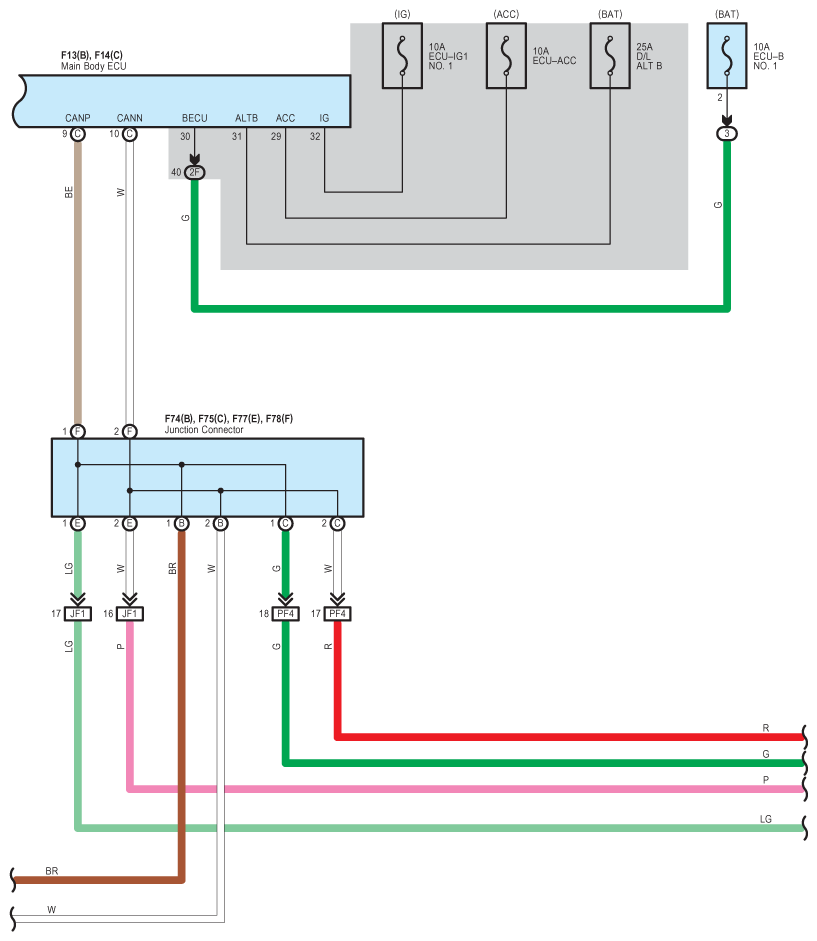

Fig 4: Power Tilt And Power Telescopic System Wiring Diagram (4 Of 5)
G09126847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

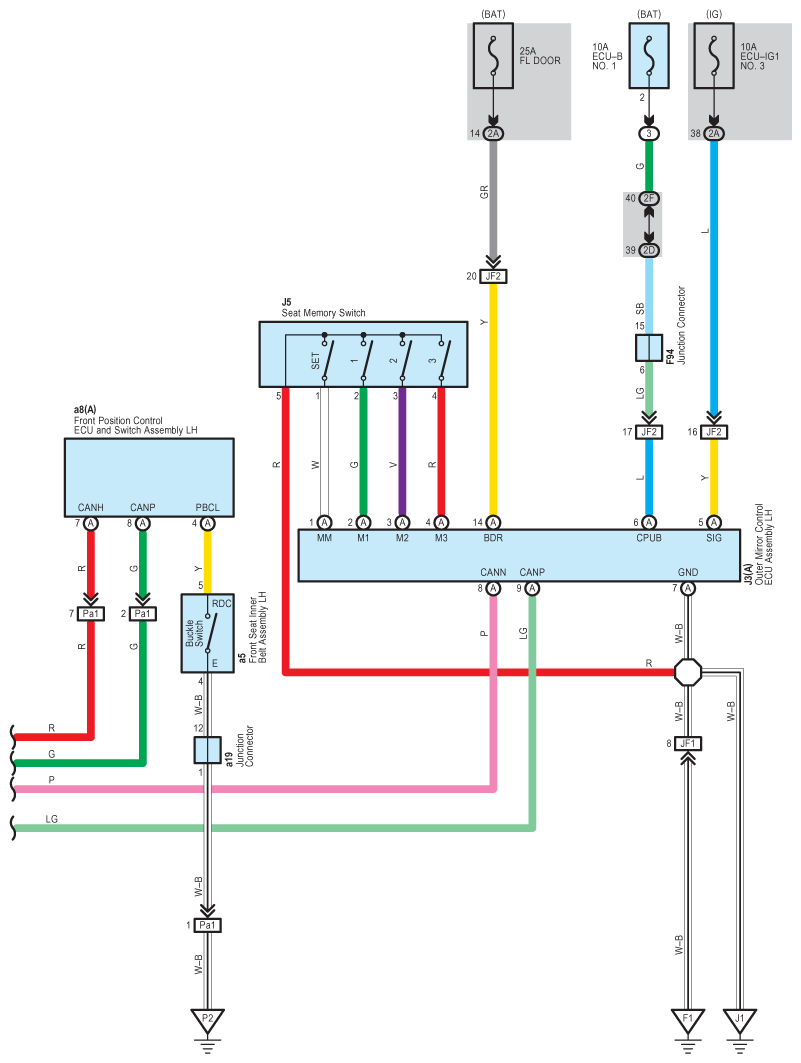

Fig 5: Power Tilt And Power Telescopic System Wiring Diagram (5 Of 5)
G09126848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
