Seat Heater: Notes

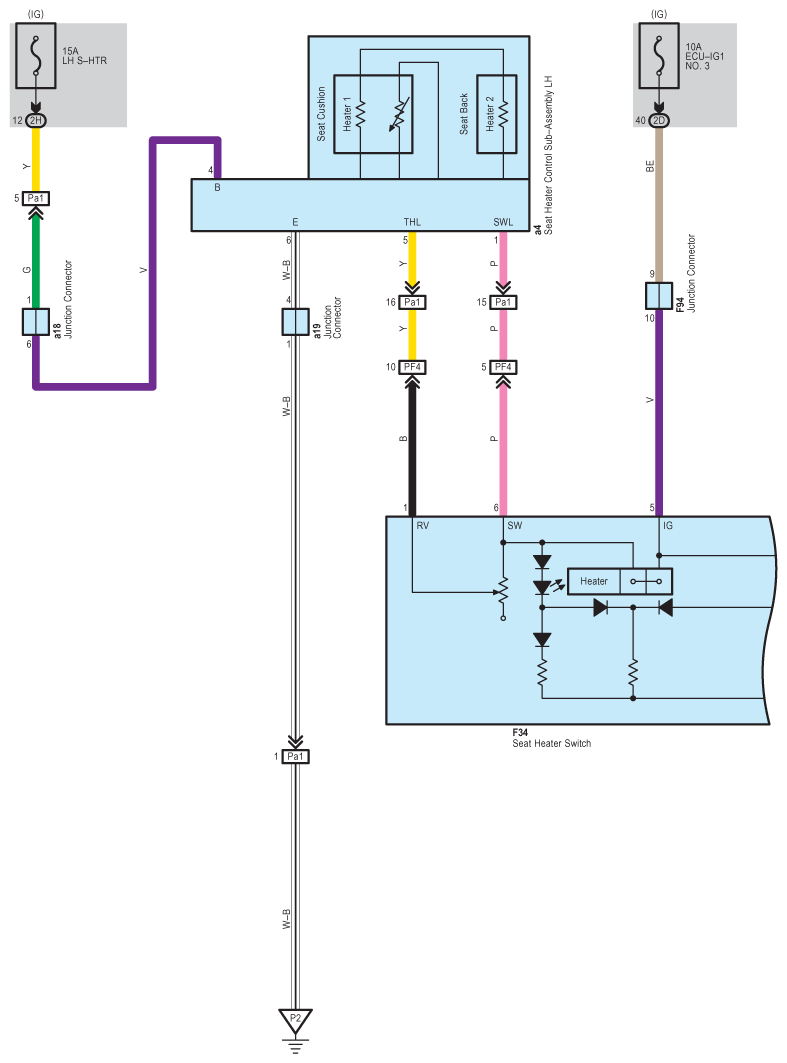

Fig 1: Seat Heater System Wiring Diagram (1 Of 3)
G09126876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

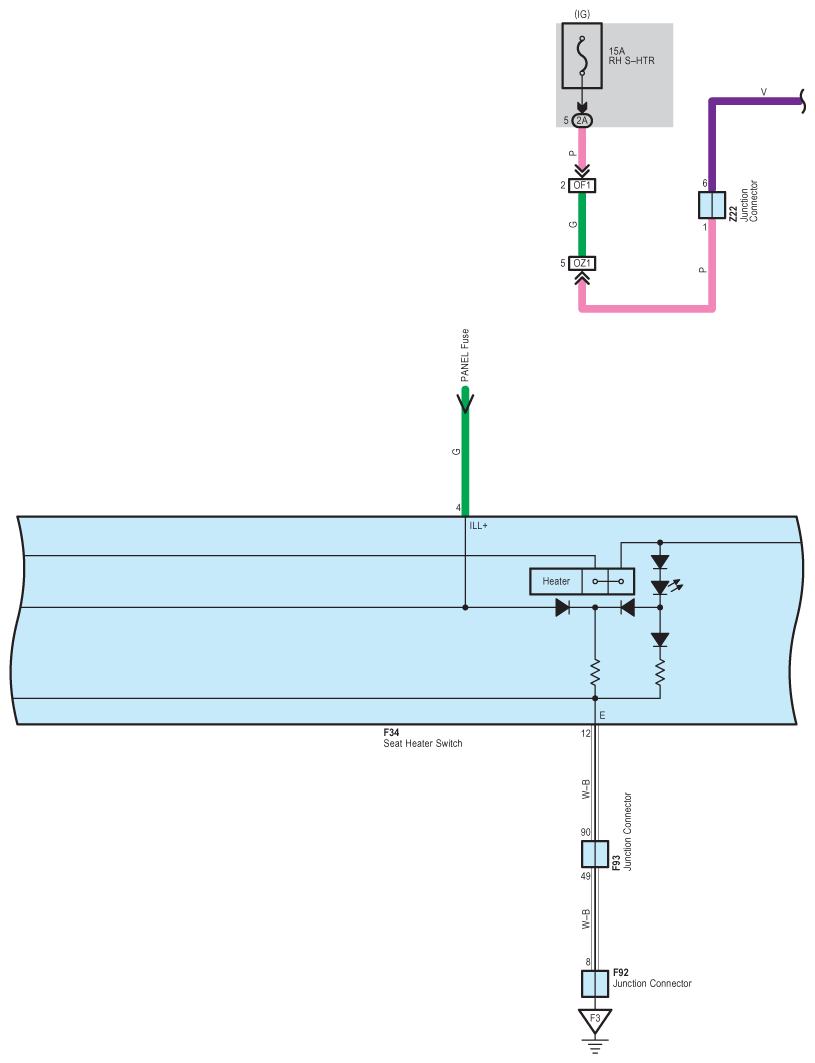

Fig 2: Seat Heater System Wiring Diagram (2 Of 3)
G09126877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

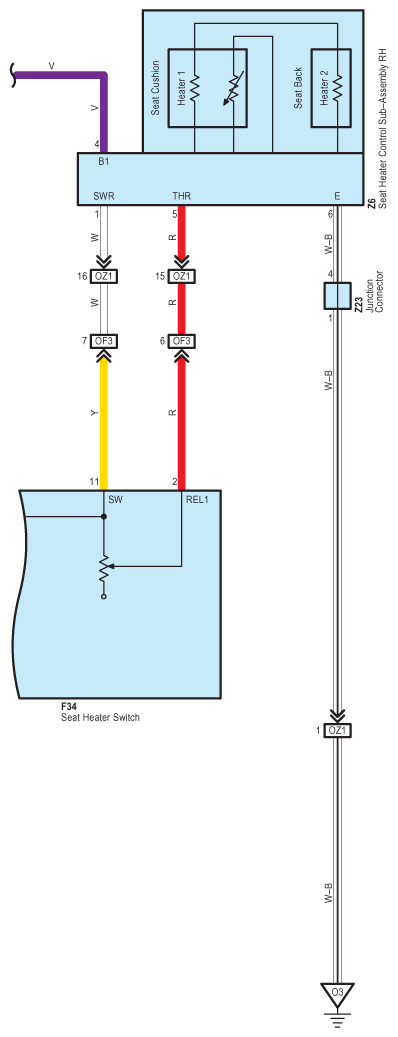

Fig 3: Seat Heater System Wiring Diagram (3 Of 3)
G09126878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
