Components [03/2012 - 07/2012]: Illustration

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (1 Of 2)
GTY396177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

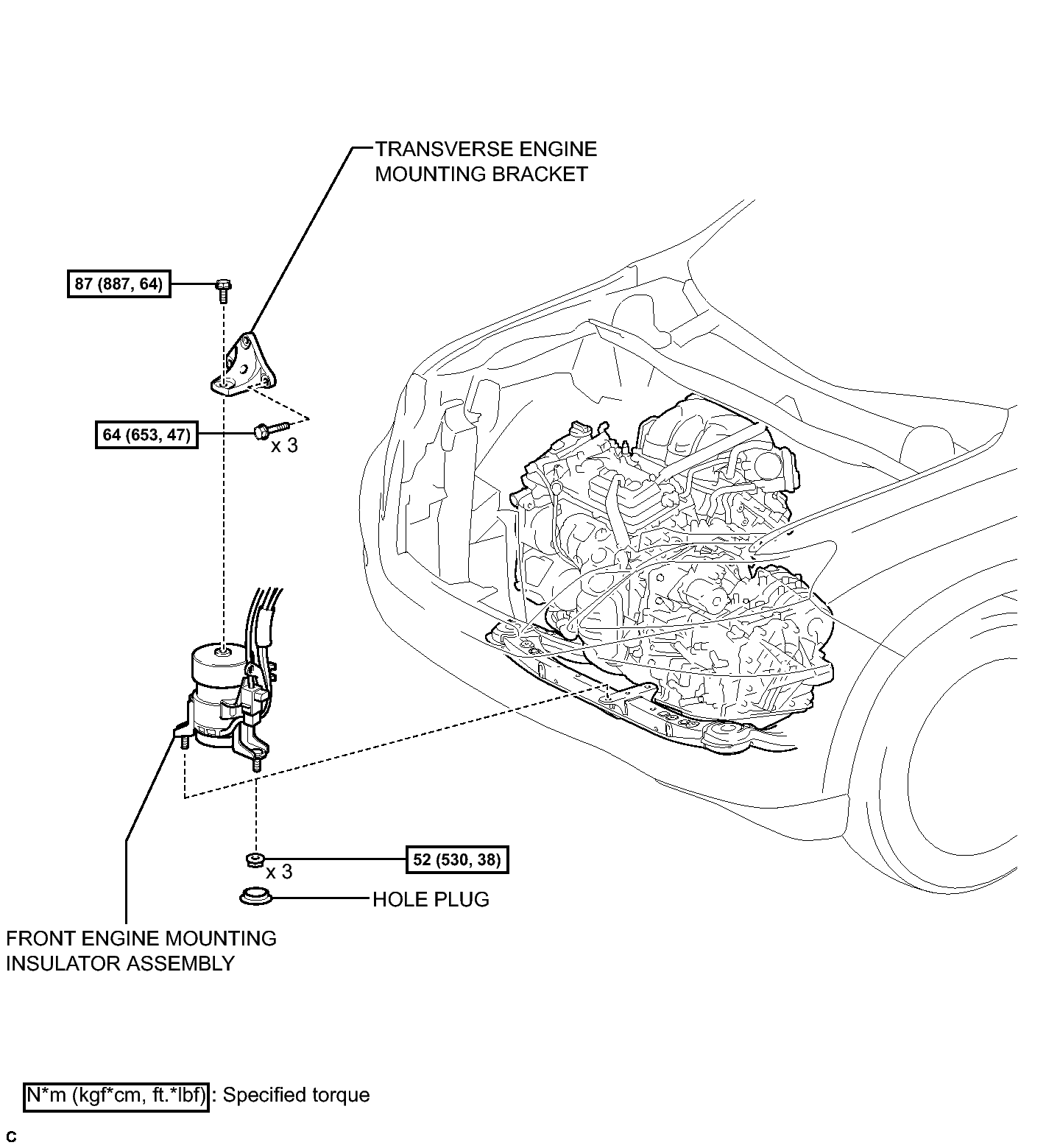

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications (2 Of 2)
GTY403539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
