Door Lock Control: Notes

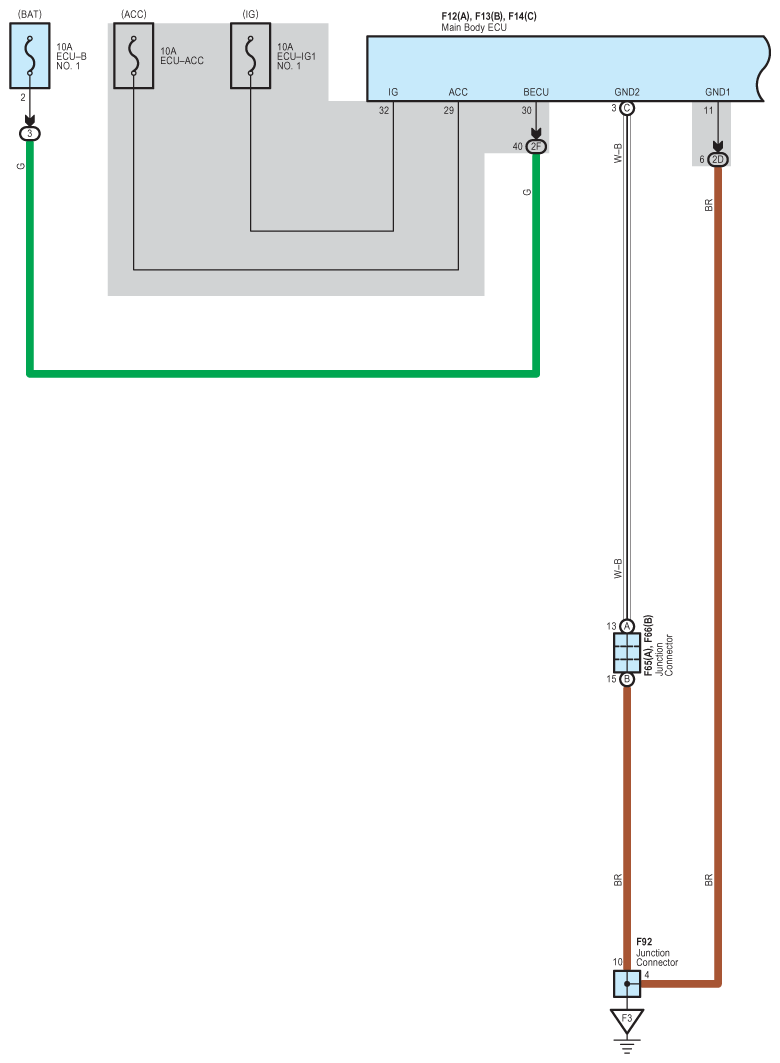

Fig 1: Door Lock Control System Wiring Diagram (1 Of 7)
G09126711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

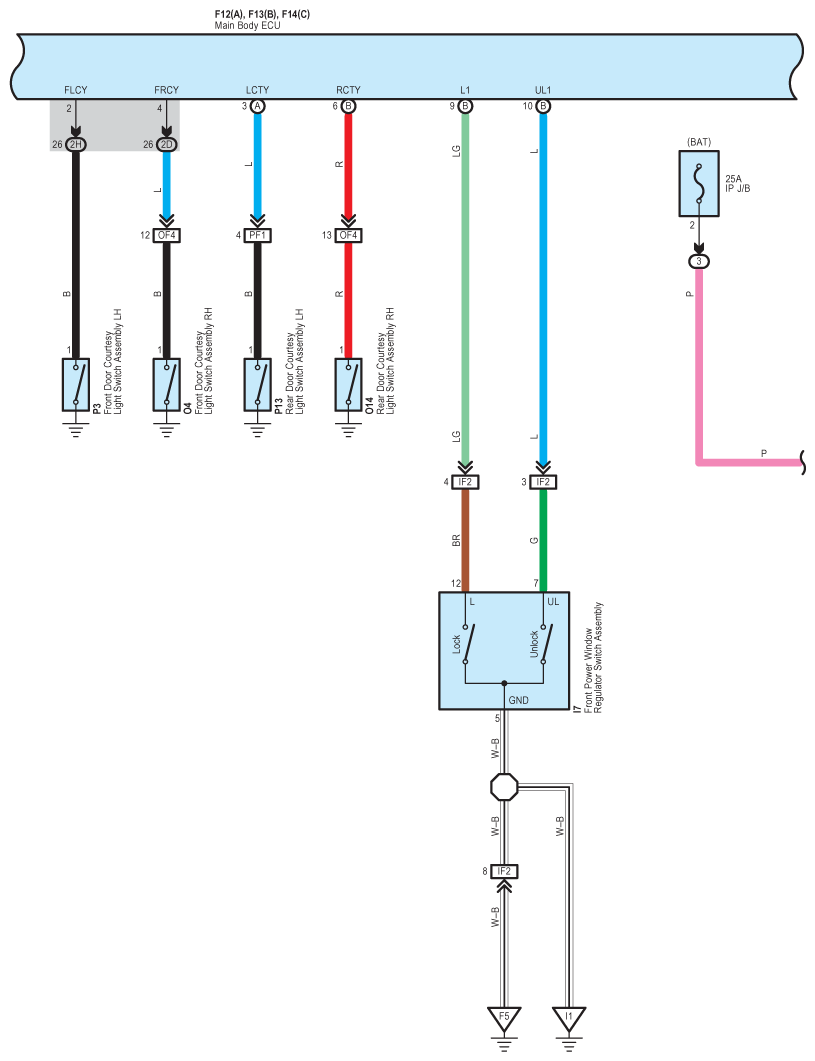

Fig 2: Door Lock Control System Wiring Diagram (2 Of 7)
G09126712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

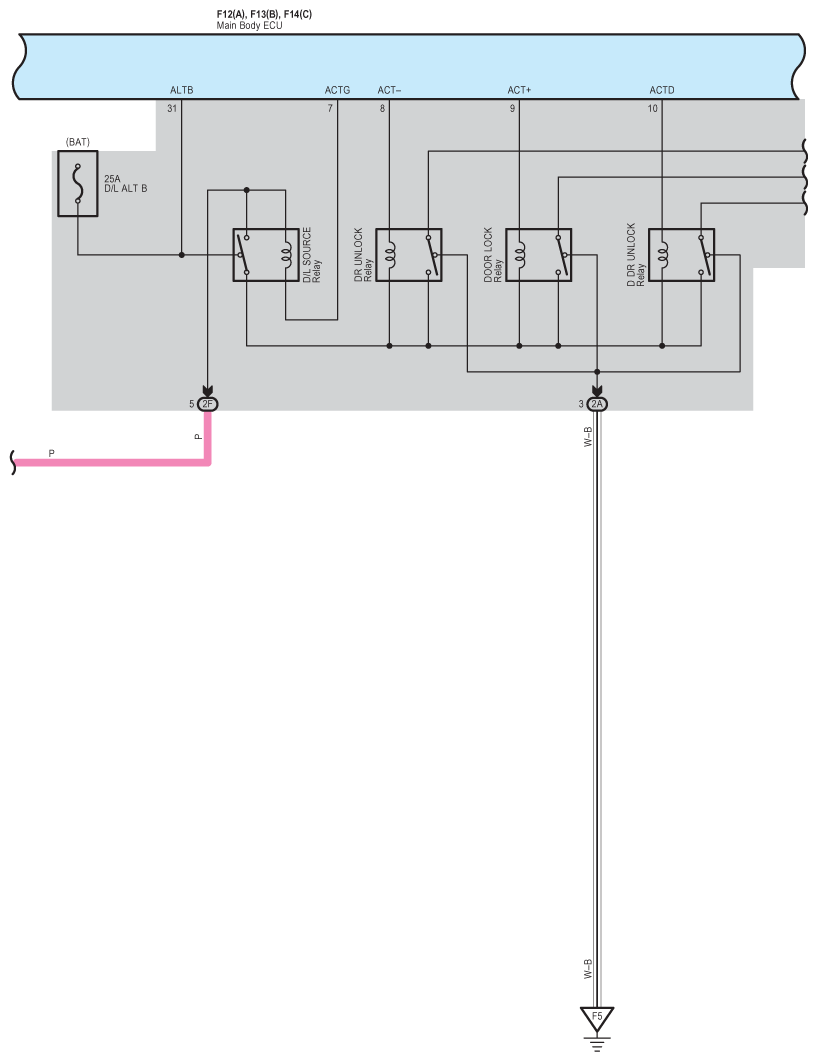

Fig 3: Door Lock Control System Wiring Diagram (3 Of 7)
G09126713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

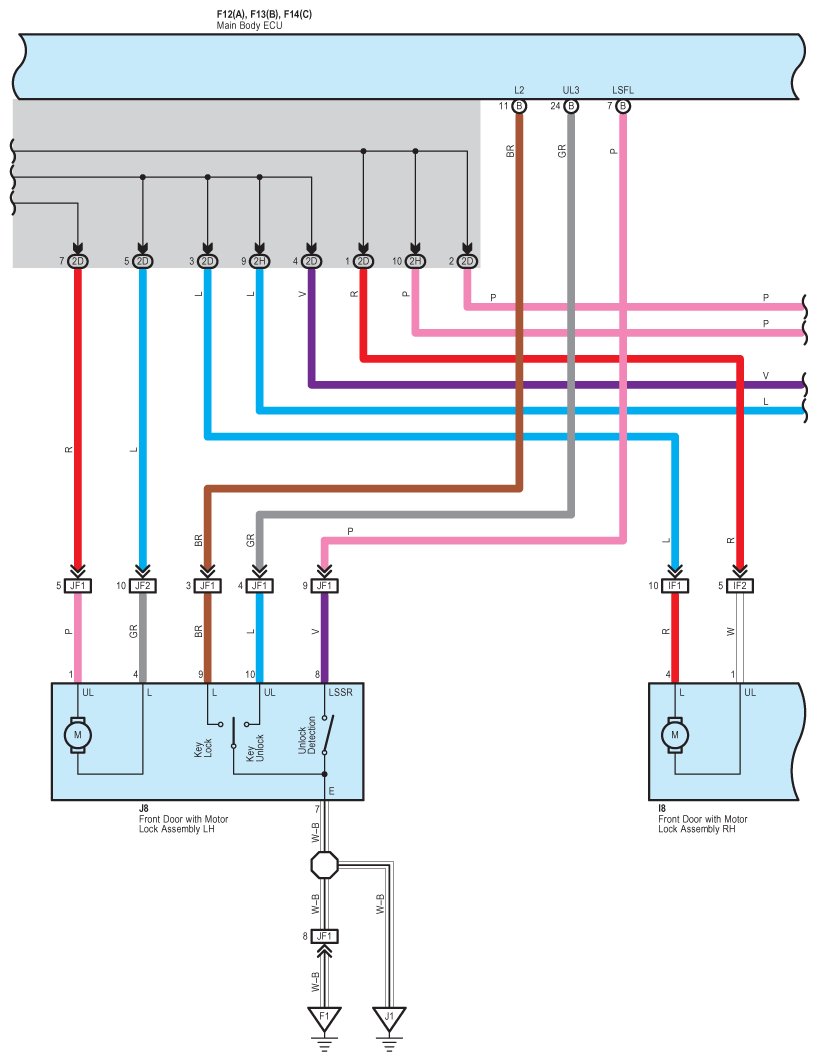

Fig 4: Door Lock Control System Wiring Diagram (4 Of 7)
G09126714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

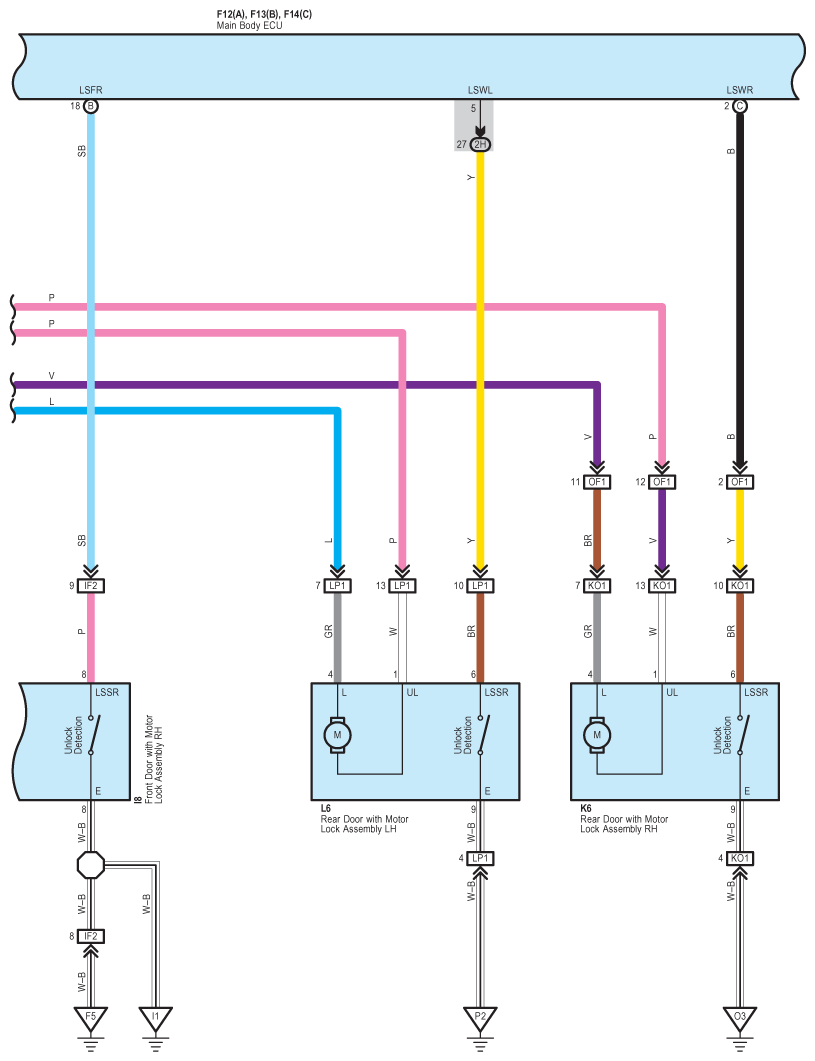

Fig 5: Door Lock Control System Wiring Diagram (5 Of 7)
G09126715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Door Lock Control System Wiring Diagram (6 Of 7)
G09126716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

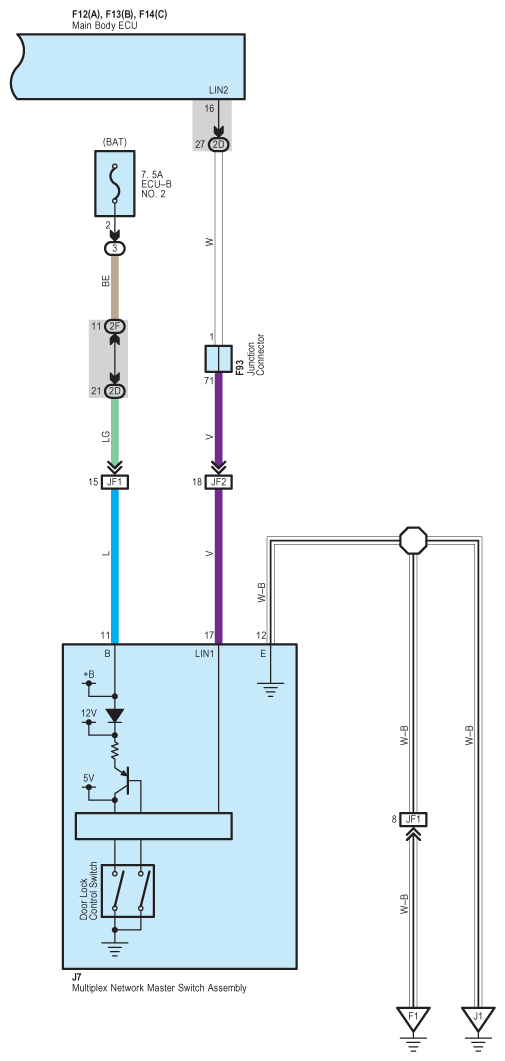

Fig 7: Door Lock Control System Wiring Diagram (7 Of 7)
G09126717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
