Multiplex Communication System (AVC-LAN): Notes

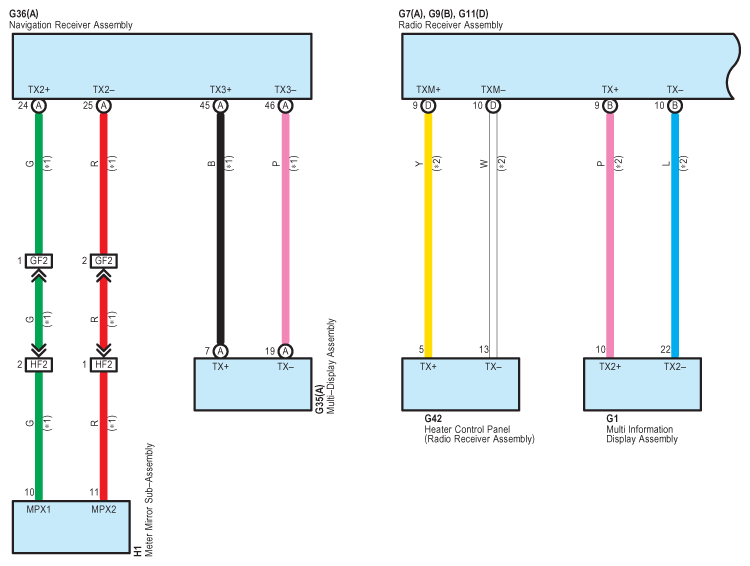

Fig 1: Multiplex Communication (AVC-LAN) System Wiring Diagram (1 Of 2)
G09126660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

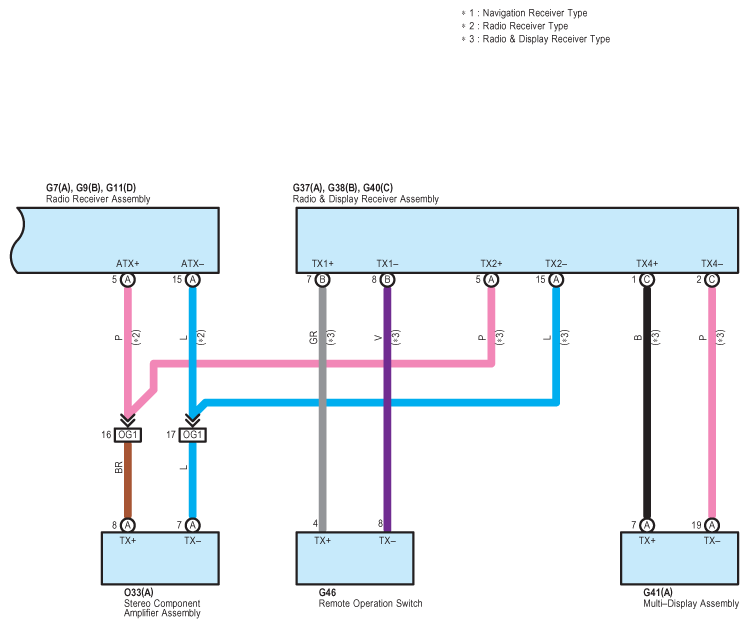

Fig 2: Multiplex Communication (AVC-LAN) System Wiring Diagram (2 Of 2)
G09126661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
