Stabilizer Control ECU Connector End View (G57)

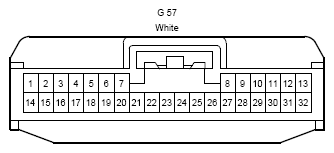

Fig 1: Stabilizer Control ECU Connector End View (G57)
G10302337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
