Components [04/2013 - 08/2015]

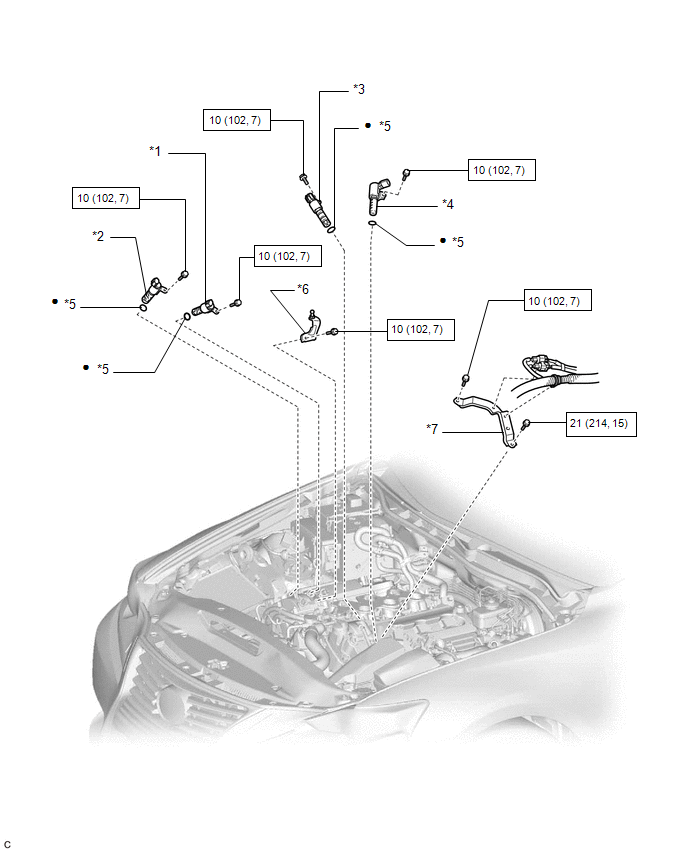

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications [04/2013 - 08/2015]
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1) | *2 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2) | *4 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2) |
| *5 | O-RING | *6 | V-BANK COVER BRACKET SUB-ASSEMBLY |
| *7 | IGNITION COIL COVER BRACKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
