Components [08/2013 - ]: Illustration

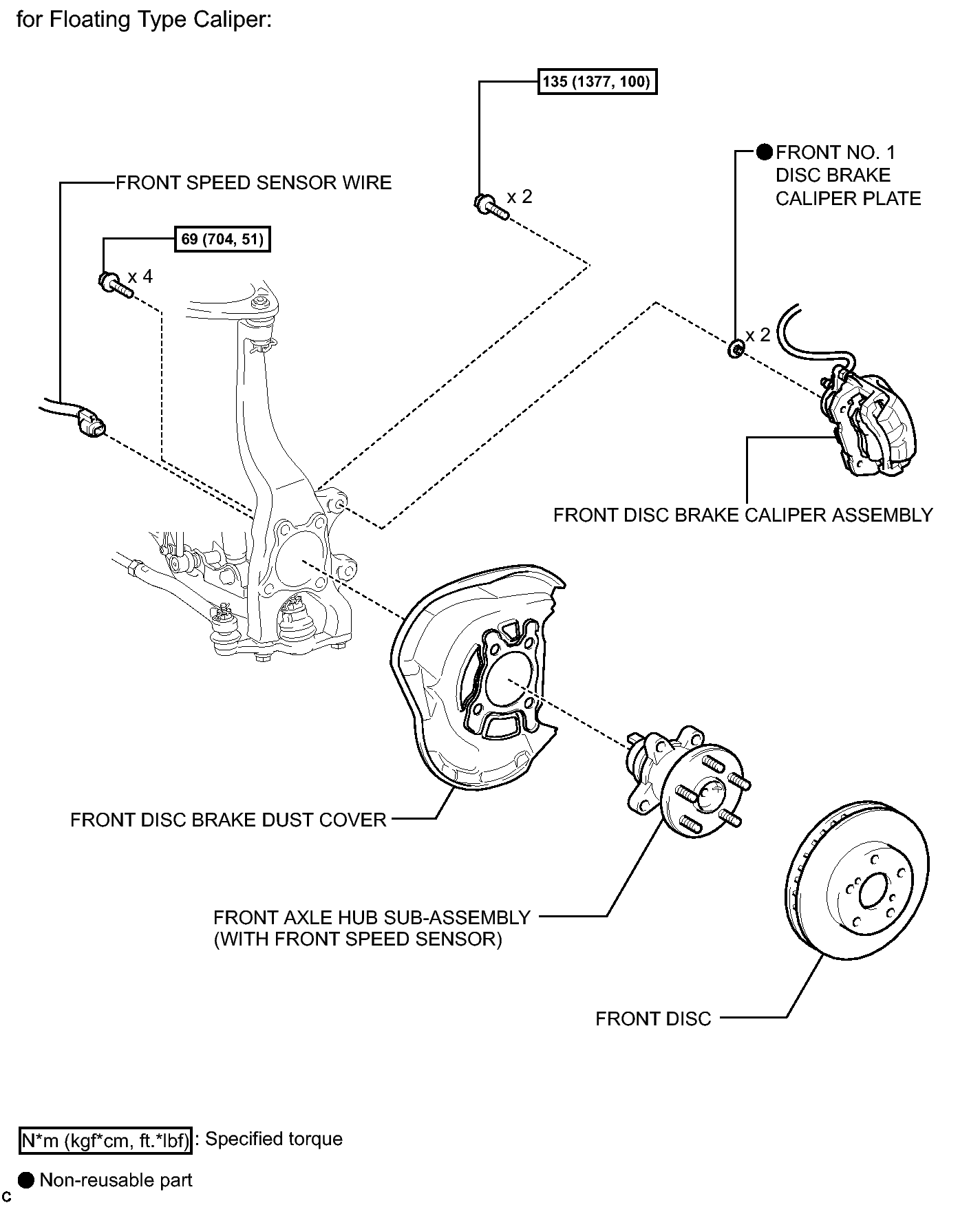

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY414195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

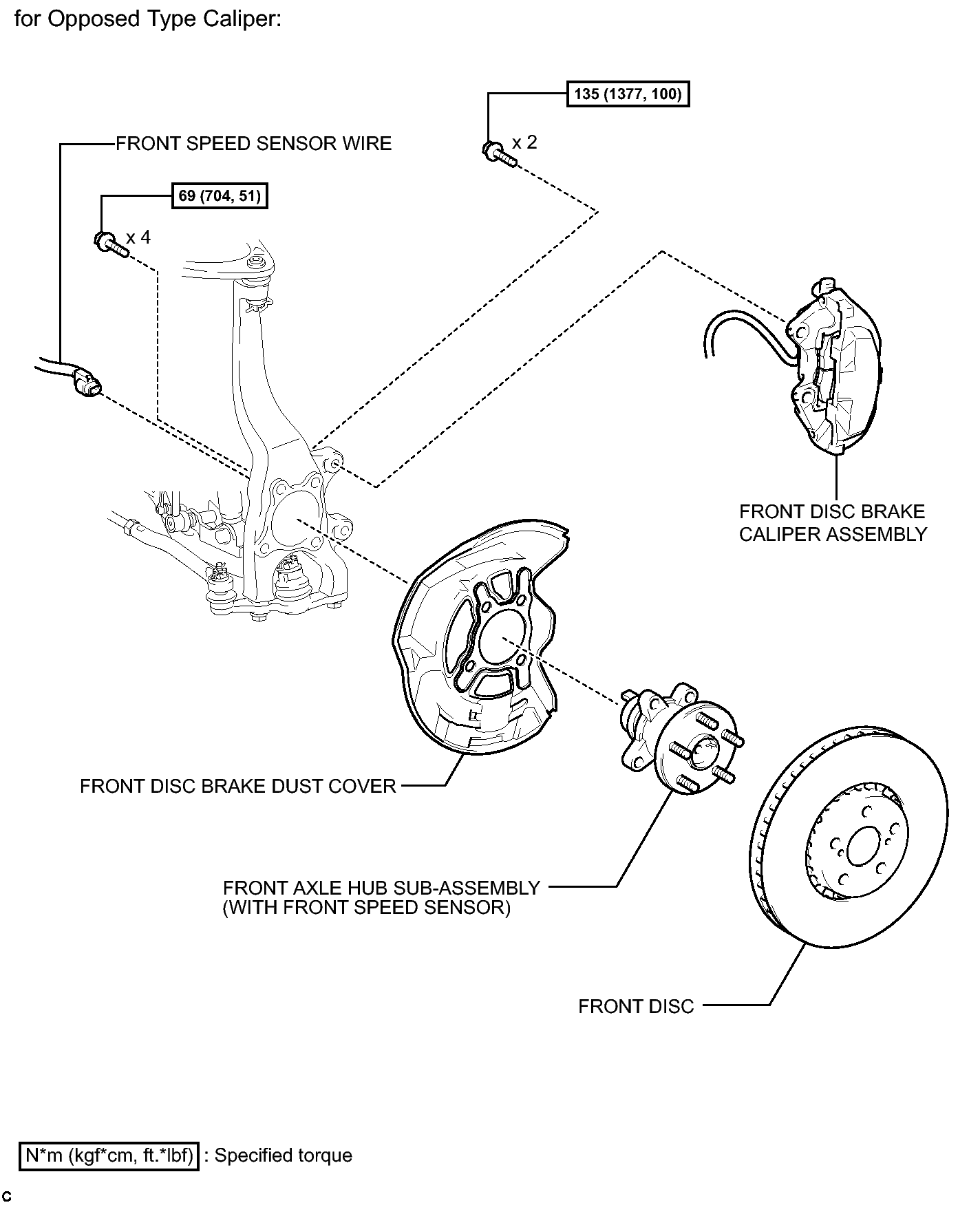

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY416619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
