Inspection [08/2014 - ]: Procedure
- INSPECT SKID CONTROL BUZZER ASSEMBLY
- Make sure that there is no looseness at the locking part and the connecting part of the connector.
- Disconnect the skid control buzzer connector.
- Check both the connector case and the terminal for deformation and corrosion.
OK
No deformation or corrosion.

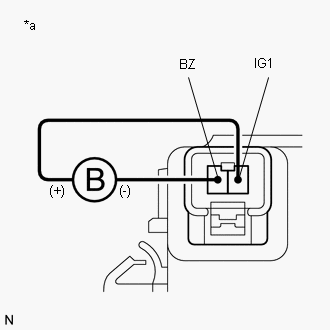

- Connect a negative (-) lead from the auxiliary battery to terminal 1 (BZ), and a positive (+) lead to terminal 2 (IG1) of the skid control buzzer, and then check that the buzzer sounds.
OK
The skid control buzzer sounds.
TEXT IN ILLUSTRATION*a Component without harness connected
(Skid Control Buzzer)If the result is not as specified, replace the skid control buzzer.
- Make sure that there is no looseness at the locking part and the connecting part of the connector.
