Removal [09/2014 - 10/2015]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2014 - 10/2015] ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] ).
REMOVE ENGINE ROOM SIDE COVER
Refer to PROCEDURE - Step 1
REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 2

REMOVE ECM COVER

Remove the 3 bolts and ECM cover.

GTY410796

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Remove all water on and around the ECM cover.
Perform the inspection indoors to avoid rain.
Be sure to prevent water intrusion to the ECM (connectors and screw parts).

DISCONNECT WIRE HARNESS

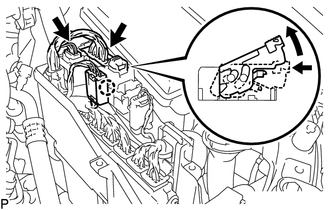

Disconnect the 2 connectors from the connector holder.

GTY419190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

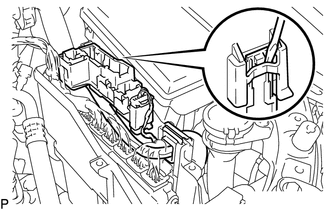

Disconnect the junction connector from the connector holder.

Using a screwdriver, disconnect the connector holder.

GTY410800

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

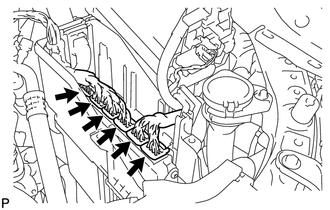

Disconnect the 6 ECM connectors.

GTY410799

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ECM

Remove the 2 nuts and ECM.

GTY410798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE ECM BRACKET

Remove the 2 screws and ECM bracket.

GTY417832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 ECM BRACKET

Remove the 2 screws and No. 2 ECM bracket.

GTY404553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
