Register Transmitter ID

  1. Set the tire pressure of all wheels to pressure specified on the tire and loading information label.
  2. Connect the intelligent tester or Techstream to DLC3 (located under the steering column).
  3. With the vehicle stopped and parking brake applied, turn the engine switch on (IG).
  4. Read and record the transmitter IDs (ID1 to ID4) by using the DATA LIST. See Fig 1 and Fig 2 .
  5. Select the "REGIST TIRE" mode.
  6. If Equipped With A Tire Pressure Warning Selector Switch:  Select the "MAIN" registration mode (or select "2nd" when registering in 2nd). See Figure. Go to next step if not equipped with selector switch.
    NOTE: The tire pressure warning selector switch is located at the base of the instrument panel on the passenger's side.
  7. Input the transmitter IDs (ID1 to ID4) using the intelligent tester or Techstream and transmit it to the tire pressure monitor ECU.
  8. Set the ID transmission condition to "SUCCEEDED".
    NOTE: If steps  4- 8 are not completed within 5 minutes, system will return to the normal operation mode.
  9. Disconnect the intelligent tester or Techstream with the engine switch off.

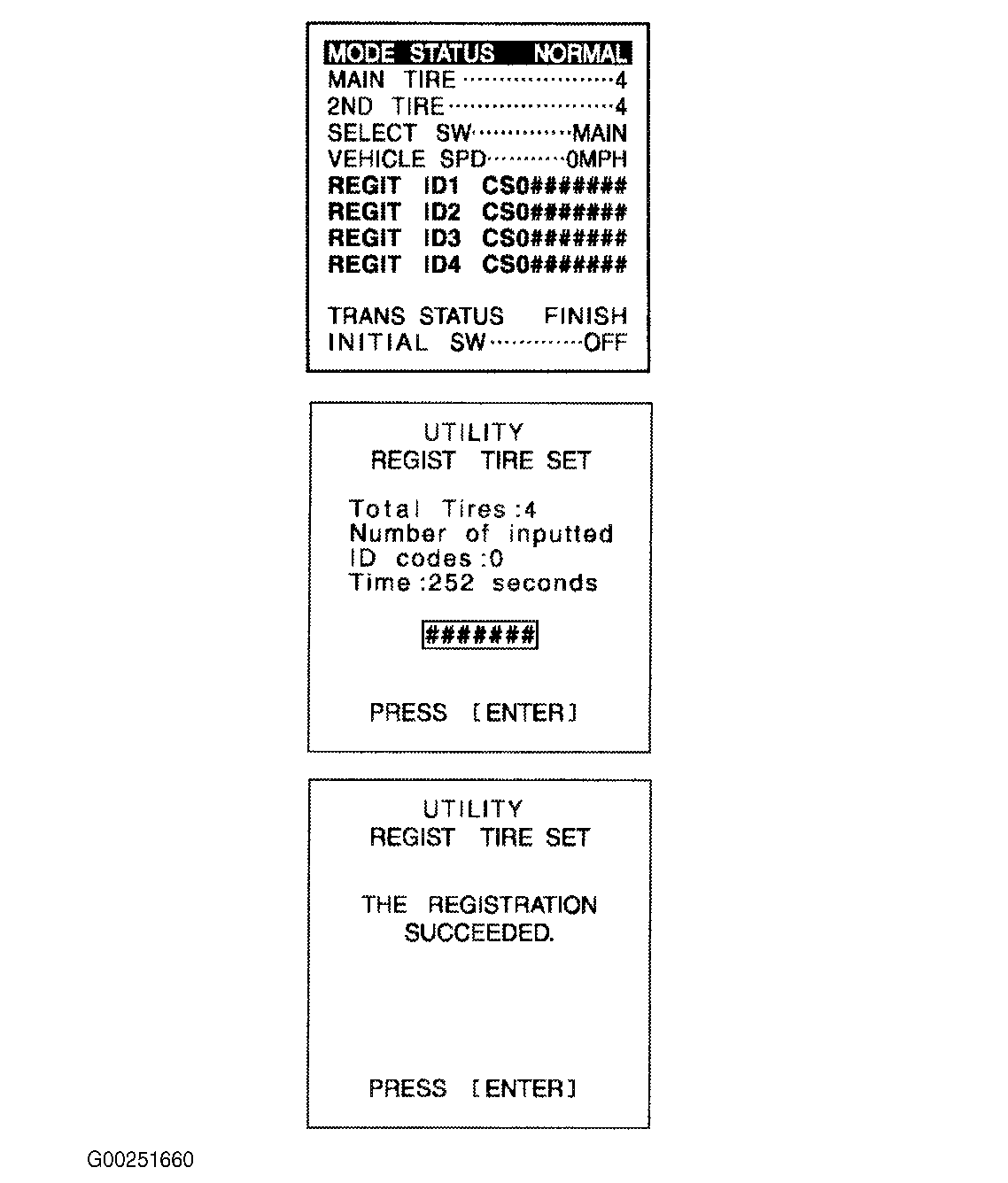

Fig 1: Registering Transmitter ID Using Intelligent Tester (1 Of 2)
G00251660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

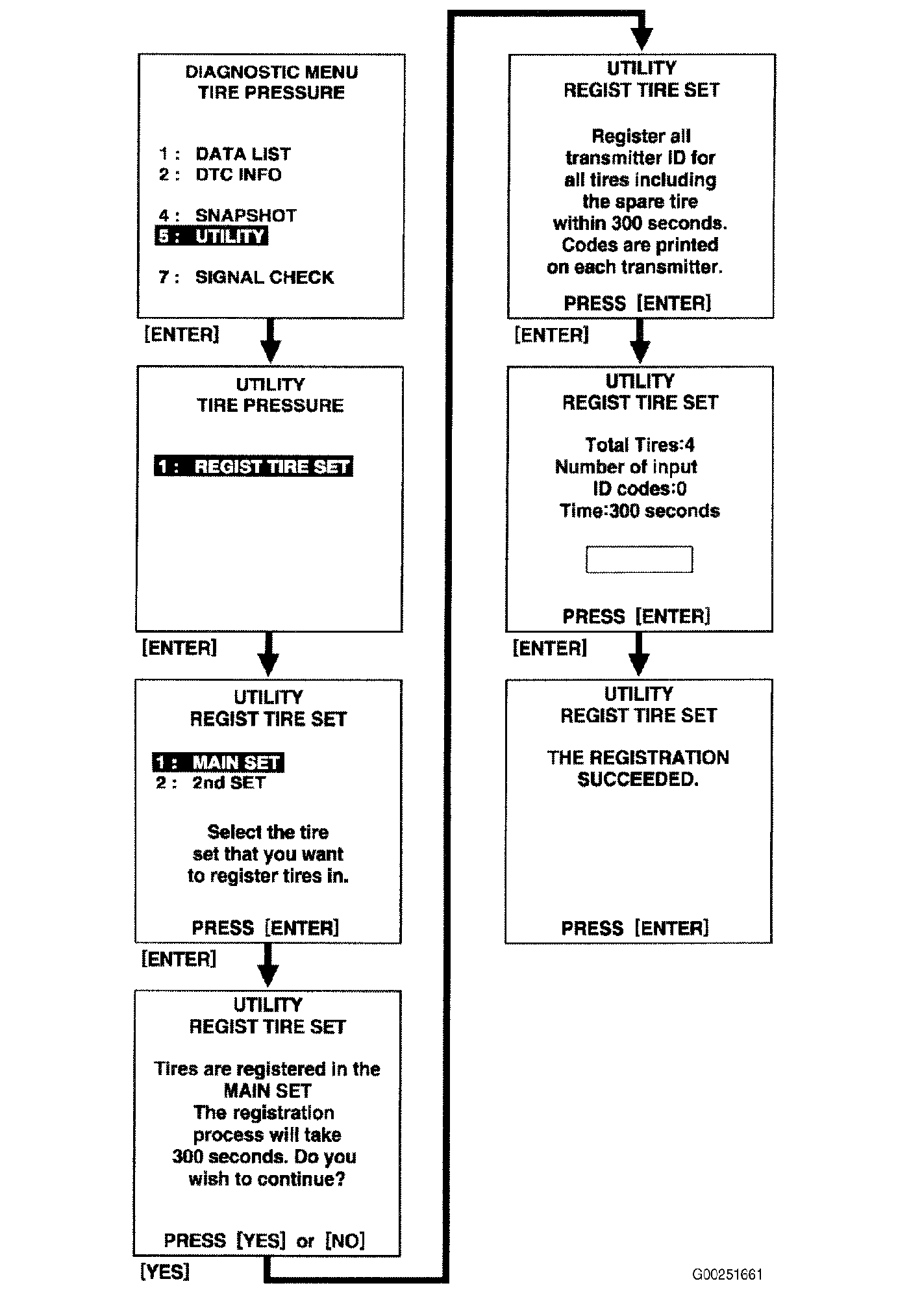

Fig 2: Registering Transmitter ID Using Intelligent Tester (2 Of 2)
G00251661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
