Components [04/2013 - 08/2015]

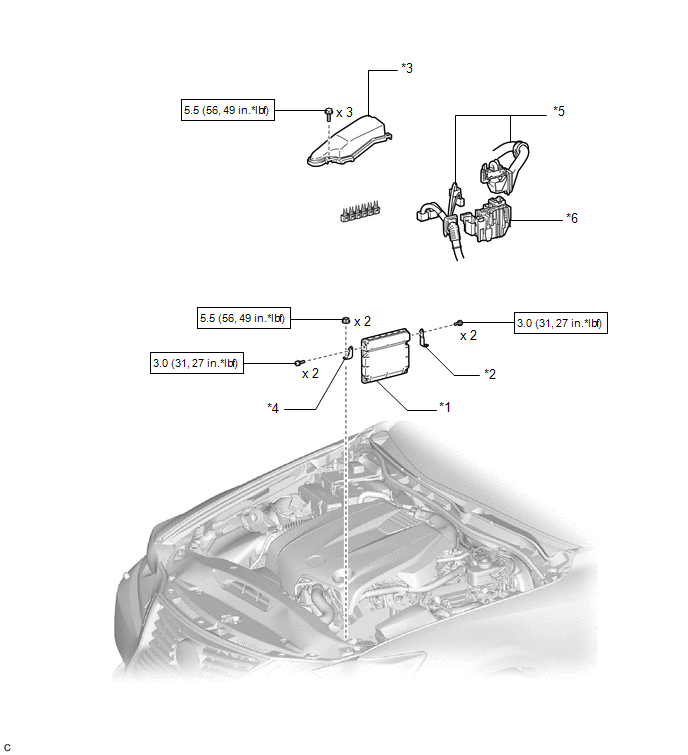

Fig 1: ECM Replacement Components With Torque Specifications [04/2013 - 08/2015]
GTY466323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ECM *2 NO. 1 ECM BRACKET
*3 ENGINE ROOM ECU COVER *4 NO. 2 ECM BRACKET
*5 WIRE HARNESS *6 CONNECTOR HOLDER
N.m (kgf/cm, ft.lbf): Specified torque - -
