Removal [08/2014 - ]: Procedure

  1. DISCHARGE FUEL SYSTEM PRESSURE

    (See article. Refer to PROCEDURE - Step 2 )

  2. REMOVE FUEL INJECTOR ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  3. SEPARATE INVERTER RESERVE TANK ASSEMBLY

    See step  9

  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

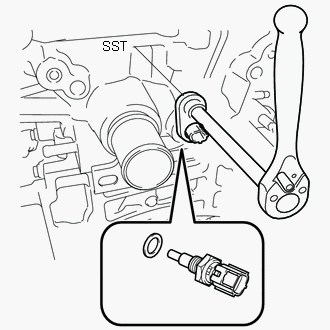

    2. Using SST, remove the engine coolant temperature sensor and gasket.
      GTY533829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09205-76030
