Inspection [08/2014 - ]: Procedure

  1. INSPECT PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

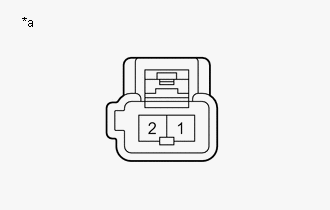

      GTY527820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      1 - 2 Pressed Below 1 Ω
      Not pressed 10 kΩ or higher
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (Pre-collision Brake Cancel Switch Assembly)
