Removal [08/2014 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  2. REMOVE PRE-COLLISION BRAKE CANCEL SWITCH ASSEMBLY

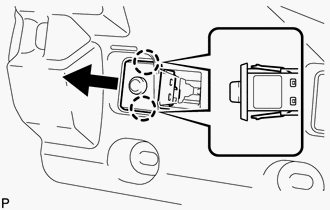

    1. Disengage the 2 claws and remove the pre-collision brake cancel switch assembly.
      GTY352138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
