Adjustment [08/2014 - ]: Procedure

  1. INSPECT TIRES

    Refer to PROCEDURE - Step 1

  2. MEASURE VEHICLE HEIGHT
    GTY356209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
    • Be sure to perform measurement on a level surface.
    • If it is necessary to go under the vehicle for measurement, confirm that the parking brake is applied and the vehicle is secured with chocks.
    • Inspect while the vehicle is unloaded.
    • The standard value shown here is a value that is used for performing a wheel alignment and does not indicate the height of an actual vehicle.
    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Measure the vehicle height.

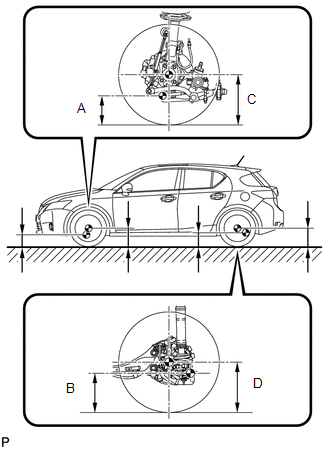

      Measurement Points:

      1. A: Ground clearance of front lower No. 1 suspension arm bushing set bolt center
      1. B: Ground clearance of rear No. 2 suspension arm set bolt center
      1. C: Ground clearance of front wheel center
      1. D: Ground clearance of rear wheel center

      Vehicle Height (Unloaded Vehicle)

      Tire Size Front C - A Rear D - B
      205/55R16
      215/45R17
      (except sport)
      105 mm (4.13 in.) 67 mm (2.63 in.)
      205/55R16
      215/45R17
      (for sport)
      107 mm (4.21 in.) 62 mm (2.44 in.)
  3. INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
    NOTE:

    Inspect while the vehicle is unloaded.

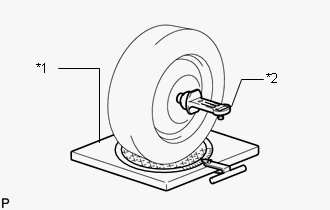

    1. Install a camber-caster-kingpin gauge and place the front wheels on the center of a turning radius gauge.
      GTY319301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Turning Radius Gauge
      *2 Camber-caster-kingpin Gauge
    2. Inspect the camber, caster and steering axis inclination.

      Camber (Unloaded Vehicle)

      Tire Size Camber Inclination Right-left Difference
      205/55R16
      215/45R17
      (except sport)
      -0°13' +/- 0°45' (-0.22° +/- 0.75°) 0°45' (0.75°) or less
      205/55R16
      215/45R17
      (for sport)
      -0°14' +/- 0°45' (-0.23° +/- 0.75°)

      Caster (Unloaded Vehicle)

      Tire Size Caster Inclination Right-left Difference
      205/55R16
      215/45R17
      (except sport)
      6°00' +/- 0°45' (6.00° +/- 0.75°) 0°45' (0.75°) or less
      205/55R16
      215/45R17
      (for sport)
      5°51' +/- 0°45' (5.85° +/- 0.75°)

      Steering Axis (Unloaded Vehicle)

      Tire Size Steering Axis Inclination Reference
      205/55R16
      215/45R17
      (except sport)
      12°13' (12.22°)
      205/55R16
      215/45R17
      (for sport)
      12°15' (12.25°)
  4. ADJUST CAMBER
    NOTE:

    Inspect toe-in after the camber has been adjusted.

    1. Remove the front wheel.

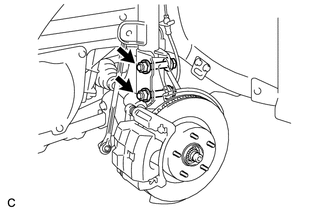

    2. Remove the 2 nuts on the lower side of the front shock absorber.
      GTY326783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Keep the bolts inserted.

    3. Remove the top and bottom bolts one at a time and confirm that the steering knuckle can move freely in the shock absorber.

      HINT:

      • Reinstall each bolt after removing it and confirming steering knuckle movement.
      • If the steering knuckle does not move freely in the shock absorber, clean the installation surfaces of the front shock absorber and the steering knuckle.
    4. Temporarily install the 2 nuts. (Step A)

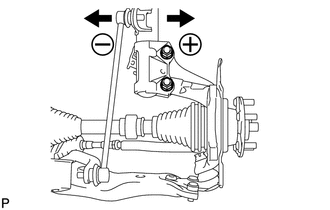

    5. Fully push or pull the front axle hub in the direction of the required adjustment. (Step B)
      GTY166872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Tighten the nuts.
      GTY326783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 240 N*m (2447 kgf*cm, 177 ft.*lbf)

      NOTE:

      Keep the bolts from rotating when tightening the nuts.

    7. Install the front wheel.

      Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

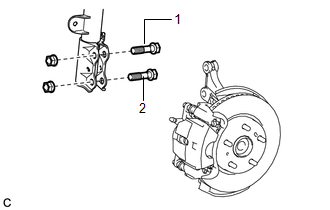

    8. Check the camber.
      GTY286349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

      Camber adjustment amount = center of the specified range - measured value

      Check the combination of the installed bolts. Select appropriate bolts from the tables below to adjust the camber to the specified values.

      HINT:

      Try to adjust the camber to the center of the specified values.

      To move the axle hub toward (+) in step B To move the axle hub toward (-) in step B
      Refer to table (1) (To move the axle hub toward the positive side) Refer to table (2) (To move the axle hub toward the negative side)

      The body and suspension may be damaged if the camber cannot be correctly adjusted according to the table above.

      NOTE:

      Replace the nut with a new one when replacing the bolt.

      1. Table (1) (To move the axle hub toward the positive side)

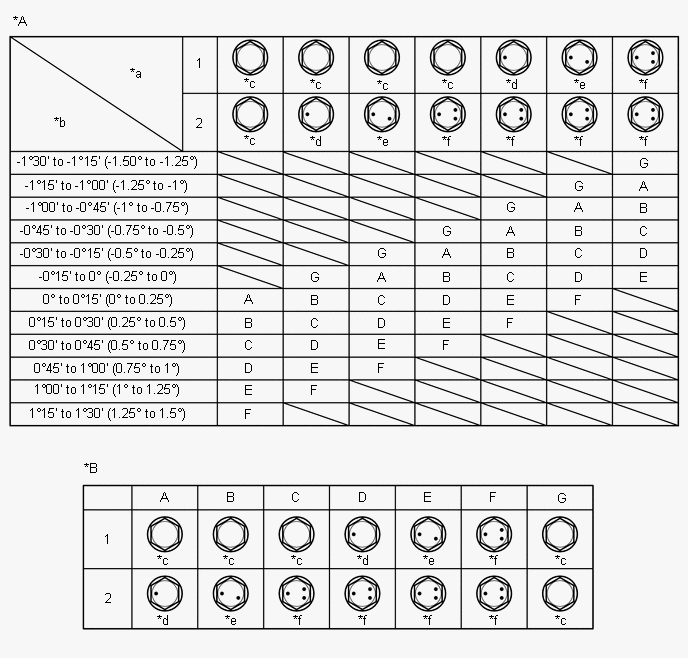

        GTY533576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *A Table (1) (To move the axle hub toward the positive side) *B Selected Bolt Combination
        *a Installed Bolt *b Adjusting Value
        *c 90105-17019 *d 90105-17016
        *e 90105-17017 *f 90105-17018

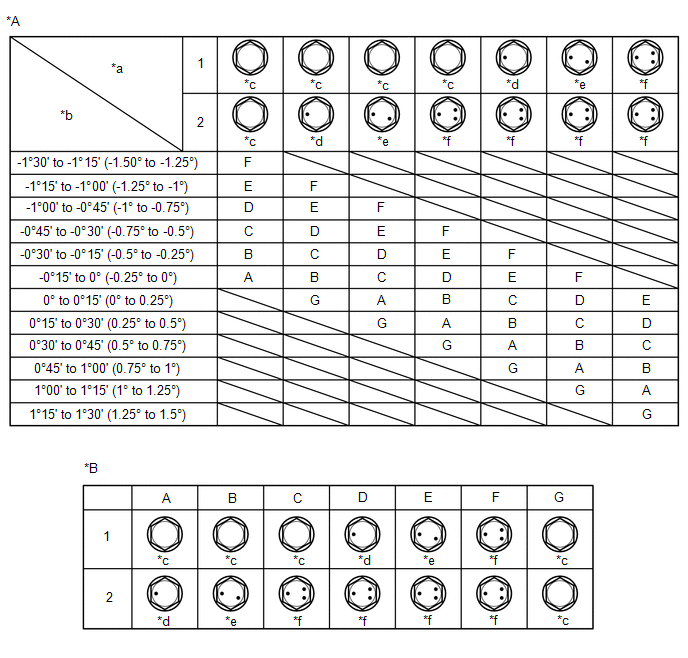

      2. Table (2) (To move the axle hub toward the negative side)
        GTY523575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *A Table (2) (To move the axle hub toward the negative side) *B Selected Bolt Combination
        *a Installed Bolt *b Adjusting Value
        *c 90105-17019 *d 90105-17016
        *e 90105-17017 *f 90105-17018
    9. If the camber was out of adjustment in the previous step, perform the adjust camber steps mentioned above. In step A, replace the existing bolts with the selected bolts.

      HINT:

      Replace one bolt at a time when replacing both bolts.

  5. INSPECT TOE-IN
    NOTE:

    Inspect while the vehicle is unloaded.

    1. Bounce the vehicle up and down at the corners to stabilize the suspension.
    2. Release the parking brake and move the shift lever to N.
    3. Push the vehicle straight ahead approximately 5 m (16.4 ft.). (Step C)

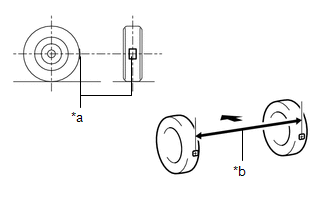

    4. Put tread center marks on the rearmost points of the front wheels and measure the distance between the marks (dimension B).
      GTY317487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Tread Center Mark
      *b Dimension B
    5. Slowly push the vehicle straight ahead to cause the front wheels to rotate 180° using the front tire valve as a reference point.

      HINT:

      Do not allow the wheels to rotate more than 180°. If the wheels rotate more than 180°, perform the procedure from step C again.

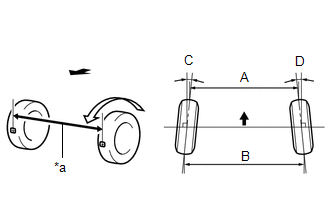

    6. Measure the distance between the tread center marks on the front side of the wheels (dimension A).
      GTY323290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Dimension A
      Front of the Vehicle

      Toe-in (Unloaded Vehicle)

      Specified Condition
      C + D: 0°12' +/- 0°12' (0.20° +/- 0.20°)
      B - A: 2.0 +/- 2.0 mm (0.0787 +/- 0.0787 in.)

      HINT:

      Measure "B - A" only when "C + D" cannot be measured.

      If the toe-in is not within the specified range, adjust it at the rack ends.

  6. ADJUST TOE-IN
    1. Make sure that the thread length of the right and left rack ends are approximately the same.

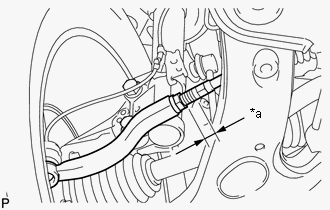

      GTY537890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Thread Length

      Standard Difference

      1.5 mm (0.0591 in.) or less

    2. Remove the boot clips.

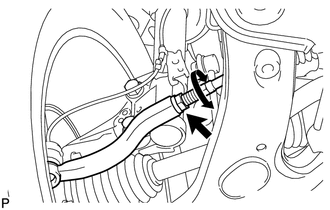

    3. Loosen the tie rod end lock nuts.
      GTY278314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Adjust the rack ends if the difference in thread length between the right and left rack ends is not within the specified range.
      1. Extend the shorter rack end if the measured toe-in deviates toward the outer-side.
      2. Shorten the longer rack end if the measured toe-in deviates toward the inner-side.
    5. Turn the right and left rack ends by an equal amount to adjust the toe-in.
    6. Make sure that the thread length of the right and left rack ends are the same.
    7. Tighten the tie rod end lock nuts.

      Torque: 74 N*m (755 kgf*cm, 55 ft.*lbf)

    8. Place the boots on the seats and install the clips.

      HINT:

      Make sure that the boots are not twisted.

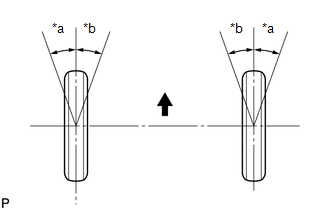

  7. INSPECT WHEEL ANGLE
    1. Put tread center marks on the rearmost points of a turning radius gauge.
      GTY257633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Inside
      *b Outside
      Front of the Vehicle
    2. Turn the steering wheel fully to the left and right and measure the turning angle.
      NOTE:

      Inspect while the vehicle is unloaded.

      Wheel Turning Angle (Unloaded Vehicle)

      Tire Size Inside Wheel Outside Wheel Reference
      205/55R16
      215/45R17
      (except sport)
      39°18' +/- 2°00' (39.30° +/- 2°) 32°54' (32.90°)
      205/55R16
      215/45R17
      (for sport)
      39°14' +/- 2°00' (39.23° +/- 2°) 32°51' (32.85°)
      1. If the right and left inside wheel angles differ from the specified value, check and adjust the right and left rack end lengths.
  8. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  9. PERFORM YAW RATE AND ACCELERATION SENSOR CALIBRATION

    (See article. Refer to CALIBRATION [08/2014 - ] )

  10. PERFORM INITIALIZATION (w/ Height Control Sensor)
    NOTE:

    Some systems need to be initialized after the wheel alignment is adjusted (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).
