Inspection [09/2014 - ]: Procedure
- INSPECT INTEGRATION CONTROL AND PANEL ASSEMBLY (VSC OFF SWITCH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

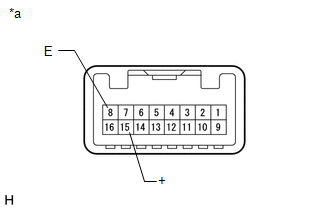

Tester Connection Switch Condition Specified Condition 15 (+) - 8 (E) Pressed Below 1 Ω Not pressed 10 kΩ or higher TEXT IN ILLUSTRATION*a Component without harness connected
(VSC OFF Switch)If the result is not as specified, replace the integration control and panel assembly (VSC OFF switch).
- Measure the resistance according to the value(s) in the table below.
