Reassembly [10/2015 - ]: Procedure

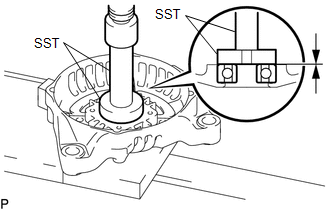

- INSTALL GENERATOR DRIVE END FRAME BEARING
- Using SST and a press, install a new generator drive end frame bearing.
- SST: 09950-60010
- 09951-00470
- SST: 09950-70010
- 09951-07100
- SST: 09950-60010

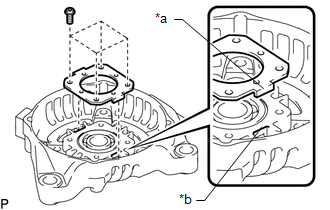

- Fit the tabs of the retainer plate into the cutouts of the generator drive end frame to install the retainer plate.
*a Tab *b Cutout - Install the 4 screws.
Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
- Using SST and a press, install a new generator drive end frame bearing.
- INSTALL GENERATOR ROTOR ASSEMBLY
- Place the generator drive end frame on the generator pulley with clutch.
- Install the generator rotor assembly to the generator drive end frame.
- Install a new generator washer.
- INSTALL GENERATOR COIL ASSEMBLY
- INSTALL GENERATOR BRUSH HOLDER ASSEMBLY

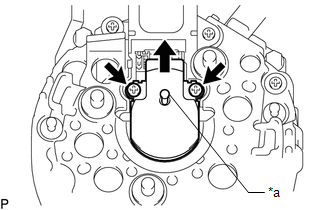

- While pushing the 2 brushes into the generator brush holder assembly, insert a pin with a diameter of 1.0 mm (0.0394 in.) into the brush holder hole.
*a Pin - Install the generator brush holder assembly to the generator coil assembly with the 2 screws.
*a Pin Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)
- Pull out the pin from the generator brush holder assembly hole.
- While pushing the 2 brushes into the generator brush holder assembly, insert a pin with a diameter of 1.0 mm (0.0394 in.) into the brush holder hole.
- INSTALL GENERATOR TERMINAL INSULATOR
- Install the generator terminal insulator to the generator coil assembly.NOTE:
Be sure to install the generator terminal insulator in the correct direction.
- Install the generator terminal insulator to the generator coil assembly.

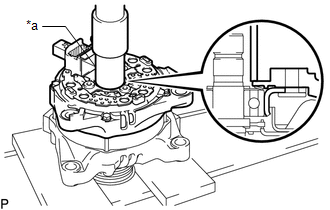

- INSTALL GENERATOR REAR END COVER
- Install the generator rear end cover to the generator coil assembly with the 3 nuts.
Torque: 4.6 N*m (47 kgf*cm, 41 in.*lbf)
- Install the generator rear end cover to the generator coil assembly with the 3 nuts.
- INSTALL GENERATOR PULLEY WITH CLUTCH
- Mount the generator assembly in the vise between aluminum plates.
- Temporarily install the generator pulley with clutch to the rotor shaft.

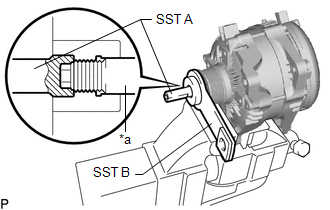

- Install SST A and B to the generator pulley with clutch as shown in the illustration.
*a Generator Rotor Shaft - SST: 09820-63021
NOTE:Securely attach SST to the generator pulley with clutch and generator rotor shaft.

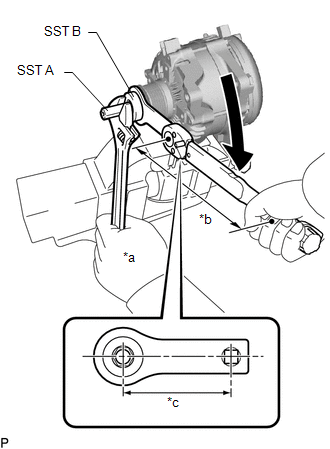

- Using a wrench to hold SST A, turn SST B clockwise to tighten the generator pulley with clutch.
Specified tightening torque
Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)
NOTE:Be careful as the generator pulley with clutch or generator rotor shaft may be damaged if the position of SST is not securely maintained while performing this operation.
HINT:
- Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [10/2015 - ]
- When using SST (fulcrum length of 100 mm (3.94 in.)) + torque wrench (fulcrum length of 400 mm (15.8 in.)):
64 N*m (653 kgf*cm, 47 ft.*lbf)
*1 Hold *2 Torque Wrench Fulcrum Length *3 SST Fulcrum Length Turn - Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
- Remove SST from the generator assembly.
- Check that the generator pulley with clutch rotates smoothly.
- Remove the generator assembly from the vise.
- INSTALL GENERATOR PULLEY CAP
- Install a new generator pulley cap to the generator pulley with clutch.
