Installation [09/2014 - ]: Procedure

INSTALL NO. 1 BRAKE CONTROL POWER SUPPLY BRACKET

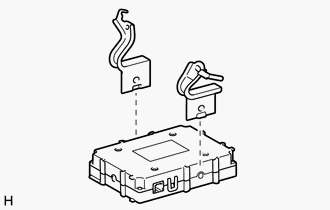

Slide on the 2 No. 1 brake control power supply brackets, and then install the brake control power supply assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Make sure the claws are securely attached.
Do not drop the brake control power supply. If the brake control power supply has been dropped replace the brake control power supply with a new one.

INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY

Connect the connector.
Hook and the claws of the No. 1 brake control power supply bracket to the body to set it in place.

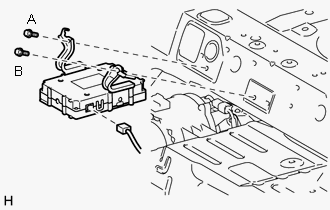

Install the brake control power supply assembly with the 2 bolts.

Torque: 14 N*m (138 kgf*cm, 10 ft.*lbf)

NOTE:

Install the bolts in alphabetical order.

INSTALL BENCH TYPE REAR SEATBACK ASSEMBLY
(See article. Refer to INSTALLATION [09/2014 - ] )
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [09/2014 - 10/2015] Refer to INITIALIZATION [10/2015 - ] ).
INSTALL LUGGAGE COMPARTMENT TRIM COVER LH
Refer to PROCEDURE - Step 24
INSTALL LUGGAGE COMPARTMENT FLOOR MAT
Refer to PROCEDURE - Step 26
CHECK AND CLEAR DTC
(See article. Refer to DTC CHECK / CLEAR [09/2014 - ] )
