Removal [09/2014 - ]: Procedure

1. Disconnect the connector from the front speed sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the bolt and harness clamp.
3. Partially remove the front fender liner.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

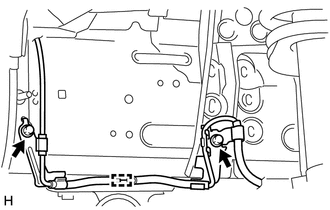

4. Detach the clip.
5. Remove the 2 bolts and 2 harness clamps.
6. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

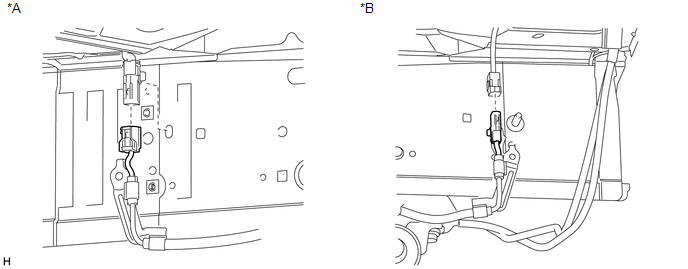

   TEXT IN ILLUSTRATION



   *A

   for LH Side

   *B

   for RH Side

1. for 17 inch Front Disc Brake:

   (See article. Refer to REMOVAL [09/2014 - ] )

2. for 18 inch Front Disc Brake:

   (See article. Refer to REMOVAL [09/2014 - ] )

1. for 17 inch Front Disc Brake:

   (See article. Refer to PROCEDURE - Step 6 )

2. for 18 inch Front Disc Brake:

   (See article. Refer to PROCEDURE - Step 6 )

(See article. Refer to REMOVAL [09/2014 - ] )
