Components [10/2015 - ]: Illustration

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description

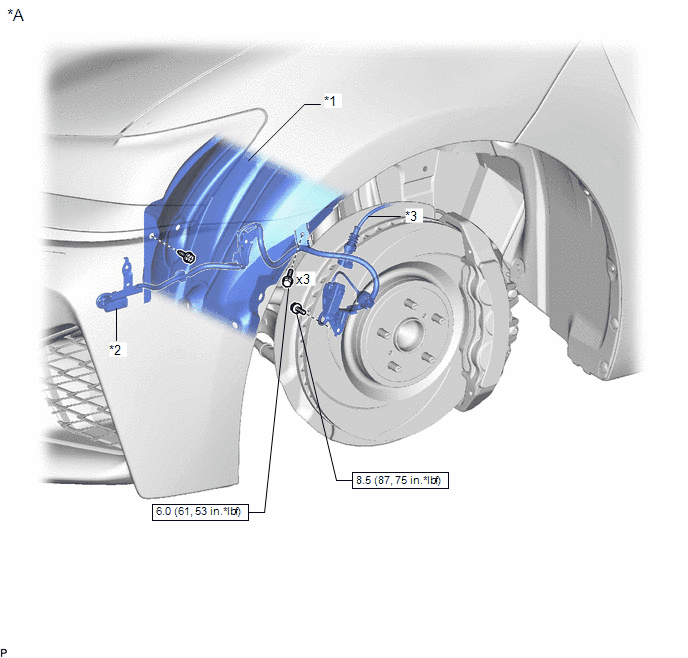

*A	for LH Side	-	-
*1	FRONT FENDER LINER LH	*2	FRONT SKID CONTROL SENSOR WIRE LH
*3	PAD WEAR INDICATOR WIRE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description

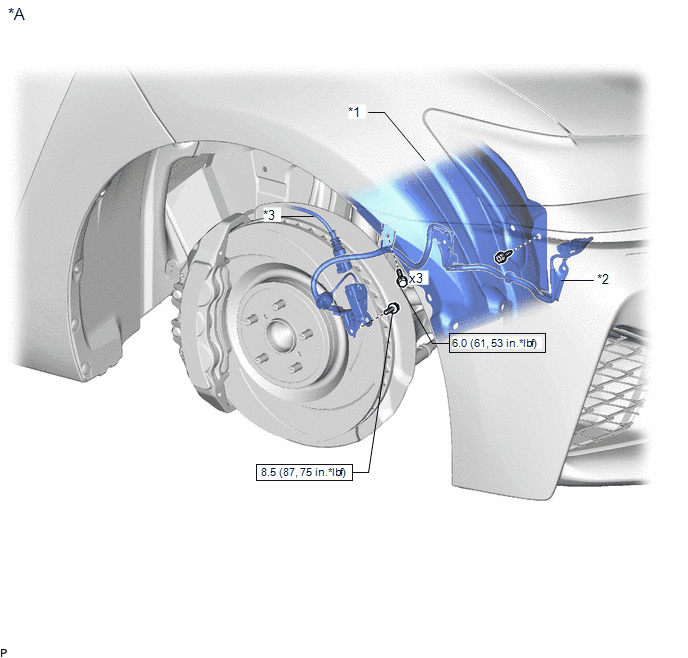

*A	for RH Side	-	-
*1	FRONT FENDER LINER RH	*2	FRONT SKID CONTROL SENSOR WIRE RH
*3	PAD WEAR INDICATOR WIRE	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

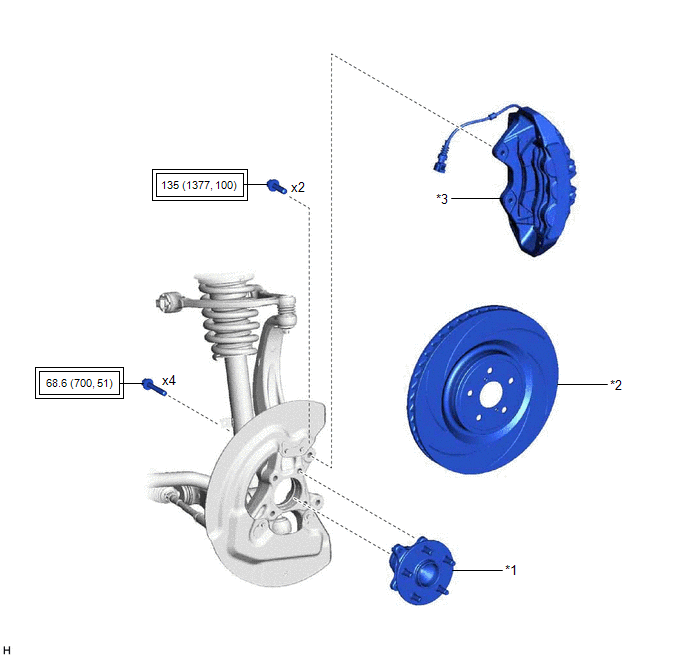

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	FRONT AXLE HUB SUB-ASSEMBLY	*2	FRONT DISC
*3	FRONT DISC BRAKE CALIPER ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-
