Inspection [10/2015 - ]: Procedure

  1. INSPECT VSC OFF SWITCH (INTEGRATION CONTROL AND PANEL ASSEMBLY)
    1. Check the resistance.

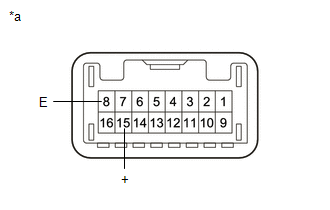

      GTY618457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (VSC OFF Switch (Integration Control and Panel Assembly))
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        15 (+) - 8 (E) Switch pushed Below 1 Ω
        Switch not pushed 10 kΩ or higher

        If the result is not as specified, replace the VSC OFF switch (integration control and panel assembly).
