Removal [10/2015 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 2 [09/2017 - 05/2018], or Refer to PROCEDURE - Step 2 [05/2018 - ]
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1 [10/2015 - 09/2017], or Refer to PROCEDURE - Step 1 [09/2017 - ]
- REMOVE CENTER NO. 4 ENGINE UNDER COVER
Refer to PROCEDURE - Step 2
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 4
- REMOVE ENGINE COOLANT TEMPERATURE SENSOR
- Disconnect the engine coolant temperature sensor connector.

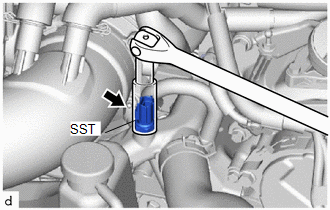

- Using SST, remove the engine coolant temperature sensor from the front water by-pass joint.
- SST: 09817-33191
NOTE:If the engine coolant temperature sensor has been struck or dropped, replace it.
- Remove the gasket from the engine coolant temperature sensor.
- Disconnect the engine coolant temperature sensor connector.
