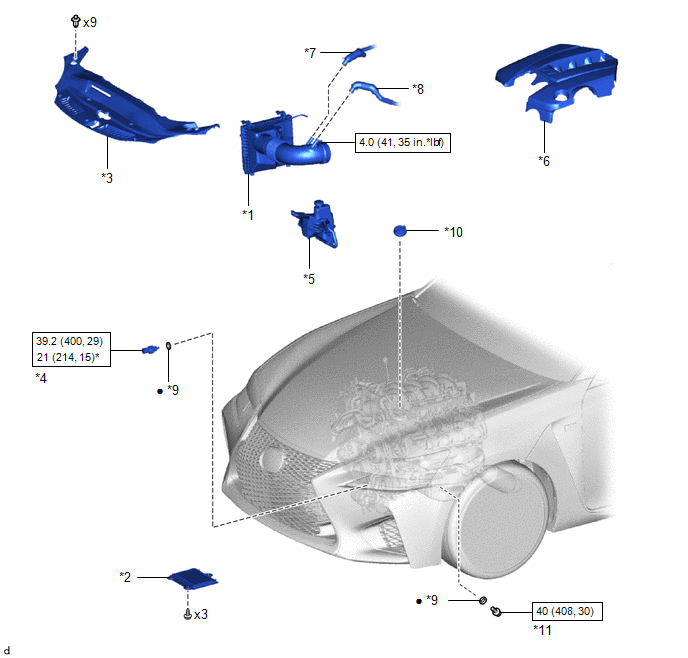

Components [10/2015 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | CENTER NO. 4 ENGINE UNDER COVER |
| *3 | COOL AIR INTAKE DUCT SEAL | *4 | ENGINE OIL TEMPERATURE SENSOR |
| *5 | RADIATOR RESERVE TANK ASSEMBLY | *6 | V-BANK COVER SUB-ASSEMBLY |
| *7 | NO. 2 VENTILATION HOSE | *8 | NO. 3 VENTILATION HOSE |
| *9 | GASKET | *10 | OIL FILLER CAP SUB-ASSEMBLY |
| *11 | OIL PAN DRAIN PLUG | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with a ball joint lock nut wrench | |
| • | Non-reusable part | - | - |
