Components [08/2015 - ]

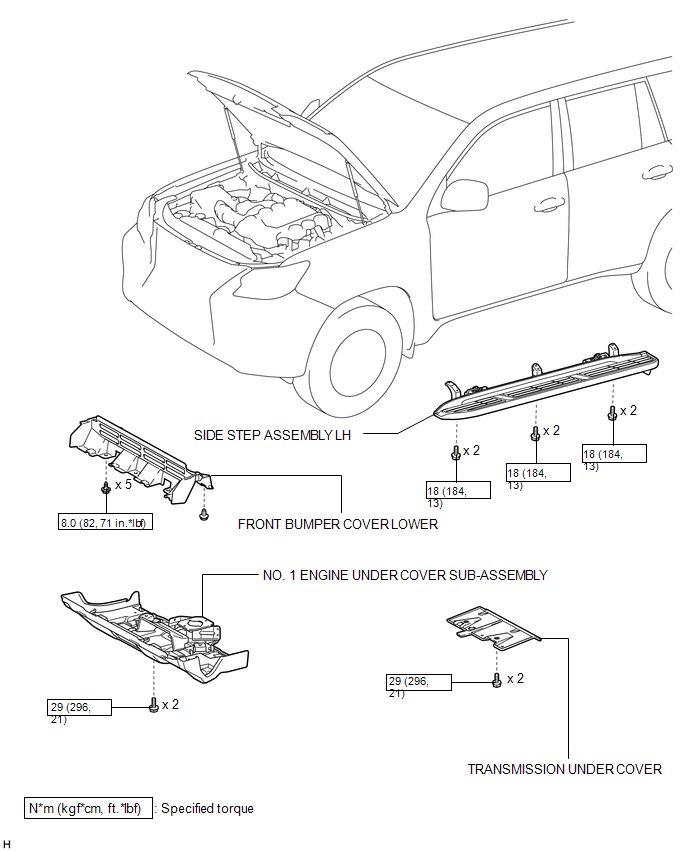

Fig 1: Stabilizer Control Tube Replacement Components With Torque Specifications (1 Of 5) [08/2015 - ]
GTY624498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

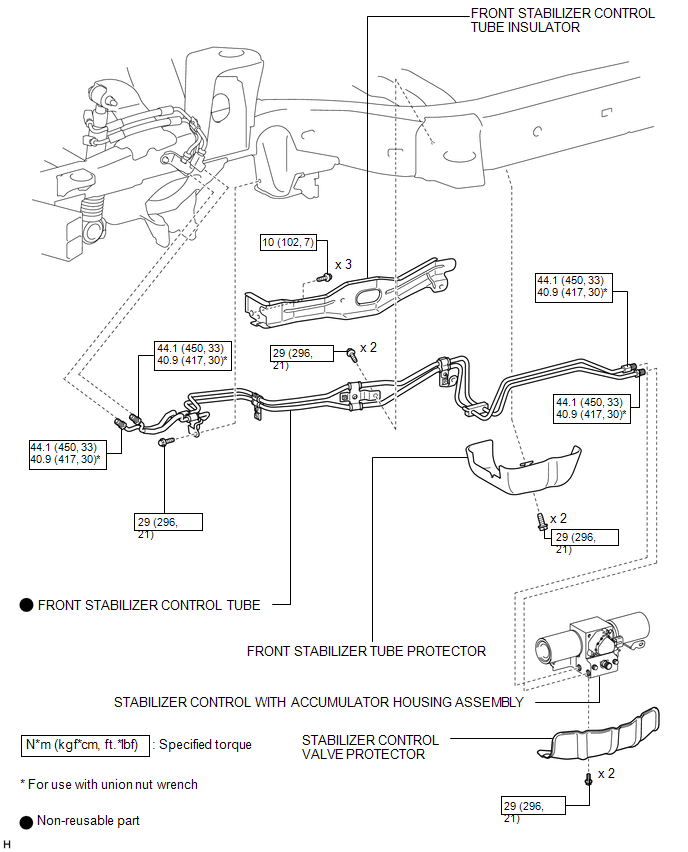

Fig 2: Stabilizer Control Tube Replacement Components With Torque Specifications (2 Of 5) [08/2015 - ]
GTY649084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

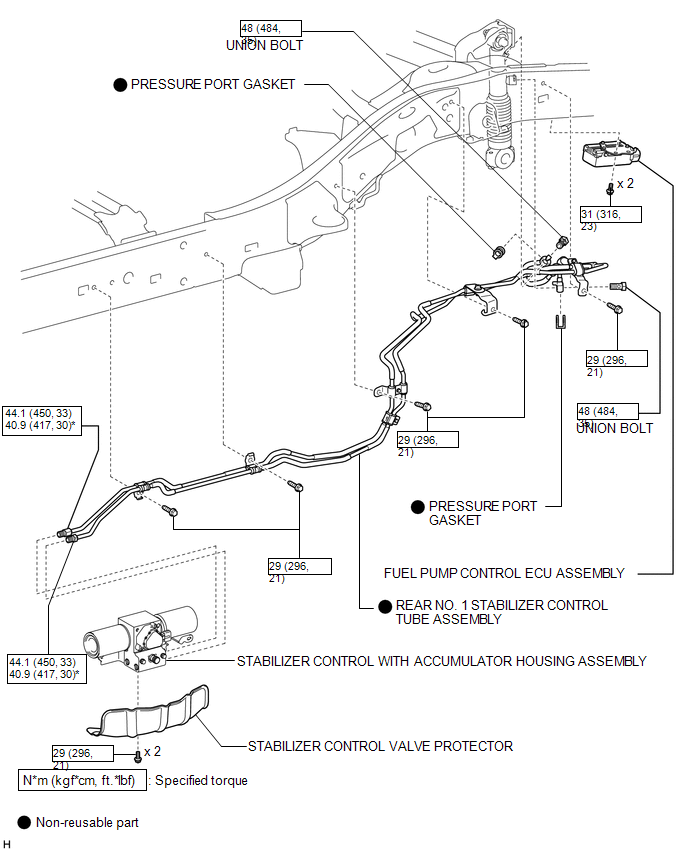

Fig 3: Stabilizer Control Tube Replacement Components With Torque Specifications (3 Of 5) [08/2015 - ]
GTY661668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

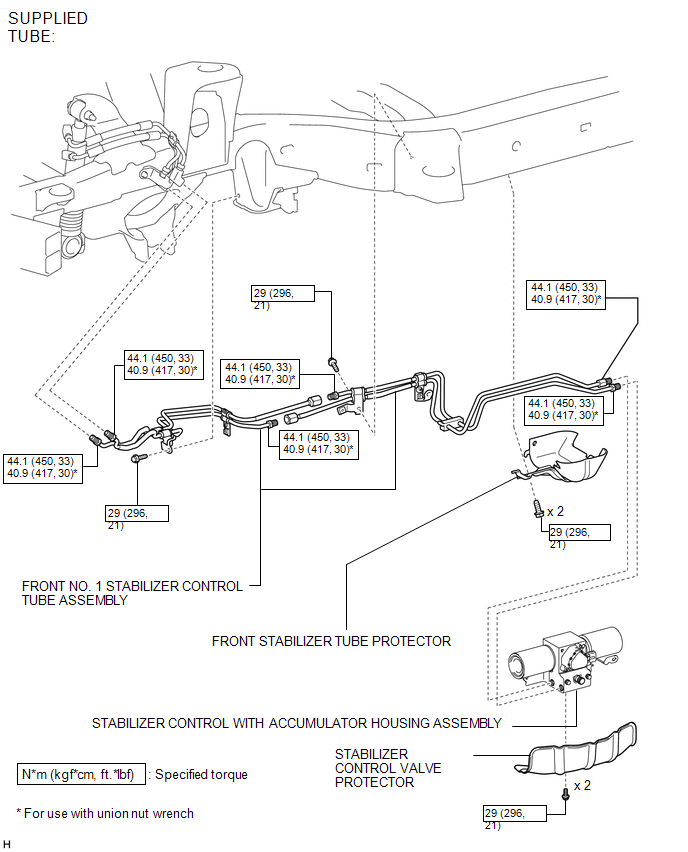

Fig 4: Stabilizer Control Tube Replacement Components With Torque Specifications (4 Of 5) [08/2015 - ]
GTY614180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

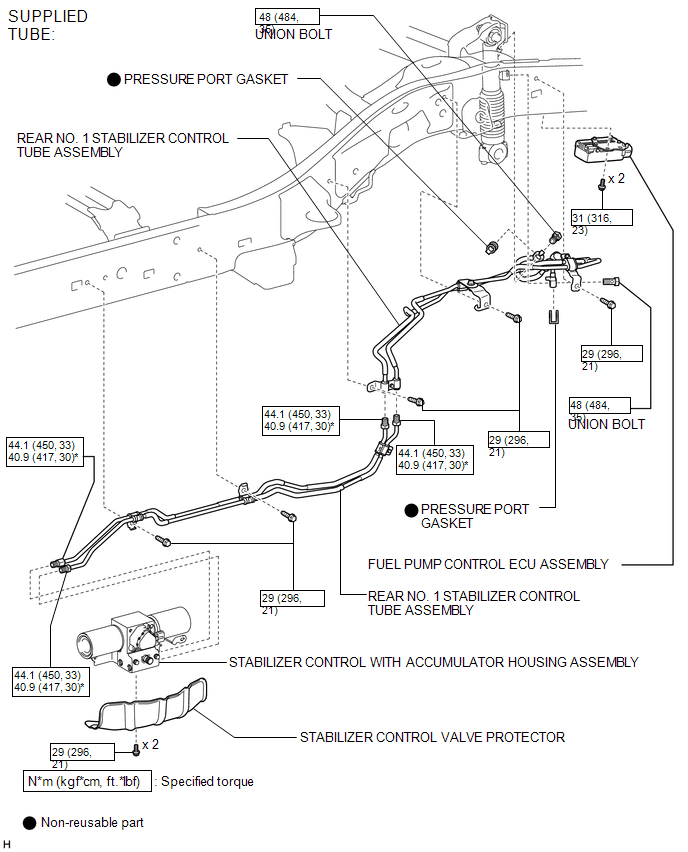

Fig 5: Stabilizer Control Tube Replacement Components With Torque Specifications (5 Of 5) [08/2015 - ]
GTY622785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
