Components [08/2015 - ]

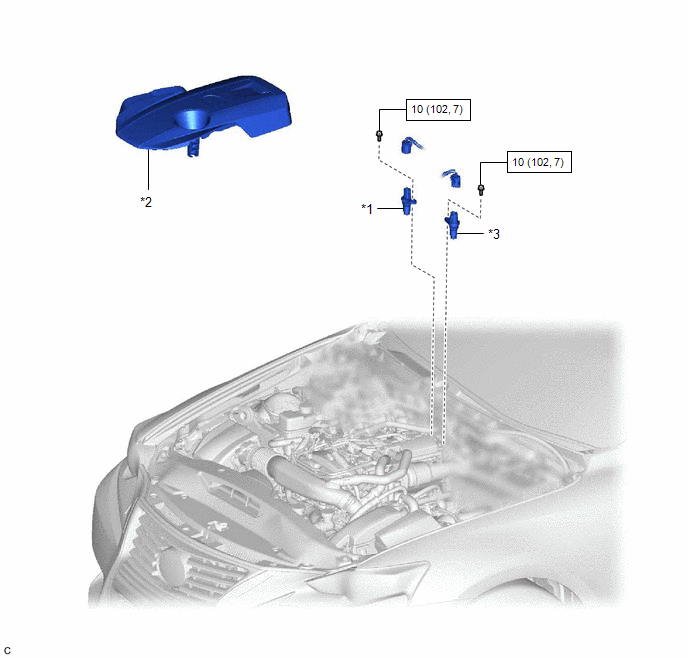

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY646678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAMSHAFT POSITION SENSOR (for Intake Side) *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 CAMSHAFT POSITION SENSOR (for Exhaust Side) - -
N.m (kgf/cm, ft.lbf): Specified torque - -
