Components [04/2013 - ]

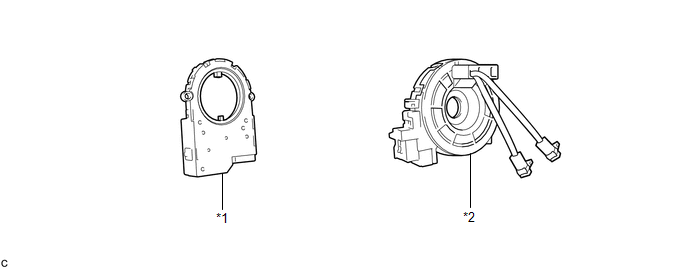

Fig 1: Steering Angle Sensor Replacement Components
GTY429505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 STEERING SENSOR *2 SPIRAL CABLE SUB-ASSEMBLY
